circular_form.cpp

demonstrates the use of xtd::forms::control::region property for create a circular form.

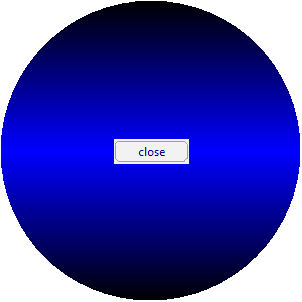

Windows

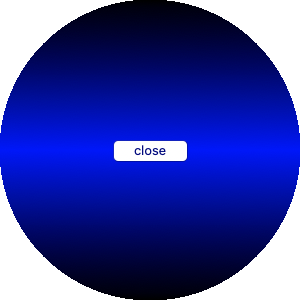

macOS

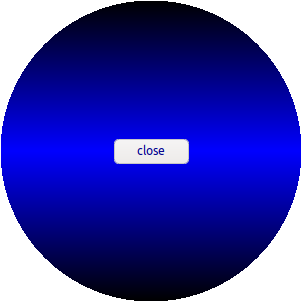

Gnome

#include <xtd/drawing/drawing_2d/linear_gradient_brush>
#include <xtd/forms/application>
#include <xtd/forms/button>
#include <xtd/forms/form>
#include <xtd/startup>
using namespace xtd;
using namespace xtd::drawing;
using namespace xtd::drawing::drawing_2d;
using namespace xtd::forms;
class form_main : public form {
public:
static auto main() {
application::run(form_main());
}
form_main() {
client_size({300, 300});
// Create a circular region for the form
path.add_ellipse(client_rectangle());
paint += [&](object& sender, paint_event_args& e) {
e.graphics().fill_rectangle(linear_gradient_brush(e.clip_rectangle(), {color::black, color::blue, color::black}, 90), e.clip_rectangle());
};
mouse_down += [&](object & sender, const mouse_event_args & e) {
mouse_location = e.location();
cursor(cursors::no_move_2d());
};
mouse_up += [&](object & sender, const mouse_event_args & e) {
mouse_location = point::empty;
cursor(cursors::default_cursor());
};
mouse_move += [&](object & sender, const mouse_event_args & e) {
if (mouse_location != point::empty) location(location() + e.location() - mouse_location);
};
close_button.parent(*this);
close_button.location({client_size().width() / 2 - close_button.width() / 2, client_size().height() / 2 - close_button.height() / 2});
close_button.back_color(color::from_argb(32, color::white));
close_button.fore_color(color::dark_blue);
close_button.text("close");
close_button.click += [&] {
close();
};
}
private:
button close_button;
point mouse_location = point::empty;
};
startup_(form_main::main);
