xtd - Reference Guide  0.2.0
Modern c++17/20 framework to create console, GUI and unit test applications on Windows, macOS, Linux, iOS and android.
cursors.cpp

The following code example demonstrate the use of cursors component.

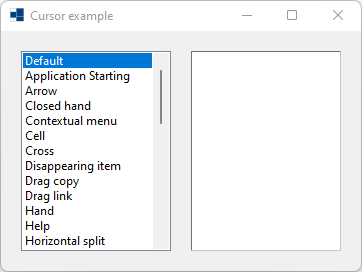

Windows

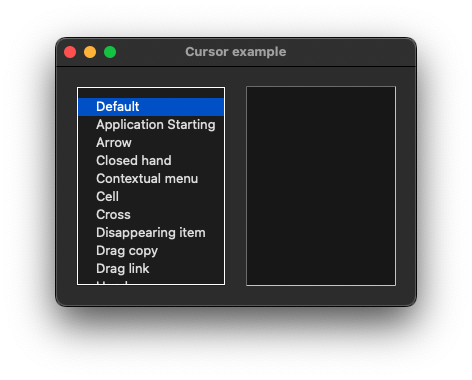

macOS

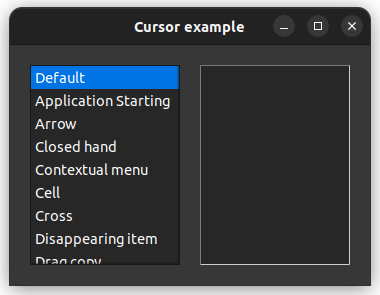

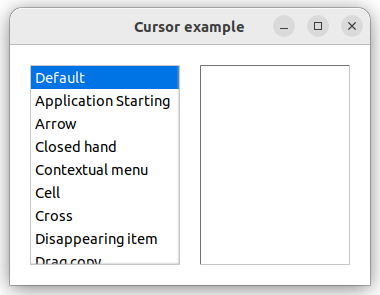

Gnome

#include <xtd/xtd>
using namespace std;
using namespace xtd;
using namespace xtd::forms;
class form1 : public form {
public:
form1() {
text("Cursor example");
start_position(form_start_position::manual);
location({200, 200});
client_size({360, 240});
list_box_cursors.parent(*this);
list_box_cursors.anchor(anchor_styles::top | anchor_styles::left | anchor_styles::bottom);
list_box_cursors.bounds({20, 20, 150, 200});
list_box_cursors.items().push_back_range({{"Default", cursors::default_cursor()}, {"Application Starting", cursors::app_starting()}, {"Arrow", cursors::arrow()}, {"Closed hand", cursors::closed_hand()}, {"Contextual menu", cursors::contextual_menu()}, {"Cell", cursors::cell()}, {"Cross", cursors::cross()}, {"Disappearing item", cursors::disappearing_item()}, {"Drag copy", cursors::drag_copy()}, {"Drag link", cursors::drag_link()}, {"Hand", cursors::hand()}, {"Help", cursors::help()}, {"Horizontal split", cursors::hsplit()}, {"I beam", cursors::ibeam()}, {"No", cursors::no()}, {"No drag", cursors::no_drag()}, {"No move 2d", cursors::no_move_2d()}, {"No move horizontal", cursors::no_move_horiz()}, {"No move vertical", cursors::no_move_vert()}, {"Open hand", cursors::open_hand()}, {"Pan east", cursors::pan_east()}, {"Pan north east", cursors::pan_ne()}, {"Pan north", cursors::pan_north()}, {"Pan north west", cursors::pan_nw()}, {"Pan south east", cursors::pan_se()}, {"Pan south", cursors::pan_south()}, {"Pan south west", cursors::pan_sw()}, {"Pan West", cursors::pan_west()}, {"Size all", cursors::size_all()}, {"Size north-east south-west", cursors::size_nesw()}, {"Size north south", cursors::size_ns()}, {"Size north-west south-east", cursors::size_nwse()}, {"Size west east", cursors::size_we()}, {"Up arrow", cursors::up_arrow()}, {"Vertical I beam", cursors::vibeam()}, {"Vertical split", cursors::vsplit()}, {"Wait", cursors::wait_cursor()}, {"Zoom in", cursors::zoom_in()}, {"Zoom out", cursors::zoom_out()}});
list_box_cursors.selected_index_changed += [&] {
test_zone.cursor(any_cast<forms::cursor>(list_box_cursors.selected_item().tag()));
};
list_box_cursors.selected_item("Default");
test_zone.parent(*this);
test_zone.anchor(anchor_styles::top | anchor_styles::left | anchor_styles::bottom | anchor_styles::right);
test_zone.border_style(border_style::fixed_3d);
test_zone.back_color(drawing::system_colors::window());
test_zone.bounds({190, 20, 150, 200});
}
private:
list_box list_box_cursors;
panel test_zone;
};
int main() {
application::run(form1());
}
