xtd - Reference Guide  0.2.0
Modern c++17/20 framework to create console, GUI and unit test applications on Windows, macOS, Linux, iOS and android.
main_menu.cpp

The following code example demonstrates the use of main_menu control.

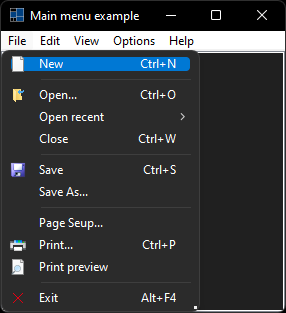

Windows

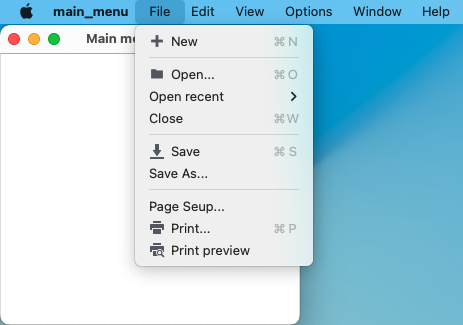

macOS

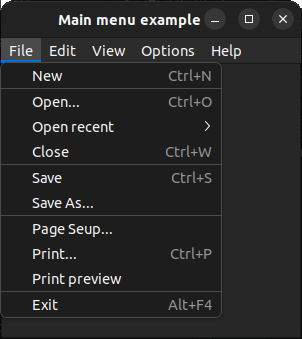

Gnome

#include <xtd/xtd>
using namespace xtd;
using namespace xtd::forms;
namespace examples {
class form1 : public form {
public:
form1() {
text("Main menu example");
menu(main_menu1);
list_box1.parent(*this);
list_box1.dock(dock_style::fill);
}
protected:
void on_form_closing(form_closing_event_args& e) override {
e.cancel(message_box::show(*this, "Are you sure you want exit?", "Close Form", message_box_buttons::yes_no, message_box_icon::question) == dialog_result::no);
};
private:
void on_menu_click(object& sender, const event_args& e) {
list_box1.items().push_back(ustring::format("{} clicked", as<menu_item>(sender).text()));
list_box1.selected_index(list_box1.items().size() - 1);
if (file_exit_menu_item == sender) application::exit();
}
menu_item file_open_recent_file1_menu_item {"Path/File1", {*this, &form1::on_menu_click}};
menu_item file_open_recent_file2_menu_item {"Path/File2", {*this, &form1::on_menu_click}};
menu_item file_open_recent_file3_menu_item {"Path/File3", {*this, &form1::on_menu_click}};
menu_item file_open_recent_file4_menu_item {"Path/File4", {*this, &form1::on_menu_click}};
menu_item file_new_menu_item {system_texts::new_(), {*this, &form1::on_menu_click}, menu_images::file_new(), shortcut::cmd_n};
menu_item file_separator1_menu_item {"-"};
menu_item file_open_menu_item {system_texts::open(), {*this, &form1::on_menu_click}, menu_images::file_open(), shortcut::cmd_o};
menu_item file_open_recent_menu_item {"Open recent", {file_open_recent_file1_menu_item, file_open_recent_file2_menu_item, file_open_recent_file3_menu_item, file_open_recent_file4_menu_item}};
menu_item file_close_menu_item {system_texts::close(), {*this, &form1::on_menu_click}, shortcut::cmd_w};
menu_item file_separator2_menu_item {"-"};
menu_item file_save_menu_item {system_texts::save(), {*this, &form1::on_menu_click}, menu_images::file_save(), shortcut::cmd_s};
menu_item file_save_as_menu_item {system_texts::save_as(), {*this, &form1::on_menu_click}};
menu_item file_separator3_menu_item {"-"};
menu_item file_page_setup_menu_item {"Page &Seup...", {*this, &form1::on_menu_click}};
menu_item file_print_menu_item {system_texts::print(), {*this, &form1::on_menu_click}, menu_images::file_print(), shortcut::cmd_p};
menu_item file_print_preview_menu_item {system_texts::print_preview(), {*this, &form1::on_menu_click}, menu_images::file_print_preview()};
menu_item file_separator4_menu_item {"-"};
menu_item file_exit_menu_item {system_texts::exit(), {*this, &form1::on_menu_click}, menu_images::file_exit(), shortcut::alt_f4};
menu_item edit_undo_menu_item {system_texts::undo(), {*this, &form1::on_menu_click}, menu_images::edit_undo(), shortcut::cmd_z};
menu_item edit_redo_menu_item {system_texts::redo(), {*this, &form1::on_menu_click}, menu_images::edit_redo(), shortcut::cmd_shift_z};
menu_item edit_separator1_menu_item {"-"};
menu_item edit_cut_menu_item {system_texts::cut(), {*this, &form1::on_menu_click}, menu_images::edit_cut(), shortcut::cmd_x};
menu_item edit_copy_menu_item {system_texts::copy(), {*this, &form1::on_menu_click}, menu_images::edit_copy(), shortcut::cmd_c};
menu_item edit_paste_menu_item {system_texts::paste(), {*this, &form1::on_menu_click}, menu_images::edit_paste(), shortcut::cmd_v};
menu_item edit_separator2_menu_item {"-"};
menu_item edit_select_all_menu_item {system_texts::select_all(), {*this, &form1::on_menu_click}, shortcut::cmd_a};
menu_item edit_separator3_menu_item {"-"};
menu_item edit_options_menu_item {system_texts::options(), {*this, &form1::on_menu_click}};
menu_item view_back_menu_item {system_texts::back(), {*this, &form1::on_menu_click}, menu_images::view_back()};
menu_item view_forward_menu_item {system_texts::forward(), {*this, &form1::on_menu_click}, menu_images::view_forward()};
menu_item view_separator1_menu_item {"-"};
menu_item view_show_menu_item {"Show", {*this, &form1::on_menu_click}};
menu_item view_hide_menu_item {"Hide", {*this, &form1::on_menu_click}};
menu_item options_value_a_menu_item {"Value A", {*this, &form1::on_menu_click}, menu_item_kind::check, true, shortcut::alt_1};
menu_item options_value_b_menu_item {"Value B", {*this, &form1::on_menu_click}, menu_item_kind::check, shortcut::alt_2};
menu_item options_value_c_menu_item {"Value C", {*this, &form1::on_menu_click}, menu_item_kind::check, true, shortcut::alt_3};
menu_item options_separator1_menu_item {"-"};
menu_item options_value_d_menu_item {"Value D", {*this, &form1::on_menu_click}, menu_item_kind::radio, static_cast<shortcut>(keys::alt | keys::d)};
menu_item options_value_e_menu_item {"Value E", {*this, &form1::on_menu_click}, menu_item_kind::radio, true, static_cast<shortcut>(keys::alt | keys::e)};
menu_item options_value_f_menu_item {"Value F", {*this, &form1::on_menu_click}, menu_item_kind::radio, static_cast<shortcut>(keys::alt | keys::f)};
menu_item options_separator2_menu_item {"-"};
menu_item options_value_g_menu_item {"Value G", {*this, &form1::on_menu_click}, menu_item_kind::radio, static_cast<shortcut>(keys::alt | keys::shift | keys::left)};
menu_item options_value_h_menu_item {"Value H", {*this, &form1::on_menu_click}, menu_item_kind::radio};
menu_item options_value_i_menu_item {"Value I", {*this, &form1::on_menu_click}, menu_item_kind::radio};
menu_item help_about_menu_item {system_texts::about(), {*this, &form1::on_menu_click}};
menu_item file_menu_item {system_texts::file(), {file_new_menu_item, file_separator1_menu_item, file_open_menu_item, file_open_recent_menu_item, file_close_menu_item, file_separator2_menu_item, file_save_menu_item, file_save_as_menu_item, file_separator3_menu_item, file_page_setup_menu_item, file_print_menu_item, file_print_preview_menu_item, file_separator4_menu_item, file_exit_menu_item}};
menu_item edit_menu_item {system_texts::edit(), {edit_undo_menu_item, edit_redo_menu_item, edit_separator1_menu_item, edit_cut_menu_item, edit_copy_menu_item, edit_paste_menu_item, edit_separator2_menu_item, edit_select_all_menu_item, edit_separator3_menu_item, edit_options_menu_item}};
menu_item view_menu_item {system_texts::view(), {view_back_menu_item, view_forward_menu_item, view_separator1_menu_item, view_show_menu_item, view_hide_menu_item}};
menu_item options_menu_item {system_texts::options(), {options_value_a_menu_item, options_value_b_menu_item, options_value_c_menu_item, options_separator1_menu_item, options_value_d_menu_item, options_value_e_menu_item, options_value_f_menu_item, options_separator2_menu_item, options_value_g_menu_item, options_value_h_menu_item, options_value_i_menu_item}};
menu_item help_menu_item {system_texts::help(), {help_about_menu_item}};
main_menu main_menu1 {file_menu_item, edit_menu_item, view_menu_item, options_menu_item, help_menu_item};
list_box list_box1;
};
}
int main() {
application::run(examples::form1());
}
