gridInterp is a header only c++ library that interpolates gridded formatted data.
If your data are organized in rows, columns and layers then gridInterp can be used to interpolate between the data.

IMPORTANT NOTE:
The library is designed to be used up to 3D.

Install

There is really nothing to install.
All you need is to clone the repository

git clone https://github.com/giorgk/gridInterp.git

To use the library just add the following include in your code and you are good to go.

#include "gridInterp.h"

Feel free to copy the entire gridInterp.h file under your source of the project. However there is a better way to embed the library into the code using cmake.
Before the ADD_EXECUTABLE command add the following line into your CMakeLists.txt file

INCLUDE_DIRECTORIES(${GRID_INTERP})

Then during configuration pass the variable GRID_INTERP as

cmake -DGRID_INTERP=path/to/gridinterp

How to use

All the methods and classes are defined into the GRID_INTERP namespace. The main class is the GRID_INTERP::interp

One can defined 1-2-3D interpolation objects as follows:

GRID_INTERP::interp<1> oneD;
GRID_INTERP::interp<2> twoD;
GRID_INTERP::interp<3> threeD;

These are empty containers. You can populate the with data using the related methods.

In all dimensions the workflow is the same.

If the data are written into files then the method GRID_INTERP::interp::getDataFromFile can be used to populate the object with data.

To populate the data using code, first initialize the object

GRID_INTERP::interp<2> twoDinterp;

Then use either

GRID_INTERP::interp<dim>::setAxis(int idim, double origin_in, double dx_in, int n)

for evenly spaced data or

GRID_INTERP::interp<dim>::setAxis(int idim, std::vector<double> &x_in)

for variably spaced data. Repeat the above code for each axis.

Next we can set data values using the method

GRID_INTERP::interp<dim>::setValues(int l, int r, int c, double v_in)

Last we can set the interpolation method using

GRID_INTERP::interp<dim>::setMethod(METHOD method_in)

The object is ready to be used for interpolation using the

GRID_INTERP::interp<dim>::interpolate(double x, double y = 0, double z = 0)

method e.g:

twoDinterp.interpolate(30,5);

Examples

Under the main folder of the repository there is a folder Rgridinterp with an R script with examples on how to prepare the data using R. The script PrepateInputFiles.R creates the input files that are used in the tests.h file.

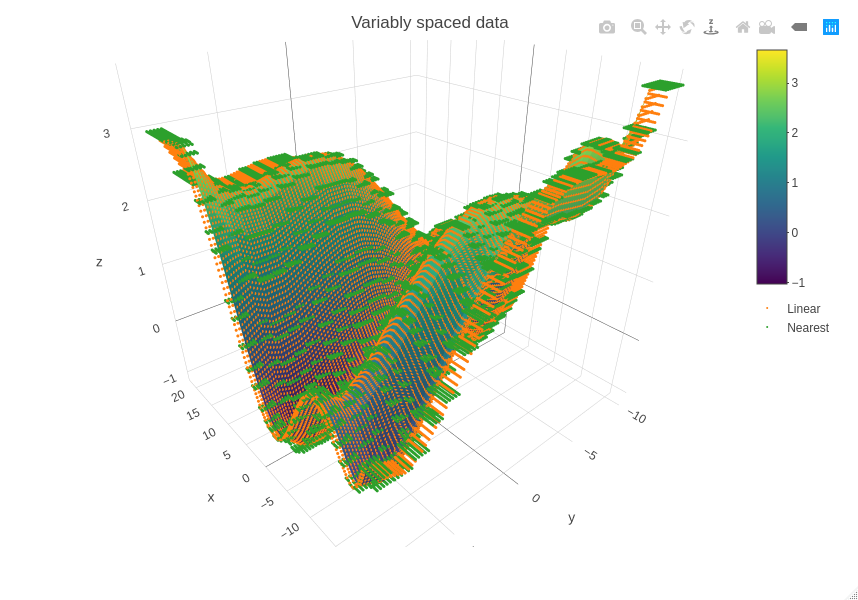

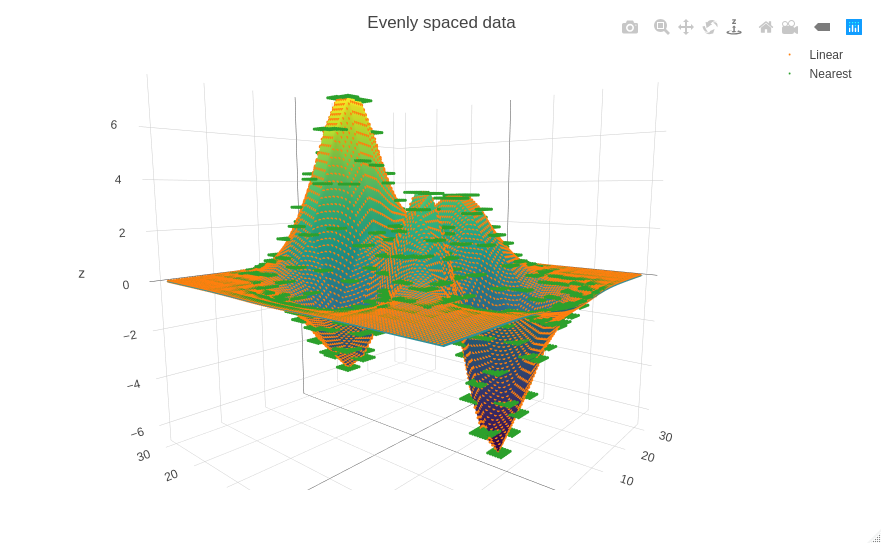

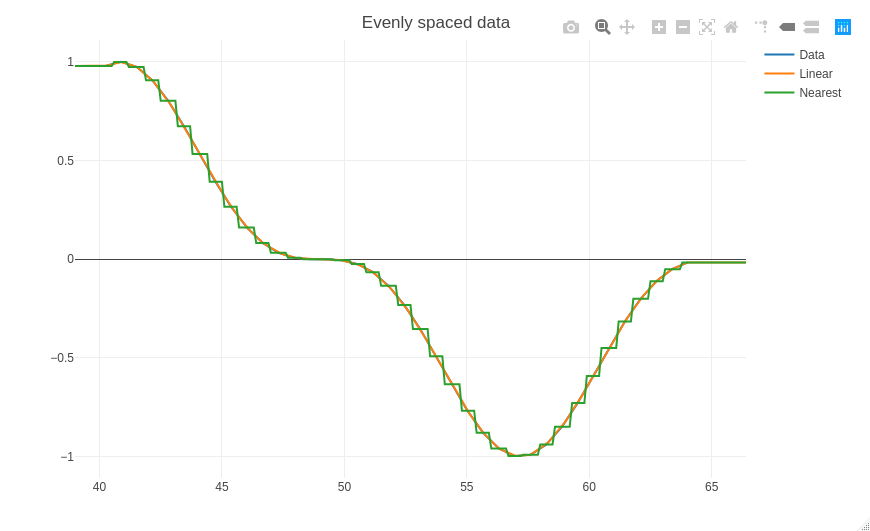

This examples generate the following test figures:

Interpolation types

The library offers 2 interpolation modes and 2 interpolation methods

Interpolation methods

Linear interpolates linearly between the values.
Nearest returns the value of the nearest coordinate.

Layer interpolation (Not yet available)

This interpolation type is implemented for 3D only. In groundwater modelling it is common to have layers with varying elevation.

Documentation

Detail documentation can be found here

How to configure VSCODE for Simple C++

I hope the following link wont break soon. https://code.visualstudio.com/docs/cpp/config-linux
