NPL Runtime Environment interface. More...

#include <INPLRuntime.h>

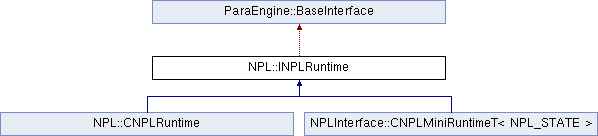

Inheritance diagram for NPL::INPLRuntime:

Public Member Functions
virtual void	Init ()=0
	initialize NPL runtime environment

virtual void	Run (bool bToEnd=true)=0
	call this function regularly in the main game thread to process packages. More...

virtual void	Cleanup ()=0
	clean up the NPL runtime environment

virtual void	SetHostMainStatesInFrameMove (bool bHostMainStatesInFrameMove)=0
	whether we will process messages in the main threads in the frame move function. More...

virtual INPLRuntimeState *	CreateState (const char *name, NPLRuntimeStateType type_=NPLRuntimeStateType_NPL)=0
	create a new runtime state. More...

virtual INPLRuntimeState *	GetState (const char *name=NULL)=0
	get a runtime state with an explicit name. More...

virtual INPLRuntimeState *	CreateGetState (const char *name, NPLRuntimeStateType type_=NPLRuntimeStateType_NPL)=0
	it get runtime state first, if none exist, it will create one and add it to the main threaded state

virtual bool	DeleteState (INPLRuntimeState *pRuntime_state)=0
	create a given runtime state. More...

virtual INPLRuntimeState *	GetMainState ()=0
	get the default (main) runtime state. More...

virtual bool	AddToMainThread (INPLRuntimeState *runtime_state)=0
	add a given runtime state to the main game thread. More...

virtual void	SetUseCompression (bool bCompressIncoming, bool bCompressOutgoing)=0
	whether to use compression on transport layer for incoming and outgoing connections More...

virtual void	SetCompressionKey (const byte *sKey=0, int nSize=0, int nUsePlainTextEncoding=0)=0
	set the compression method of incoming the outgoing messages. More...

virtual void	SetCompressionLevel (int nLevel)=0
	Set the zlib compression level to use in case compresssion is enabled. More...

virtual int	GetCompressionLevel ()=0

virtual void	SetCompressionThreshold (int nThreshold)=0
	set the default compression threshold for all connections on this machine. More...

virtual int	GetCompressionThreshold ()=0

virtual void	SetTCPKeepAlive (bool bEnable)=0
	System level Enable/disable SO_KEEPALIVE. More...

virtual bool	IsTCPKeepAliveEnabled ()=0
	whether SO_KEEPALIVE is enabled. More...

virtual void	SetKeepAlive (bool bEnable)=0
	enable application level keep alive. More...

virtual bool	IsKeepAliveEnabled ()=0

virtual void	EnableIdleTimeout (bool bEnable)=0
	Enable idle timeout. More...

virtual bool	IsIdleTimeoutEnabled ()=0

virtual void	SetIdleTimeoutPeriod (int nMilliseconds)=0
	how many milliseconds of inactivity to assume this connection should be timed out. More...

virtual int	GetIdleTimeoutPeriod ()=0

virtual void	StartNetServer (const char server=NULL, const char port=NULL)=0
	start the NPL net server's io_service loop. More...

virtual void	StopNetServer ()=0
	stop the net server

virtual void	AddPublicFile (const std::string &filename, int nID)=0
	add a nID, filename pair to the public file list. More...

virtual void	ClearPublicFiles ()=0
	clear all public files, so that the NPL server will be completely private. More...

virtual void	GetIP (const char nid, char pOutput)=0
	get the ip address of given NPL connection. More...

virtual void	accept (const char tid, const char nid=NULL)=0
	accept a given connection. More...

virtual void	reject (const char *nid, int nReason=0)=0
	reject and close a given connection. More...

virtual ParaEngine::INPLJabberClient *	GetJabberClient (const char *sJID)=0
	get an existing jabber client instance interface by its JID. More...

virtual ParaEngine::INPLJabberClient *	CreateJabberClient (const char *sJID)=0
	Create a new jabber client instance with the given jabber client ID. More...

virtual bool	CloseJabberClient (const char *sJID)=0
	close a given jabber client instance. More...

virtual bool	AppendURLRequest (ParaEngine::CURLRequestTask pUrlTask, const char sPoolName=NULL)=0
	Append URL request to a pool. More...

virtual bool	ChangeRequestPoolSize (const char *sPoolName, int nCount)=0
	There is generally no limit to the number of requests sent. More...

virtual void	AsyncDownload (const char url, const char destFolder, const char callbackScript, const char DownloaderName)=0
	Asynchronously download a file from the url. More...

virtual void	CancelDownload (const char *DownloaderName)=0
	cancel all asynchronous downloads that matches a certain downloader name pattern More...

virtual int	Download (const char url, const char destFolder, const char callbackScript, const char DownloaderName)=0
	Synchronous call of the function AsyncDownload(). More...

virtual void	NPL_AddDNSRecord (const char sDNSName, const char sAddress)=0
	add a DNS server record to the current NPL runtime. More...

virtual void	NPL_SetDefaultChannel (int channel_ID)=0
	Set the default channel ID, default value is 0. More...

virtual int	NPL_GetDefaultChannel ()=0
	Get the default channel ID, default value is 0. More...

virtual void	NPL_SetChannelProperty (int channel_ID, int priority, int reliability)=0
	Messages can be sent via predefined channels. More...

virtual void	NPL_ResetChannelProperties ()=0
	reset all 16 predefined channel properties. More...

virtual void	NPL_GetChannelProperty (int channel_ID, int priority, int reliability)=0
	see also NPL_SetChannelProperty More...

virtual int	Activate (INPLRuntimeState pRuntimeState, const char sNeuronFile, const char *code=NULL, int nLength=0, int channel=0, int priority=2, int reliability=3)=0
	activate the specified file. More...

Detailed Description

NPL Runtime Environment interface.

NPL runtime hosts multiple NPLRuntimeStates. Each NPLRuntimeState usually runs in a separate thread Multiple languages, like C++, NPL, .Net can be used to program inside a NPL runtime state. A NPLRuntimeState runs scripts by dynamically load INPLScriptingState(script VM) according to file extension. One can implement new language extension by implementing the INPLScriptingState interface. C++ dll file is natively supported and do not use the INPLRuntimeState interface.

There is a special NPL state called (main) state, which can be configured to run in the main thread or in a separate thread like other normal states.

Member Function Documentation

§ accept()

virtual void NPL::INPLRuntime::accept	(	const char *	tid,
		const char *	nid = `NULL`
	)

pure virtual

accept a given connection.

The connection will be regarded as authenticated once accepted. [thread safe]

Parameters

tid	the temporary id or NID of the connection to be accepted. usually it is from msg.tid or msg.nid.
nid	if this is not nil, tid will be renamed to nid after accepted.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ Activate()

virtual int NPL::INPLRuntime::Activate	(	INPLRuntimeState *	pRuntimeState,
		const char *	sNeuronFile,
		const char *	code = `NULL`,
		int	nLength = `0`,
		int	channel = `0`,
		int	priority = `2`,
		int	reliability = `3`
	)

pure virtual

activate the specified file.

It can either be local or remote file. [thread safe] This function is thread safe, if and only if pRuntimeState is still valid

Parameters

pRuntimeState	the source runtime state that initiated this activation. If pState is NULL, the main runtime state is used.
sNPLFileName	a globally unique name of a NPL file name instance. The string format of an NPL file name is like below. [(sRuntimeStateName\|gl)][sNID:]sRelativePath[]

the following is a list of all valid file name combinations: "user001@paraengine.com:script/hello.lua" – a file of user001 in its default gaming thread "(world1)server001@paraengine.com:script/hello.lua" – a file of server001 in its thread world1 "(worker1)script/hello.lua" – a local file in the thread worker1 "(gl)script/hello.lua" – a glia (local) file in the current runtime state's thread "script/hello.lua" – a file in the current thread. For a single threaded application, this is usually enough.

Parameters

code	it is a chunk of pure data table init code that would be transmitted to the destination file.
nLength	the code length. if this is 0, length is determined from code by finding '\0', but, it must not exceed 4096 bytes. If length is explicitly specified, there is no such a limit.
channel:On	which channel to send the package. It can be a number in [0,15]. In case it is nil, the default channel (0) is used.
priority	From high to low.If this is nil, medium priority(0) is used. following enumerations are used to describe when packets are delivered. enum PacketPriority { SYSTEM_PRIORITY, /// internally Used to send above-high priority messages. HIGH_PRIORITY, /// High priority messages are send before medium priority messages. MEDIUM_PRIORITY, /// Medium priority messages are send before low priority messages. LOW_PRIORITY, /// Low priority messages are only sent when no other messages are waiting. };
reliability:From	unreliable to reliable sequenced. 0 stands for unreliable. If this is nil, RELIABLE_ORDERED(3) is used. following enumerations are used to describe how packets are delivered. enum PacketReliability { UNRELIABLE, /// Same as regular UDP, except that it will also discard duplicate datagrams. It adds (6 to 17) + 21 bits of overhead, 16 of which is used to detect duplicate packets and 6 to 17 of which is used for message length. UNRELIABLE_SEQUENCED, /// Regular UDP with a sequence counter. Out of order messages will be discarded. This adds an additional 13 bits on top what is used for UNRELIABLE. RELIABLE, /// The message is sent reliably, but not necessarily in any order. Same overhead as UNRELIABLE. RELIABLE_ORDERED, /// This message is reliable and will arrive in the order you sent it. Messages will be delayed while waiting for out of order messages. Same overhead as UNRELIABLE_SEQUENCED. RELIABLE_SEQUENCED /// This message is reliable and will arrive in the sequence you sent it. Out or order messages will be dropped. Same overhead as UNRELIABLE_SEQUENCED. };

Note: : pure data table is defined as table consisting of only string, number and other table of the above type. NPL.activate function also accepts ParaFileObject typed message data type. ParaFileObject will be converted to base64 string upon transmission. There are size limit though of 10MB. one can also programmatically check whether a script object is pure date by calling NPL.SerializeToSCode() function. Please note that data types that is not pure data in sCode will be ignored instead of reporting an error.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ AddPublicFile()

virtual void NPL::INPLRuntime::AddPublicFile	(	const std::string &	filename,
		int	nID
	)

pure virtual

add a nID, filename pair to the public file list.

we only allow remote NPL runtime to activate files in the public file list. Each public file has a user defined ID. The NPL network layer always try to use its ID for transmission to minimize bandwidth. There are some negotiations between sender and receiver to sync the string to ID map before they use it. [thread safe]

Parameters

nID	the integer to encode the string. it is usually small and positive number.
sString	the string for the id. if input is empty, it means removing the mapping of nID.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >.

§ AddToMainThread()

virtual bool NPL::INPLRuntime::AddToMainThread ( INPLRuntimeState * runtime_state )

pure virtual

add a given runtime state to the main game thread.

this function is thread safe

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ AppendURLRequest()

virtual bool NPL::INPLRuntime::AppendURLRequest	(	ParaEngine::CURLRequestTask *	pUrlTask,
		const char *	sPoolName = `NULL`
	)

pure virtual

Append URL request to a pool.

Parameters

pUrlTask	must be new CURLRequestTask(), the ownership of the task is transfered to the manager. so the caller should never delete the pointer.
sPoolName	the request pool name. If the pool does not exist, it will be created. If null, the default pool is used.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ AsyncDownload()

virtual void NPL::INPLRuntime::AsyncDownload	(	const char *	url,
		const char *	destFolder,
		const char *	callbackScript,
		const char *	DownloaderName
	)

pure virtual

Asynchronously download a file from the url.

Parameters

callbackScript script code to be called, a global variable called msg is assigned, as below msg = {DownloadState=""|"complete"|"terminated", totalFileSize=number, currentFileSize=number, PercentDone=number}

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ CancelDownload()

virtual void NPL::INPLRuntime::CancelDownload ( const char * DownloaderName )

pure virtual

cancel all asynchronous downloads that matches a certain downloader name pattern

Parameters

DownloaderName:regular expression. such as "proc1", "proc1.*", ".*"

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ ChangeRequestPoolSize()

virtual bool NPL::INPLRuntime::ChangeRequestPoolSize	(	const char *	sPoolName,
		int	nCount
	)

pure virtual

There is generally no limit to the number of requests sent.

However, each pool has a specified maximum number of concurrent worker slots. the default number is 1. One can change this number with this function.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ ClearPublicFiles()

virtual void NPL::INPLRuntime::ClearPublicFiles ( )

pure virtual

clear all public files, so that the NPL server will be completely private.

[thread safe]

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ CloseJabberClient()

virtual bool NPL::INPLRuntime::CloseJabberClient ( const char * sJID )

pure virtual

close a given jabber client instance.

Basically, there is no need to close a web service, unless one wants to reopen it with different credentials

Parameters

sJID	such as "lixizhi@paraweb3d.com"

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ CreateJabberClient()

virtual ParaEngine::INPLJabberClient* NPL::INPLRuntime::CreateJabberClient ( const char * sJID )

pure virtual

Create a new jabber client instance with the given jabber client ID.

It does not open a connection immediately.

Parameters

sJID	such as "lixizhi@paraweb3d.com"

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ CreateState()

virtual INPLRuntimeState* NPL::INPLRuntime::CreateState	(	const char *	name,
		NPLRuntimeStateType	type_ = `NPLRuntimeStateType_NPL`
	)

pure virtual

create a new runtime state.

this function is thread safe

Parameters

name	if "", it is an anonymous runtime state. otherwise it should be a unique name.
type_	the runtime state type.

Returns: the newly created state is returned. If an runtime state with the same non-empty name already exist, the old one is returned.

Implemented in NPL::CNPLRuntime.

§ DeleteState()

virtual bool NPL::INPLRuntime::DeleteState ( INPLRuntimeState * pRuntime_state )

pure virtual

create a given runtime state.

this function is thread safe

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ Download()

virtual int NPL::INPLRuntime::Download	(	const char *	url,
		const char *	destFolder,
		const char *	callbackScript,
		const char *	DownloaderName
	)

pure virtual

Synchronous call of the function AsyncDownload().

This function will not return until download is complete or an error occurs. this function is rarely used. AsyncDownload() is used.

Returns: :1 if succeed, 0 if fail

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ EnableIdleTimeout()

virtual void NPL::INPLRuntime::EnableIdleTimeout ( bool bEnable )

pure virtual

Enable idle timeout.

This is the application level timeout setting. We will create a global timer which examines all send/receive time of all open connections, if a connection is inactive (idle for GetIdleTimeoutPeriod()) we will

if IsKeepAliveEnabled() is false, actively close the connection. This is the method used by HTTP, which is the only solution to detect broken connection without sending additional keep alive message.
if IsKeepAliveEnabled() is true, send an empty message to the other end (keep alive messages) to more accurately detect dead connections (see SetKeepAlive).

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ GetIP()

virtual void NPL::INPLRuntime::GetIP	(	const char *	nid,
		char *	pOutput
	)

pure virtual

get the ip address of given NPL connection.

this function is usually called by the server for connected clients.

Parameters

nid	nid or tid.
pOutPut	it must be at least [256] bytes big, that receives the output.

Returns: : the ip address in dot format. empty string is returned if connection can not be found.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ GetJabberClient()

virtual ParaEngine::INPLJabberClient* NPL::INPLRuntime::GetJabberClient ( const char * sJID )

pure virtual

get an existing jabber client instance interface by its JID.

If the client is not created using CreateJabberClient() before, function may return NULL.

Parameters

sJID	such as "lixizhi@paraweb3d.com"

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ GetMainState()

virtual INPLRuntimeState* NPL::INPLRuntime::GetMainState ( )

pure virtual

get the default (main) runtime state.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ GetState()

virtual INPLRuntimeState* NPL::INPLRuntime::GetState ( const char * name = NULL )

pure virtual

get a runtime state with an explicit name.

this function is thread safe

Parameters

name	the name of the runtime state. if NULL or "main", the main runtime state is returned.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ IsTCPKeepAliveEnabled()

virtual bool NPL::INPLRuntime::IsTCPKeepAliveEnabled ( )

pure virtual

whether SO_KEEPALIVE is enabled.

Returns: bEnable: true to enable.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ NPL_AddDNSRecord()

virtual void NPL::INPLRuntime::NPL_AddDNSRecord	(	const char *	sDNSName,
		const char *	sAddress
	)

pure virtual

add a DNS server record to the current NPL runtime.

DNS server record is a mapping from name to (IP:port) if one maps several IP:port to the same name, the former ones will be overridden.

Parameters

sDNSName	the DNS server name. the DNS name "_world" is used for the current world DNS server. It is commonly used as a DNS reference to the current world that the user is exploring.
sAddress	"IP:port". e.g. "192.168.1.10:4000"

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ NPL_GetChannelProperty()

virtual void NPL::INPLRuntime::NPL_GetChannelProperty	(	int	channel_ID,
		int *	priority,
		int *	reliability
	)

pure virtual

§ NPL_GetDefaultChannel()

virtual int NPL::INPLRuntime::NPL_GetDefaultChannel ( )

pure virtual

Get the default channel ID, default value is 0.

Default channel is used when NPL.activate() call��s does not contain the channel property.

Returns: channel_ID It can be a number in [0,15].default is 0

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ NPL_ResetChannelProperties()

virtual void NPL::INPLRuntime::NPL_ResetChannelProperties ( )

pure virtual

reset all 16 predefined channel properties.

according to table1. Default NPL channel properties. see also NPL_SetChannelProperty The following table shows the default NPL channel properties. It is advised for users to stick to this default mapping when developing their own applications. Table 1. Default NPL channel properties channel_ID Priority Reliability Usage 0 med RELIABLE_ORDERED System message 1 med UNRELIABLE_SEQUENCED Character positions 2 med RELIABLE_ORDERED Large Simulation Object transmission, such as terrain height field. 4 med RELIABLE_ORDERED Chat message 14 med RELIABLE files transmission and advertisement 15 med RELIABLE_SEQUENCED Voice transmission 11-15 med RELIABLE_ORDERED

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ NPL_SetChannelProperty()

virtual void NPL::INPLRuntime::NPL_SetChannelProperty	(	int	channel_ID,
		int	priority,
		int	reliability
	)

pure virtual

Messages can be sent via predefined channels.

There are 16 channels from 0 to 15 to be used. 0 is the default channel. This method sets the channel property for a given channel. The default channel property is given in table. The following table shows the default NPL channel properties. It is advised for users to stick to this default mapping when developing their own applications. Table 1. Default NPL channel properties channel_ID Priority Reliability Usage 0 med RELIABLE_ORDERED System message 1 med UNRELIABLE_SEQUENCED Character positions 2 med RELIABLE_ORDERED Large Simulation Object transmission, such as terrain height field. 4 med RELIABLE_ORDERED Chat message 14 med RELIABLE files transmission and advertisement 15 med RELIABLE_SEQUENCED Voice transmission 11-15 med RELIABLE_ORDERED

Parameters

channel_ID
priority
reliability

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ NPL_SetDefaultChannel()

virtual void NPL::INPLRuntime::NPL_SetDefaultChannel ( int channel_ID )

pure virtual

Set the default channel ID, default value is 0.

Default channel is used when NPL.activate() call��s does not contain the channel property.

Parameters

channel_ID It can be a number in [0,15].default is 0

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ reject()

virtual void NPL::INPLRuntime::reject	(	const char *	nid,
		int	nReason = `0`
	)

pure virtual

reject and close a given connection.

The connection will be closed once rejected. [thread safe]

Parameters

nid	the temporary id or NID of the connection to be rejected. usually it is from msg.tid or msg.nid.
nReason	default to 0. if 1 it means connection overriden

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ Run()

virtual void NPL::INPLRuntime::Run ( bool bToEnd = true )

pure virtual

call this function regularly in the main game thread to process packages.

This function also dispatches messages for the (main) runtime state if it is configured so.

Parameters

bToEnd if true, the function will only return when there is no more input packages in the queue

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetCompressionKey()

virtual void NPL::INPLRuntime::SetCompressionKey	(	const byte *	sKey = `0`,
		int	nSize = `0`,
		int	nUsePlainTextEncoding = `0`
	)

pure virtual

set the compression method of incoming the outgoing messages.

If this is not called, the default internal key is used for message encoding. [Not Thread Safe]: one must call this function before sending or receiving any encoded messages. so it is usually called when the game engine starts.

Parameters

sKey	the byte array of key. the generic key that is used for encoding/decoding
nSize	size in bytes of the sKey. default is 64 bytes
nUsePlainTextEncoding	default to 0. if 0, the key is used as it is. if 1, the input key will be modified so that the encoded message looks like plain text(this can be useful to pass some firewalls). if -1, the input key will be modified so that the encoded message is binary.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetCompressionLevel()

virtual void NPL::INPLRuntime::SetCompressionLevel ( int nLevel )

pure virtual

Set the zlib compression level to use in case compresssion is enabled.

default to 0, which means no compression. Compression level, which is an integer in the range of -1 to 9. Lower compression levels result in faster execution, but less compression. Higher levels result in greater compression, but slower execution. The zlib constant Z_DEFAULT_COMPRESSION, equal to -1, provides a good compromise between compression and speed and is equivalent to level 6. Level 0 actually does no compression at all, and in fact expands the data slightly to produce the zlib format (it is not a byte-for-byte copy of the input).

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetCompressionThreshold()

virtual void NPL::INPLRuntime::SetCompressionThreshold ( int nThreshold )

pure virtual

set the default compression threshold for all connections on this machine.

when the message size is bigger than this number of bytes, we will use m_nCompressionLevel for compression. For message smaller than the threshold, we will not compress even m_nCompressionLevel is not 0.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetHostMainStatesInFrameMove()

virtual void NPL::INPLRuntime::SetHostMainStatesInFrameMove ( bool bHostMainStatesInFrameMove )

pure virtual

whether we will process messages in the main threads in the frame move function.

It is default to true; However, it is possible for server to set to false, if one wants to have a more responsive main state on the server. For example, it does high-frequency dispatcher jobs, instead of monitoring. But client application, it is only advised to set to true, otherwise the scripting and render modules will be run in different threads, leading to complexity and bugs. : One can only call this function once to set to false. This function is only used by the ParaEngineServer

Implemented in NPL::CNPLRuntime, and NPLInterface::CNPLMiniRuntimeT< NPL_STATE >.

§ SetIdleTimeoutPeriod()

virtual void NPL::INPLRuntime::SetIdleTimeoutPeriod ( int nMilliseconds )

pure virtual

how many milliseconds of inactivity to assume this connection should be timed out.

if 0 it is never timed out.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetKeepAlive()

virtual void NPL::INPLRuntime::SetKeepAlive ( bool bEnable )

pure virtual

enable application level keep alive.

we will use a global idle timer to detect if a connection has been inactive for GetIdleTimeoutPeriod(), if so, we may send the keep alive message.

Parameters

bEnable enable keep alive will automatically enable EnableIdleTimeout()

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetTCPKeepAlive()

virtual void NPL::INPLRuntime::SetTCPKeepAlive ( bool bEnable )

pure virtual

System level Enable/disable SO_KEEPALIVE.

one needs set following values in linux procfs or windows registry in order to work as expected.

tcp_keepalive_intvl (integer; default: 75) The number of seconds between TCP keep-alive probes.
tcp_keepalive_probes (integer; default: 9) The maximum number of TCP keep-alive probes to send before giving up and killing the connection if no response is obtained from the other end.
tcp_keepalive_time (integer; default: 7200) The number of seconds a connection needs to be idle before TCP begins sending out keep-alive probes. Keep-alives are only sent when the SO_KEEPALIVE socket option is enabled. The default value is 7200 seconds (2 hours). An idle connection is terminated after approximately an additional 11 minutes (9 probes an interval of 75 seconds apart) when keep-alive is enabled. Note that underlying connection tracking mechanisms and application timeouts may be much shorter. Use the default system level TCP keep alive setting for this socket. Please see TCP keep alive for more information. It can be used to solve the "half-open connection". it is arguable whether to use protocol level keep alive or implement it in the application level.
Parameters

bEnable true to enable.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ SetUseCompression()

virtual void NPL::INPLRuntime::SetUseCompression	(	bool	bCompressIncoming,
		bool	bCompressOutgoing
	)

pure virtual

whether to use compression on transport layer for incoming and outgoing connections

Parameters

bCompressIncoming	if true, compression is used for all incoming connections. default to false.
bCompressIncoming	if true, compression is used for all outgoing connections. default to false.

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

§ StartNetServer()

virtual void NPL::INPLRuntime::StartNetServer	(	const char *	server = `NULL`,
		const char *	port = `NULL`
	)

pure virtual

start the NPL net server's io_service loop.

This function returns immediately. it will spawn the accept and dispatcher thread. call this function only once per process.

Parameters

server	default to "127.0.0.1"
port	default to "60001"

Implemented in NPLInterface::CNPLMiniRuntimeT< NPL_STATE >, and NPL::CNPLRuntime.

The documentation for this class was generated from the following file:

Client/trunk/ParaEngineClient/Core/INPLRuntime.h

Public Member Functions

Detailed Description

Member Function Documentation

§ accept()

§ Activate()

§ AddPublicFile()

§ AddToMainThread()

§ AppendURLRequest()

§ AsyncDownload()

§ CancelDownload()

§ ChangeRequestPoolSize()

§ ClearPublicFiles()

§ CloseJabberClient()

§ CreateJabberClient()

§ CreateState()

§ DeleteState()

§ Download()

§ EnableIdleTimeout()

§ GetIP()

§ GetJabberClient()

§ GetMainState()

§ GetState()

§ IsTCPKeepAliveEnabled()

§ NPL_AddDNSRecord()

§ NPL_GetChannelProperty()

§ NPL_GetDefaultChannel()

§ NPL_ResetChannelProperties()

§ NPL_SetChannelProperty()

§ NPL_SetDefaultChannel()

§ reject()

§ Run()

§ SetCompressionKey()

§ SetCompressionLevel()

§ SetCompressionThreshold()

§ SetHostMainStatesInFrameMove()

§ SetIdleTimeoutPeriod()

§ SetKeepAlive()

§ SetTCPKeepAlive()

§ SetUseCompression()

§ StartNetServer()
