NPL jabber client. More...

#include <NPLJabberClient.h>

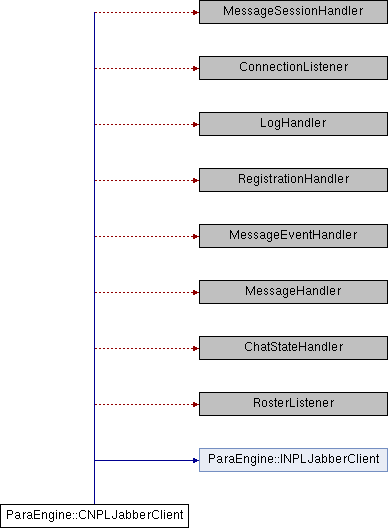

Inheritance diagram for ParaEngine::CNPLJabberClient:

Public Types
enum	MessageType { MsgType_normal = -1, MsgType_error, MsgType_chat, MsgType_groupchat, MsgType_headline }
	message type More...

typedef boost::bimap< int, std::string >	StringMap_Type

Public Member Functions
	CNPLJabberClient (boost::asio::io_service &io_service, const char *sJID)
	Create a new jabber client instance with the given jabber client ID. More...

int	ProcessMessage (int timeout=10)
	Use this periodically to receive data from the socket and to feed the parser. More...

virtual void	handleLog (LogLevel level, LogArea area, const std::string &message)

virtual void	onConnect ()

virtual void	onDisconnect (ConnectionError e)

virtual bool	onTLSConnect (const CertInfo &info)

virtual void	handleMessage (const gloox::Message &stanza, MessageSession *)

virtual void	handleMessageEvent (const JID &from, MessageEventType event)

virtual void	handleChatState (const JID &from, ChatStateType state)

virtual void	handleMessageSession (MessageSession *session)

virtual void	onResourceBindError (ResourceBindError error)

virtual void	onSessionCreateError (SessionCreateError error)

virtual void	handleItemSubscribed (const JID &jid)

virtual void	handleItemAdded (const JID &jid)

virtual void	handleItemUnsubscribed (const JID &jid)

virtual void	handleItemRemoved (const JID &jid)

virtual void	handleItemUpdated (const JID &jid)

virtual void	handleRoster (const Roster &roster)

virtual void	handleRosterError (const gloox::IQ &)

virtual void	handleRosterPresence (const RosterItem &item, const std::string &resource, gloox::Presence::PresenceType presence, const std::string &)

virtual void	handleSelfPresence (const RosterItem &item, const std::string &resource, gloox::Presence::PresenceType presence, const std::string &)

virtual bool	handleSubscriptionRequest (const JID &jid, const std::string &)

virtual bool	handleUnsubscriptionRequest (const JID &jid, const std::string &)

virtual void	handleNonrosterPresence (const gloox::Presence &)

virtual void	handleRegistrationFields (const JID &, int fields, std::string instructions)

virtual void	handleRegistrationResult (const JID &, RegistrationResult result)

virtual void	handleAlreadyRegistered (const JID &)

virtual void	handleDataForm (const JID &, const DataForm &)

virtual void	handleOOB (const JID &, const OOB &oob)

bool	Connect ()
	Connect to the server. More...

void	Close ()
	Close down the connection, as gracefully as possible. More...

bool	WriteNPLMessage (const char to, const char neuronfile, const char *sCode)
	Send a NPL message. More...

bool	WriteRawString (const char *rawstring)
	Send raw string. More...

bool	SendMessage (int t, const char to, const char body)
	/ More...

bool	SendMessage (const char to, const char body)
	Send a message packet to another user More...

bool	Login ()
	Initiate the auth process. More...

bool	SetPresence (int t, const char status, const char show, int priority)
	/ More...

const char *	GetRoster ()
	Get a full roster. More...

bool	Subscribe (const char jid, const char name, const char groups, const char msg)
	Use this function to subscribe to a new JID. More...

void	Unsubscribe (const char to, const char msg)
	Use this function to unsubscribe from a contact's presence. More...

virtual void	RegisterCreateAccount (const char username, const char password)
	to create an account: More...

virtual void	RegisterChangePassword (const char *password)
	to change an account's password: More...

virtual void	RegisterRemoveAccount ()
	to delete an account: More...

virtual StatisticsJabber	GetStatistics ()
	Returns a StatisticsStruct containing byte and stanza counts for the current active connection. More...

void	RemoveRosterItem (const char to, const char msg)
	OBSOLETED.

bool	AllowSubscription (const char *to, bool bAllow)
	this function is called in OnSubscription method to confirm or refuse a subscription request from another user. More...

void	GetAgents ()
	OBSOLETED: Request a list of agents from the server.

bool	Register (const char *jid)
	obsoleted: Attempt to register a new user. More...

const char *	GetRosterItemDetail (const char *jid)
	OBSOLETED: Retrieve details of a given roster item. More...

const char *	GetRosterGroups ()
	OBSOLETED The group names for the roster as a string. More...

const char *	GetRosterItems ()
	OBSOLETED The Roster Item jids as a string. More...

void	AddEventListener (int nListenerType, const char *callbackScript)

void	AddEventListener1 (const char sListenerType, const char callbackScript)

void	RemoveEventListener (int nListenerType, const char *callbackScript)
	remove a NPL call back script from a given even listener More...

void	RemoveEventListener1 (const char sListenerType, const char callbackScript)

void	ClearEventListener (int nListenerType)
	clear all NPL call back script from a given even listener More...

void	ClearEventListener1 (const char *sListenerType)

void	ResetAllEventListeners ()
	clear all registered event listeners More...

const std::string	GetID ()
	Creates a string which is unique in the current instance and can be used as an ID for queries. More...

const string &	GetStatus () const
	Returns the current status message.

int	GetConnectionStatus () const
	This describes the possible states of a stream. More...

int	GetAuthError () const
	Use this function to retrieve the type of the authentication error after it occurs and you received a ConnectionError of type ConnAuthenticationFailed from the ConnectionListener. More...

void	WhitespacePing ()
	Sends a whitespace ping to the server. More...

void	XmppPing (const string &sTo)
	Sends a XMPP Ping (XEP-0199) to the given JID. More...

const std::string &	GetXmlLang () const
	Retrieves the value of the xml:lang attribute of the initial stream. More...

void	SetXmlLang (const std::string &xmllang)

void	SetClientCert (const std::string &clientKey, const std::string &clientCerts)
	Use this function to set the user's certificate and private key. More...

const char *	GetUser ()
	The username to connect as. More...

void	SetUser (const char *sValue)
	The username to connect as. More...

int	GetPriority ()
	Priority for this connection. More...

void	SetPriority (int nValue)
	Priority for this connection. More...

const char *	GetPassword ()
	The password to use for connecting. More...

void	SetPassword (const char *sValue)
	The password to use for connecting. More...

bool	GetAutoLogin ()
	Automatically log in on connection. More...

void	SetAutoLogin (bool nValue)
	Automatically log in on connection. More...

bool	GetAutoRoster ()
	Automatically retrieve roster on connection. More...

void	SetAutoRoster (bool nValue)
	Automatically retrieve roster on connection. More...

bool	GetAutoIQErrors ()
	Automatically send back 501/feature-not-implemented to IQs that have not been handled. More...

void	SetAutoIQErrors (bool nValue)
	Automatically send back 501/feature-not-implemented to IQs that have not been handled. More...

bool	GetAutoPresence ()
	Automatically send presence on connection. More...

void	SetAutoPresence (bool nValue)
	Automatically send presence on connection. More...

const char *	GetResource ()
	The connecting resource. More...

void	SetResource (const char *sValue)
	The connecting resource. More...

bool	GetIsAuthenticated ()
	Are we currently connected?

void	SetIsAuthenticated (bool bValue)
	Are we currently connected?

const char *	GetServer ()
	The name of the server to connect to. More...

void	SetServer (const char *Server)
	The name of the server to connect to. More...

const char *	GetNetworkHost ()
	The address to use on the "to" attribute of the stream:stream. More...

void	SetNetworkHost (const char *sValue)
	The address to use on the "to" attribute of the stream:stream. More...

int	GetPort ()
	Automatically send presence on connection. More...

void	SetPort (int nValue)
	Automatically send presence on connection. More...

bool	GetPlaintextAuth ()
	Allow plaintext authentication? default to false.

void	SetPlaintextAuth (bool bValue)
	Allow plaintext authentication? default to false.

bool	IsSSLon ()
	Is the current connection SSL/TLS protected?

bool	IsCompressionOn ()
	Is the current connection XEP-138 compressed?

bool	GetSSL ()
	Do SSL3/TLS1 on startup.

void	SetSSL (bool bValue)
	Do SSL3/TLS1 on startup.

bool	GetAutoStartTLS ()
	Allow Start-TLS on connection, if the server supports it.

void	SetAutoStartTLS (bool bValue)
	Allow Start-TLS on connection, if the server supports it.

bool	GetAutoStartCompression ()
	Allow start compression on connection, if the server supports it.

void	SetAutoStartCompression (bool bValue)
	Allow start compression on connection, if the server supports it.

float	GetKeepAlive ()
	Time, in seconds, between keep-alive spaces. More...

void	SetKeepAlive (float KeepAlive)
	Time, in seconds, between keep-alive spaces. More...

float	GetAutoReconnect ()
	Seconds before automatically reconnecting if the connection drops. More...

void	SetAutoReconnect (float AutoReconnect)
	Seconds before automatically reconnecting if the connection drops. More...

const char *	GetServerVersion ()
	The version string returned in the server's open stream element. More...

bool	GetRequiresSASL ()
	Is SASL required? This will default to true in the future. More...

void	SetRequiresSASL (bool bValue)
	Is SASL required? This will default to true in the future. More...

Static Public Member Functions
static void	AddStringMap (int nID, const char *sString)
	add string a string mapping. More...

static void	ClearStringMap ()
	clear all string mapping

Protected Member Functions
virtual bool	AddEvent (int nEventType, const char precode=NULL, const char postcode=NULL)
	Activate the given code of a type of event The activated script will send to the script buffer and wait for the script engine to execute it. More...

virtual bool	CallEvent (int nEventType, const char precode=NULL, const char postcode=NULL)
	call the given code of a type of event It is similar to AddEvent, except that the callback functions are activated immediately and return after the callback returns. More...

const char *	GetStringByID (int nID)
	get a string by id in the string map More...

int	GetIDByString (const char *sString)
	get id by string in the string map More...

const string &	GetJIDKey ()
	this is the unique key of this JC instance. More...

void	SetJIDKey (const string &sJIDKey)
	never call this function, unless you know why. More...

Protected Attributes
Client *	m_client

MessageSession *	m_session

MessageEventFilter *	m_messageEventFilter

ChatStateFilter *	m_chatStateFilter

Registration *	m_reg

JCOptions	m_Options

bool	m_bIsAuthenticated

float	m_fKeepAlive

float	m_fAutoReconnect

CJabberEventBinding	m_eventbinding

string	m_sUsername
	only used for creating a new user account. More...

string	m_sPassword

string	m_sStatus
	presence status

string	m_sThisJIDKey
	this is the unique key of this JC instance. More...

boost::asio::io_service *	m_pIOService
	dispatcher IO service object for the connection socket. More...

ParaEngine::mutex	m_mutex

Static Protected Attributes
static StringMap_Type	g_mapStringMap
	we will automatically encode NPL filename string if it is in this string map. More...

Detailed Description

NPL jabber client.

Member Enumeration Documentation

§ MessageType

enum ParaEngine::CNPLJabberClient::MessageType

message type

Enumerator
MsgType_normal	Normal message
MsgType_error	Error message
MsgType_chat	Chat (one-to-one) message
MsgType_groupchat	Groupchat
MsgType_headline	Headline

Constructor & Destructor Documentation

§ CNPLJabberClient()

CNPLJabberClient::CNPLJabberClient	(	boost::asio::io_service &	io_service,
		const char *	sJID
	)

Create a new jabber client instance with the given jabber client ID.

It does not open a connection immediately.

Parameters

sJID	such as "lixizhi@paraengine.com"

Member Function Documentation

§ AddEvent()

bool ParaEngine::CNPLJabberClient::AddEvent	(	int	nEventType,
		const char *	precode = `NULL`,
		const char *	postcode = `NULL`
	)

protectedvirtual

Activate the given code of a type of event The activated script will send to the script buffer and wait for the script engine to execute it.

The function will return immediately. So the script execution is asynchronous.

Parameters

nEventType	event type
precode	the script to be activated before the user-defined script code.
postcode	the script to be activated after the user-defined script code.

Returns: : true if there is a callback

§ AddEventListener()

void ParaEngine::CNPLJabberClient::AddEventListener	(	int	nListenerType,
		const char *	callbackScript
	)

virtual

Note: although the interface supports multiple listeners for the same event, the current implementation supports only one which makes the RemoveEventListener and ClearEventListener virtually the same.

Parameters

nListenerType	enum from JabberEvents
callbackScript	an NPL callback script.

Implements ParaEngine::INPLJabberClient.

§ AddStringMap()

void ParaEngine::CNPLJabberClient::AddStringMap	(	int	nID,
		const char *	sString
	)

static

add string a string mapping.

We will automatically encode NPL filename string if it is in this string map. It means shorter message sent over the network. use AddStringMap whenever you want to add a string to the map. Please note, that the sender and the receiver must maintain the same string map in memory in order to have consistent string translation result. the function is static, it will apply to all client instances.

Parameters

nID	the integer to encode the string. it is usually positive.
sString	the string for the id. if input is NULL, it means removing the mapping of nID.

§ AllowSubscription()

bool ParaEngine::CNPLJabberClient::AllowSubscription	(	const char *	to,
		bool	bAllow
	)

virtual

this function is called in OnSubscription method to confirm or refuse a subscription request from another user.

Parameters

to	the JID
bAllow	true to allow subscription, false to deny

Implements ParaEngine::INPLJabberClient.

§ CallEvent()

bool ParaEngine::CNPLJabberClient::CallEvent	(	int	nEventType,
		const char *	precode = `NULL`,
		const char *	postcode = `NULL`
	)

protectedvirtual

call the given code of a type of event It is similar to AddEvent, except that the callback functions are activated immediately and return after the callback returns.

The function will return immediately. So the script execution is asynchronous.

Parameters

nEventType	event type
precode	the script to be activated before the user-defined script code.
postcode	the script to be activated after the user-defined script code.

Returns: : true if there is a callback

§ ClearEventListener()

void ParaEngine::CNPLJabberClient::ClearEventListener ( int nListenerType )

virtual

clear all NPL call back script from a given even listener

Parameters

nListenerType type of message listener. The user can register NPL callback script with any one listener type.

Implements ParaEngine::INPLJabberClient.

§ Close()

void ParaEngine::CNPLJabberClient::Close ( )

virtual

Close down the connection, as gracefully as possible.

Implements ParaEngine::INPLJabberClient.

§ Connect()

bool ParaEngine::CNPLJabberClient::Connect ( )

virtual

Connect to the server.

This happens asynchronously, and could take a couple of seconds to get the full handshake completed. This will auth, send presence, and request roster info, if the Auto* properties are set.

Implements ParaEngine::INPLJabberClient.

§ GetAuthError()

int ParaEngine::CNPLJabberClient::GetAuthError ( ) const

Use this function to retrieve the type of the authentication error after it occurs and you received a ConnectionError of type ConnAuthenticationFailed from the ConnectionListener.

Returns: : Enumeration values: 0: AuthErrorUndefined No error occurred, or error condition is unknown. 1: SaslAborted The receiving entity acknowledges an <abort> element sent by the initiating entity; sent in reply to the <abort> element. 2: SaslIncorrectEncoding The data provided by the initiating entity could not be processed because the [BASE64] encoding is incorrect (e.g., because the encoding does not adhere to the definition in Section 3 of [BASE64]); sent in reply to a <response> element or an <auth> element with initial response data. 3: SaslInvalidAuthzid The authzid provided by the initiating entity is invalid, either because it is incorrectly formatted or because the initiating entity does not have permissions to authorize that ID; sent in reply to a <response> element or an <auth> element with initial response data. 4: SaslInvalidMechanism The initiating entity did not provide a mechanism or requested a mechanism that is not supported by the receiving entity; sent in reply to an <auth> element. 5: SaslMechanismTooWeak The mechanism requested by the initiating entity is weaker than server policy permits for that initiating entity; sent in reply to a <response> element or an <auth> element with initial response data. 6: SaslNotAuthorized The authentication failed because the initiating entity did not provide valid credentials (this includes but is not limited to the case of an unknown username); sent in reply to a <response> element or an <auth> element with initial response data. 7: SaslTemporaryAuthFailure The authentication failed because of a temporary error condition within the receiving entity; sent in reply to an <auth> element or <response> element. 8: NonSaslConflict XEP-0078: Resource Conflict 9: NonSaslNotAcceptable XEP-0078: Required Information Not Provided 10: NonSaslNotAuthorized XEP-0078: Incorrect Credentials

§ GetAutoIQErrors()

bool ParaEngine::CNPLJabberClient::GetAutoIQErrors ( )

inlinevirtual

Automatically send back 501/feature-not-implemented to IQs that have not been handled.

Implements ParaEngine::INPLJabberClient.

§ GetAutoLogin()

bool ParaEngine::CNPLJabberClient::GetAutoLogin ( )

inlinevirtual

Automatically log in on connection.

Implements ParaEngine::INPLJabberClient.

§ GetAutoPresence()

bool ParaEngine::CNPLJabberClient::GetAutoPresence ( )

inlinevirtual

Automatically send presence on connection.

Implements ParaEngine::INPLJabberClient.

§ GetAutoReconnect()

float ParaEngine::CNPLJabberClient::GetAutoReconnect ( )

inlinevirtual

Seconds before automatically reconnecting if the connection drops.

-1 to disable, 0 for immediate. Default to 30 seconds

Implements ParaEngine::INPLJabberClient.

§ GetAutoRoster()

bool ParaEngine::CNPLJabberClient::GetAutoRoster ( )

inlinevirtual

Automatically retrieve roster on connection.

Implements ParaEngine::INPLJabberClient.

§ GetConnectionStatus()

int ParaEngine::CNPLJabberClient::GetConnectionStatus ( ) const

This describes the possible states of a stream.

Returns: : 0: StateDisconnected The client is in disconnected state. 1: StateConnecting The client is currently trying to establish a connection. 2: StateConnected The client is connected to the server but authentication is not (yet) done.

§ GetID()

const std::string ParaEngine::CNPLJabberClient::GetID ( )

Creates a string which is unique in the current instance and can be used as an ID for queries.

Returns: : A unique string suitable for query IDs.

§ GetIDByString()

int ParaEngine::CNPLJabberClient::GetIDByString ( const char * sString )

protected

get id by string in the string map

Returns: -1 if not found

§ GetJIDKey()

const string& ParaEngine::CNPLJabberClient::GetJIDKey ( )

inlineprotected

this is the unique key of this JC instance.

This is always the same as the bare JID of this instance. this key is set automatically, when an JC instance is created.

§ GetKeepAlive()

float ParaEngine::CNPLJabberClient::GetKeepAlive ( )

inlinevirtual

Time, in seconds, between keep-alive spaces.

default to 20f

Implements ParaEngine::INPLJabberClient.

§ GetNetworkHost()

const char* ParaEngine::CNPLJabberClient::GetNetworkHost ( )

inlinevirtual

The address to use on the "to" attribute of the stream:stream.

You can put the network hostname or IP address of the server to connect to. If none is specified, the Server will be used. Eventually, when SRV is supported, this will be deprecated.

Implements ParaEngine::INPLJabberClient.

§ GetPassword()

const char * ParaEngine::CNPLJabberClient::GetPassword ( )

virtual

The password to use for connecting.

This may be sent across the wire plaintext, if the server doesn't support digest and PlaintextAuth is true.

Implements ParaEngine::INPLJabberClient.

§ GetPort()

int ParaEngine::CNPLJabberClient::GetPort ( )

virtual

Automatically send presence on connection.

Implements ParaEngine::INPLJabberClient.

§ GetPriority()

int ParaEngine::CNPLJabberClient::GetPriority ( )

virtual

Priority for this connection.

Implements ParaEngine::INPLJabberClient.

§ GetRequiresSASL()

bool ParaEngine::CNPLJabberClient::GetRequiresSASL ( )

inlinevirtual

Is SASL required? This will default to true in the future.

Implements ParaEngine::INPLJabberClient.

§ GetResource()

const char * ParaEngine::CNPLJabberClient::GetResource ( )

virtual

The connecting resource.

Used to identify a unique connection.

Implements ParaEngine::INPLJabberClient.

§ GetRoster()

const char * ParaEngine::CNPLJabberClient::GetRoster ( )

virtual

Get a full roster.

Returns: : the returned string is NPL table of the following { {jid=string:jid, name=string,subscription=int:SubscriptionEnum, groups={string, string, ...}, resources={string, string, ...},}, {jid=string:jid, name=string,subscription=int:SubscriptionEnum, groups={string, string, ...}, resources={string, string, ...},}, {jid=string:jid, name=string,subscription=int:SubscriptionEnum, groups={string, string, ...}, resources={string, string, ...},}, ... }

Implements ParaEngine::INPLJabberClient.

§ GetRosterGroups()

const char * ParaEngine::CNPLJabberClient::GetRosterGroups ( )

virtual

OBSOLETED The group names for the roster as a string.

each group name is separated by ; such as "general;friends;relatives;"

Implements ParaEngine::INPLJabberClient.

§ GetRosterItemDetail()

const char * ParaEngine::CNPLJabberClient::GetRosterItemDetail ( const char * jid )

virtual

OBSOLETED: Retrieve details of a given roster item.

Parameters

jid

Returns: null or string. the string is an NPL table of the following format "{ [1]={text=[[NickName]], presence=number,groupname=[[name]]}, [2]=...}" Presence Values: OFFLINE = 0;ONLINE = 1; AWAY = 2;XA = 3;DND = 4;CHATTY = 5; Usually a roster item only belongs to one group. so the table usually contains only one item at index 1.

Implements ParaEngine::INPLJabberClient.

§ GetRosterItems()

const char * ParaEngine::CNPLJabberClient::GetRosterItems ( )

virtual

OBSOLETED The Roster Item jids as a string.

each name is separated by ; such as "lixizhi@pala5.cn;Andy@pala5.cn;"

Implements ParaEngine::INPLJabberClient.

§ GetServer()

const char * ParaEngine::CNPLJabberClient::GetServer ( )

virtual

The name of the server to connect to.

Implements ParaEngine::INPLJabberClient.

§ GetServerVersion()

const char* ParaEngine::CNPLJabberClient::GetServerVersion ( )

inlinevirtual

The version string returned in the server's open stream element.

Implements ParaEngine::INPLJabberClient.

§ GetStatistics()

StatisticsJabber ParaEngine::CNPLJabberClient::GetStatistics ( )

virtual

Returns a StatisticsStruct containing byte and stanza counts for the current active connection.

Returns: : a struct containing the current connection's statistics.

Implements ParaEngine::INPLJabberClient.

§ GetStringByID()

const char * ParaEngine::CNPLJabberClient::GetStringByID ( int nID )

protected

get a string by id in the string map

Returns: NULL if not found

§ GetUser()

const char * ParaEngine::CNPLJabberClient::GetUser ( )

virtual

The username to connect as.

Implements ParaEngine::INPLJabberClient.

§ GetXmlLang()

const std::string & ParaEngine::CNPLJabberClient::GetXmlLang ( ) const

Retrieves the value of the xml:lang attribute of the initial stream.

Default is 'en', i.e. if not changed by a call to setXmlLang().

§ Login()

bool ParaEngine::CNPLJabberClient::Login ( )

virtual

Initiate the auth process.

Implements ParaEngine::INPLJabberClient.

§ ProcessMessage()

int ParaEngine::CNPLJabberClient::ProcessMessage ( int timeout = 10 )

Use this periodically to receive data from the socket and to feed the parser.

Parameters

timeout The timeout in microseconds to use for select. Default of -1 means blocking until data was available.

Returns: : whether there is a connection error. 0 if connection is not established.

§ Register()

bool ParaEngine::CNPLJabberClient::Register ( const char * jid )

virtual

obsoleted: Attempt to register a new user.

This will fire OnRegisterInfo to retrieve information about the new user, and OnRegistered when the registration is complete or failed.

Parameters

jid	The user to register

Implements ParaEngine::INPLJabberClient.

§ RegisterChangePassword()

void ParaEngine::CNPLJabberClient::RegisterChangePassword ( const char * password )

virtual

to change an account's password:

connect to the server as usual
in onConnect() or at any later time call Registration::changePassword()

Implements ParaEngine::INPLJabberClient.

§ RegisterCreateAccount()

void ParaEngine::CNPLJabberClient::RegisterCreateAccount	(	const char *	username,
		const char *	password
	)

virtual

to create an account:

create the Client instance by passing it the server only, e.g. j = new Client( "example.net" );
in onConnect() (or some similar place) call Registration::fetchRegistrationFields()
in RegistrationHandler::handleRegistrationFields() set up an RegistrationFields struct with the desired username/password and call Registration::createAccount()

Implements ParaEngine::INPLJabberClient.

§ RegisterRemoveAccount()

void ParaEngine::CNPLJabberClient::RegisterRemoveAccount ( )

virtual

to delete an account:

connect to teh server as usual
in onConnect() or at any later time call Registration::removeAccount()

Implements ParaEngine::INPLJabberClient.

§ RemoveEventListener()

void ParaEngine::CNPLJabberClient::RemoveEventListener	(	int	nListenerType,
		const char *	callbackScript
	)

virtual

remove a NPL call back script from a given even listener

Parameters

nListenerType	type of message listener. The user can register NPL callback script with any one listener type.
callbackScript	the script to be called when the listener event is raised. Usually parameters are stored in a NPL parameter called "msg".

Implements ParaEngine::INPLJabberClient.

§ ResetAllEventListeners()

void ParaEngine::CNPLJabberClient::ResetAllEventListeners ( )

virtual

clear all registered event listeners

Implements ParaEngine::INPLJabberClient.

§ SendMessage() [1/2]

bool ParaEngine::CNPLJabberClient::SendMessage	(	int	t,
		const char *	to,
		const char *	body
	)

virtual

/

/ Send a message packet to another user /

/

Parameters

t	type of MessageType

/

Parameters

to	Who to send it to?

/

Parameters

body	The message.

Implements ParaEngine::INPLJabberClient.

§ SendMessage() [2/2]

bool ParaEngine::CNPLJabberClient::SendMessage	(	const char *	to,
		const char *	body
	)

virtual

Send a message packet to another user

Parameters

to	Who to send it to?
body	The message.

Implements ParaEngine::INPLJabberClient.

§ SetAutoIQErrors()

void ParaEngine::CNPLJabberClient::SetAutoIQErrors ( bool AutoIQErrors )

inlinevirtual

Automatically send back 501/feature-not-implemented to IQs that have not been handled.

Implements ParaEngine::INPLJabberClient.

§ SetAutoLogin()

void ParaEngine::CNPLJabberClient::SetAutoLogin ( bool AutoLogin )

inlinevirtual

Automatically log in on connection.

Implements ParaEngine::INPLJabberClient.

§ SetAutoPresence()

void ParaEngine::CNPLJabberClient::SetAutoPresence ( bool AutoPresence )

inlinevirtual

Automatically send presence on connection.

Implements ParaEngine::INPLJabberClient.

§ SetAutoReconnect()

void ParaEngine::CNPLJabberClient::SetAutoReconnect ( float AutoReconnect )

inlinevirtual

Seconds before automatically reconnecting if the connection drops.

-1 to disable, 0 for immediate. Default to 30 seconds

Implements ParaEngine::INPLJabberClient.

§ SetAutoRoster()

void ParaEngine::CNPLJabberClient::SetAutoRoster ( bool AutoRoster )

inlinevirtual

Automatically retrieve roster on connection.

Implements ParaEngine::INPLJabberClient.

§ SetClientCert()

void ParaEngine::CNPLJabberClient::SetClientCert	(	const std::string &	clientKey,
		const std::string &	clientCerts
	)

Use this function to set the user's certificate and private key.

The certificate will be presented to the server upon request and can be used for SASL EXTERNAL authentication. The user's certificate file should be a bundle of more than one certificate in PEM format. The first one in the file should be the user's certificate, each cert following that one should have signed the previous one.

Note: These certificates are not necessarily the same as those used to verify the server's certificate.

Parameters

clientKey	The absolute path to the user's private key in PEM format.
clientCerts	A path to a certificate bundle in PEM format.

§ SetJIDKey()

void ParaEngine::CNPLJabberClient::SetJIDKey ( const string & sJIDKey )

inlineprotected

never call this function, unless you know why.

§ SetKeepAlive()

void ParaEngine::CNPLJabberClient::SetKeepAlive ( float KeepAlive )

inlinevirtual

Time, in seconds, between keep-alive spaces.

default to 20f

Implements ParaEngine::INPLJabberClient.

§ SetNetworkHost()

void ParaEngine::CNPLJabberClient::SetNetworkHost ( const char * NetworkHost )

inlinevirtual

The address to use on the "to" attribute of the stream:stream.

/ You can put the network hostname or IP address of the server to connect to. / If none is specified, the Server will be used. / Eventually, when SRV is supported, this will be deprecated.

Implements ParaEngine::INPLJabberClient.

§ SetPassword()

void ParaEngine::CNPLJabberClient::SetPassword ( const char * Password )

virtual

The password to use for connecting.

This may be sent across the wire plaintext, if the server doesn't support digest and PlaintextAuth is true.

Implements ParaEngine::INPLJabberClient.

§ SetPort()

void ParaEngine::CNPLJabberClient::SetPort ( int Port )

virtual

Automatically send presence on connection.

Implements ParaEngine::INPLJabberClient.

§ SetPresence()

bool ParaEngine::CNPLJabberClient::SetPresence	(	int	t,
		const char *	status,
		const char *	show,
		int	priority
	)

virtual

/

/ Send a presence packet to the server /

/

Parameters

t	What kind? public enum PresenceType { /

/ None specified /

available = -1, /

/ May I subscribe to you? /

subscribe, /

/ Yes, you may subscribe. /

subscribed, /

/ Unsubscribe from this entity. /

unsubscribe, /

/ No, you may not subscribe. /

unsubscribed, /

/ Offline /

unavailable, /

/ server-side only. /

probe, /

/ A presence error. /

error, /

/ Invisible presence: we're unavailable to them, but still see / theirs. /

invisible }

/

Parameters

status How to show us?

/

Parameters

show	away, dnd, etc.

/

Parameters

priority How to prioritize this connection. / Higher number mean higher priority. 0 minumum, 127 max. / -1 means this is a presence-only connection.

Implements ParaEngine::INPLJabberClient.

§ SetPriority()

void ParaEngine::CNPLJabberClient::SetPriority ( int nPriority )

inlinevirtual

Priority for this connection.

Implements ParaEngine::INPLJabberClient.

§ SetRequiresSASL()

void ParaEngine::CNPLJabberClient::SetRequiresSASL ( bool RequiresSASL )

virtual

Is SASL required? This will default to true in the future.

Implements ParaEngine::INPLJabberClient.

§ SetResource()

void ParaEngine::CNPLJabberClient::SetResource ( const char * Resource )

inlinevirtual

The connecting resource.

Used to identify a unique connection.

Implements ParaEngine::INPLJabberClient.

§ SetServer()

void ParaEngine::CNPLJabberClient::SetServer ( const char * Server )

virtual

The name of the server to connect to.

Implements ParaEngine::INPLJabberClient.

§ SetUser()

void ParaEngine::CNPLJabberClient::SetUser ( const char * User )

virtual

The username to connect as.

Implements ParaEngine::INPLJabberClient.

§ Subscribe()

bool ParaEngine::CNPLJabberClient::Subscribe	(	const char *	jid,
		const char *	name,
		const char *	groups,
		const char *	msg
	)

virtual

Use this function to subscribe to a new JID.

The contact is added to the roster automatically (by compliant servers, as required by RFC 3921).

Parameters

jid	The address to subscribe to.
name	The displayed name of the contact.
groups	A list of groups the contact belongs to. separated by ";". Currently only one group is supported.
msg	A message sent along with the request.

Implements ParaEngine::INPLJabberClient.

§ Unsubscribe()

void ParaEngine::CNPLJabberClient::Unsubscribe	(	const char *	to,
		const char *	msg
	)

virtual

Use this function to unsubscribe from a contact's presence.

You will no longer receive presence from this contact. This will have the side-effect of bi-directionally unsubscribing to/from the user.

Parameters

to	The JID to remove
msg	A message to send along with the request.

Implements ParaEngine::INPLJabberClient.

§ WhitespacePing()

void ParaEngine::CNPLJabberClient::WhitespacePing ( )

Sends a whitespace ping to the server.

§ WriteNPLMessage()

bool ParaEngine::CNPLJabberClient::WriteNPLMessage	(	const char *	to,
		const char *	neuronfile,
		const char *	sCode
	)

virtual

Send a NPL message.

The message is queued in a output message queue and this function returns immediately.

Parameters

msg	a NPL table converted to secure code.

Returns: true if message is sent to output queue. if the queue is full, the function returns false. and the caller typically reports a service unavailable message.

The current NPL message is sent via a special normal chat message subtype: MsgType_normal subject: NI:id or NF:string body: msg table scode

Implements ParaEngine::INPLJabberClient.

§ WriteRawString()

bool ParaEngine::CNPLJabberClient::WriteRawString ( const char * rawstring )

virtual

Send raw string.

Implements ParaEngine::INPLJabberClient.

§ XmppPing()

void ParaEngine::CNPLJabberClient::XmppPing ( const string & sTo )

Sends a XMPP Ping (XEP-0199) to the given JID.

There is currently no way to know whether the remote entity answered (other than registering an IQ handler for the urn:xmpp:ping namespace).

Member Data Documentation

§ g_mapStringMap

ParaEngine::CNPLJabberClient::StringMap_Type ParaEngine::CNPLJabberClient::g_mapStringMap

staticprotected

we will automatically encode NPL filename string if it is in this string map.

It means shorter message sent over the network. use AddStringMap whenever you want to add a string to the map. Please note, that the sender and the receiver must maintain the same string map in memory in order to have consistent string translation result.

§ m_pIOService

boost::asio::io_service* ParaEngine::CNPLJabberClient::m_pIOService

protected

dispatcher IO service object for the connection socket.

§ m_sThisJIDKey

string ParaEngine::CNPLJabberClient::m_sThisJIDKey

protected

this is the unique key of this JC instance.

This is always the same as the bare JID of this instance. this key is set automatically, when an JC instance is created.

§ m_sUsername

string ParaEngine::CNPLJabberClient::m_sUsername

protected

only used for creating a new user account.

The documentation for this class was generated from the following files:

Client/trunk/ParaEngineClient/jabber/NPLJabberClient.h
Client/trunk/ParaEngineClient/jabber/NPLJabberClient.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

§ MessageType

Constructor & Destructor Documentation

§ CNPLJabberClient()

Member Function Documentation

§ AddEvent()

§ AddEventListener()

§ AddStringMap()

§ AllowSubscription()

§ CallEvent()

§ ClearEventListener()

§ Close()

§ Connect()

§ GetAuthError()

§ GetAutoIQErrors()

§ GetAutoLogin()

§ GetAutoPresence()

§ GetAutoReconnect()

§ GetAutoRoster()

§ GetConnectionStatus()

§ GetID()

§ GetIDByString()

§ GetJIDKey()

§ GetKeepAlive()

§ GetNetworkHost()

§ GetPassword()

§ GetPort()

§ GetPriority()

§ GetRequiresSASL()

§ GetResource()

§ GetRoster()

§ GetRosterGroups()

§ GetRosterItemDetail()

§ GetRosterItems()

§ GetServer()

§ GetServerVersion()

§ GetStatistics()

§ GetStringByID()

§ GetUser()

§ GetXmlLang()

§ Login()

§ ProcessMessage()

§ Register()

§ RegisterChangePassword()

§ RegisterCreateAccount()

§ RegisterRemoveAccount()

§ RemoveEventListener()

§ ResetAllEventListeners()

§ SendMessage() [1/2]

§ SendMessage() [2/2]

§ SetAutoIQErrors()

§ SetAutoLogin()

§ SetAutoPresence()

§ SetAutoReconnect()

§ SetAutoRoster()

§ SetClientCert()

§ SetJIDKey()

§ SetKeepAlive()

§ SetNetworkHost()

§ SetPassword()

§ SetPort()

§ SetPresence()

§ SetPriority()

§ SetRequiresSASL()

§ SetResource()

§ SetServer()

§ SetUser()

§ Subscribe()

§ Unsubscribe()

§ WhitespacePing()

§ WriteNPLMessage()

§ WriteRawString()

§ XmppPing()
