CGUIControl Class Reference

Base class for controls. More...

#include <GUIControl.h>

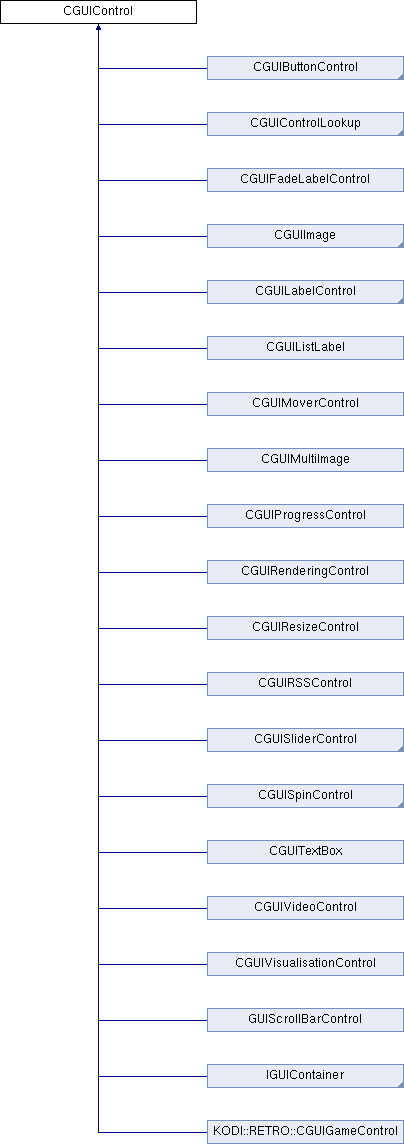

Inheritance diagram for CGUIControl:

Public Types
enum	GUICONTROLTYPES {   GUICONTROL_UNKNOWN, GUICONTROL_BUTTON, GUICONTROL_FADELABEL, GUICONTROL_IMAGE,   GUICONTROL_BORDEREDIMAGE, GUICONTROL_LABEL, GUICONTROL_LISTGROUP, GUICONTROL_PROGRESS,   GUICONTROL_RADIO, GUICONTROL_RSS, GUICONTROL_SLIDER, GUICONTROL_SETTINGS_SLIDER,   GUICONTROL_SPIN, GUICONTROL_SPINEX, GUICONTROL_TEXTBOX, GUICONTROL_TOGGLEBUTTON,   GUICONTROL_VIDEO, GUICONTROL_GAME, GUICONTROL_MOVER, GUICONTROL_RESIZE,   GUICONTROL_EDIT, GUICONTROL_VISUALISATION, GUICONTROL_RENDERADDON, GUICONTROL_MULTI_IMAGE,   GUICONTROL_GROUP, GUICONTROL_GROUPLIST, GUICONTROL_SCROLLBAR, GUICONTROL_LISTLABEL,   GUICONTROL_GAMECONTROLLER, GUICONTAINER_LIST, GUICONTAINER_WRAPLIST, GUICONTAINER_FIXEDLIST,   GUICONTAINER_EPGGRID, GUICONTAINER_PANEL }
enum	GUIVISIBLE { HIDDEN = 0, DELAYED, VISIBLE }
enum	GUISCROLLVALUE { FOCUS = 0, NEVER, ALWAYS }
typedef std::map< int, CGUIAction >	ActionMap
	Set actions to perform on navigation. More...

Public Member Functions
	CGUIControl ()
	CGUIControl (int parentID, int controlID, float posX, float posY, float width, float height)
	CGUIControl (const CGUIControl &)
virtual	~CGUIControl (void)
virtual CGUIControl *	Clone () const =0
virtual void	DoProcess (unsigned int currentTime, CDirtyRegionList &dirtyregions)
virtual void	Process (unsigned int currentTime, CDirtyRegionList &dirtyregions)
virtual void	DoRender ()
virtual void	Render ()
virtual void	RenderEx ()
bool	HasProcessed () const
	Returns whether or not we have processed. More...
virtual bool	OnAction (const CAction &action)
virtual void	OnUp ()
virtual void	OnDown ()
virtual void	OnLeft ()
virtual void	OnRight ()
virtual bool	OnBack ()
virtual bool	OnInfo ()
virtual void	OnNextControl ()
virtual void	OnPrevControl ()
virtual void	OnFocus ()
virtual void	OnUnFocus ()
virtual EVENT_RESULT	SendMouseEvent (const CPoint &point, const CMouseEvent &event)
	React to a mouse event. More...
virtual EVENT_RESULT	OnMouseEvent (const CPoint &point, const CMouseEvent &event)
	Perform a mouse action. More...
virtual void	UnfocusFromPoint (const CPoint &point)
	Unfocus the control if the given point on screen is not within it's boundary. More...
virtual bool	HitTest (const CPoint &point) const
	Used to test whether the point is inside a control. More...
virtual bool	OnMessage (CGUIMessage &message)
virtual int	GetID (void) const
virtual void	SetID (int id)
int	GetParentID () const
virtual bool	HasFocus () const
virtual void	AllocResources ()
virtual void	FreeResources (bool immediately=false)
virtual void	DynamicResourceAlloc (bool bOnOff)
virtual bool	IsDynamicallyAllocated ()
virtual bool	CanFocus () const
virtual bool	IsVisible () const
bool	IsVisibleFromSkin () const
virtual bool	IsDisabled () const
virtual void	SetPosition (float posX, float posY)
virtual void	SetHitRect (const CRect &rect, const UTILS::Color &color)
virtual void	SetCamera (const CPoint &camera)
virtual void	SetStereoFactor (const float &factor)
bool	SetColorDiffuse (const KODI::GUILIB::GUIINFO::CGUIInfoColor &color)
CPoint	GetRenderPosition () const
virtual float	GetXPosition () const
virtual float	GetYPosition () const
virtual float	GetWidth () const
virtual float	GetHeight () const
void	MarkDirtyRegion (const unsigned int dirtyState=DIRTY_STATE_CONTROL)
bool	IsControlDirty () const
const CRect &	GetRenderRegion () const
	return the render region in screen coordinates of this control More...
virtual CRect	CalcRenderRegion () const
	calculate the render region in parentcontrol coordinates of this control Called during process to update m_renderRegion More...
void	SetActions (const ActionMap &actions)
void	SetAction (int actionID, const CGUIAction &action, bool replace=true)
	Set actions to perform on navigation Navigations are set if replace is true or if there is no previously set action. More...
CGUIAction	GetAction (int actionID) const
	Get an action the control can be perform. More...
bool	Navigate (int direction) const
	Start navigating in given direction. More...
virtual void	SetFocus (bool focus)
virtual void	SetWidth (float width)
virtual void	SetHeight (float height)
virtual void	SetVisible (bool bVisible, bool setVisState=false)
void	SetVisibleCondition (const std::string &expression, const std::string &allowHiddenFocus="")
bool	HasVisibleCondition () const
void	SetEnableCondition (const std::string &expression)
virtual void	UpdateVisibility (const CGUIListItem *item)
virtual void	SetInitialVisibility ()
virtual void	SetEnabled (bool bEnable)
virtual void	SetInvalid ()
virtual void	SetPulseOnSelect (bool pulse)
virtual std::string	GetDescription () const
virtual std::string	GetDescriptionByIndex (int index) const
void	SetAnimations (const std::vector< CAnimation > &animations)
const std::vector< CAnimation > &	GetAnimations () const
virtual void	QueueAnimation (ANIMATION_TYPE anim)
virtual bool	IsAnimating (ANIMATION_TYPE anim)
virtual bool	HasAnimation (ANIMATION_TYPE anim)
CAnimation *	GetAnimation (ANIMATION_TYPE type, bool checkConditions=true)
virtual void	ResetAnimation (ANIMATION_TYPE type)
virtual void	ResetAnimations ()
virtual void	UpdateInfo (const CGUIListItem *item=NULL)
virtual void	SetPushUpdates (bool pushUpdates)
virtual bool	IsGroup () const
virtual bool	IsContainer () const
virtual bool	GetCondition (int condition, int data) const
void	SetParentControl (CGUIControl *control)
CGUIControl *	GetParentControl (void) const
virtual void	SaveStates (std::vector< CControlState > &states)
virtual CGUIControl *	GetControl (int id, std::vector< CGUIControl *> *idCollector=nullptr)
void	SetControlStats (GUICONTROLSTATS *controlStats)
virtual void	UpdateControlStats ()
GUICONTROLTYPES	GetControlType () const

Protected Member Functions
virtual CPoint	GetPosition () const
	Return the coordinates of the top left of the control, in the control's parent coordinates. More...
virtual bool	OnMouseOver (const CPoint &point)
	Called when the mouse is over the control. Default implementation selects the control. More...
virtual bool	CanFocusFromPoint (const CPoint &point) const
	Test whether we can focus a control from a point on screen. More...
virtual bool	UpdateColors ()
virtual bool	Animate (unsigned int currentTime)
virtual bool	CheckAnimation (ANIMATION_TYPE animType)
void	UpdateStates (ANIMATION_TYPE type, ANIMATION_PROCESS currentProcess, ANIMATION_STATE currentState)
bool	SendWindowMessage (CGUIMessage &message) const

Protected Attributes
ActionMap	m_actions
float	m_posX
float	m_posY
float	m_height
float	m_width
CRect	m_hitRect
UTILS::Color	m_hitColor = 0xffffffff
KODI::GUILIB::GUIINFO::CGUIInfoColor	m_diffuseColor
int	m_controlID
int	m_parentID
bool	m_bHasFocus
bool	m_bInvalidated
bool	m_bAllocated
bool	m_pulseOnSelect
GUICONTROLTYPES	ControlType
GUICONTROLSTATS *	m_controlStats
CGUIControl *	m_parentControl
INFO::InfoPtr	m_visibleCondition
GUIVISIBLE	m_visible
bool	m_visibleFromSkinCondition
bool	m_forceHidden
KODI::GUILIB::GUIINFO::CGUIInfoBool	m_allowHiddenFocus
bool	m_hasProcessed
INFO::InfoPtr	m_enableCondition
bool	m_enabled
bool	m_pushedUpdates
std::vector< CAnimation >	m_animations
CPoint	m_camera
bool	m_hasCamera
float	m_stereo
TransformMatrix	m_transform
TransformMatrix	m_cachedTransform
unsigned int	m_controlDirtyState
CRect	m_renderRegion

Static Protected Attributes
static const unsigned int	DIRTY_STATE_CONTROL = 1
static const unsigned int	DIRTY_STATE_CHILD = 2

Detailed Description

Base class for controls.

Member Typedef Documentation

ActionMap

typedef std::map<int, CGUIAction> CGUIControl::ActionMap

Set actions to perform on navigation.

Parameters

actions

ActionMap of actions

See also

SetNavigationAction

Member Enumeration Documentation

GUICONTROLTYPES

enum CGUIControl::GUICONTROLTYPES

Enumerator
GUICONTROL_UNKNOWN
GUICONTROL_BUTTON
GUICONTROL_FADELABEL
GUICONTROL_IMAGE
GUICONTROL_BORDEREDIMAGE
GUICONTROL_LABEL
GUICONTROL_LISTGROUP
GUICONTROL_PROGRESS
GUICONTROL_RADIO
GUICONTROL_RSS
GUICONTROL_SLIDER
GUICONTROL_SETTINGS_SLIDER
GUICONTROL_SPIN
GUICONTROL_SPINEX
GUICONTROL_TEXTBOX
GUICONTROL_TOGGLEBUTTON
GUICONTROL_VIDEO
GUICONTROL_GAME
GUICONTROL_MOVER
GUICONTROL_RESIZE
GUICONTROL_EDIT
GUICONTROL_VISUALISATION
GUICONTROL_RENDERADDON
GUICONTROL_MULTI_IMAGE
GUICONTROL_GROUP
GUICONTROL_GROUPLIST
GUICONTROL_SCROLLBAR
GUICONTROL_LISTLABEL
GUICONTROL_GAMECONTROLLER
GUICONTAINER_LIST
GUICONTAINER_WRAPLIST
GUICONTAINER_FIXEDLIST
GUICONTAINER_EPGGRID
GUICONTAINER_PANEL

GUISCROLLVALUE

enum CGUIControl::GUISCROLLVALUE

Enumerator
FOCUS
NEVER
ALWAYS

GUIVISIBLE

enum CGUIControl::GUIVISIBLE

Enumerator
HIDDEN
DELAYED
VISIBLE

Constructor & Destructor Documentation

CGUIControl() [1/3]

CGUIControl::CGUIControl

(

)

CGUIControl() [2/3]

CGUIControl::CGUIControl	(	int	parentID,
		int	controlID,
		float	posX,
		float	posY,
		float	width,
		float	height
	)

CGUIControl() [3/3]

CGUIControl::CGUIControl ( const CGUIControl &  )

default

~CGUIControl()

CGUIControl::~CGUIControl ( void  )

virtualdefault

Member Function Documentation

AllocResources()

void CGUIControl::AllocResources ( )

virtual

Reimplemented in CGUIImage, CGUISliderControl, CGUIMoverControl, CGUIBaseContainer, CGUIResizeControl, CGUISpinControl, CGUIButtonControl, CGUIMultiImage, CGUIRadioButtonControl, PVR::CGUIEPGGridContainer, CGUIControlGroup, GUIScrollBarControl, CGUIProgressControl, CGUISettingsSliderControl, CGUISpinControlEx, CGUIToggleButtonControl, and CGUIBorderedImage.

Animate()

bool CGUIControl::Animate ( unsigned int  currentTime )

protectedvirtual

Reimplemented in CGUIWindow.

CalcRenderRegion()

CRect CGUIControl::CalcRenderRegion ( ) const

virtual

calculate the render region in parentcontrol coordinates of this control Called during process to update m_renderRegion

Reimplemented in CGUIImage, CGUIButtonControl, CGUIListLabel, CGUIRSSControl, CGUILabelControl, and CGUIBorderedImage.

CanFocus()

bool CGUIControl::CanFocus ( ) const

virtual

Reimplemented in CGUIImage, CGUIMoverControl, CGUIVisualisationControl, CGUIResizeControl, KODI::RETRO::CGUIGameControl, CGUITextBox, CGUIBaseContainer, CGUIMultiImage, CGUIControlGroup, CGUIRSSControl, CGUIProgressControl, CGUIFadeLabelControl, CGUILabelControl, CGUIListLabel, CGUIVideoControl, and CGUIRenderingControl.

CanFocusFromPoint()

bool CGUIControl::CanFocusFromPoint ( const CPoint &  point ) const

protectedvirtual

Test whether we can focus a control from a point on screen.

Parameters

point

the location in vanilla skin coordinates from the upper left corner of the parent control.

Returns

true if the control can be focused from this location

See also

UnfocusFromPoint, HitRect

Reimplemented in CGUIVisualisationControl, CGUIVideoControl, and CGUIRenderingControl.

CheckAnimation()

bool CGUIControl::CheckAnimation ( ANIMATION_TYPE  animType )

protectedvirtual

Reimplemented in CGUIWindow.

Clone()

virtual CGUIControl* CGUIControl::Clone ( ) const

pure virtual

Implemented in CGUIImage, CGUIEditControl, CGUISliderControl, CGUIVisualisationControl, KODI::RETRO::CGUIGameControl, CGUIMoverControl, CGUIButtonControl, CGUIResizeControl, CGUIListContainer, CGUIRSSControl, CGUISpinControl, CGUITextBox, CGUIRadioButtonControl, GUIScrollBarControl, CGUIMultiImage, CGUIProgressControl, PVR::CGUIEPGGridContainer, CGUIFadeLabelControl, CGUIControlGroup, CGUIListLabel, CGUILabelControl, CGUISettingsSliderControl, KODI::GAME::CGUIGameController, CGUIListGroup, CGUISpinControlEx, CGUIVideoControl, CGUIControlGroupList, CGUIFixedListContainer, CGUIPanelContainer, CGUIToggleButtonControl, CGUIWrappingListContainer, CGUIBorderedImage, and CGUIRenderingControl.

DoProcess()

void CGUIControl::DoProcess ( unsigned int  currentTime, CDirtyRegionList &  dirtyregions  )

virtual

Reimplemented in CGUIDialogSettingsBase, CGUIWindow, CGUIBaseContainer, CGUIDialog, CGUITextBox, KODI::GAME::CGUIControllerWindow, CGUIDialogBusy, CGUIWindowSettingsScreenCalibration, and CGUIDialogBusyNoCancel.

DoRender()

void CGUIControl::DoRender ( )

virtual

Reimplemented in CGUIWindow, and CGUIWindowSettingsScreenCalibration.

DynamicResourceAlloc()

void CGUIControl::DynamicResourceAlloc ( bool  bOnOff )

virtual

Reimplemented in CGUIWindow, CGUIImage, CGUISliderControl, CGUIMoverControl, CGUIResizeControl, CGUISpinControl, CGUIButtonControl, CGUIMultiImage, CGUIRadioButtonControl, CGUIControlGroup, GUIScrollBarControl, CGUIProgressControl, CGUISettingsSliderControl, CGUISpinControlEx, CGUIToggleButtonControl, and CGUIBorderedImage.

FreeResources()

void CGUIControl::FreeResources ( bool  immediately = false )

virtual

Reimplemented in CGUIWindow, CGUIImage, XBMCAddon::xbmcgui::WindowXMLInterceptor, CGUISliderControl, CGUIMoverControl, CGUIVisualisationControl, CGUIBaseContainer, CGUIResizeControl, CGUISpinControl, CGUIButtonControl, CGUIMultiImage, CGUIRadioButtonControl, PVR::CGUIEPGGridContainer, CGUIControlGroup, GUIScrollBarControl, CGUIProgressControl, CGUISettingsSliderControl, CGUISpinControlEx, KodiAPI::GUI::CGUIAddonWindow, CGUIToggleButtonControl, CGUIBorderedImage, CGUIWindowSettingsScreenCalibration, and CGUIRenderingControl.

GetAction()

CGUIAction CGUIControl::GetAction

(

int

actionID

)

const

Get an action the control can be perform.

Parameters

actionID

The actionID to retrieve.

GetAnimation()

CAnimation * CGUIControl::GetAnimation	(	ANIMATION_TYPE	type,
		bool	checkConditions = true
	)

GetAnimations()

const std::vector<CAnimation>& CGUIControl::GetAnimations ( ) const

inline

GetCondition()

virtual bool CGUIControl::GetCondition ( int  condition, int  data  ) const

inlinevirtual

Reimplemented in CGUIBaseContainer, CGUITextBox, CGUIControlGroupList, and CGUIPanelContainer.

GetControl()

CGUIControl * CGUIControl::GetControl ( int  id, std::vector< CGUIControl *> *  idCollector = nullptr  )

virtual

Reimplemented in CGUIControlLookup.

GetControlType()

GUICONTROLTYPES CGUIControl::GetControlType ( ) const

inline

GetDescription()

virtual std::string CGUIControl::GetDescription ( void  ) const

inlinevirtual

Reimplemented in CGUIImage, CGUISliderControl, CGUISpinControl, CGUIBaseContainer, CGUIButtonControl, CGUITextBox, CGUISettingsSliderControl, PVR::CGUIEPGGridContainer, CGUIProgressControl, CGUIRadioButtonControl, CGUIMultiImage, GUIScrollBarControl, CGUISpinControlEx, CGUIFadeLabelControl, CGUIToggleButtonControl, and CGUILabelControl.

GetDescriptionByIndex()

virtual std::string CGUIControl::GetDescriptionByIndex ( int  index ) const

inlinevirtual

Reimplemented in CGUIEditControl.

GetHeight()

float CGUIControl::GetHeight ( ) const

virtual

Reimplemented in CGUIDialogContextMenu, CGUISettingsSliderControl, CGUITextBox, CGUISpinControlEx, and CGUIControlGroupList.

GetID()

int CGUIControl::GetID ( void  ) const

virtual

Reimplemented in CGUIWindowSettingsCategory.

GetParentControl()

CGUIControl* CGUIControl::GetParentControl ( void  ) const

inline

GetParentID()

int CGUIControl::GetParentID

(

void

)

const

GetPosition()

virtual CPoint CGUIControl::GetPosition ( ) const

inlineprotectedvirtual

Return the coordinates of the top left of the control, in the control's parent coordinates.

Returns

The top left coordinates of the control

Reimplemented in CGUIWindow.

GetRenderPosition()

CPoint CGUIControl::GetRenderPosition

(

)

const

GetRenderRegion()

const CRect& CGUIControl::GetRenderRegion ( ) const

inline

return the render region in screen coordinates of this control

GetWidth()

float CGUIControl::GetWidth ( ) const

virtual

Reimplemented in CGUIDialogContextMenu, CGUIButtonControl, CGUISpinControl, CGUISettingsSliderControl, CGUILabelControl, CGUISpinControlEx, and CGUIControlGroupList.

GetXPosition()

float CGUIControl::GetXPosition ( ) const

virtual

Reimplemented in CGUISettingsSliderControl, and CGUISpinControlEx.

GetYPosition()

float CGUIControl::GetYPosition ( ) const

virtual

Reimplemented in CGUISettingsSliderControl, and CGUISpinControlEx.

HasAnimation()

bool CGUIControl::HasAnimation ( ANIMATION_TYPE  anim )

virtual

Reimplemented in CGUIControlGroup.

HasFocus()

bool CGUIControl::HasFocus ( void  ) const

virtual

Reimplemented in CGUIControlGroup.

HasProcessed()

bool CGUIControl::HasProcessed ( ) const

inline

Returns whether or not we have processed.

HasVisibleCondition()

bool CGUIControl::HasVisibleCondition ( ) const

inline

HitTest()

bool CGUIControl::HitTest ( const CPoint &  point ) const

virtual

Used to test whether the point is inside a control.

Parameters

point

location to test

Returns

true if the point is inside the bounds of this control.

See also

SetHitRect

Reimplemented in CGUISliderControl, CGUISettingsSliderControl, CGUISpinControlEx, and CGUISpinControl.

IsAnimating()

bool CGUIControl::IsAnimating ( ANIMATION_TYPE  anim )

virtual

Reimplemented in CGUIWindow, and CGUIControlGroup.

IsContainer()

virtual bool CGUIControl::IsContainer ( ) const

inlinevirtual

Reimplemented in IGUIContainer.

IsControlDirty()

bool CGUIControl::IsControlDirty ( ) const

inline

IsDisabled()

bool CGUIControl::IsDisabled ( ) const

virtual

IsDynamicallyAllocated()

virtual bool CGUIControl::IsDynamicallyAllocated ( )

inlinevirtual

Reimplemented in CGUIImage, and CGUIMultiImage.

IsGroup()

virtual bool CGUIControl::IsGroup ( ) const

inlinevirtual

Reimplemented in CGUIControlGroup.

IsVisible()

bool CGUIControl::IsVisible ( ) const

virtual

Reimplemented in CGUIWindow, CGUISpinControl, and GUIScrollBarControl.

IsVisibleFromSkin()

bool CGUIControl::IsVisibleFromSkin ( ) const

inline

MarkDirtyRegion()

void CGUIControl::MarkDirtyRegion

(

const unsigned int

dirtyState = DIRTY_STATE_CONTROL

)

Navigate()

bool CGUIControl::Navigate

(

int

direction

)

const

Start navigating in given direction.

OnAction()

bool CGUIControl::OnAction ( const CAction &  action )

virtual

Reimplemented in XBMCAddon::xbmcgui::Interceptor< CGUIMediaWindow >, ADDON::CGUIAddonWindow, CGUIDialogContextMenu, CGUIWindow, CGUIDialogSettingsBase, XBMCAddon::xbmcgui::WindowXMLInterceptor, CGUIImage, PVR::CGUIWindowPVRBase, CGUIWindowSlideShow, CGUIVisualisationControl, CGUIEditControl, CGUISliderControl, CGUIMoverControl, PVR::CGUIEPGGridContainer, CGUIDialogKeyboardGeneric, CGUIDialog, CGUIButtonControl, CGUIResizeControl, CGUIBaseContainer, CGUISpinControl, CGUIMultiImage, CGUIRadioButtonControl, CGUIListContainer, GUIScrollBarControl, CGUIWindowMusicBase, CGUIWindowVideoNav, CGUIControlGroup, KodiAPI::GUI::CGUIAddonWindow, CGUIMediaWindow, PVR::CGUIWindowPVRGuideBase, CGUISettingsSliderControl, CGUIWindowVideoBase, KODI::RETRO::CGameWindowFullScreen, CGUIWindowFileManager, CGUIDialogGamepad, CGUIPanelContainer, CGUIToggleButtonControl, CGUIDialogNumeric, CGUIDialogTextViewer, PVR::CGUIDialogPVRItemsViewBase, CGUIDialogFileBrowser, KODI::GAME::CDialogGameOSD, CGUIFixedListContainer, CGUIDialogMusicInfo, PVR::CGUIDialogPVRChannelsOSD, CGUIWindowHome, CGUIWrappingListContainer, PVR::CGUIDialogPVRChannelManager, CGUIDialogVideoBookmarks, CGUIDialogPictureInfo, PVR::CGUIWindowPVRChannelsBase, PVR::CGUIWindowPVRRecordingsBase, PVR::CGUIWindowPVRTimersBase, CGUIDialogAccessPoints, CGUIDialogAddonInfo, CGUIDialogVolumeBar, CGUIDialogSongInfo, CGUIWindowMusicNav, CGUIDialogVideoInfo, CGUIWindowSettingsCategory, CGUIWindowTestPattern, CGUIWindowLoginScreen, CGUIWindowSplash, CGUIDialogTeletext, CGUIDialogVideoOSD, CGUIWindowMusicPlayList, CGUIWindowVisualisation, CGUIWindowSettingsScreenCalibration, CGUIWindowFullScreen, CGUIWindowScreensaver, CGUIDialogSlider, CGUIDialogMusicOSD, CGUIWindowVideoPlaylist, CGUIDialogPlayerProcessInfo, CGUIDialogFullScreenInfo, and CGUIWindowStartup.

OnBack()

bool CGUIControl::OnBack ( )

virtual

OnDown()

void CGUIControl::OnDown ( )

virtual

Reimplemented in CGUIMoverControl, PVR::CGUIEPGGridContainer, CGUIResizeControl, CGUIBaseContainer, and CGUIPanelContainer.

OnFocus()

virtual void CGUIControl::OnFocus ( )

inlinevirtual

Reimplemented in CGUIBaseContainer, CGUIButtonControl, and CGUIRSSControl.

OnInfo()

bool CGUIControl::OnInfo ( )

virtual

OnLeft()

void CGUIControl::OnLeft ( )

virtual

Reimplemented in CGUIMoverControl, PVR::CGUIEPGGridContainer, CGUIResizeControl, CGUIBaseContainer, CGUISpinControl, and CGUIPanelContainer.

OnMessage()

bool CGUIControl::OnMessage ( CGUIMessage &  message )

virtual

Reimplemented in XBMCAddon::xbmcgui::Interceptor< CGUIMediaWindow >, ADDON::CGUIAddonWindow, CGUIWindow, CGUIDialogContextMenu, KodiAPI::GUI::CGUIAddonWindowDialog, CGUIDialogSettingsBase, CGUIImage, CGUISliderControl, CGUIVisualisationControl, CGUIWindowSlideShow, PVR::CGUIWindowPVRBase, CGUIDialogExtendedProgressBar, CGUIEditControl, PVR::CGUIEPGGridContainer, CGUIBaseContainer, CGUISpinControl, CGUIDialogKaiToast, GUIScrollBarControl, CGUIDialogKeyboardGeneric, CGUIDialog, CGUIButtonControl, CGUIProgressControl, CGUITextBox, CGUIMultiImage, CGUIRadioButtonControl, CGUIListContainer, CGUIWindowVideoNav, CGUIControlGroup, CGUIFadeLabelControl, CGUIWindowMusicBase, CGUIMediaWindow, CGUIControlGroupList, CGUILabelControl, PERIPHERALS::CGUIDialogPeripherals, KodiAPI::GUI::CGUIAddonWindow, CGUIDialogMediaFilter, CGUIDialogLibExportSettings, KODI::RETRO::CGameWindowFullScreen, CGUIDialogBoxBase, KODI::GAME::CGUIControllerWindow, KODI::GAME::CDialogGameVideoSelect, KODI::GAME::CDialogGameVolume, PVR::CGUIWindowPVRGuideBase, CGUIPanelContainer, CGUIWindowVideoBase, CGUIDialogYesNo, CGUIDialogNetworkSetup, CGUIWindowFileManager, CGUIDialogSubtitles, CGUIDialogNumeric, KODI::GAME::CDialogGameAdvancedSettings, CGUIWrappingListContainer, CGUIWindowAddonBrowser, CGUIDialogFileBrowser, CGUIDialogMusicInfo, PVR::CGUIDialogPVRChannelsOSD, CGUIWindowHome, KODI::GAME::CGUIWindowGames, PVR::CGUIDialogPVRChannelManager, PVR::CGUIDialogPVRGuideSearch, PVR::CGUIWindowPVRRecordingsBase, PVR::CGUIWindowPVRTimersBase, CGUIWindowDebugInfo, CGUIDialogMediaSource, CGUIDialogOK, CGUIDialogSelect, PVR::CGUIDialogPVRGroupManager, PVR::CGUIWindowPVRSearchBase, CGUIDialogSubtitleSettings, CGUIDialogVideoBookmarks, CGUIDialogSmartPlaylistEditor, PERIPHERALS::CGUIDialogPeripheralSettings, CGUIDialogAddonInfo, CGUIDialogVolumeBar, CGUIDialogFavourites, CGUIWindowMusicNav, CGUIDialogVideoInfo, CGUIDialogProgress, PVR::CGUIDialogPVRGuideInfo, PVR::CGUIWindowPVRChannelsBase, CGUIWindowSettingsCategory, CGUIWindowTestPattern, CGUIWindowLoginScreen, CGUIDialogAddonSettings, CGUIDialogSongInfo, CGUIDialogVisualisationPresetList, CGUIWindowMusicPlaylistEditor, CGUIWindowPictures, CGUIWindowSettingsProfile, CGUIWindowPrograms, CGUIDialogTeletext, CGUIDialogVideoOSD, CGUIWindowSystemInfo, CGUIDialogSmartPlaylistRule, CGUIWindowEventLog, CGUIWindowMusicPlayList, CGUIWindowVisualisation, PVR::CGUIDialogPVRRadioRDSInfo, PVR::CGUIDialogPVRRecordingInfo, CGUIWindowSettingsScreenCalibration, CGUIWindowFullScreen, CGUIWindowScreensaver, CGUIDialogButtonMenu, CGUIDialogGamepad, CGUIDialogPlayEject, CGUIDialogSlider, CGUIDialogSubMenu, CGUIDialogTextViewer, CGUIDialogMusicOSD, CGUIWindowVideoPlaylist, CGUIDialogSeekBar, and CGUIWindowWeather.

OnMouseEvent()

virtual EVENT_RESULT CGUIControl::OnMouseEvent ( const CPoint &  point, const CMouseEvent &  event  )

inlinevirtual

Perform a mouse action.

Mouse actions are sent from the window to all controls, and each control can react based on the event and location of the actions.

Parameters

point	the location in transformed skin coordinates from the upper left corner of the parent control.
event	the mouse event to perform

Returns

EVENT_RESULT corresponding to whether the control handles this event

See also

SendMouseEvent, HitTest, CanFocusFromPoint, CMouseEvent

Reimplemented in CGUIWindow, CGUIBaseContainer, CGUISpinControl, CGUISliderControl, CGUIButtonControl, CGUIMoverControl, CGUIWindowSlideShow, CGUIControlGroupList, CGUIResizeControl, PVR::CGUIEPGGridContainer, GUIScrollBarControl, CGUISettingsSliderControl, CGUIVideoControl, CGUIWindowFullScreen, CGUIWindowScreensaver, CGUIWindowVisualisation, and CGUIDialogVideoOSD.

OnMouseOver()

bool CGUIControl::OnMouseOver ( const CPoint &  point )

protectedvirtual

Called when the mouse is over the control. Default implementation selects the control.

Parameters

point

location of the mouse in transformed skin coordinates

Returns

true if handled, false otherwise.

Reimplemented in PVR::CGUIEPGGridContainer, CGUIBaseContainer, and CGUISpinControl.

OnNextControl()

void CGUIControl::OnNextControl ( )

virtual

OnPrevControl()

void CGUIControl::OnPrevControl ( )

virtual

OnRight()

void CGUIControl::OnRight ( )

virtual

Reimplemented in CGUIMoverControl, PVR::CGUIEPGGridContainer, CGUIResizeControl, CGUIBaseContainer, CGUISpinControl, and CGUIPanelContainer.

OnUnFocus()

virtual void CGUIControl::OnUnFocus ( void  )

inlinevirtual

Reimplemented in CGUIBaseContainer, CGUIButtonControl, CGUIRSSControl, CGUISettingsSliderControl, and KODI::GAME::CGUIFeatureButton.

OnUp()

void CGUIControl::OnUp ( )

virtual

Reimplemented in CGUIMoverControl, PVR::CGUIEPGGridContainer, CGUIBaseContainer, CGUIResizeControl, and CGUIPanelContainer.

Process()

void CGUIControl::Process ( unsigned int  currentTime, CDirtyRegionList &  dirtyregions  )

virtual

Reimplemented in CGUIBaseContainer, CGUIImage, XBMCAddon::xbmcgui::WindowXMLInterceptor, CGUIWindowSlideShow, CGUIDialogProgress, PVR::CGUIEPGGridContainer, CGUIDialogExtendedProgressBar, CGUIVisualisationControl, CGUIDialogBoxBase, CGUISliderControl, KODI::RETRO::CGUIGameControl, CGUIMoverControl, CGUIButtonControl, CGUIResizeControl, CGUITextBox, CGUIRSSControl, CGUISpinControl, CGUIRadioButtonControl, GUIScrollBarControl, CGUIMultiImage, CGUIProgressControl, CGUIControlGroupList, CGUIFadeLabelControl, CGUIDialogSubtitles, CGUIControlGroup, CGUIListLabel, CGUILabelControl, CGUIListGroup, CGUISettingsSliderControl, CGUISpinControlEx, CGUIVideoControl, KODI::RETRO::CGameWindowFullScreen, CGUIPanelContainer, CGUIToggleButtonControl, CGUIWindowTestPattern, CGUIDialogTeletext, CGUIWindowFullScreen, CGUIWindowDebugInfo, CGUIBorderedImage, CGUIWindowScreensaver, CGUIRenderingControl, CGUIWindowPointer, and CGUIWindowScreensaverDim.

QueueAnimation()

void CGUIControl::QueueAnimation ( ANIMATION_TYPE  anim )

virtual

Reimplemented in CGUIControlGroup.

Render()

virtual void CGUIControl::Render ( void  )

inlinevirtual

Reimplemented in ADDON::CGUIAddonWindow, CGUIBaseContainer, CGUIImage, CGUIWindowSlideShow, PVR::CGUIEPGGridContainer, CGUIVisualisationControl, CGUISliderControl, KODI::RETRO::CGUIGameControl, CGUIDialog, CGUIMoverControl, CGUIButtonControl, CGUIResizeControl, CGUITextBox, CGUIRSSControl, CGUISpinControl, KodiAPI::GUI::CGUIAddonWindow, CGUIRadioButtonControl, GUIScrollBarControl, CGUIMultiImage, CGUIProgressControl, CGUIControlGroupList, CGUIFadeLabelControl, CGUIControlGroup, CGUIListLabel, CGUILabelControl, CGUISettingsSliderControl, CGUISpinControlEx, CGUIVideoControl, KODI::RETRO::CGameWindowFullScreen, CGUIPanelContainer, CGUIToggleButtonControl, KODI::GAME::CGUIGameController, CGUIDialogTeletext, CGUIWindowFullScreen, CGUIWindowDebugInfo, CGUIBorderedImage, CGUIWindowTestPattern, CGUIWindowSplash, CGUIDialogBusy, CGUIRenderingControl, CGUIWindowScreensaver, CGUIDialogBusyNoCancel, and CGUIWindowScreensaverDim.

RenderEx()

virtual void CGUIControl::RenderEx ( )

inlinevirtual

Reimplemented in KODI::RETRO::CGUIGameControl, CGUIControlGroup, CGUIVideoControl, KODI::RETRO::CGameWindowFullScreen, and CGUIWindowFullScreen.

ResetAnimation()

void CGUIControl::ResetAnimation ( ANIMATION_TYPE  type )

virtual

Reimplemented in CGUIControlGroup, and CGUIListGroup.

ResetAnimations()

void CGUIControl::ResetAnimations ( )

virtual

Reimplemented in CGUIControlGroup.

SaveStates()

void CGUIControl::SaveStates ( std::vector< CControlState > &  states )

virtual

Reimplemented in CGUIControlGroup, and CGUIBaseContainer.

SendMouseEvent()

EVENT_RESULT CGUIControl::SendMouseEvent ( const CPoint &  point, const CMouseEvent &  event  )

virtual

React to a mouse event.

Mouse events are sent from the window to all controls, and each control can react based on the event and location of the event.

Parameters

point	the location in transformed skin coordinates from the upper left corner of the parent control.
event	the mouse event to perform

Returns

EVENT_RESULT corresponding to whether the control handles this event

See also

HitTest, CanFocusFromPoint, CMouseEvent, EVENT_RESULT

Reimplemented in CGUIControlGroup, and CGUIControlGroupList.

SendWindowMessage()

bool CGUIControl::SendWindowMessage ( CGUIMessage &  message ) const

protected

SetAction()

void CGUIControl::SetAction	(	int	actionID,
		const CGUIAction &	action,
		bool	replace = true
	)

Set actions to perform on navigation Navigations are set if replace is true or if there is no previously set action.

Parameters

actionID	id of the navigation action
action	CGUIAction to set
replace	Actions are set only if replace is true or there is no previously set action. Defaults to true

See also

SetNavigationActions

SetActions()

void CGUIControl::SetActions

(

const ActionMap &

actions

)

SetAnimations()

void CGUIControl::SetAnimations

(

const std::vector< CAnimation > &

animations

)

SetCamera()

void CGUIControl::SetCamera ( const CPoint &  camera )

virtual

SetColorDiffuse()

bool CGUIControl::SetColorDiffuse

(

const KODI::GUILIB::GUIINFO::CGUIInfoColor &

color

)

SetControlStats()

void CGUIControl::SetControlStats ( GUICONTROLSTATS *  controlStats )

inline

SetEnableCondition()

void CGUIControl::SetEnableCondition

(

const std::string &

expression

)

SetEnabled()

void CGUIControl::SetEnabled ( bool  bEnable )

virtual

Reimplemented in CGUISettingsSliderControl, and CGUISpinControlEx.

SetFocus()

void CGUIControl::SetFocus ( bool  focus )

virtual

Reimplemented in CGUIEditControl, PVR::CGUIEPGGridContainer, CGUIBaseContainer, and CGUIListLabel.

SetHeight()

void CGUIControl::SetHeight ( float  height )

virtual

Reimplemented in CGUIImage, KODI::RETRO::CGUIGameControl, CGUIRadioButtonControl, CGUISettingsSliderControl, CGUIToggleButtonControl, and CGUISpinControlEx.

SetHitRect()

void CGUIControl::SetHitRect ( const CRect &  rect, const UTILS::Color &  color  )

virtual

SetID()

virtual void CGUIControl::SetID ( int  id )

inlinevirtual

Reimplemented in CGUIWindow.

SetInitialVisibility()

void CGUIControl::SetInitialVisibility ( )

virtual

Reimplemented in CGUIWindow, and CGUIControlGroup.

SetInvalid()

virtual void CGUIControl::SetInvalid ( )

inlinevirtual

Reimplemented in CGUIImage, PVR::CGUIWindowPVRBase, CGUISliderControl, CGUIMoverControl, CGUIResizeControl, CGUISpinControl, CGUIButtonControl, CGUIMultiImage, CGUIRadioButtonControl, PVR::CGUIDialogPVRChannelsOSD, GUIScrollBarControl, CGUIProgressControl, CGUISettingsSliderControl, CGUISpinControlEx, PVR::CGUIWindowPVRGuideBase, CGUIListLabel, CGUIListGroup, CGUIToggleButtonControl, and CGUIControlGroupList.

SetParentControl()

void CGUIControl::SetParentControl ( CGUIControl *  control )

inline

SetPosition()

void CGUIControl::SetPosition ( float  posX, float  posY  )

virtual

Reimplemented in CGUIDialogContextMenu, CGUIImage, CGUIMoverControl, CGUIResizeControl, CGUISpinControl, KODI::RETRO::CGUIGameControl, CGUIButtonControl, CGUIRadioButtonControl, CGUIProgressControl, CGUISettingsSliderControl, CGUIToggleButtonControl, and CGUISpinControlEx.

SetPulseOnSelect()

virtual void CGUIControl::SetPulseOnSelect ( bool  pulse )

inlinevirtual

SetPushUpdates()

virtual void CGUIControl::SetPushUpdates ( bool  pushUpdates )

inlinevirtual

SetStereoFactor()

void CGUIControl::SetStereoFactor ( const float &  factor )

virtual

SetVisible()

void CGUIControl::SetVisible ( bool  bVisible, bool  setVisState = false  )

virtual

Todo:

currently we only update m_visible from GUI_MSG_VISIBLE (SET_CONTROL_VISIBLE) otherwise we just set m_forceHidden

SetVisibleCondition()

void CGUIControl::SetVisibleCondition	(	const std::string &	expression,
		const std::string &	allowHiddenFocus = ""
	)

SetWidth()

void CGUIControl::SetWidth ( float  width )

virtual

Reimplemented in CGUIImage, KODI::RETRO::CGUIGameControl, CGUIRadioButtonControl, CGUISettingsSliderControl, CGUILabelControl, CGUIListLabel, CGUIToggleButtonControl, and CGUISpinControlEx.

UnfocusFromPoint()

void CGUIControl::UnfocusFromPoint ( const CPoint &  point )

virtual

Unfocus the control if the given point on screen is not within it's boundary.

Parameters

point

the location in transformed skin coordinates from the upper left corner of the parent control.

See also

CanFocusFromPoint

Reimplemented in CGUIControlGroup, and CGUIControlGroupList.

UpdateColors()

bool CGUIControl::UpdateColors ( )

protectedvirtual

Reimplemented in CGUISpinControl, CGUISliderControl, CGUIButtonControl, CGUIMoverControl, CGUITextBox, CGUIResizeControl, CGUISettingsSliderControl, CGUILabelControl, CGUIListLabel, CGUIProgressControl, CGUIRadioButtonControl, CGUISpinControlEx, CGUIRSSControl, GUIScrollBarControl, CGUIToggleButtonControl, and CGUIFadeLabelControl.

UpdateControlStats()

void CGUIControl::UpdateControlStats ( )

virtual

Reimplemented in CGUIWindow.

UpdateInfo()

virtual void CGUIControl::UpdateInfo ( const CGUIListItem *  item = NULL )

inlinevirtual

Reimplemented in CGUIImage, CGUITextBox, KODI::RETRO::CGUIGameControl, CGUIProgressControl, CGUIMultiImage, CGUIListLabel, CGUIListGroup, and CGUILabelControl.

UpdateStates()

void CGUIControl::UpdateStates ( ANIMATION_TYPE  type, ANIMATION_PROCESS  currentProcess, ANIMATION_STATE  currentState  )

protected

UpdateVisibility()

void CGUIControl::UpdateVisibility ( const CGUIListItem *  item )

virtual

Reimplemented in CGUIImage, CGUITextBox, CGUIVisualisationControl, CGUIBaseContainer, CGUIMultiImage, CGUIListGroup, and CGUIRenderingControl.

Member Data Documentation

ControlType

GUICONTROLTYPES CGUIControl::ControlType

protected

DIRTY_STATE_CHILD

const unsigned int CGUIControl::DIRTY_STATE_CHILD = 2

staticprotected

DIRTY_STATE_CONTROL

const unsigned int CGUIControl::DIRTY_STATE_CONTROL = 1

staticprotected

m_actions

ActionMap CGUIControl::m_actions

protected

m_allowHiddenFocus

KODI::GUILIB::GUIINFO::CGUIInfoBool CGUIControl::m_allowHiddenFocus

protected

m_animations

std::vector<CAnimation> CGUIControl::m_animations

protected

m_bAllocated

bool CGUIControl::m_bAllocated

protected

m_bHasFocus

bool CGUIControl::m_bHasFocus

protected

m_bInvalidated

bool CGUIControl::m_bInvalidated

protected

m_cachedTransform

TransformMatrix CGUIControl::m_cachedTransform

protected

m_camera

CPoint CGUIControl::m_camera

protected

m_controlDirtyState

unsigned int CGUIControl::m_controlDirtyState

protected

m_controlID

int CGUIControl::m_controlID

protected

m_controlStats

GUICONTROLSTATS* CGUIControl::m_controlStats

protected

m_diffuseColor

KODI::GUILIB::GUIINFO::CGUIInfoColor CGUIControl::m_diffuseColor

protected

m_enableCondition

INFO::InfoPtr CGUIControl::m_enableCondition

protected

m_enabled

bool CGUIControl::m_enabled

protected

m_forceHidden

bool CGUIControl::m_forceHidden

protected

m_hasCamera

bool CGUIControl::m_hasCamera

protected

m_hasProcessed

bool CGUIControl::m_hasProcessed

protected

m_height

float CGUIControl::m_height

protected

m_hitColor

UTILS::Color CGUIControl::m_hitColor = 0xffffffff

protected

m_hitRect

CRect CGUIControl::m_hitRect

protected

m_parentControl

CGUIControl* CGUIControl::m_parentControl

protected

m_parentID

int CGUIControl::m_parentID

protected

m_posX

float CGUIControl::m_posX

protected

m_posY

float CGUIControl::m_posY

protected

m_pulseOnSelect

bool CGUIControl::m_pulseOnSelect

protected

m_pushedUpdates

bool CGUIControl::m_pushedUpdates

protected

m_renderRegion

CRect CGUIControl::m_renderRegion

protected

m_stereo

float CGUIControl::m_stereo

protected

m_transform

TransformMatrix CGUIControl::m_transform

protected

m_visible

GUIVISIBLE CGUIControl::m_visible

protected

m_visibleCondition

INFO::InfoPtr CGUIControl::m_visibleCondition

protected

m_visibleFromSkinCondition

bool CGUIControl::m_visibleFromSkinCondition

protected

m_width

float CGUIControl::m_width

protected

---

The documentation for this class was generated from the following files:

• GUIControl.h
• GUIControl.cpp
