XBMCAddon::xbmcgui::Window Class Reference

#include <Window.h>

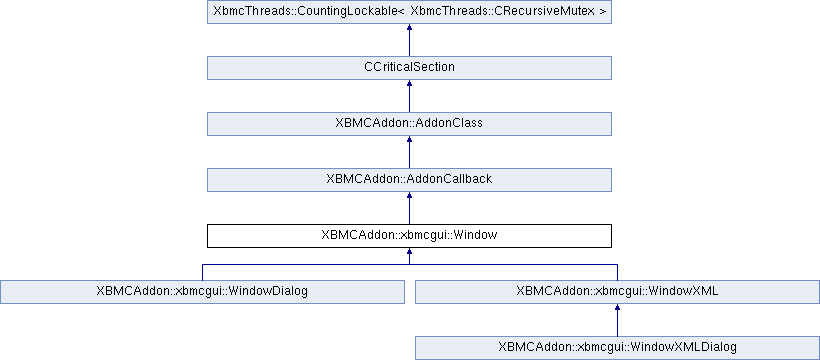

Inheritance diagram for XBMCAddon::xbmcgui::Window:

Public Member Functions
	Window (int existingWindowId=-1)
	~Window () override
SWIGHIDDENVIRTUAL bool	OnMessage (CGUIMessage &message)
SWIGHIDDENVIRTUAL bool	OnAction (const CAction &action)
SWIGHIDDENVIRTUAL bool	OnBack (int actionId)
SWIGHIDDENVIRTUAL void	OnDeinitWindow (int nextWindowID)
SWIGHIDDENVIRTUAL bool	IsDialogRunning () const
SWIGHIDDENVIRTUAL bool	IsDialog () const
SWIGHIDDENVIRTUAL bool	IsModalDialog () const
SWIGHIDDENVIRTUAL bool	IsMediaWindow () const
SWIGHIDDENVIRTUAL void	dispose ()
void	interceptorClear ()
	onAction (...)
	Function: onAction(self, Action action) onAction method. More...
void	onControl (...)
	Function: onControl(self, Control) onControl method. More...
	onClick (...)
	Function: onClick(self, int controlId) onClick method. More...
	onDoubleClick (...)
	Function: onDoubleClick(self, int controlId) onDoubleClick method. More...
	onFocus (...)
	Function: onFocus(self, int controlId) onFocus method. More...
	onInit (...)
	Function: onInit(self) onInit method. More...
	show ()
	Function: show() Show this window. More...
	setFocus (...)
	Function: setFocus(Control) Give the supplied control focus. More...
	setFocusId (...)
	Function: setFocusId(ControlId) Gives the control with the supplied focus. More...
	getFocus ()
	Function: getFocus(Control) Returns the control which is focused. More...
	getFocusId ()
	Function: getFocusId(int) Returns the id of the control which is focused. More...
	removeControl (...)
	Function: removeControl(Control) Removes the control from this window. More...
	removeControls (...)
	Function: removeControls(List) Removes a list of controls from this window. More...
	getHeight ()
	Function: getHeight() Returns the height of this Window instance. More...
	getWidth ()
	Function: getWidth() Returns the width of this Window instance. More...
	getResolution ()
	Function: getResolution() Returns The resolution of the screen More...
	setCoordinateResolution (...)
	Function: setCoordinateResolution(int resolution) Sets the resolution More...
	setProperty (...)
	Function: setProperty(key, value) Sets a window property, similar to an infolabel. More...
	getProperty (...)
	Function: getProperty(key) Returns a window property as a string, similar to an infolabel. More...
	clearProperty (...)
	Function: clearProperty(key) Clears the specific window property. More...
	clearProperties ()
	Function: clearProperties() Clears all window properties. More...
	close ()
	Function: close() Closes this window. More...
	doModal ()
	Function: doModal() Display this window until close() is called. More...
	addControl (...)
	Function: addControl(Control) Add a Control to this window. More...
	addControls (...)
	Function: addControls(List) Add a list of Controls to this window. More...
	getControl (...)
	Function: getControl(controlId) Gets the control from this window. More...
Public Member Functions inherited from XBMCAddon::AddonCallback
	~AddonCallback () override
void	setHandler (CallbackHandler *_handler)
void	invokeCallback (Callback *callback)
Public Member Functions inherited from XBMCAddon::AddonClass
	AddonClass ()
virtual	~AddonClass ()
const char *	GetClassname () const
LanguageHook *	GetLanguageHook ()
bool	isDeallocating ()
void	Release () const
void	Acquire () const
Public Member Functions inherited from XbmcThreads::CountingLockable< XbmcThreads::CRecursiveMutex >
	CountingLockable ()=default
void	lock ()
bool	try_lock ()
void	unlock ()
unsigned int	exit (unsigned int leave=0)
void	restore (unsigned int restoreCount)
XbmcThreads::CRecursiveMutex &	get_underlying ()

Protected Member Functions
	Window (bool discrim)
void	deallocating () override
void	setWindow (InterceptorBase *_window)
void	popActiveWindowId ()
Control *	GetControlById (int iControlId, CCriticalSection *gc)
SWIGHIDDENVIRTUAL void	PulseActionEvent ()
SWIGHIDDENVIRTUAL bool	WaitForActionEvent (unsigned int milliseconds)
Protected Member Functions inherited from XBMCAddon::AddonCallback
bool	hasHandler ()
	AddonCallback ()

Static Protected Member Functions
static int	getNextAvailableWindowId ()
Static Protected Member Functions inherited from XBMCAddon::AddonClass
static short	getNextClassIndex ()

Protected Attributes
InterceptorBase *	window
int	iWindowId = -1
std::vector< AddonClass::Ref< Control > >	vecControls
int	iOldWindowId = 0
int	iCurrentControlId = 3000
bool	bModal = false
CEvent	m_actionEvent
bool	canPulse = false
bool	existingWindow = true
bool	destroyAfterDeInit = false
Protected Attributes inherited from XBMCAddon::AddonCallback
AddonClass::Ref< CallbackHandler >	handler
Protected Attributes inherited from XBMCAddon::AddonClass
LanguageHook *	languageHook
Protected Attributes inherited from XbmcThreads::CountingLockable< XbmcThreads::CRecursiveMutex >
XbmcThreads::CRecursiveMutex	mutex
unsigned int	count

Friends
class	WindowDialogMixin

Additional Inherited Members
Static Public Member Functions inherited from XBMCAddon::AddonClass
static short	getNumAddonClasses ()

Constructor & Destructor Documentation

Window() [1/2]

XBMCAddon::xbmcgui::Window::Window ( bool  discrim )

explicitprotected

This only takes a boolean to allow subclasses to explicitly use it. A default constructor can be used as a concrete class and we need to tell the difference. subclasses should use this constructor and not the other.

Window() [2/2]

XBMCAddon::xbmcgui::Window::Window ( int  existingWindowId = -1 )

explicit

This just creates a default window.

~Window()

XBMCAddon::xbmcgui::Window::~Window ( )

override

Member Function Documentation

deallocating()

void XBMCAddon::xbmcgui::Window::deallocating ( )

overrideprotectedvirtual

This method is meant to be called from the destructor of the lowest level class.

It's virtual because it's a convenient place to receive messages that we're about to go be deleted but prior to any real tear-down.

Any overloading classes need to remember to pass the call up the chain.

Reimplemented from XBMCAddon::AddonClass.

dispose()

void XBMCAddon::xbmcgui::Window::dispose

(

)

Todo:

rework locking

Bug:

This is an existing window, so no resources are free'd. Note that THIS WILL FAIL for any controls newly created by python - they will remain after the script ends. Ideally this would be remedied by a flag in Control that specifies that it was python created - any python created controls could then be removed + free'd from the window. how this works with controlgroups though could be a bit tricky.

GetControlById()

Control * XBMCAddon::xbmcgui::Window::GetControlById ( int  iControlId, CCriticalSection *  gc  )

protected

This is a helper method since getting a control by it's id is a common function.

Todo:

Yuck! Should probably be done with a Factory pattern

getNextAvailableWindowId()

int XBMCAddon::xbmcgui::Window::getNextAvailableWindowId ( )

staticprotected

This helper retrieves the next available id. It is assumed that the global lock is already being held.

interceptorClear()

void XBMCAddon::xbmcgui::Window::interceptorClear ( )

inline

This is called from the InterceptorBase destructor to prevent further use of the interceptor from the window.

IsDialog()

SWIGHIDDENVIRTUAL bool XBMCAddon::xbmcgui::Window::IsDialog ( ) const

inline

IsDialogRunning()

SWIGHIDDENVIRTUAL bool XBMCAddon::xbmcgui::Window::IsDialogRunning ( ) const

inline

IsMediaWindow()

SWIGHIDDENVIRTUAL bool XBMCAddon::xbmcgui::Window::IsMediaWindow ( ) const

inline

IsModalDialog()

SWIGHIDDENVIRTUAL bool XBMCAddon::xbmcgui::Window::IsModalDialog ( ) const

inline

OnAction()

bool XBMCAddon::xbmcgui::Window::OnAction

(

const CAction &

action

)

OnBack()

bool XBMCAddon::xbmcgui::Window::OnBack

(

int

actionId

)

OnDeinitWindow()

void XBMCAddon::xbmcgui::Window::OnDeinitWindow

(

int

nextWindowID

)

OnMessage()

bool XBMCAddon::xbmcgui::Window::OnMessage

(

CGUIMessage &

message

)

popActiveWindowId()

void XBMCAddon::xbmcgui::Window::popActiveWindowId ( )

protected

This is a helper method since popping the previous window id is a common function.

PulseActionEvent()

void XBMCAddon::xbmcgui::Window::PulseActionEvent ( )

protected

setWindow()

void XBMCAddon::xbmcgui::Window::setWindow ( InterceptorBase *  _window )

protected

Child classes MUST call this in their constructors. It should be an instance of Interceptor<P extends CGUIWindow>. Control of memory management for this class is then given to the Window.

WaitForActionEvent()

bool XBMCAddon::xbmcgui::Window::WaitForActionEvent ( unsigned int  milliseconds )

protected

Friends And Related Function Documentation

WindowDialogMixin

friend class WindowDialogMixin

friend

Member Data Documentation

bModal

bool XBMCAddon::xbmcgui::Window::bModal = false

protected

canPulse

bool XBMCAddon::xbmcgui::Window::canPulse = false

protected

destroyAfterDeInit

bool XBMCAddon::xbmcgui::Window::destroyAfterDeInit = false

protected

existingWindow

bool XBMCAddon::xbmcgui::Window::existingWindow = true

protected

iCurrentControlId

int XBMCAddon::xbmcgui::Window::iCurrentControlId = 3000

protected

iOldWindowId

int XBMCAddon::xbmcgui::Window::iOldWindowId = 0

protected

iWindowId

int XBMCAddon::xbmcgui::Window::iWindowId = -1

protected

m_actionEvent

CEvent XBMCAddon::xbmcgui::Window::m_actionEvent

protected

vecControls

std::vector<AddonClass::Ref<Control> > XBMCAddon::xbmcgui::Window::vecControls

protected

window

InterceptorBase* XBMCAddon::xbmcgui::Window::window

protected

---

The documentation for this class was generated from the following files:

• interfaces/legacy/Window.h
• interfaces/legacy/Window.cpp
