Generic expression where a coefficient-wise ternary operator is applied to two expressions. More...
#include <CwiseTernaryOp.h>

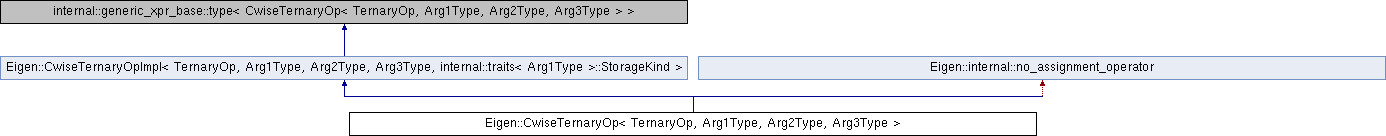

Inheritance diagram for Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >:
Public Types | |
| typedef internal::remove_all< Arg1Type >::type | Arg1 |
| typedef internal::remove_all< Arg2Type >::type | Arg2 |
| typedef internal::remove_all< Arg3Type >::type | Arg3 |
| typedef CwiseTernaryOpImpl< TernaryOp, Arg1Type, Arg2Type, Arg3Type, typename internal::traits< Arg1Type >::StorageKind >::Base | Base |
| typedef internal::ref_selector< Arg1Type >::type | Arg1Nested |
| typedef internal::ref_selector< Arg2Type >::type | Arg2Nested |
| typedef internal::ref_selector< Arg3Type >::type | Arg3Nested |
| typedef internal::remove_reference< Arg1Nested >::type | _Arg1Nested |
| typedef internal::remove_reference< Arg2Nested >::type | _Arg2Nested |
| typedef internal::remove_reference< Arg3Nested >::type | _Arg3Nested |
 Public Types inherited from Eigen::CwiseTernaryOpImpl< TernaryOp, Arg1Type, Arg2Type, Arg3Type, internal::traits< Arg1Type >::StorageKind > | |
| typedef internal::generic_xpr_base< CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type > >::type | Base |
Public Member Functions | |
| EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE | CwiseTernaryOp (const Arg1 &a1, const Arg2 &a2, const Arg3 &a3, const TernaryOp &func=TernaryOp()) |
| EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index | rows () const |
| EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index | cols () const |
| EIGEN_DEVICE_FUNC const _Arg1Nested & | arg1 () const |
| EIGEN_DEVICE_FUNC const _Arg2Nested & | arg2 () const |
| EIGEN_DEVICE_FUNC const _Arg3Nested & | arg3 () const |
| EIGEN_DEVICE_FUNC const TernaryOp & | functor () const |
Protected Attributes | |
| Arg1Nested | m_arg1 |
| Arg2Nested | m_arg2 |
| Arg3Nested | m_arg3 |
| const TernaryOp | m_functor |
Detailed Description
template<typename TernaryOp, typename Arg1Type, typename Arg2Type, typename Arg3Type>
class Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >
Generic expression where a coefficient-wise ternary operator is applied to two expressions.
- Template Parameters
-
TernaryOp template functor implementing the operator Arg1Type the type of the first argument Arg2Type the type of the second argument Arg3Type the type of the third argument
This class represents an expression where a coefficient-wise ternary operator is applied to three expressions. It is the return type of ternary operators, by which we mean only those ternary operators where all three arguments are Eigen expressions. For example, the return type of betainc(matrix1, matrix2, matrix3) is a CwiseTernaryOp.
Most of the time, this is the only way that it is used, so you typically don't have to name CwiseTernaryOp types explicitly.
- See also
- MatrixBase::ternaryExpr(const MatrixBase<Argument2> &, const MatrixBase<Argument3> &, const CustomTernaryOp &) const, class CwiseBinaryOp, class CwiseUnaryOp, class CwiseNullaryOp
Member Function Documentation
§ arg1()
template<typename TernaryOp, typename Arg1Type, typename Arg2Type, typename Arg3Type>
|
inline |
- Returns
- the first argument nested expression
§ arg2()
template<typename TernaryOp, typename Arg1Type, typename Arg2Type, typename Arg3Type>
|
inline |
- Returns
- the first argument nested expression
§ arg3()
template<typename TernaryOp, typename Arg1Type, typename Arg2Type, typename Arg3Type>
|
inline |
- Returns
- the third argument nested expression
§ functor()
template<typename TernaryOp, typename Arg1Type, typename Arg2Type, typename Arg3Type>
|
inline |
- Returns
- the functor representing the ternary operation
The documentation for this class was generated from the following file:
- third-party-libs/eigen3/Eigen/src/Core/CwiseTernaryOp.h
