Can be created using the CrombieTools.SkimmingTools.Corrector module. More...

#include <Corrector.h>

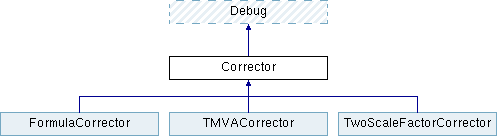

Inheritance diagram for Corrector:

Public Types
enum	HistReader { eValue = 0, eZeroCenteredUnc, eUnityCenteredUnc }
	Used to set the way to read the correction histogram. More...

Public Types inherited from Debug
enum	DebugLevel { eQuiet = 0, eError, eInfo, eDebug }
	Different possible debug levels. More...

Public Member Functions
	Corrector (TString name="correction")
	Constructor setting the name of a branch it would like to write to. More...

virtual	~Corrector ()

void	AddInExpression (TString expres)
	Add an expression to read from the histogram. More...

Bool_t	CompareFileName (TString fileName)
	Compares the file name to the Regex and returns true if corrections will be applied. More...

virtual Corrector *	Copy ()
	Copy this Corrector for parallelization. More...

Float_t	Evaluate ()
	Evaluate the TTree pointer fInTree at its current entry. More...

std::pair< bool, Float_t >	EvaluateWithFlag ()
	Evaluate the TTree pointer fInTree at its current entry and return a status bit corresponding to cut. More...

virtual std::vector< TString >	GetFormulas ()
	Gets the list of formulas that this corrector is using. More...

TString	GetName () const
	Get the name of the branch that this Corrector would like to write to. More...

void	SetBinning (UInt_t num, Double_t min, Double_t max)
	Set the binning when the histograms do not store the correct x values. More...

void	SetCorrectionFile (TString fileName)
	Set the file containing the correction histogram by name. More...

void	SetCorrectionHist (TString histName)
	Set the correction histogram name within the correction file. More...

void	SetCorrectionHist (TString hist1, TString hist2)
	Set two histograms to divide in order to obtain the correction histogram. More...

void	SetHistReader (HistReader reader)
	Set the type of histogram reader. More...

void	SetInCut (TString cut)
	Set a cut for the corrector. More...

virtual void	SetInTree (TTree *tree)
	Set the pointer to the TTree this Corrector is reading. More...

void	SetMatchFileName (TString regexpr)
	Set a RegEx for the Corrector to check against the filename. If no match, corrections are not applied. More...

Public Member Functions inherited from Debug
	Debug ()

virtual	~Debug ()

DebugLevel	GetDebugLevel ()
	Gets the verbosity for a class. More...

template<typename T , typename... V>
void	Message (DebugLevel level, T message, V... more)
	Sends a message if the verbosity level is appropriate. More...

void	Message (DebugLevel level)

void	SetDebugLevel (DebugLevel level)
	Sets the verbosity for a class. More...

Public Attributes
bool	Merge = true
	Flag determining whether or not to merge into the CorrectorApplicator branch. More...

Protected Member Functions
virtual Float_t	DoEval ()
	Function that actually does the evaluation of the correction factor. More...

Double_t	GetFormulaResult (Int_t index, Bool_t use_mins=true)
	Evaluate one of the formulae. If use_lims, then don't give a result that would go off the relevant axis. More...

Int_t	GetNumDims ()
	Get the number of dimensions that the formulas hold. More...

void	InitializeTree ()
	Function to initialize TTreeFormula on the tree. More...

Protected Member Functions inherited from Debug
void	DisplayFunc (const char *func)
	Sends the name of the function during debuggin. More...

Protected Attributes
TTreeFormula *	fCutFormula = NULL
	Formula for cut. More...

TString	fInCut = "1"
	Corrector cut. More...

TTree *	fInTree = NULL
	Pointer to tree being read. More...

Bool_t	fIsCopy = false
	Track if instance is a copy. More...

Bool_t	fMatchedFileName
	A flag telling this corrector if the file has been matched. More...

TString	fName
	Name of branch to write to. More...

Private Member Functions
void	SetMinMax ()
	Set the mininum and maximum values for each histogram axis. More...

Private Attributes
Double_t	bin_max = 0

Double_t	bin_min = 0

UInt_t	bin_num = 0
	Used if the binning of the histograms is off. More...

TFile *	fCorrectionFile = NULL
	Name of file containing correction histogram. More...

TH1 *	fCorrectionHist = NULL
	Name of correction histogram. More...

std::vector< TTreeFormula * >	fFormulas
	Formulae of fInExpressions. More...

HistReader	fHistReader = eValue
	The method to reading histograms. More...

std::vector< TString >	fInExpressions
	Expressions to read from tree. More...

TString	fMatchFileName = ""

std::vector< Double_t >	fMaxs
	Maximum possible values of each axis. More...

std::vector< Double_t >	fMins
	Minimum possible values of each axis. More...

Int_t	fNumDims = 0
	Number of dimensions in the correction histogram. More...

Detailed Description

Can be created using the CrombieTools.SkimmingTools.Corrector module.

A Corrector reads from a tree and histogram and returns a correction factor. The CorrectorApplicator facilitates this application by providing the trees and writes the result to a branch.

Definition at line 32 of file Corrector.h.

Member Enumeration Documentation

§ HistReader

enum Corrector::HistReader

Used to set the way to read the correction histogram.

Note that the uncertainty is added in quadrature, so the unity-centered uncertainty can safely be used for both up and down histograms.

Enumerator
eValue	Simply returns the value of the histogram.
eZeroCenteredUnc	The fractional uncertainty is just the value of the histogram.
eUnityCenteredUnc	For when reading an uncertainty from a histogram where the perfect precision would be at unity.

Definition at line 80 of file Corrector.h.

Constructor & Destructor Documentation

§ Corrector()

Corrector::Corrector ( TString name = "correction" )

Constructor setting the name of a branch it would like to write to.

Referenced by Copy().

§ ~Corrector()

Corrector::~Corrector ( )

virtual

Definition at line 23 of file Corrector.cc.

References fCorrectionFile, fCutFormula, fFormulas, and fIsCopy.

Member Function Documentation

§ AddInExpression()

void Corrector::AddInExpression ( TString expres )

inline

Add an expression to read from the histogram.

In most normal uses (reading from a TH1) this function needs to only be called once. If reading from a 2D histogram, call it twice. This gets the bin contents in the order that the expressions were added. Up to 3D histograms is supported.

Definition at line 66 of file Corrector.h.

References fInExpressions, and fNumDims.

Referenced by TMVACorrector::ReadVarConfig().

§ CompareFileName()

Bool_t Corrector::CompareFileName ( TString fileName )

Compares the file name to the Regex and returns true if corrections will be applied.

Definition at line 185 of file Corrector.cc.

References fMatchedFileName, and fMatchFileName.

§ Copy()

Corrector * Corrector::Copy ( )

virtual

Copy this Corrector for parallelization.

Reimplemented in TwoScaleFactorCorrector, TMVACorrector, and FormulaCorrector.

Definition at line 211 of file Corrector.cc.

References Corrector(), fIsCopy, and CrombieTools.SkimmingTools.Corrector::newCorrector.

§ DoEval()

Float_t Corrector::DoEval ( )

protectedvirtual

Function that actually does the evaluation of the correction factor.

Reimplemented in TwoScaleFactorCorrector, FormulaCorrector, and TMVACorrector.

Definition at line 98 of file Corrector.cc.

References bin_max, bin_min, bin_num, fCorrectionHist, fNumDims, and GetFormulaResult().

Referenced by EvaluateWithFlag().

§ Evaluate()

Float_t Corrector::Evaluate ( )

Evaluate the TTree pointer fInTree at its current entry.

Returns: value of correction histogram using the expressions added through AddInExpression(), unless the event does not pass the cut set by SetInCut(). In that case, a default value is returned (depending on if it's a scale factor or an uncertainty).

Definition at line 154 of file Corrector.cc.

References EvaluateWithFlag().

§ EvaluateWithFlag()

std::pair< bool, Float_t > Corrector::EvaluateWithFlag ( )

Evaluate the TTree pointer fInTree at its current entry and return a status bit corresponding to cut.

Returns: value of correction histogram using the expressions added through AddInExpression(), unless the event does not pass the cut set by SetInCut(). In that case, a default value is returned (depending on if it's a scale factor or an uncertainty). First part of the pair is a bool determining whether or not that cut was passed

Definition at line 128 of file Corrector.cc.

References DoEval(), eUnityCenteredUnc, eZeroCenteredUnc, fCutFormula, fHistReader, fInTree, and fMatchedFileName.

Referenced by Evaluate().

§ GetFormulaResult()

Double_t Corrector::GetFormulaResult	(	Int_t	index,
		Bool_t	use_mins = `true`
	)

protected

Evaluate one of the formulae. If use_lims, then don't give a result that would go off the relevant axis.

Definition at line 80 of file Corrector.cc.

References bin_max, bin_min, bin_num, fFormulas, fMaxs, and fMins.

Referenced by TMVACorrector::DoEval(), and DoEval().

§ GetFormulas()

std::vector< TString > Corrector::GetFormulas ( )

virtual

Gets the list of formulas that this corrector is using.

Reimplemented in TwoScaleFactorCorrector, and FormulaCorrector.

Definition at line 219 of file Corrector.cc.

References fInCut, and fInExpressions.

Referenced by FormulaCorrector::GetFormulas(), and SetInTree().

§ GetName()

TString Corrector::GetName ( ) const

inline

Get the name of the branch that this Corrector would like to write to.

Definition at line 58 of file Corrector.h.

References fName.

§ GetNumDims()

Int_t Corrector::GetNumDims ( )

inlineprotected

Get the number of dimensions that the formulas hold.

Definition at line 112 of file Corrector.h.

References fNumDims.

Referenced by TMVACorrector::Copy(), and TMVACorrector::DoEval().

§ InitializeTree()

void Corrector::InitializeTree ( )

protected

Function to initialize TTreeFormula on the tree.

Definition at line 162 of file Corrector.cc.

References fCutFormula, fFormulas, fInCut, fInExpressions, and fInTree.

Referenced by SetInTree().

§ SetBinning()

void Corrector::SetBinning	(	UInt_t	num,
		Double_t	min,
		Double_t	max
	)

inline

Set the binning when the histograms do not store the correct x values.

Definition at line 95 of file Corrector.h.

References bin_max, bin_min, and bin_num.

§ SetCorrectionFile()

void Corrector::SetCorrectionFile ( TString fileName )

Set the file containing the correction histogram by name.

Definition at line 36 of file Corrector.cc.

References Debug::eError, fCorrectionFile, and Debug::Message().

§ SetCorrectionHist() [1/2]

void Corrector::SetCorrectionHist ( TString histName )

Set the correction histogram name within the correction file.

Definition at line 46 of file Corrector.cc.

References Debug::eError, fCorrectionFile, fCorrectionHist, Debug::Message(), and SetMinMax().

§ SetCorrectionHist() [2/2]

void Corrector::SetCorrectionHist	(	TString	hist1,
		TString	hist2
	)

Set two histograms to divide in order to obtain the correction histogram.

Definition at line 58 of file Corrector.cc.

References Debug::eError, fCorrectionFile, fCorrectionHist, Debug::Message(), and SetMinMax().

§ SetHistReader()

void Corrector::SetHistReader ( HistReader reader )

inline

Set the type of histogram reader.

Definition at line 87 of file Corrector.h.

References fHistReader.

§ SetInCut()

void Corrector::SetInCut ( TString cut )

inline

Set a cut for the corrector.

Definition at line 68 of file Corrector.h.

References fInCut.

§ SetInTree()

virtual void Corrector::SetInTree ( TTree * tree )

inlinevirtual

Set the pointer to the TTree this Corrector is reading.

Reimplemented in TwoScaleFactorCorrector, and FormulaCorrector.

Definition at line 70 of file Corrector.h.

References fInTree, GetFormulas(), and InitializeTree().

Referenced by FormulaCorrector::SetInTree(), and TwoScaleFactorCorrector::SetInTree().

§ SetMatchFileName()

void Corrector::SetMatchFileName ( TString regexpr )

inline

Set a RegEx for the Corrector to check against the filename. If no match, corrections are not applied.

Definition at line 90 of file Corrector.h.

References fMatchFileName.

§ SetMinMax()

void Corrector::SetMinMax ( )

private

Set the mininum and maximum values for each histogram axis.

Definition at line 191 of file Corrector.cc.

References Debug::eError, fCorrectionHist, fMaxs, fMins, fNumDims, and Debug::Message().

Referenced by SetCorrectionHist().

Member Data Documentation

§ bin_max

Double_t Corrector::bin_max = 0

private

Definition at line 128 of file Corrector.h.

Referenced by DoEval(), GetFormulaResult(), and SetBinning().

TString Corrector::fMatchFileName = ""

private

Definition at line 130 of file Corrector.h.

Referenced by CompareFileName(), and SetMatchFileName().

§ fMaxs

std::vector<Double_t> Corrector::fMaxs

private

Maximum possible values of each axis.

Definition at line 123 of file Corrector.h.

Referenced by GetFormulaResult(), and SetMinMax().

§ fMins

std::vector<Double_t> Corrector::fMins

private

Minimum possible values of each axis.

Definition at line 122 of file Corrector.h.

Referenced by GetFormulaResult(), and SetMinMax().

§ fName

TString Corrector::fName

protected

Name of branch to write to.

Definition at line 99 of file Corrector.h.

Referenced by TMVACorrector::Copy(), GetName(), and TMVACorrector::ReadVarConfig().

§ fNumDims

Int_t Corrector::fNumDims = 0

private

Number of dimensions in the correction histogram.

Definition at line 119 of file Corrector.h.

Referenced by AddInExpression(), DoEval(), GetNumDims(), and SetMinMax().

§ Merge

bool Corrector::Merge = true

Flag determining whether or not to merge into the CorrectorApplicator branch.

Definition at line 92 of file Corrector.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

§ HistReader

Constructor & Destructor Documentation

§ Corrector()

§ ~Corrector()

Member Function Documentation

§ AddInExpression()

§ CompareFileName()

§ Copy()

§ DoEval()

§ Evaluate()

§ EvaluateWithFlag()

§ GetFormulaResult()

§ GetFormulas()

§ GetName()

§ GetNumDims()

§ InitializeTree()

§ SetBinning()

§ SetCorrectionFile()

§ SetCorrectionHist() [1/2]

§ SetCorrectionHist() [2/2]

§ SetHistReader()

§ SetInCut()

§ SetInTree()

§ SetMatchFileName()

§ SetMinMax()

Member Data Documentation

§ bin_max

§ bin_min

§ bin_num

§ fCorrectionFile

§ fCorrectionHist

§ fCutFormula

§ fFormulas

§ fHistReader

§ fInCut

§ fInExpressions

§ fInTree

§ fIsCopy

§ fMatchedFileName

§ fMatchFileName

§ fMaxs

§ fMins

§ fName

§ fNumDims

§ Merge
