device::Device Class Reference

Fundamental base class for all physical drivers (I2C, SPI). More...

#include <Device.hpp>

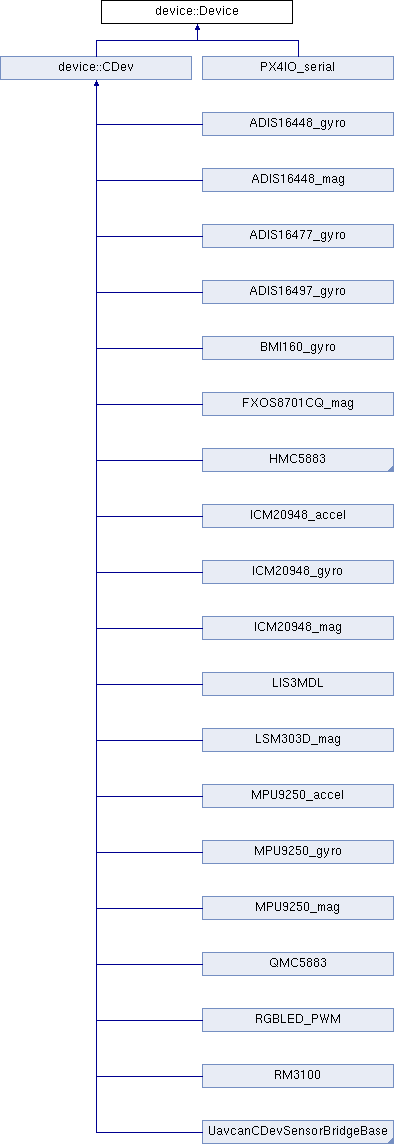

Inheritance diagram for device::Device:

Classes
union	DeviceId
struct	DeviceStructure

Public Types
enum	DeviceBusType { DeviceBusType_UNKNOWN = 0, DeviceBusType_I2C = 1, DeviceBusType_SPI = 2, DeviceBusType_UAVCAN = 3 }
	Device bus types for DEVID.

Public Member Functions
virtual	~Device ()=default
	Destructor. More...
virtual int	init ()
	Initialise the driver and make it ready for use. More...
virtual int	read (unsigned address, void *data, unsigned count)
	Read directly from the device. More...
virtual int	write (unsigned address, void *data, unsigned count)
	Write directly to the device. More...
virtual int	ioctl (unsigned operation, unsigned &arg)
	Perform a device-specific operation. More...
uint8_t	get_device_bus () const
	Return the bus ID the device is connected to. More...
uint32_t	get_device_id () const
DeviceBusType	get_device_bus_type () const
	Return the bus type the device is connected to. More...
uint8_t	get_device_address () const
	Return the bus address of the device. More...
void	set_device_address (int address)
void	set_device_type (uint8_t devtype)
	Set the device type. More...
virtual bool	external ()

Static Public Member Functions
static const char *	get_device_bus_string (DeviceBusType bus)
static int	device_id_print_buffer (char *buffer, int length, uint32_t id)
	Print decoded device id string to a buffer. More...

Protected Member Functions
	Device (const char *name)
	Device (DeviceBusType bus_type, uint8_t bus, uint8_t address, uint8_t devtype=0)
	Device (const Device &)=delete
Device &	operator= (const Device &)=delete
	Device (Device &&)=delete
Device &	operator= (Device &&)=delete

Protected Attributes
union DeviceId	_device_id
	device identifier information
const char *	_name
	driver name
bool	_debug_enabled {false}
	if true, debug messages are printed

Detailed Description

Fundamental base class for all physical drivers (I2C, SPI).

This class provides the basic driver template for I2C and SPI devices

Constructor & Destructor Documentation

~Device()

virtual device::Device::~Device ( )

virtualdefault

Destructor.

Public so that anonymous devices can be destroyed.

Member Function Documentation

device_id_print_buffer()

static int device::Device::device_id_print_buffer ( char *  buffer, int  length, uint32_t  id  )

inlinestatic

Print decoded device id string to a buffer.

Parameters

buffer	buffer to write to
length	buffer length
id	The device id.
return	number of bytes written

get_device_address()

uint8_t device::Device::get_device_address ( ) const

inline

Return the bus address of the device.

Returns

The bus address

get_device_bus()

uint8_t device::Device::get_device_bus ( ) const

inline

Return the bus ID the device is connected to.

Returns

The bus ID

get_device_bus_type()

DeviceBusType device::Device::get_device_bus_type ( ) const

inline

Return the bus type the device is connected to.

Returns

The bus type

init()

virtual int device::Device::init ( )

inlinevirtual

Initialise the driver and make it ready for use.

Returns

OK if the driver initialized OK, negative errno otherwise;

Reimplemented in PX4IO_serial, UavcanBarometerBridge, and UavcanMagnetometerBridge.

ioctl()

virtual int device::Device::ioctl ( unsigned  operation, unsigned &  arg  )

inlinevirtual

Perform a device-specific operation.

Parameters

operation	The operation to perform.
arg	An argument to the operation.

Returns

Negative errno on error, OK or positive value on success.

read()

virtual int device::Device::read ( unsigned  address, void *  data, unsigned  count  )

inlinevirtual

Read directly from the device.

The actual size of each unit quantity is device-specific.

Parameters

offset	The device address at which to start reading
data	The buffer into which the read values should be placed.
count	The number of items to read.

Returns

The number of items read on success, negative errno otherwise.

Reimplemented in PX4IO_serial.

set_device_type()

void device::Device::set_device_type ( uint8_t  devtype )

inline

Set the device type.

Returns

The device type

write()

virtual int device::Device::write ( unsigned  address, void *  data, unsigned  count  )

inlinevirtual

Write directly to the device.

The actual size of each unit quantity is device-specific.

Parameters

address	The device address at which to start writing.
data	The buffer from which values should be read.
count	The number of items to write.

Returns

The number of items written on success, negative errno otherwise.

Reimplemented in PX4IO_serial.

---

The documentation for this class was generated from the following file:

• src/lib/drivers/device/Device.hpp
