logrec_t Class Reference

Represents a transactional log record. More...

#include <logrec.h>

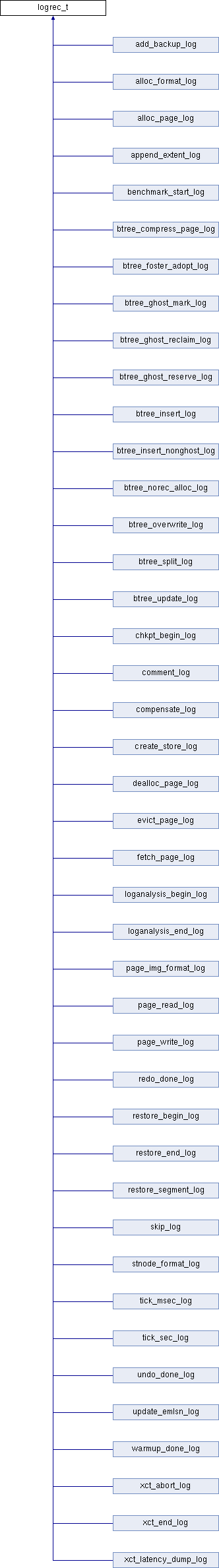

Inheritance diagram for logrec_t:

Public Types
enum	kind_t {   t_comment = 0, t_compensate = 1, t_skip = 2, t_chkpt_begin = 3,   t_warmup_done = 7, t_alloc_format = 8, t_evict_page = 9, t_add_backup = 10,   t_xct_abort = 11, t_fetch_page = 12, t_xct_end = 13, t_xct_latency_dump = 15,   t_alloc_page = 16, t_dealloc_page = 17, t_create_store = 18, t_append_extent = 19,   t_loganalysis_begin = 20, t_loganalysis_end = 21, t_redo_done = 22, t_undo_done = 23,   t_restore_begin = 24, t_restore_segment = 25, t_restore_end = 26, t_stnode_format = 27,   t_page_img_format = 28, t_update_emlsn = 29, t_btree_norec_alloc = 30, t_btree_insert = 31,   t_btree_insert_nonghost = 32, t_btree_update = 33, t_btree_overwrite = 34, t_btree_ghost_mark = 35,   t_btree_ghost_reclaim = 36, t_btree_ghost_reserve = 37, t_btree_foster_adopt = 38, t_btree_split = 43,   t_btree_compress_page = 44, t_tick_sec = 45, t_tick_msec = 46, t_benchmark_start = 47,   t_page_write = 48, t_page_read = 49, t_max_logrec = 50 }
enum	{ max_sz = 3 * sizeof(generic_page), hdr_non_ssx_sz = sizeof(baseLogHeader) + sizeof(xidChainLogHeader), hdr_single_sys_xct_sz = sizeof(baseLogHeader), max_data_sz = max_sz - hdr_non_ssx_sz - sizeof(lsn_t) }

Public Member Functions
bool	is_page_update () const
bool	is_redo () const
bool	is_skip () const
bool	is_undo () const
bool	is_cpsn () const
bool	is_multi_page () const
bool	is_root_page () const
bool	is_logical () const
bool	is_system () const
bool	is_single_sys_xct () const
bool	valid_header (const lsn_t &lsn_ck=lsn_t::null) const
smsize_t	header_size () const
template<class PagePtr >
void	redo (PagePtr)
void	redo ()
template<class PagePtr >
void	undo (PagePtr)
void	init_header (kind_t)
template<class PagePtr >
void	init_page_info (const PagePtr p)
void	set_size (size_t l)
void	init_xct_info ()
void	set_xid_prev (tid_t tid, lsn_t last)
tid_t	tid () const
StoreID	stid () const
PageID	pid () const
PageID	pid2 () const
uint16_t	tag () const
smsize_t	length () const
const lsn_t &	undo_nxt () const
const lsn_t &	page_prev_lsn () const
const lsn_t &	page2_prev_lsn () const
void	set_page_prev_lsn (const lsn_t &lsn)
const lsn_t &	xid_prev () const
void	set_xid_prev (const lsn_t &lsn)
void	set_undo_nxt (const lsn_t &lsn)
void	set_tid (tid_t tid)
void	set_clr (const lsn_t &c)
void	set_root_page ()
void	set_pid (const PageID &p)
kind_t	type () const
const char *	type_str () const
const char *	cat_str () const
const char *	data () const
char *	data ()
const char *	data_ssx () const
char *	data_ssx ()
multi_page_log_t *	data_ssx_multi ()
const multi_page_log_t *	data_ssx_multi () const
const lsn_t &	lsn_ck () const
const lsn_t &	lsn () const
const lsn_t	get_lsn_ck () const
void	set_lsn_ck (const lsn_t &lsn_ck)
void	corrupt ()
void	remove_info_for_pid (PageID pid)
bool	has_page_img (PageID page_id)
void *	operator new (size_t)
void	operator delete (void *, size_t)
void *	operator new (size_t, void *p)

Static Public Member Functions
static constexpr u_char	get_logrec_cat (kind_t type)
static const char *	get_type_str (kind_t)

Protected Types
enum	category_t {   t_bad_cat = 0x00, t_system = 0x01, t_undo = 0x02, t_redo = 0x04,   t_multi = 0x08, t_logical = 0x10, t_single_sys_xct = 0x80 }
enum	flag_t { t_cpsn = 0x01, t_root_page = 0x02 }

Protected Member Functions
u_char	cat () const
lsn_t *	_lsn_ck ()
const lsn_t *	_lsn_ck () const

Protected Attributes
baseLogHeader	header
xidChainLogHeader	xidInfo
char	_data [max_sz - sizeof(baseLogHeader) - sizeof(xidChainLogHeader)]

Friends
class	XctLogger
class	sysevent
class	baseLogHeader
ostream &	operator<< (ostream &, logrec_t &)

Detailed Description

Represents a transactional log record.

A log record's space is divided between a header and data. All log records' headers include the information contained in baseLogHeader. Log records pertaining to transactions that produce multiple log records also persist a transaction id chain (_xid and _xid_prv).

Optimization for single-log system transaction

For single-log system transaction, header items in xidChainLogHeader are not stored. instead, we use these area as data area to save 16 bytes. we do need to keep these 8 bytes aligned. and this is a bit dirty trick. however, we really need it to reduce the volume of log we output for system transactions.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
max_sz
hdr_non_ssx_sz
hdr_single_sys_xct_sz
max_data_sz

category_t

enum logrec_t::category_t

protected

Enumerator
t_bad_cat	should not happen.
t_system	System log record: not transaction- or page-related; no undo/redo
t_undo	log with UNDO action?
t_redo	log with REDO action?
t_multi	log for multi pages?
t_logical	is the UNDO logical? If so, do not fix the page for undo. Irrelevant if not an undoable log record.
t_single_sys_xct	log by system transaction which is fused with begin/commit record.

flag_t

enum logrec_t::flag_t

protected

Enumerator
t_cpsn
t_root_page

kind_t

enum logrec_t::kind_t

Enumerator
t_comment
t_compensate
t_skip
t_chkpt_begin
t_warmup_done
t_alloc_format
t_evict_page
t_add_backup
t_xct_abort
t_fetch_page
t_xct_end
t_xct_latency_dump
t_alloc_page
t_dealloc_page
t_create_store
t_append_extent
t_loganalysis_begin
t_loganalysis_end
t_redo_done
t_undo_done
t_restore_begin
t_restore_segment
t_restore_end
t_stnode_format
t_page_img_format
t_update_emlsn
t_btree_norec_alloc
t_btree_insert
t_btree_insert_nonghost
t_btree_update
t_btree_overwrite
t_btree_ghost_mark
t_btree_ghost_reclaim
t_btree_ghost_reserve
t_btree_foster_adopt
t_btree_split
t_btree_compress_page
t_tick_sec
t_tick_msec
t_benchmark_start
t_page_write
t_page_read
t_max_logrec

Member Function Documentation

_lsn_ck() [1/2]

lsn_t* logrec_t::_lsn_ck ( )

inlineprotected

_lsn_ck() [2/2]

const lsn_t* logrec_t::_lsn_ck ( ) const

inlineprotected

cat()

u_char logrec_t::cat ( ) const

inlineprotected

cat_str()

const char * logrec_t::cat_str

(

)

const

corrupt()

void logrec_t::corrupt

(

)

data() [1/2]

const char * logrec_t::data ( ) const

inline

data() [2/2]

char * logrec_t::data ( )

inline

data_ssx() [1/2]

const char * logrec_t::data_ssx ( ) const

inline

data_ssx() [2/2]

char * logrec_t::data_ssx ( )

inline

data_ssx_multi() [1/2]

multi_page_log_t * logrec_t::data_ssx_multi ( )

inline

Returns the log record data as a multi-page SSX log.

data_ssx_multi() [2/2]

const multi_page_log_t * logrec_t::data_ssx_multi ( ) const

inline

Const version

get_logrec_cat()

constexpr u_char logrec_t::get_logrec_cat ( kind_t  type )

static

get_lsn_ck()

const lsn_t logrec_t::get_lsn_ck ( ) const

inline

get_type_str()

const char * logrec_t::get_type_str ( kind_t  type )

static

has_page_img()

bool logrec_t::has_page_img ( PageID  page_id )

inline

header_size()

smsize_t logrec_t::header_size ( ) const

inline

init_header()

void logrec_t::init_header

(

kind_t

type

)

init_page_info()

template<class PagePtr >

void logrec_t::init_page_info ( const PagePtr  p )

inline

init_xct_info()

void logrec_t::init_xct_info

(

)

is_cpsn()

bool logrec_t::is_cpsn ( ) const

inline

is_logical()

bool logrec_t::is_logical ( ) const

inline

is_multi_page()

bool logrec_t::is_multi_page ( ) const

inline

is_page_update()

bool logrec_t::is_page_update ( ) const

inline

is_redo()

bool logrec_t::is_redo ( ) const

inline

is_root_page()

bool logrec_t::is_root_page ( ) const

inline

is_single_sys_xct()

bool logrec_t::is_single_sys_xct ( ) const

inline

is_skip()

bool logrec_t::is_skip ( ) const

inline

is_system()

bool logrec_t::is_system ( ) const

inline

is_undo()

bool logrec_t::is_undo ( ) const

inline

length()

smsize_t logrec_t::length ( ) const

inline

lsn()

const lsn_t& logrec_t::lsn ( ) const

inline

lsn_ck()

const lsn_t& logrec_t::lsn_ck ( ) const

inline

operator delete()

void logrec_t::operator delete	(	void *	,
		size_t
	)

operator new() [1/2]

void* logrec_t::operator new

(

size_t

)

operator new() [2/2]

void* logrec_t::operator new ( size_t  , void *  p  )

inline

page2_prev_lsn()

const lsn_t & logrec_t::page2_prev_lsn ( ) const

inline

pid()

PageID logrec_t::pid ( ) const

inline

pid2()

PageID logrec_t::pid2 ( ) const

inline

redo() [1/2]

template<class PagePtr >

void logrec_t::redo

(

PagePtr

page

)

redo() [2/2]

void logrec_t::redo

(

)

remove_info_for_pid()

void logrec_t::remove_info_for_pid

(

PageID

pid

)

set_clr()

void logrec_t::set_clr ( const lsn_t &  c )

inline

set_lsn_ck()

void logrec_t::set_lsn_ck ( const lsn_t &  lsn_ck )

inline

set_pid()

void logrec_t::set_pid ( const PageID &  p )

inline

set_root_page()

void logrec_t::set_root_page ( )

inline

set_size()

void logrec_t::set_size

(

size_t

l

)

set_tid()

void logrec_t::set_tid ( tid_t  tid )

inline

set_undo_nxt()

void logrec_t::set_undo_nxt ( const lsn_t &  lsn )

inline

set_xid_prev() [1/2]

void logrec_t::set_xid_prev	(	tid_t	tid,
		lsn_t	last
	)

set_xid_prev() [2/2]

void logrec_t::set_xid_prev ( const lsn_t &  lsn )

inline

stid()

StoreID logrec_t::stid ( ) const

inline

tag()

uint16_t logrec_t::tag ( ) const

inline

tid()

tid_t logrec_t::tid ( ) const

inline

type()

logrec_t::kind_t logrec_t::type ( ) const

inline

type_str()

const char* logrec_t::type_str ( ) const

inline

undo()

template<class PagePtr >

void logrec_t::undo

(

PagePtr

page

)

undo_nxt()

const lsn_t & logrec_t::undo_nxt ( ) const

inline

valid_header()

bool logrec_t::valid_header

(

const lsn_t &

lsn_ck = lsn_t::null

)

const

xid_prev()

const lsn_t & logrec_t::xid_prev ( ) const

inline

Friends And Related Function Documentation

baseLogHeader

friend class baseLogHeader

friend

operator<<

ostream& operator<< ( ostream &  o, logrec_t &  l  )

friend

sysevent

friend class sysevent

friend

XctLogger

friend class XctLogger

friend

Member Data Documentation

_data

char logrec_t::_data[max_sz - sizeof(baseLogHeader) - sizeof(xidChainLogHeader)]

protected

header

baseLogHeader logrec_t::header

protected

xidInfo

xidChainLogHeader logrec_t::xidInfo

protected

---

The documentation for this class was generated from the following files:

• src/sm/logrec.h
• src/sm/logrec.cpp
