Arpack++ based system of equations. More...
#include <ArpackSOE.h>

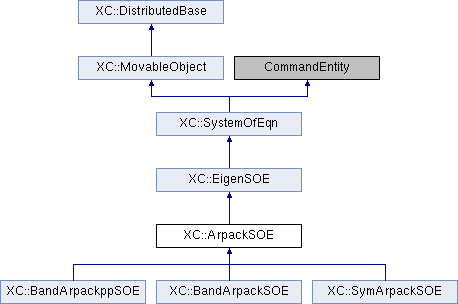

Inheritance diagram for XC::ArpackSOE:
Public Member Functions | |
| virtual const double & | getShift (void) const |
| Returns the value of the shift parameter. | |
| void | setShift (const double &) |
| Assigns the value of the shift parameter. | |
 Public Member Functions inherited from XC::EigenSOE | |
| virtual | ~EigenSOE (void) |
| Destructor. | |
| int | getNumEqn (void) const |
| Returns the number of equations. | |
| virtual int | solve (int numModes) |
| Solve the eigenproblem con the number of modos passed as parameter. | |
| virtual int | solve (void) |
| No hace nada. | |
| virtual int | addA (const Matrix &, const ID &, double fact=1.0)=0 |
| virtual int | addM (const Matrix &, const ID &, double fact=1.0)=0 |
| virtual int | setSize (Graph &theGraph)=0 |
| virtual void | zeroA (void)=0 |
| virtual void | zeroM (void) |
| Anula la matrix M. | |
| virtual void | identityM (void) |
| Makes M the identity matrix (to find stiffness matrix eigenvalues). | |
| const int & | getNumModes (void) const |
| Returns the number of computed eigenvalues. | |
| virtual const Vector & | getEigenvector (int mode) const |
| Return the autovector that correspond to the mode being passed as parameter. More... | |
| Vector | getNormalizedEigenvector (int mode) const |
| Returns the normalized autovector that correspond to the mode being passed as parameter. More... | |
| Matrix | getEigenvectors (void) const |
| Returns a matrix with the computed eigenvectors disposed by columns. More... | |
| Matrix | getNormalizedEigenvectors (void) const |
| Returns a matrix whit the normalized eigenvectors disposed by columns (infinity norm). More... | |
| virtual const double & | getEigenvalue (int mode) const |
| Returns the eigenvalue of the mode passed as parameter. | |
| double | getAngularFrequency (int mode) const |
| Returns the angular frequency of the i-th mode. | |
| double | getPeriodo (int mode) const |
| Returns the period of the i-th mode. | |
| double | getFrecuencia (int mode) const |
| Return the frecuency of the i-th mode. | |
| Vector | getEigenvalues (void) const |
| Returns a vector with computed eigenvalues for each mode. | |
| Vector | getAngularFrequencies (void) const |
| Returns a vector with the computed angular frequencies for each mode. More... | |
| Vector | getPeriodos (void) const |
| Returns a vector with the computed periods for each mode. More... | |
| Vector | getFrecuencias (void) const |
| Returns a vector with the computed frequencies for each mode. More... | |
| virtual double | getModalParticipationFactor (int mode) const |
| Returns the modal participation factor for the mode. | |
| Vector | getModalParticipationFactors (void) const |
| Returns the modal participation factors. | |
| Vector | getDistributionFactor (int mode) const |
| Returns the distribution factors for the i-th mode. | |
| Matrix | getDistributionFactors (void) const |
| Returns a matrix with the computed distribution factors placed by columns. More... | |
| double | getEffectiveModalMass (int mode) const |
| Return the effective modal mass for the i-th mode. | |
| Vector | getEffectiveModalMasses (void) const |
| Returns the effective modal masses for each mode. | |
| double | getTotalMass (void) const |
| Return the model total mass. | |
| Vector | getEquivalentStaticLoad (int mode, const double &) const |
| Return the equivalent static force for the mode passed as parameter. More... | |
| EigenSolver * | getSolver (void) |
| Return a pointer to the solver used to solve the eigenproblem. | |
| EigenSolver & | newSolver (const std::string &) |
| Public Member Functions inherited from XC::SystemOfEqn | |
| int | checkSize (Graph &theGraph) const |
| Check number of DOFs in the graph. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | sendSelf (CommParameters &cp)=0 |
| Send the object. More... | |
| virtual int | recvSelf (const CommParameters &cp)=0 |
| Receive the object. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| ArpackSOE (AnalysisAggregation *, int classTag, double shift=0.0) | |
| Constructor. | |
| Protected Member Functions inherited from XC::EigenSOE | |
| void | free_mem (void) |
| void | copy (const EigenSolver *) |
| virtual bool | setSolver (EigenSolver *) |
| Set the solver. | |
| void | resize_mass_matrix_if_needed (const size_t &) |
| EigenSOE (AnalysisAggregation *, int classTag) | |
| Constructor. | |
| Protected Member Functions inherited from XC::SystemOfEqn | |
| virtual AnalysisModel * | getAnalysisModelPtr (void) |
| Returns a pointer to the analysis model. | |
| virtual const AnalysisModel * | getAnalysisModelPtr (void) const |
| Returns a const pointer to the analysis model. | |
| SystemOfEqn (AnalysisAggregation *, int classTag) | |
| Constructor. More... | |
| virtual SystemOfEqn * | getCopy (void) const =0 |
| Virtual constructor. | |
Protected Attributes | |
| double | shift |
| Protected Attributes inherited from XC::EigenSOE | |
| int | size |
| order of A | |
| bool | factored |
| sparse_matrix | massMatrix |
| Mass matrix (used in getModalParticipationFactor). | |
| EigenSolver * | theSolver |
Additional Inherited Members | |
| Public Types inherited from XC::EigenSOE | |
| typedef boost::numeric::ublas::mapped_matrix< double > | sparse_matrix |
Detailed Description
Arpack++ based system of equations.
The documentation for this class was generated from the following files:
- src/solution/system_of_eqn/eigenSOE/ArpackSOE.h
- src/solution/system_of_eqn/eigenSOE/ArpackSOE.cc
