XC::CrdTransf Class Referenceabstract
Domain of the finite element problem. » Finite element mesh. » Finite elements. » Utilities for finite element calculations. » Element coordinate transformations.

CrdTransf provides the abstraction of a frame coordinate transformation. More...

#include <CrdTransf.h>

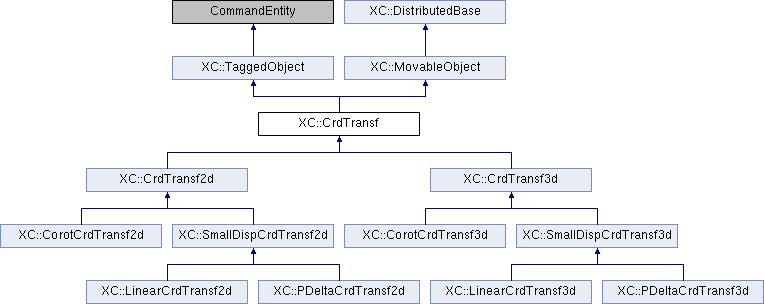

Inheritance diagram for XC::CrdTransf:
XC::TaggedObject XC::MovableObject XC::DistributedBase XC::CrdTransf2d XC::CrdTransf3d XC::CorotCrdTransf2d XC::SmallDispCrdTransf2d XC::CorotCrdTransf3d XC::SmallDispCrdTransf3d XC::LinearCrdTransf2d XC::PDeltaCrdTransf2d XC::LinearCrdTransf3d XC::PDeltaCrdTransf3d

Public Member Functions

 CrdTransf (int tag, int classTag, int dim_joint_offset)
 Constructor.

virtual ~CrdTransf (void)
 Destructor virtual.

const TransfCooHandler * GetTransfCooHandler (void) const
 Returns (if possible) a pointer to the coordinate transformation handler (owner).

TransfCooHandler * GetTransfCooHandler (void)
 Returs a pointer to the coordinate transformation handler (if possible).

std::string getName (void) const
 Return the name of the coordinate transformation.

virtual int initialize (Node *node1Pointer, Node *node2Pointer)=0

virtual int update (void)=0

virtual double getInitialLength (void) const =0

virtual double getDeformedLength (void) const =0

double getLength (bool initialGeometry=true) const

virtual int commitState (void)=0

virtual int revertToLastCommit (void)=0

virtual int revertToStart (void)=0

virtual const Vector & getBasicTrialDisp (void) const =0

virtual const Vector & getBasicIncrDisp (void) const =0

virtual const Vector & getBasicIncrDeltaDisp (void) const =0

virtual const Vector & getBasicTrialVel (void) const =0

virtual const Vector & getBasicTrialAccel (void) const =0

virtual const Vector & getBasicDisplSensitivity (int gradNumber)

virtual const Vector & getGlobalResistingForceShapeSensitivity (const Vector &basicForce, const Vector &uniformLoad)

virtual const Vector & getBasicTrialDispShapeSensitivity (void)

virtual const Vector & getGlobalResistingForce (const Vector &basicForce, const Vector &uniformLoad) const =0

virtual const Matrix & getGlobalStiffMatrix (const Matrix &basicStiff, const Vector &basicForce) const =0

virtual const Matrix & getInitialGlobalStiffMatrix (const Matrix &basicStiff) const =0

virtual const Vector & getI (void) const =0

virtual const Vector & getJ (void) const =0

virtual Matrix getLocalAxes (bool) const =0

virtual const Vector & getPointGlobalCoordFromLocal (const Vector &localCoords) const =0

virtual const Vector & getPointGlobalCoordFromBasic (const double &xi) const =0

virtual Vector getPointLocalCoordFromGlobal (const Vector &globalCoords) const =0

double getPointBasicCoordFromGlobal (const Vector &globalCoords) const

const Matrix & getPointsGlobalCoordFromLocal (const Matrix &localCoords) const

virtual const Matrix & getPointsGlobalCoordFromBasic (const Vector &) const =0

virtual const Vector & getPointGlobalDisplFromBasic (double xi, const Vector &basicDisps) const =0

virtual const Vector & getVectorGlobalCoordFromLocal (const Vector &localCoords) const =0

virtual const Matrix & getVectorGlobalCoordFromLocal (const Matrix &localCoords) const =0

virtual const Vector & getVectorLocalCoordFromGlobal (const Vector &globalCoords) const =0

virtual const Matrix & getCooNodes (void) const =0

virtual const Matrix & getCooPoints (const size_t &ndiv) const =0

virtual const Vector & getCooPoint (const double &xrel) const =0

- Public Member Functions inherited from XC::TaggedObject
 TaggedObject (int tag, CommandEntity *owr=nullptr)
 Constructor. More...

virtual TaggedObject * getCopy (void) const
 Virtual constructor.

void assignTag (int newTag)
 Set tag (to be called from Python interface).

int getTag (void) const
 Returns the tag associated with the object.

virtual void Print (std::ostream &, int flag=0)
 Print stuff.

- Public Member Functions inherited from XC::MovableObject
 MovableObject (int classTag, int dbTag)
 Constructor. More...

 MovableObject (int classTag)
 Constructor. More...

 MovableObject (const MovableObject &)
 Copy constructor. Doesn't copy the dbTag.

MovableObject & operator= (const MovableObject &)
 Assignment operator. Doesn't copy the dbTag.

int getClassTag (void) const
 Return the class identifier.

int getDbTag (void) const
 Return the object identifier in the database.

int getDbTag (CommParameters &)
 Return the object identifier in the database.

void setDbTag (int dbTag)
 Sets the object identifier in the database.

void setDbTag (CommParameters &)
 Sets the object identifier in the database if not already set. More...

virtual int sendSelf (CommParameters &cp)=0
 Send the object. More...

virtual int recvSelf (const CommParameters &cp)=0
 Receive the object. More...

virtual int setParameter (const std::vector< std::string > &argv, Parameter &param)
 Sets the value param to the parameter argv.

virtual int updateParameter (int parameterID, Information &info)
 Updates the parameter identified by parameterID with info.

virtual int activateParameter (int parameterID)
 Activates the parameter identified by parameterID.

virtual int setVariable (const std::string &variable, Information &)
 Set the value of the variable idenfified by var.

virtual int getVariable (const std::string &variable, Information &)
 Return the value of the variable idenfified by var.

- Public Member Functions inherited from XC::DistributedBase
 DistributedBase (void)
 Constructor.

virtual DbTagData & getDbTagData (void) const
 Returns a vector to store class dbTags.

const int & getDbTagDataPos (const int &i) const
 Returns the data at the i-th position.

void setDbTagDataPos (const int &i, const int &v)
 Sets the data at the i-th position.

void inicComm (const int &dataSize) const
 Initializes communication.


Protected Member Functions

int set_node_ptrs (Node *nodeIPointer, Node *nodeJPointer)
 Asigna los pointers to node dorsal y frontal.

int sendData (CommParameters &cp)
 Sends object members through the channel being passed as parameter.

int recvData (const CommParameters &cp)
 Receives object members through the channel being passed as parameter.

virtual void set_rigid_joint_offsetI (const Vector &rigJntOffsetI)=0

virtual void set_rigid_joint_offsetJ (const Vector &rigJntOffsetJ)=0

- Protected Member Functions inherited from XC::TaggedObject
void setTag (int newTag)
 Set tag. More...


Protected Attributes

Node * nodeIPtr

Node * nodeJPtr
 pointers to the nodes extremos of the element.

double L
 element length

Vector nodeIOffset

Vector nodeJOffset
 rigid joint offsets

std::vector< double > nodeIInitialDisp
 Initial displacement for I node.

std::vector< double > nodeJInitialDisp
 Initial displacement for J node.

bool initialDispChecked


Detailed Description

CrdTransf provides the abstraction of a frame coordinate transformation.

It is an abstract base class and thus no objects of it's type can be instatiated. It has pure virtual functions which must be implemented in it's derived classes.

The documentation for this class was generated from the following files:
