Pointer to element container. More...

#include <DqPtrsElem.h>

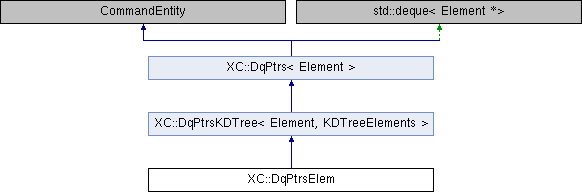

Inheritance diagram for XC::DqPtrsElem:

Public Member Functions
	DqPtrsElem (CommandEntity *owr=nullptr)
	Constructor.

	DqPtrsElem (const DqPtrsElem &)
	Copy constructor.

	DqPtrsElem (const std::deque< Element *> &ts)
	Copy constructor.

	DqPtrsElem (const std::set< const Element *> &ts)
	Copy constructor.

DqPtrsElem &	operator= (const DqPtrsElem &)
	Assignment operator.

size_t	getNumLiveElements (void) const
	Returns the number of elements of the set which are active.

size_t	getNumDeadElements (void) const
	Returns the number of elements of the set which are inactive.

void	kill_elements (void)
	Deactivates the elements.

void	alive_elements (void)
	Activates the elements.

std::set< int >	getTags (void) const
	Returns the tags of the elements.

void	calc_resisting_force (void)
	Calcula los esfuerzos on each uno of the elements.

Element *	findElement (const int &)
	Returns (if it exists) a pointer to the element identified by the tag being passed as parameter. More...

const Element *	findElement (const int &) const
	Returns (if it exists) a pointer to the element identified by the tag being passed as parameter. More...

BND3d	Bnd (const double &) const
	Returns the boundary of the element set.

std::deque< Polyline3d >	getContours (const double &factor=0.0) const
	Returns the element set contour.

DqPtrsElem	pickElemsInside (const GeomObj3d &, const double &tol=0.0)
	Return a container with the elements that lie inside the geometric object. More...

std::set< std::string >	getMaterialNames (void) const
	Return the names of the materials.

boost::python::list	getMaterialNamesPy (void) const
	Return the names of the materials in a python list.

std::set< std::string >	getTypes (void) const
	Return the types (class names) of the elements.

boost::python::list	getTypesPy (void) const
	Return the types (class names) of the elements.

std::set< size_t >	getDimensions (void) const
	Return the dimensions of the elements.

boost::python::list	getDimensionsPy (void) const
	Return the dimensions of the elements.

DqPtrsElem	pickElemsOfType (const std::string &)
	Return a container with the elements whose class name contains the string. More...

DqPtrsElem	pickElemsOfDimension (const size_t &)
	Return a container with the elements of the specified dimension. More...

DqPtrsElem	pickElemsOfMaterial (const std::string &)
	Return a container with the elements whose material(s) name(s) contains the string. More...

void	numera (void)
	Set indices to the objects to allow its use in VTK.

Public Member Functions inherited from XC::DqPtrsKDTree< Element, KDTreeElements >
	DqPtrsKDTree (CommandEntity *owr=nullptr)
	Constructor.

	DqPtrsKDTree (const DqPtrsKDTree &)
	Copy constructor.

	DqPtrsKDTree (const std::deque< Element * > &)
	Copy constructor.

	DqPtrsKDTree (const std::set< const Element * > &)
	Copy constructor.

DqPtrsKDTree &	operator= (const DqPtrsKDTree &)
	Assignment operator.

DqPtrsKDTree &	operator+= (const DqPtrsKDTree &)
	+= operator.

void	extend (const DqPtrsKDTree &)
	Extend this container with the elements of the container being passed as parameter. More...

bool	push_back (Element *)
	Inserts an object at the end of the container.

bool	push_front (Element *)
	Inserts an object at the begining of the container.

void	clearAll (void)
	Clears out the list of pointers and erases the properties of the object (if any).

Element *	getNearest (const Pos3d &p)
	Returns the object closest to the point being passed as parameter.

const Element *	getNearest (const Pos3d &p) const
	Returns the object closest to the point being passed as parameter.

Public Member Functions inherited from XC::DqPtrs< Element >
	DqPtrs (CommandEntity *owr=nullptr)
	Constructor.

	DqPtrs (const DqPtrs &)
	Copy constructor.

	DqPtrs (const std::deque< Element * > &ts)
	Copy from deque container.

	DqPtrs (const std::set< const Element * > &ts)
	Copy from set container.

DqPtrs &	operator= (const DqPtrs &)
	Assignment operator.

DqPtrs &	operator+= (const DqPtrs &)
	+= (union) operator.

void	extend (const DqPtrs &)
	Extend this container with the pointers from the container being passed as parameter. More...

bool	push_back (Element *)

bool	push_front (Element *)

bool	empty (void) const

iterator	begin (void)

const_iterator	begin (void) const

iterator	end (void)

const_iterator	end (void) const

indIterator	indBegin (void)

indIterator	indEnd (void)

const Element &	get (const size_t &i) const
	Access specified node with bounds checking.

void	clear (void)
	Clears out the list of pointers.

void	clearAll (void)
	Clears out the list of pointers and erases the properties of the object (if any).

size_type	size (void) const

bool	in (const Element *) const
	Returns true if the pointer is in the container.

const ID &	getTags (void) const
	Returns the tags of the objects.

void	insert (iterator pos, InputIterator f, InputIterator l)

int	sendTags (int posSz, int posDbTag, DbTagData &dt, CommParameters &cp)
	Sends the dbTags of the sets trough the channel being passed as parameter.

const ID &	receiveTags (int posSz, int pDbTg, DbTagData &dt, const CommParameters &cp)
	Sends the dbTags of the sets through the channel being passed as parameter.

Additional Inherited Members
Public Types inherited from XC::DqPtrsKDTree< Element, KDTreeElements >
typedef DqPtrs< Element >::const_iterator	const_iterator

typedef DqPtrs< Element >::iterator	iterator

typedef DqPtrs< Element >::reference	reference

typedef DqPtrs< Element >::const_reference	const_reference

typedef DqPtrs< Element >::size_type	size_type

Public Types inherited from XC::DqPtrs< Element >
typedef std::deque< Element *>	lst_ptr

typedef lst_ptr::const_iterator	const_iterator

typedef lst_ptr::iterator	iterator

typedef lst_ptr::reference	reference

typedef lst_ptr::const_reference	const_reference

typedef lst_ptr::size_type	size_type

typedef boost::indirect_iterator< iterator >	indIterator

Protected Member Functions inherited from XC::DqPtrsKDTree< Element, KDTreeElements >
void	create_tree (void)
	Creates the KD tree.

Detailed Description

Pointer to element container.

Member Function Documentation

§ findElement() [1/2]

XC::Element * XC::DqPtrsElem::findElement ( const int & tag )

Returns (if it exists) a pointer to the element identified by the tag being passed as parameter.

§ findElement() [2/2]

const XC::Element * XC::DqPtrsElem::findElement ( const int & tag ) const

Returns (if it exists) a pointer to the element identified by the tag being passed as parameter.

§ pickElemsInside()

XC::DqPtrsElem XC::DqPtrsElem::pickElemsInside	(	const GeomObj3d &	geomObj,
		const double &	tol = `0.0`
	)

Return a container with the elements that lie inside the geometric object.

Parameters

geomObj	geometric object that must contain the elements.
tol	tolerance for "In" function.

§ pickElemsOfDimension()

XC::DqPtrsElem XC::DqPtrsElem::pickElemsOfDimension ( const size_t & dim )

Return a container with the elements of the specified dimension.

Parameters

dim	element dimension (point: 0, line: 1, surface: 2, volume: 3)

§ pickElemsOfMaterial()

XC::DqPtrsElem XC::DqPtrsElem::pickElemsOfMaterial ( const std::string & targetName )

Return a container with the elements whose material(s) name(s) contains the string.

Parameters

targetName name of the target material.

§ pickElemsOfType()

XC::DqPtrsElem XC::DqPtrsElem::pickElemsOfType ( const std::string & typeName )

Return a container with the elements whose class name contains the string.

Parameters

typeName string that must be contained in the class name.

The documentation for this class was generated from the following files:

src/preprocessor/set_mgmt/DqPtrsElem.h
src/preprocessor/set_mgmt/DqPtrsElem.cc
