Pointers to node container. More...
#include <DqPtrsNode.h>

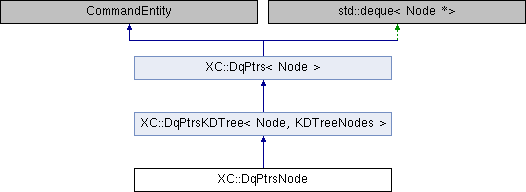

Inheritance diagram for XC::DqPtrsNode:
Public Member Functions | |
| DqPtrsNode (CommandEntity *owr=nullptr) | |
| Constructor. | |
| DqPtrsNode (const DqPtrsNode &) | |
| Copy constructor. | |
| DqPtrsNode (const std::deque< Node *> &) | |
| Copy constructor. | |
| DqPtrsNode (const std::set< const Node *> &) | |
| Copy constructor. | |
| DqPtrsNode & | operator= (const DqPtrsNode &) |
| Assignment operator. | |
| DqPtrsNode & | operator+= (const DqPtrsNode &) |
| += operator. | |
| void | mueve (const Vector3d &) |
| Desplaza los nodes of the set. | |
| void | transforma (const TrfGeom &trf) |
| Applies the transformation to the elements of the set. | |
| size_t | getNumLiveNodes (void) const |
| Returns the number of nodes of the set which are active. | |
| size_t | getNumDeadNodes (void) const |
| Returns the number of nodes of the set which are inactive. | |
| bool | InNodeTag (const int) const |
| Returns true if the node identified by the tag being passed as parameter, belongs to the set. More... | |
| bool | InNodeTags (const ID &) const |
| Returns true if the nodes, with the tags are being passed as parameter, belong to the set. More... | |
| std::set< int > | getTags (void) const |
| Returns the tags de los nodes. | |
| DqPtrsNode | pickNodesInside (const GeomObj3d &, const double &tol=0.0) |
| Return a container with the nodes that lie inside the geometric object. More... | |
| BND3d | Bnd (const double &) const |
| Return the nodes current position boundary. More... | |
| Pos3d | getCentroid (const double &) const |
| Returns the centroid of the nodes. More... | |
| Node * | findNode (const int &tag) |
| Returns (if it exists) a pointer to the node cuyo tag is being passed as parameter. More... | |
| const Node * | findNode (const int &tag) const |
| Returns (if it exists) a pointer to the node cuyo tag is being passed as parameter. More... | |
| void | numera (void) |
| Set indices to the objects to allow its use in VTK. | |
 Public Member Functions inherited from XC::DqPtrsKDTree< Node, KDTreeNodes > | |
| DqPtrsKDTree (CommandEntity *owr=nullptr) | |
| Constructor. | |
| DqPtrsKDTree (const DqPtrsKDTree &) | |
| Copy constructor. | |
| DqPtrsKDTree (const std::deque< Node * > &) | |
| Copy constructor. | |
| DqPtrsKDTree (const std::set< const Node * > &) | |
| Copy constructor. | |
| DqPtrsKDTree & | operator= (const DqPtrsKDTree &) |
| Assignment operator. | |
| DqPtrsKDTree & | operator+= (const DqPtrsKDTree &) |
| += operator. | |
| void | extend (const DqPtrsKDTree &) |
| Extend this container with the elements of the container being passed as parameter. More... | |
| bool | push_back (Node *) |
| Inserts an object at the end of the container. | |
| bool | push_front (Node *) |
| Inserts an object at the begining of the container. | |
| void | clearAll (void) |
| Clears out the list of pointers and erases the properties of the object (if any). | |
| Node * | getNearest (const Pos3d &p) |
| Returns the object closest to the point being passed as parameter. | |
| const Node * | getNearest (const Pos3d &p) const |
| Returns the object closest to the point being passed as parameter. | |
| Public Member Functions inherited from XC::DqPtrs< Node > | |
| DqPtrs (CommandEntity *owr=nullptr) | |
| Constructor. | |
| DqPtrs (const DqPtrs &) | |
| Copy constructor. | |
| DqPtrs (const std::deque< Node * > &ts) | |
| Copy from deque container. | |
| DqPtrs (const std::set< const Node * > &ts) | |
| Copy from set container. | |
| DqPtrs & | operator= (const DqPtrs &) |
| Assignment operator. | |
| DqPtrs & | operator+= (const DqPtrs &) |
| += (union) operator. | |
| void | extend (const DqPtrs &) |
| Extend this container with the pointers from the container being passed as parameter. More... | |
| bool | push_back (Node *) |
| bool | push_front (Node *) |
| bool | empty (void) const |
| iterator | begin (void) |
| const_iterator | begin (void) const |
| iterator | end (void) |
| const_iterator | end (void) const |
| indIterator | indBegin (void) |
| indIterator | indEnd (void) |
| const Node & | get (const size_t &i) const |
| Access specified node with bounds checking. | |
| void | clear (void) |
| Clears out the list of pointers. | |
| void | clearAll (void) |
| Clears out the list of pointers and erases the properties of the object (if any). | |
| size_type | size (void) const |
| bool | in (const Node *) const |
| Returns true if the pointer is in the container. | |
| const ID & | getTags (void) const |
| Returns the tags of the objects. | |
| void | insert (iterator pos, InputIterator f, InputIterator l) |
| int | sendTags (int posSz, int posDbTag, DbTagData &dt, CommParameters &cp) |
| Sends the dbTags of the sets trough the channel being passed as parameter. | |
| const ID & | receiveTags (int posSz, int pDbTg, DbTagData &dt, const CommParameters &cp) |
| Sends the dbTags of the sets through the channel being passed as parameter. | |
Additional Inherited Members | |
| Public Types inherited from XC::DqPtrsKDTree< Node, KDTreeNodes > | |
| typedef DqPtrs< Node >::const_iterator | const_iterator |
| typedef DqPtrs< Node >::iterator | iterator |
| typedef DqPtrs< Node >::reference | reference |
| typedef DqPtrs< Node >::const_reference | const_reference |
| typedef DqPtrs< Node >::size_type | size_type |
| Public Types inherited from XC::DqPtrs< Node > | |
| typedef std::deque< Node *> | lst_ptr |
| typedef lst_ptr::const_iterator | const_iterator |
| typedef lst_ptr::iterator | iterator |
| typedef lst_ptr::reference | reference |
| typedef lst_ptr::const_reference | const_reference |
| typedef lst_ptr::size_type | size_type |
| typedef boost::indirect_iterator< iterator > | indIterator |
| Protected Member Functions inherited from XC::DqPtrsKDTree< Node, KDTreeNodes > | |
| void | create_tree (void) |
| Creates the KD tree. | |
Detailed Description
Pointers to node container.
Member Function Documentation
§ Bnd()
| BND3d XC::DqPtrsNode::Bnd | ( | const double & | factor = 1.0 | ) | const |
Return the nodes current position boundary.
- Parameters
-
factor scale factor for the current position initPos+ factor * nodDisplacement.
§ findNode() [1/2]
| XC::Node * XC::DqPtrsNode::findNode | ( | const int & | tag | ) |
Returns (if it exists) a pointer to the node cuyo tag is being passed as parameter.
§ findNode() [2/2]
| const XC::Node * XC::DqPtrsNode::findNode | ( | const int & | tag | ) | const |
Returns (if it exists) a pointer to the node cuyo tag is being passed as parameter.
§ getCentroid()
| Pos3d XC::DqPtrsNode::getCentroid | ( | const double & | factor = 1.0 | ) | const |
Returns the centroid of the nodes.
- Parameters
-
factor scale factor for the current position initPos+ factor * nodDisplacement.
§ InNodeTag()
| bool XC::DqPtrsNode::InNodeTag | ( | const int | tag_node | ) | const |
Returns true if the node identified by the tag being passed as parameter, belongs to the set.
§ InNodeTags()
| bool XC::DqPtrsNode::InNodeTags | ( | const ID & | tag_nodes | ) | const |
Returns true if the nodes, with the tags are being passed as parameter, belong to the set.
§ pickNodesInside()
| XC::DqPtrsNode XC::DqPtrsNode::pickNodesInside | ( | const GeomObj3d & | geomObj, |
| const double & | tol = 0.0 |
||
| ) |
Return a container with the nodes that lie inside the geometric object.
- Parameters
-
geomObj geometric object that must contain the nodes. tol tolerance for "In" function.
The documentation for this class was generated from the following files:
- src/preprocessor/set_mgmt/DqPtrsNode.h
- src/preprocessor/set_mgmt/DqPtrsNode.cc
