Base class for eigenproblem integrators. More...

#include <EigenIntegrator.h>

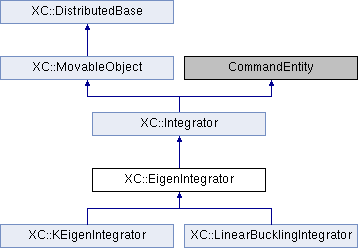

Inheritance diagram for XC::EigenIntegrator:

Public Member Functions
virtual int	formK (void)
	Stiffness matrix assembly.

virtual int	formM (void)
	Mass matrix assembly.

virtual int	formEleTangK (FE_Element *theEle)
	Asks the element being passed as parameter to build its tangent stiffness matrix. More...

virtual int	formEleTangM (FE_Element *theEle)
	Asks the element being passed as parameter to build its mass matrix. More...

virtual int	formNodTangM (DOF_Group *theDof)

virtual int	update (const Vector &deltaU)

virtual int	formEleTangent (FE_Element *theEle)
	Asks the element being passed as parameter to build its mass(flagK= false) or stiffness matrix (flagK= true). More...

virtual int	formNodTangent (DOF_Group *theDof)
	Called upon to determine the DOF_Group `theDofs` matrix contribution to the SystemOfEqn object. More...

virtual int	formEleResidual (FE_Element *theEle)
	Called upon to determine the FE_Element `theEles` vector contribution to the SystemOfEqn object. More...

virtual int	formNodUnbalance (DOF_Group *theDof)
	Called upon to determine the DOF_Group `theDofs` vector contribution to the SystemOfEqn object. More...

virtual int	newStep (void)

virtual int	getLastResponse (Vector &result, const ID &id)
	Called upon to get the result quantities for the components specified in the ID `id` and to place them in the Vector `result`. More...

virtual int	sendSelf (CommParameters &)
	Send the object. More...

virtual int	recvSelf (const CommParameters &)
	Receive the object. More...

Public Member Functions inherited from XC::Integrator
virtual int	domainChanged (void)
	Make required changes when a change in the domain occurs. More...

virtual void	Print (std::ostream &s, int flag=0)
	The Integrator is to send information to the stream based on the integer `flag`. More...

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
EigenSOE *	getEigenSOEPtr (void)
	Returns a pointer to the system of equations de eigenvalues.

const EigenSOE *	getEigenSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

	EigenIntegrator (AnalysisAggregation *)
	Constructor.

Integrator *	getCopy (void) const

Protected Member Functions inherited from XC::Integrator
AnalysisAggregation *	getAnalysisAggregation (void)
	Returns a pointer to the solution method that owns this object.

const AnalysisAggregation *	getAnalysisAggregation (void) const
	Returns a const pointer to the solution method that owns this object.

void	applyLoadModel (double newTime)

int	updateModel (void)

int	updateModel (double newTime, double dT)

int	commitModel (void)

double	getCurrentModelTime (void)

void	setCurrentModelTime (const double &t)

void	setRayleighDampingFactors (const RayleighDampingFactors &rF)

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model. More...

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model. More...

	Integrator (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Attributes
int	flagK

Friends
class	AnalysisAggregation

Detailed Description

Base class for eigenproblem integrators.

Member Function Documentation

§ formEleResidual()

int XC::EigenIntegrator::formEleResidual ( FE_Element * theEle )

virtual

Called upon to determine the FE_Element theEles vector contribution to the SystemOfEqn object.

To return \(0\) if successful, a negative number otherwise.

Implements XC::Integrator.

§ formEleTangent()

int XC::EigenIntegrator::formEleTangent ( FE_Element * theEle )

virtual

Asks the element being passed as parameter to build its mass(flagK= false) or stiffness matrix (flagK= true).

Implements XC::Integrator.

§ formEleTangK()

int XC::EigenIntegrator::formEleTangK ( FE_Element * theEle )

virtual

Asks the element being passed as parameter to build its tangent stiffness matrix.

§ formEleTangM()

int XC::EigenIntegrator::formEleTangM ( FE_Element * theEle )

virtual

Asks the element being passed as parameter to build its mass matrix.

Reimplemented in XC::KEigenIntegrator.

§ formNodTangent()

int XC::EigenIntegrator::formNodTangent ( DOF_Group * theDof )

virtual

Called upon to determine the DOF_Group theDofs matrix contribution to the SystemOfEqn object.

To return \(0\) if successful, a negative number otherwise.

Implements XC::Integrator.

§ formNodUnbalance()

int XC::EigenIntegrator::formNodUnbalance ( DOF_Group * theDof )

virtual

Called upon to determine the DOF_Group theDofs vector contribution to the SystemOfEqn object.

To return \(0\) if successful, a negative number otherwise.

Implements XC::Integrator.

§ getLastResponse()

int XC::EigenIntegrator::getLastResponse	(	Vector &	result,
		const ID &	id
	)

virtual

Called upon to get the result quantities for the components specified in the ID id and to place them in the Vector result.

This is provided for domain decomposition methods. To return \(0\) if successful, a negative number otherwise.

Implements XC::Integrator.

§ recvSelf()

int XC::EigenIntegrator::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

int XC::EigenIntegrator::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

The documentation for this class was generated from the following files:

src/solution/analysis/integrator/EigenIntegrator.h
src/solution/analysis/integrator/EigenIntegrator.cpp
