Geometric entities container (points, lines, surfaces,...). More...
#include <EntityMap.h>

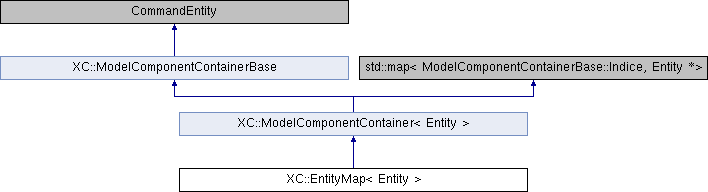

Inheritance diagram for XC::EntityMap< Entity >:
Public Types | |
| typedef ModelComponentContainer< Entity >::iterator | iterator |
| typedef ModelComponentContainer< Entity >::const_iterator | const_iterator |
 Public Types inherited from XC::ModelComponentContainer< Entity > | |
| typedef std::map< Indice, Entity *> | map_base |
| typedef std::pair< Indice, Entity *> | pair |
| typedef map_base::iterator | iterator |
| typedef map_base::const_iterator | const_iterator |
| Public Types inherited from XC::ModelComponentContainerBase | |
| typedef size_t | Indice |
Public Member Functions | |
| EntityMap (MultiBlockTopology *mbt=nullptr) | |
| Constructor. | |
| Entity * | getNearest (const Pos3d &p) |
| Returns the object closest to the position being passed as parameter. | |
| const Entity * | getNearest (const Pos3d &p) const |
| Returns the object closest to the position being passed as parameter. | |
| void | numera (void) |
| Set indices to the objects to allow its use in VTK. | |
| Public Member Functions inherited from XC::ModelComponentContainer< Entity > | |
| ModelComponentContainer (MultiBlockTopology *mbt=nullptr) | |
| Constructor. | |
| Entity * | busca (const Indice &) |
| Return a pointer to the geometry entity whose identifier is passed as parameter. | |
| const Entity * | busca (const Indice &) const |
| Return a pointer to the entity whose identifier is passed as parameter. | |
| bool | exists (const Indice &) const |
| Return true if the entity already exists. | |
| Entity * | get (const Indice &) |
| Return the entity with tag iEnt. | |
| boost::python::list | getKeys (void) const |
| Return the container's keys. | |
| void | clearAll (void) |
| Erase all the entities. | |
| virtual | ~ModelComponentContainer (void) |
| Destructor. | |
| Public Member Functions inherited from XC::ModelComponentContainerBase | |
| ModelComponentContainerBase (MultiBlockTopology *mbt=nullptr) | |
| Default identifier for new component. More... | |
| const MultiBlockTopology * | getMultiBlockTopology (void) const |
| Return a pointer to MultiBlockTopology. | |
| MultiBlockTopology * | getMultiBlockTopology (void) |
| Return a pointer to MultiBlockTopology. | |
| const Preprocessor * | getPreprocessor (void) const |
| Return a pointer to preprocessor. | |
| Preprocessor * | getPreprocessor (void) |
| Return a pointer to preprocessor. | |
| size_t | getTag (void) const |
| void | setTag (const size_t &t) |
Additional Inherited Members | |
| Protected Attributes inherited from XC::ModelComponentContainerBase | |
| Indice | tag |
Detailed Description
template<class Entity>
class XC::EntityMap< Entity >
Geometric entities container (points, lines, surfaces,...).
The documentation for this class was generated from the following file:
- src/preprocessor/multi_block_topology/entities/EntityMap.h
