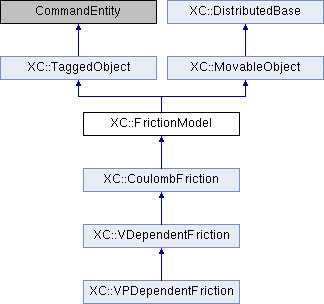

Inheritance diagram for XC::FrictionModel:

Public Member Functions
	FrictionModel (int tag, int classTag)

virtual int	setTrial (double normalForce, double velocity=0.0)=0

virtual double	getNormalForce (void)

virtual double	getVelocity (void)

virtual double	getFrictionForce (void)=0

virtual double	getFrictionCoeff (void)=0

virtual double	getDFFrcDNFrc (void)=0

virtual int	commitState (void)=0

virtual int	revertToLastCommit (void)=0

virtual int	revertToStart (void)

virtual FrictionModel *	getCopy (void) const =0
	Virtual constructor.

virtual Response *	setResponse (const std::vector< std::string > &, Information &)

virtual int	getResponse (int responseID, Information &info)

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

virtual void	Print (std::ostream &, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
double	trialN

double	trialVel

The documentation for this class was generated from the following files:

src/domain/mesh/element/special/frictionBearing/frictionModel/FrictionModel.h
src/domain/mesh/element/special/frictionBearing/frictionModel/FrictionModel.cpp
