HHTGeneralizedExplicit is an algorithmic class for performing a transient analysis using the HHTGeneralizedExplicit integration scheme. More...
#include <HHTGeneralizedExplicit.h>

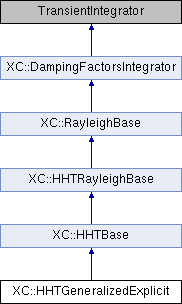

Inheritance diagram for XC::HHTGeneralizedExplicit:
Public Member Functions | |
| int | formEleTangent (FE_Element *theEle) |
| int | formNodTangent (DOF_Group *theDof) |
| int | domainChanged (void) |
| int | newStep (double deltaT) |
| int | revertToLastStep (void) |
| int | update (const Vector &aiPlusOne) |
| int | commit (void) |
| virtual int | sendSelf (CommParameters &) |
| virtual int | recvSelf (const CommParameters &) |
| void | Print (std::ostream &s, int flag=0) |
 Public Member Functions inherited from XC::DampingFactorsIntegrator | |
| void | Print (std::ostream &s, int flag=0) |
Protected Member Functions | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| HHTGeneralizedExplicit (AnalysisAggregation *) | |
| Constructor. | |
| HHTGeneralizedExplicit (AnalysisAggregation *, double rhoB, double alphaF) | |
| Constructor. | |
| HHTGeneralizedExplicit (AnalysisAggregation *, double rhoB, double alphaF, const RayleighDampingFactors &rF) | |
| Constructor. | |
| HHTGeneralizedExplicit (AnalysisAggregation *, double alphaI, double alphaF, double beta, double gamma) | |
| Constructor. | |
| HHTGeneralizedExplicit (AnalysisAggregation *, double alphaI, double alphaF, double beta, double gamma, const RayleighDampingFactors &rF) | |
| Constructor. | |
| Integrator * | getCopy (void) const |
| Protected Member Functions inherited from XC::HHTBase | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| HHTBase (AnalysisAggregation *, int classTag) | |
| Constructor. More... | |
| HHTBase (AnalysisAggregation *, int classTag, double alpha) | |
| Constructor. More... | |
| HHTBase (AnalysisAggregation *, int classTag, double alpha, const RayleighDampingFactors &rF) | |
| Constructor. More... | |
| HHTBase (AnalysisAggregation *, int classTag, double alpha, double beta, double gamma) | |
| Constructor. More... | |
| HHTBase (AnalysisAggregation *, int classTag, double alpha, double beta, double gamma, const RayleighDampingFactors &rF) | |
| Constructor. More... | |
| Protected Member Functions inherited from XC::HHTRayleighBase | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| HHTRayleighBase (AnalysisAggregation *, int classTag) | |
| Constructor. More... | |
| HHTRayleighBase (AnalysisAggregation *, int classTag, double alpha) | |
| Constructor. More... | |
| HHTRayleighBase (AnalysisAggregation *, int classTag, double alpha, const RayleighDampingFactors &rF) | |
| Constructor. More... | |
| HHTRayleighBase (AnalysisAggregation *, int classTag, double alpha, double gamma) | |
| Constructor. More... | |
| HHTRayleighBase (AnalysisAggregation *, int classTag, double alpha, double gamma, const RayleighDampingFactors &rF) | |
| Constructor. More... | |
| Protected Member Functions inherited from XC::RayleighBase | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| RayleighBase (AnalysisAggregation *, int classTag) | |
| Constructor. More... | |
| RayleighBase (AnalysisAggregation *, int classTag, const RayleighDampingFactors &) | |
| Constructor. More... | |
| Protected Member Functions inherited from XC::DampingFactorsIntegrator | |
| void | setRayleighDampingFactors (void) |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| DampingFactorsIntegrator (AnalysisAggregation *, int classTag) | |
| Constructor. More... | |
| DampingFactorsIntegrator (AnalysisAggregation *, int classTag, const RayleighDampingFactors &rF) | |
| Constructor. More... | |
Friends | |
| class | AnalysisAggregation |
Additional Inherited Members | |
| Protected Attributes inherited from XC::HHTBase | |
| double | beta |
| double | c1 |
| parameter More... | |
| Protected Attributes inherited from XC::HHTRayleighBase | |
| double | alpha |
| should be between 0.67 and 1.0 (alpha factor corresponds to Newmark method. More... | |
| double | gamma |
| factor. | |
| double | c2 |
| double | c3 |
| ResponseQuantities | Ut |
| response quantities at time t | |
| ResponseQuantities | U |
| response quantities at time t + delta t | |
| ResponseQuantities | Ualpha |
| response quantities at time t+alpha delta t | |
| Protected Attributes inherited from XC::RayleighBase | |
| double | deltaT |
| Protected Attributes inherited from XC::DampingFactorsIntegrator | |
| RayleighDampingFactors | rayFactors |
| Rayleigh damping factors. | |
Detailed Description
HHTGeneralizedExplicit is an algorithmic class for performing a transient analysis using the HHTGeneralizedExplicit integration scheme.
The documentation for this class was generated from the following files:
- src/solution/analysis/integrator/transient/rayleigh/HHTGeneralizedExplicit.h
- src/solution/analysis/integrator/transient/rayleigh/HHTGeneralizedExplicit.cpp
