@ingroup MATSCCDiagInt More...
#include <InteractionDiagram.h>

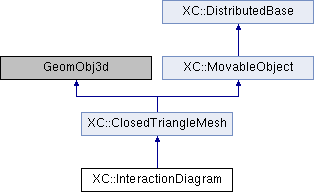

Inheritance diagram for XC::InteractionDiagram:
Public Member Functions | |
| InteractionDiagram (void) | |
| Default constructor. | |
| InteractionDiagram (const Pos3d &org, const Triang3dMesh &mll) | |
| InteractionDiagram (const InteractionDiagram &) | |
| Copy constructor. | |
| InteractionDiagram & | operator= (const InteractionDiagram &) |
| Assignment operator. | |
| virtual InteractionDiagram * | clon (void) const |
| Virtual constructor. | |
| const Trihedron * | findTrihedronPtr (const Pos3d &p) const |
| Search for the trihedron that contains the point being passed as parameter. | |
| Pos3d | getIntersection (const Pos3d &) const |
| Returns the intersection of the ray O->esf_d with the interaction diagram. More... | |
| double | getCapacityFactor (const Pos3d &) const |
| Return the capacity factor for the internal forces triplet being passed as parameters. | |
| Vector | getCapacityFactor (const GeomObj::list_Pos3d &) const |
| void | Print (std::ostream &os) const |
 Public Member Functions inherited from XC::ClosedTriangleMesh | |
| ClosedTriangleMesh (void) | |
| Default constructor. | |
| ClosedTriangleMesh (const Pos3d &org, const Triang3dMesh &mll) | |
| ClosedTriangleMesh (const ClosedTriangleMesh &) | |
| Copy constructor. | |
| ClosedTriangleMesh & | operator= (const ClosedTriangleMesh &) |
| Assignment operator. | |
| virtual double | GetMax (short unsigned int i) const |
| virtual double | GetMin (short unsigned int i) const |
| virtual Pos3d | getCenterOfMass (void) const |
| virtual double | getLength (void) const |
| virtual double | getArea (void) const |
| virtual double | getVolume (void) const |
| virtual double | Ix (void) const |
| virtual double | Iy (void) const |
| virtual double | Iz (void) const |
| short unsigned int | Dimension () const |
| size_t | GetNumFacetas (void) const |
| TriangleMap | getTriangleMap (void) const |
| iterator | begin (void) |
| iterator | end (void) |
| const_iterator | begin () const |
| const_iterator | end () const |
| size_t | size (void) const |
| const_iterator | findTrihedron (const Pos3d &p) const |
| Search for the trihedron that contains the point being passed as parameter. More... | |
| const Trihedron * | findTrihedronPtr (const Pos3d &p) const |
| Search for the trihedron that contains the point being passed as parameter. More... | |
| int | sendSelf (CommParameters &) |
| Send the object through the channel being passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| void | write (std::ofstream &) |
| Write the matrix in a binary file. | |
| void | read (std::ifstream &) |
| Read the matrix from a binary file. | |
| void | writeTo (const std::string &) |
| void | readFrom (const std::string &) |
| Read from file. | |
| void | Print (std::ostream &os) const |
| Print stuff. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Types | |
| typedef std::set< const Trihedron * > | set_ptr_trihedrons |
| Protected Types inherited from XC::ClosedTriangleMesh | |
| typedef std::vector< Trihedron > | v_trihedrons |
| typedef v_trihedrons::iterator | iterator |
| typedef v_trihedrons::const_iterator | const_iterator |
Protected Member Functions | |
| void | classify_trihedron (const Trihedron &tdro) |
| We classify the trihedron by its quadrant. | |
| void | classify_trihedrons (void) |
| We classify the trihedrons by its quadrants. | |
| void | setPositionsMatrix (const Matrix &) |
| Create the trihedrons that define the diagram from the matrix that contains the points that define each trihedron. More... | |
| GeomObj::list_Pos3d | get_intersection (const Pos3d &p) const |
| Return the intersection of the half-line thats links the origin (0,0,0) and p and the interaction diagram. More... | |
| Protected Member Functions inherited from XC::ClosedTriangleMesh | |
| GeomObj::list_Pos3d | get_intersection (const Pos3d &p) const |
| Radius of the sphere that passes through the nearest vertex. More... | |
| void | getPositionsMatrix (Matrix &) |
| Return a matrix with the coordinates of the points that define each one of the trihedrons. More... | |
| int | sendData (CommParameters &) |
| Sends object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
Protected Attributes | |
| set_ptr_trihedrons | quadrant_trihedrons [8] |
| Protected Attributes inherited from XC::ClosedTriangleMesh | |
| v_trihedrons | trihedrons |
| double | tol |
| double | rMax |
| double | rMin |
| Radius of the convex-hull circunscribed sphere. | |
Detailed Description
@ingroup MATSCCDiagInt
Interaction diagram (N,Mx,My) for a cross section.
Member Function Documentation
§ get_intersection()
|
protected |
Return the intersection of the half-line thats links the origin (0,0,0) and p and the interaction diagram.
§ getIntersection()
| Pos3d XC::InteractionDiagram::getIntersection | ( | const Pos3d & | esf_d | ) | const |
Returns the intersection of the ray O->esf_d with the interaction diagram.
§ setPositionsMatrix()
|
protectedvirtual |
Create the trihedrons that define the diagram from the matrix that contains the points that define each trihedron.
Reimplemented from XC::ClosedTriangleMesh.
The documentation for this class was generated from the following files:
- src/material/section/interaction_diagram/InteractionDiagram.h
- src/material/section/interaction_diagram/InteractionDiagram.cc
