#include <MFreedom_FE.h>

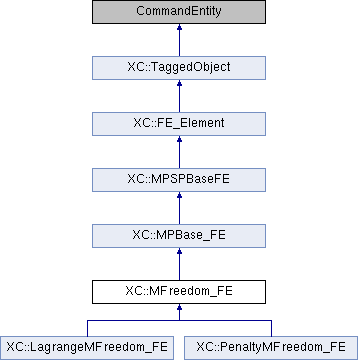

Inheritance diagram for XC::MFreedom_FE:
Protected Member Functions | |
| MFreedom_FE (int tag, int numDOF_Group, int ndof, MFreedom_Constraint &theMFreedom, const double &alpha=1.0) | |
| Constructor. | |
| int | determineConstrainedDOFsIDs (const int &) |
| determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node. More... | |
| int | determineRetainedDOFsIDs (const int &) |
| determine determine the IDs for the retained dof's | |
| DOF_Group * | determineRetainedNodeDofGrpPtr (void) |
| get the DOF_Group attached to the retained node. | |
 Protected Member Functions inherited from XC::MPBase_FE | |
| MPBase_FE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0) | |
| Constructor. | |
| int | determineConstrainedDOFsIDs (const MFreedom_ConstraintBase &, const int &) |
| determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node. More... | |
| DOF_Group * | determineConstrainedNodeDofGrpPtr (void) |
| get the DOF_Group attached to the constrained node. | |
| Protected Member Functions inherited from XC::MPSPBaseFE | |
| MPSPBaseFE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0) | |
| Protected Member Functions inherited from XC::FE_Element | |
| void | addLocalM_Force (const Vector &accel, double fact=1.0) |
| void | addLocalD_Force (const Vector &vel, double fact=1.0) |
| void | addLocalM_ForceSensitivity (int gradNumber, const Vector &accel, double fact=1.0) |
| void | addLocalD_ForceSensitivity (int gradNumber, const Vector &vel, double fact=1.0) |
| FE_Element (int tag, Element *theElement) | |
| Construictor that take the corresponding model element. More... | |
| FE_Element (int tag, int numDOF_Group, int ndof) | |
| Constructor. More... | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Protected Attributes | |
| MFreedom_Constraint * | theMFreedom |
| Node * | theRetainedNode |
| Protected Attributes inherited from XC::MPBase_FE | |
| Node * | theConstrainedNode |
| Protected Attributes inherited from XC::MPSPBaseFE | |
| double | alpha |
| Matrix | tang |
| Vector | resid |
| Protected Attributes inherited from XC::FE_Element | |
| ID | myDOF_Groups |
| ID | myID |
Additional Inherited Members | |
| Public Member Functions inherited from XC::FE_Element | |
| virtual | ~FE_Element (void) |
| Destructor. | |
| virtual const ID & | getDOFtags (void) const |
| Returns the tags of the associated DOF_Groups. More... | |
| virtual const ID & | getID (void) const |
| Method to return the ID containing equation numbers. More... | |
| void | setAnalysisModel (AnalysisModel &theModel) |
| Sets the link with the analysis model. More... | |
| virtual int | setID (void) |
| Method to set the corresponding index of the ID to value. More... | |
| virtual const Matrix & | getTangent (Integrator *theIntegrator) |
| Computes and returns the tangent stiffness matrix. More... | |
| virtual const Vector & | getResidual (Integrator *theIntegrator) |
| Computes and returns the residual vector. More... | |
| virtual void | zeroTangent (void) |
| Zeros the tangent matrix. More... | |
| virtual void | addKtToTang (double fact=1.0) |
Adds the product of fact times the element's tangent stiffness matrix to the tangent. More... | |
| virtual void | addKiToTang (double fact=1.0) |
Adds the product of fact times the element's initial stiffness matrix to the tangent. More... | |
| virtual void | addCtoTang (double fact=1.0) |
Adds the product of fact times the element's damping matrix to the tangent. More... | |
| virtual void | addMtoTang (double fact=1.0) |
Adds the product of fact times the element's mass matrix to the tangent. More... | |
| virtual void | zeroResidual (void) |
| Zeros the residual vector. More... | |
| virtual void | addRtoResidual (double fact=1.0) |
Adds to the residual vector the product of the elements residual load vector and fact. More... | |
| virtual void | addRIncInertiaToResidual (double fact=1.0) |
Adds to the residual vector the product of the elements residual load vector with inertia forces included and fact. More... | |
| virtual const Vector & | getTangForce (const Vector &x, double fact=1.0) |
Returns the product of FE_Elements current tangent matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector disp associated with the FE_Elements equation numbers. More... | |
| virtual const Vector & | getK_Force (const Vector &x, double fact=1.0) |
| virtual const Vector & | getC_Force (const Vector &x, double fact=1.0) |
| virtual const Vector & | getM_Force (const Vector &x, double fact=1.0) |
Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector accel associated with the FE_Elements equation numbers. More... | |
| virtual void | addM_Force (const Vector &accel, double fact=1.0) |
Adds to the residual the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector accel associated with the FE_Elements equation numbers. More... | |
| virtual void | addD_Force (const Vector &vel, double fact=1.0) |
Adds to the residual the product of elements current damping matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector vel associated with the FE_Elements equation numbers. More... | |
| virtual int | updateElement (void) |
| virtual Integrator * | getLastIntegrator (void) |
| Method which returns the last integrator supplied in a formTangent() or a formResidual() invocation. More... | |
| virtual const Vector & | getLastResponse (void) |
| A method which invokes getLastResponse() on the Integrator object that was last passed as an argument to any of the routines. More... | |
| Element * | getElement (void) |
| Returns a pointer to the associated element. | |
| virtual void | Print (std::ostream &, int=0) |
| Print stuff. | |
| virtual void | addResistingForceSensitivity (int gradNumber, double fact=1.0) |
| virtual void | addM_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0) |
| virtual void | addD_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0) |
| virtual int | commitSensitivity (int gradNum, int numGrads) |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| virtual TaggedObject * | getCopy (void) const |
| Virtual constructor. | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
Detailed Description
??
Member Function Documentation
§ determineConstrainedDOFsIDs()
|
protected |
determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node.
The documentation for this class was generated from the following files:
- src/solution/analysis/model/fe_ele/MFreedom_FE.h
- src/solution/analysis/model/fe_ele/MFreedom_FE.cc
