A MachineBroker is responsible for getting an actor process running on the parallel machine. More...
#include <MachineBroker.h>

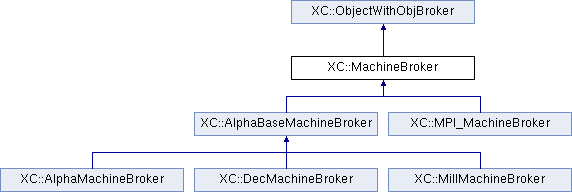

Inheritance diagram for XC::MachineBroker:
Public Member Functions | |
| MachineBroker (FEM_ObjectBroker *) | |
| Constructor. Set the object broker. | |
| virtual | ~MachineBroker () |
| Destructor. | |
| virtual int | getPID (void)=0 |
| virtual int | getNP (void)=0 |
| virtual int | shutdown (void) |
| virtual int | runActors (void) |
| virtual Channel * | startActor (int actorType, int compDemand=0) |
| Invoked to start the program. More... | |
| virtual int | finishedWithActor (Channel *) |
| virtual Channel * | getMyChannel (void)=0 |
| virtual Channel * | getRemoteProcess (void)=0 |
| virtual int | freeProcess (Channel *)=0 |
 Public Member Functions inherited from XC::ObjectWithObjBroker | |
| ObjectWithObjBroker (FEM_ObjectBroker *) | |
| Object broker to use. More... | |
| ObjectWithObjBroker (FEM_ObjectBroker &) | |
| Constructor. Sets the broker. | |
| FEM_ObjectBroker * | getObjectBrokerPtr (void) const |
| Returns a pointer to the broker #theBroker. | |
Additional Inherited Members | |
| Protected Attributes inherited from XC::ObjectWithObjBroker | |
| FEM_ObjectBroker * | theBroker |
Detailed Description
A MachineBroker is responsible for getting an actor process running on the parallel machine.
Member Function Documentation
§ startActor()
|
virtual |
Invoked to start the program.
Invoked to start the program, #actorProgram, on the parallel machine. The remote actor process uses information supplied by #theChannel to allow the remote process to connect to the local process. The integer compDemand provides an indication of the computational demands of the remote process in a heterogeneous environment.
The documentation for this class was generated from the following files:
- src/utility/actor/machineBroker/MachineBroker.h
- src/utility/actor/machineBroker/MachineBroker.cpp
