Base class for materials. More...

#include <Material.h>

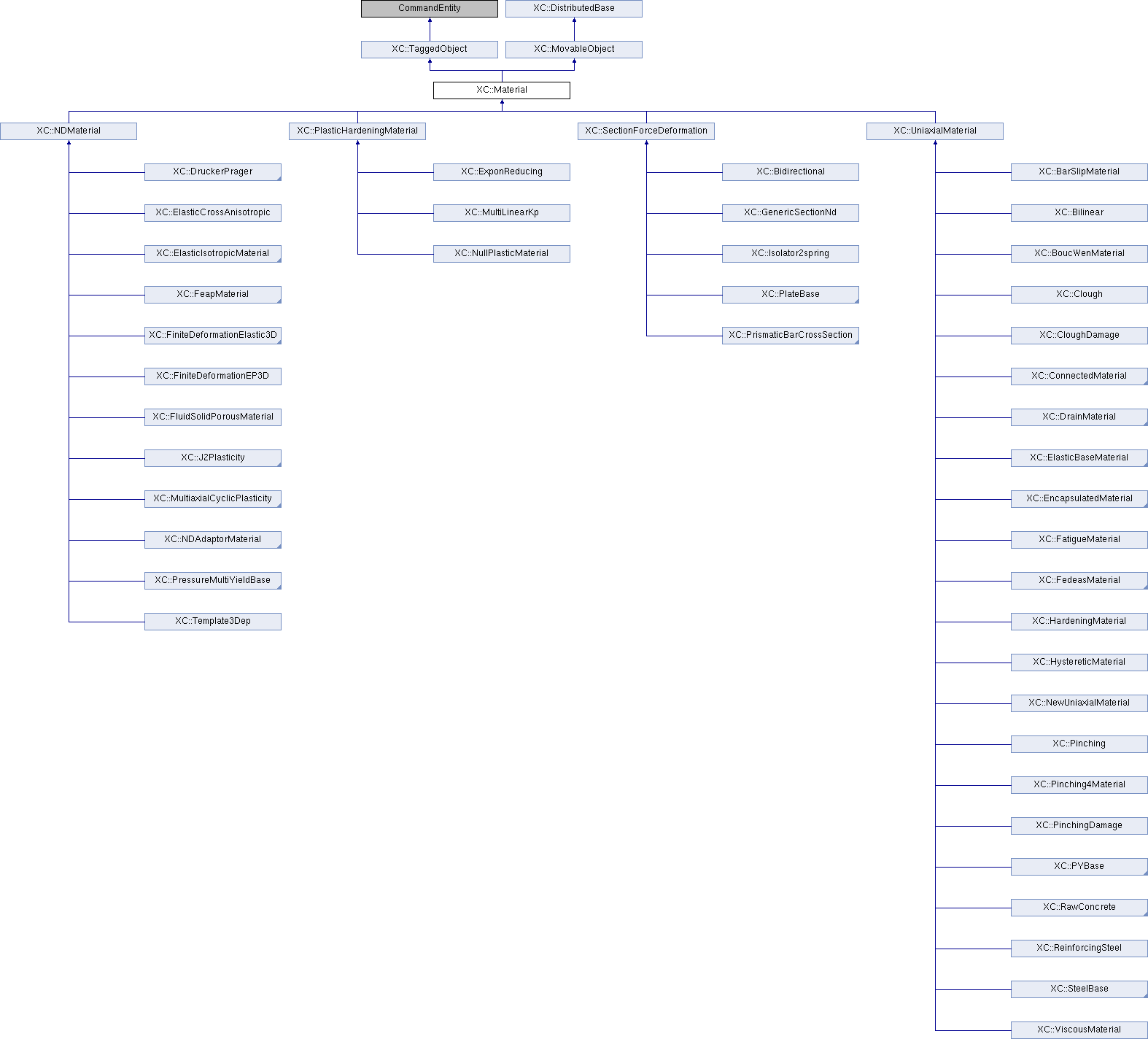

Inheritance diagram for XC::Material:

Public Member Functions
	Material (int tag, int classTag)
	Constructor. More...

const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int responseID, Information &eleInformation)
	Updates the parameter identified by `parameterID` with `info`.

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &eleInformation)

virtual int	getResponse (int responseID, Information &info)
	Returns material response.

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...

virtual const Vector &	getGeneralizedStress (void) const =0

virtual const Vector &	getGeneralizedStrain (void) const =0

virtual const Vector &	getInitialGeneralizedStrain (void) const =0

virtual void	setInitialGeneralizedStrain (const Vector &)=0

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

virtual int	commitState (void)=0

virtual int	revertToLastCommit (void)=0

virtual int	revertToStart (void)=0

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

virtual void	Print (std::ostream &, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Additional Inherited Members
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Detailed Description

Base class for materials.

This class provides the interface that all subclasses must provide when introducing new material types. A material object is responsible for keeping track of stress, strain and the state variables for a particular integration point (Gauss point,...) in the domain.

Constructor & Destructor Documentation

§ Material()

XC::Material::Material	(	int	tag,
		int	clasTag
	)

Constructor.

To construct a material whose unique identifier among materials in the domain is given by tag, and whose class identifier is given by classTag. These integers are passed to the TaggedObject and MovableObject class constructors.

Member Function Documentation

§ addInitialGeneralizedStrain()

void XC::Material::addInitialGeneralizedStrain ( const Vector & incS )

virtual

Increments generalized strain.

Parameters

incS	strain increment.

§ update()

void XC::Material::update ( void )

virtual

Update state variables for the material according to the new values of the parameters.

The documentation for this class was generated from the following files:

src/material/Material.h
src/material/Material.cpp
