Cross-section representation able to return mechanical propertis a area, moments of inertia,... More...
#include <SectionMassProperties.h>

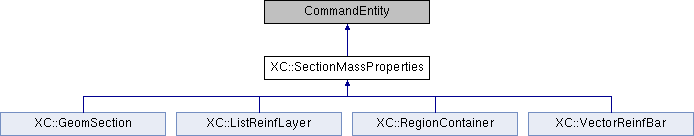

Inheritance diagram for XC::SectionMassProperties:
Public Member Functions | |
| SectionMassProperties (CommandEntity *owr=nullptr) | |
| Constructor. | |
| virtual double | getAreaGrossSection (void) const =0 |
| virtual Vector | getCenterOfMassGrossSection (void) const =0 |
| virtual double | getIyGrossSection (void) const =0 |
| virtual double | getIzGrossSection (void) const =0 |
| virtual double | getPyzGrossSection (void) const =0 |
| double | getIxGrossSection (void) const |
| Inertia of the gross section about an axis parallel to x through his center of gravity. More... | |
| double | getTheta_pGrossSection (void) const |
| Agle of the principal axis of inertia of the gross section with respect of current axis. More... | |
| Vector | getIAxisDir_aGrossSection (void) const |
| Direction of a principal axis of inertia of the gross section with respect of current axis. More... | |
| Vector | getIAxisDir_bGrossSection (void) const |
| Direction of the other principal axis of inertia of the gross section with respect of current axis. More... | |
| double | getI1GrossSection (void) const |
| Major principal moment of inertia of the gross section. | |
| double | getI2GrossSection (void) const |
| Minor principal moment of inertia of the gross section. | |
| PrincipalAxesOfInertia2D | getInertiaAxesGrossSection (void) const |
| Principal axis of inertia of the gross section. | |
| Vector2d | getAxis1VDirGrossSection (void) const |
| Direction of the major principal axis of inertia of the gross section. More... | |
| Vector2d | getVDirStrongAxisGrossSection (void) const |
| Direction of the major principal axis of inertia of the gross section. More... | |
| Vector2d | getAxis2VDirGrossSection (void) const |
| Direction of the minor principal axis of inertia of the gross section. More... | |
| Vector2d | getVDirWeakAxisGrossSection (void) const |
| Direction of the minor principal axis of inertia of the gross section. More... | |
| double | getIGrossSection (const unsigned short int &, const unsigned short int &) const |
| Return the i,j component of the tensor of inertia computed with respect to centroid. More... | |
| double | getIGrossSection (const unsigned short int &, const unsigned short int &, const Pos2d &) const |
| Return the i,j component of the tensor of inertia computed with respect to the point "o". More... | |
| double | getIGrossSection (const Pos2d &, const Vector &) const |
| Return the moment of inertia with respect to the axis that passes through O with the direction of e. More... | |
| double | getIGrossSection (const Line2d &) const |
| Return the moment of inertia respecto a la recta being passed as parameter. More... | |
| double | getIOGrossSection (const Pos2d &) const |
| Return the polar moment of inertia with respect to the point o. | |
| Matrix | getIGrossSection (void) const |
| Return the tensor of inertia computed with respect to the object centroid. More... | |
| Matrix | getIGrossSection (const Pos2d &) const |
| Return the tensor of inertia with respect to the point o. | |
| virtual double | getAreaHomogenizedSection (const double &) const =0 |
| virtual Vector | getCenterOfMassHomogenizedSection (const double &) const =0 |
| virtual double | getIyHomogenizedSection (const double &) const =0 |
| virtual double | getIzHomogenizedSection (const double &) const =0 |
| virtual double | getPyzHomogenizedSection (const double &) const =0 |
| double | getIxHomogenizedSection (const double &) const |
| Inertia of the homogenized section about an axis parallel to x through his center of gravity. More... | |
| double | getTheta_pHomogenizedSection (void) const |
| Agle of the principal axis of inertia of the homogenized section with respect of current axis. More... | |
| Vector | getIAxisDir_aHomogenizedSection (void) const |
| Direction of a principal axis of inertia of the homogenized section with respect of current axis. More... | |
| Vector | getIAxisDir_bHomogenizedSection (void) const |
| Direction of the other axis of inertia of the homogenized section with respect of current axis. More... | |
| double | getI1HomogenizedSection (const double &) const |
| Major principal moment of inertia of the homogenized section. | |
| double | getI2HomogenizedSection (const double &) const |
| Minor principal moment of inertia of the homogenized section. | |
| PrincipalAxesOfInertia2D | getInertiaAxesHomogenizedSection (const double &) const |
| Principal axis of inertia of the homogenized section. | |
| Vector2d | getAxis1VDirHomogenizedSection (const double &) const |
| Direction of the major principal axis of inertia of the homogenized section. More... | |
| Vector2d | getVDirStrongAxisHomogenizedSection (const double &) const |
| Direction of the major principal axis of inertia of the homogenized section. More... | |
| Vector2d | getAxis2VDirHomogenizedSection (const double &) const |
| Direction of the minor principal axis of inertia of the homogenized section. More... | |
| Vector2d | getVDirWeakAxisHomogenizedSection (const double &) const |
| Direction of the minor principal axis of inertia of the homogenized section. More... | |
| double | getIHomogenizedSection (const double &, const unsigned short int &, const unsigned short int &) const |
| tensor of inertia (i,j) component of the homogenized section. | |
| double | getIHomogenizedSection (const double &, const unsigned short int &, const unsigned short int &, const Pos2d &) const |
| Return the i,j component of the tensor of inertia computed with respect to the point "o". More... | |
| double | getIHomogenizedSection (const double &, const Pos2d &, const Vector &) const |
| Return the moment of inertia with respect to the axis that passes through O with the direction of e. More... | |
| double | getIHomogenizedSection (const double &, const Line2d &) const |
| Return the moment of inertia respecto a la recta being passed as parameter. More... | |
| double | getIOHomogenizedSection (const double &, const Pos2d &) const |
| Return the polar moment of inertia with respect to the point o. | |
| Matrix | getIHomogenizedSection (const double &) const |
| Return the tensor of inertia computed with respect to the object centroid. More... | |
| Matrix | getIHomogenizedSection (const double &, const Pos2d &) const |
| Return the tensor of inertia with respect to the point o. | |
| CrossSectionProperties3d | getCrossSectionProperties3d (const CrossSectionProperties3d &) const |
| Return the 3D mass properties of the homogenized section. | |
| CrossSectionProperties2d | getCrossSectionProperties2d (const CrossSectionProperties2d &) const |
| Return the 2D mass properties of the homogenized section. | |
Detailed Description
Cross-section representation able to return mechanical propertis a area, moments of inertia,...
Member Function Documentation
§ getAxis1VDirGrossSection()
| Vector2d XC::SectionMassProperties::getAxis1VDirGrossSection | ( | void | ) | const |
Direction of the major principal axis of inertia of the gross section.
§ getAxis1VDirHomogenizedSection()
| Vector2d XC::SectionMassProperties::getAxis1VDirHomogenizedSection | ( | const double & | E0 | ) | const |
Direction of the major principal axis of inertia of the homogenized section.
§ getAxis2VDirGrossSection()
| Vector2d XC::SectionMassProperties::getAxis2VDirGrossSection | ( | void | ) | const |
Direction of the minor principal axis of inertia of the gross section.
§ getAxis2VDirHomogenizedSection()
| Vector2d XC::SectionMassProperties::getAxis2VDirHomogenizedSection | ( | const double & | E0 | ) | const |
Direction of the minor principal axis of inertia of the homogenized section.
§ getIAxisDir_aGrossSection()
| XC::Vector XC::SectionMassProperties::getIAxisDir_aGrossSection | ( | void | ) | const |
Direction of a principal axis of inertia of the gross section with respect of current axis.
§ getIAxisDir_aHomogenizedSection()
| XC::Vector XC::SectionMassProperties::getIAxisDir_aHomogenizedSection | ( | void | ) | const |
Direction of a principal axis of inertia of the homogenized section with respect of current axis.
- Parameters
-
E0 Elastic modulus used as reference.
§ getIAxisDir_bGrossSection()
| XC::Vector XC::SectionMassProperties::getIAxisDir_bGrossSection | ( | void | ) | const |
Direction of the other principal axis of inertia of the gross section with respect of current axis.
§ getIAxisDir_bHomogenizedSection()
| XC::Vector XC::SectionMassProperties::getIAxisDir_bHomogenizedSection | ( | void | ) | const |
Direction of the other axis of inertia of the homogenized section with respect of current axis.
- Parameters
-
E0 Elastic modulus used as reference.
§ getIGrossSection() [1/5]
| double XC::SectionMassProperties::getIGrossSection | ( | const unsigned short int & | i, |
| const unsigned short int & | j | ||
| ) | const |
Return the i,j component of the tensor of inertia computed with respect to centroid.
§ getIGrossSection() [2/5]
| double XC::SectionMassProperties::getIGrossSection | ( | const unsigned short int & | i, |
| const unsigned short int & | j, | ||
| const Pos2d & | o | ||
| ) | const |
Return the i,j component of the tensor of inertia computed with respect to the point "o".
§ getIGrossSection() [3/5]
| double XC::SectionMassProperties::getIGrossSection | ( | const Pos2d & | O, |
| const Vector & | e | ||
| ) | const |
Return the moment of inertia with respect to the axis that passes through O with the direction of e.
§ getIGrossSection() [4/5]
| double XC::SectionMassProperties::getIGrossSection | ( | const Line2d & | r | ) | const |
Return the moment of inertia respecto a la recta being passed as parameter.
§ getIGrossSection() [5/5]
| XC::Matrix XC::SectionMassProperties::getIGrossSection | ( | void | ) | const |
Return the tensor of inertia computed with respect to the object centroid.
§ getIHomogenizedSection() [1/4]
| double XC::SectionMassProperties::getIHomogenizedSection | ( | const double & | E0, |
| const unsigned short int & | i, | ||
| const unsigned short int & | j, | ||
| const Pos2d & | o | ||
| ) | const |
Return the i,j component of the tensor of inertia computed with respect to the point "o".
§ getIHomogenizedSection() [2/4]
| double XC::SectionMassProperties::getIHomogenizedSection | ( | const double & | E0, |
| const Pos2d & | O, | ||
| const Vector & | e | ||
| ) | const |
Return the moment of inertia with respect to the axis that passes through O with the direction of e.
§ getIHomogenizedSection() [3/4]
| double XC::SectionMassProperties::getIHomogenizedSection | ( | const double & | E0, |
| const Line2d & | r | ||
| ) | const |
Return the moment of inertia respecto a la recta being passed as parameter.
§ getIHomogenizedSection() [4/4]
| XC::Matrix XC::SectionMassProperties::getIHomogenizedSection | ( | const double & | E0 | ) | const |
Return the tensor of inertia computed with respect to the object centroid.
§ getIxGrossSection()
| double XC::SectionMassProperties::getIxGrossSection | ( | void | ) | const |
Inertia of the gross section about an axis parallel to x through his center of gravity.
§ getIxHomogenizedSection()
| double XC::SectionMassProperties::getIxHomogenizedSection | ( | const double & | E0 | ) | const |
Inertia of the homogenized section about an axis parallel to x through his center of gravity.
- Parameters
-
E0 Elastic modulus used as reference.
§ getTheta_pGrossSection()
| double XC::SectionMassProperties::getTheta_pGrossSection | ( | void | ) | const |
Agle of the principal axis of inertia of the gross section with respect of current axis.
§ getTheta_pHomogenizedSection()
| double XC::SectionMassProperties::getTheta_pHomogenizedSection | ( | void | ) | const |
Agle of the principal axis of inertia of the homogenized section with respect of current axis.
§ getVDirStrongAxisGrossSection()
| Vector2d XC::SectionMassProperties::getVDirStrongAxisGrossSection | ( | void | ) | const |
Direction of the major principal axis of inertia of the gross section.
§ getVDirStrongAxisHomogenizedSection()
| Vector2d XC::SectionMassProperties::getVDirStrongAxisHomogenizedSection | ( | const double & | E0 | ) | const |
Direction of the major principal axis of inertia of the homogenized section.
§ getVDirWeakAxisGrossSection()
| Vector2d XC::SectionMassProperties::getVDirWeakAxisGrossSection | ( | void | ) | const |
Direction of the minor principal axis of inertia of the gross section.
§ getVDirWeakAxisHomogenizedSection()
| Vector2d XC::SectionMassProperties::getVDirWeakAxisHomogenizedSection | ( | const double & | E0 | ) | const |
Direction of the minor principal axis of inertia of the homogenized section.
The documentation for this class was generated from the following files:
- src/material/section/repres/SectionMassProperties.h
- src/material/section/repres/SectionMassProperties.cc
