Physical properties for solid mechanics. More...
#include <SolidMech2D.h>

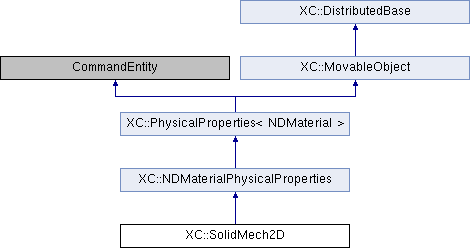

Inheritance diagram for XC::SolidMech2D:
Public Member Functions | |
| SolidMech2D (const size_t &nMat=0, const NDMaterial *ptr_mat=nullptr, const double &t=0.0, const double &r=0.0) | |
| Constructor. | |
| SolidMech2D (const size_t &, NDMaterial &, const std::string &, const double &t=0.0, const double &r=0.0) | |
| Constructor. | |
| double | getThickness (void) const |
| void | setThickness (const double &t) |
| double | getRho (void) const |
| void | setRho (const double &r) |
| Vector | getRhoi (void) const |
| Returns densities for each position. | |
| int | sendSelf (CommParameters &) |
| Sends object. | |
| int | recvSelf (const CommParameters &) |
| Receives object. | |
 Public Member Functions inherited from XC::NDMaterialPhysicalProperties | |
| NDMaterialPhysicalProperties (const size_t &nMat=0, const NDMaterial *ptr_mat=nullptr) | |
| Constructor. | |
| NDMaterialPhysicalProperties (const size_t &, NDMaterial &theMaterial, const std::string &type) | |
| Constructor. | |
| const Vector & | getCommittedStrain (const size_t &i) const |
| const Vector & | getCommittedStress (const size_t &i) const |
| Vector | getCommittedAvgStrain (void) const |
| Return the tensión media in the element. | |
| Vector | getCommittedAvgStress (void) const |
| Return the tensión media in the element. | |
| double | getCommittedAvgStrain (const size_t &iComp) const |
| Return the componente iComp de la average strain in the element. | |
| double | getCommittedAvgStress (const size_t &iComp) const |
| Return the componente iComp de la tensión media in the element. | |
| Matrix | getCommittedStrain (void) const |
| returns commited strains at each Gauss point. | |
| Matrix | getCommittedStress (void) const |
| returns commited stresses at each Gauss point. | |
| bool | haveRho (void) const |
| Vector | getRhoi (const double &rhoDefault=0.0) const |
| Returns densities for each position. | |
| Public Member Functions inherited from XC::PhysicalProperties< NDMaterial > | |
| PhysicalProperties (const size_t &nMat=0, const NDMaterial *matModel=nullptr) | |
| void | setMaterial (const NDMaterial *) |
| void | setMaterial (const NDMaterial *, const std::string &) |
| void | setMaterial (size_t i, const NDMaterial *) |
| int | commitState (void) |
| int | revertToLastCommit (void) |
| int | revertToStart (void) |
| size_t | size (void) const |
| material_vector & | getMaterialsVector (void) |
| const material_vector & | getMaterialsVector (void) const |
| std::set< std::string > | getMaterialNames (void) const |
| boost::python::list | getMaterialNamesPy (void) const |
| NDMaterial * | operator[] (const size_t &i) |
| const NDMaterial * | operator[] (const size_t &i) const |
| int | sendSelf (CommParameters &) |
| Sends object. | |
| int | recvSelf (const CommParameters &) |
| Receives object. | |
| virtual void | Print (std::ostream &s, int) |
| Sends object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags of the class members. More... | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::NDMaterialPhysicalProperties | |
| virtual bool | check_material_type (const std::string &type) const |
| Check the material type, MUST be redefined in derived classes. | |
| Protected Member Functions inherited from XC::PhysicalProperties< NDMaterial > | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags of the class members. More... | |
| int | sendData (CommParameters &) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives members through the channel being passed as parameter. | |
Protected Attributes | |
| double | thickness |
| Element thickness. | |
| double | rho |
| Mass per unit volume (it's already defined in the material, why to repeat it here?). | |
| Protected Attributes inherited from XC::PhysicalProperties< NDMaterial > | |
| material_vector | theMaterial |
| pointers to the material objects | |
Additional Inherited Members | |
| Public Types inherited from XC::PhysicalProperties< NDMaterial > | |
| typedef MaterialVector< NDMaterial > | material_vector |
| Static Public Member Functions inherited from XC::NDMaterialPhysicalProperties | |
| static bool | check_material_elast_plana (const std::string &type) |
Detailed Description
Physical properties for solid mechanics.
Member Function Documentation
§ getDbTagData()
|
protectedvirtual |
Returns a vector to store the dbTags of the class members.
Reimplemented from XC::DistributedBase.
The documentation for this class was generated from the following files:
- src/domain/mesh/element/utils/physical_properties/SolidMech2D.h
- src/domain/mesh/element/utils/physical_properties/SolidMech2D.cc
