Trigonometric functions over time. More...
#include <TrigSeries.h>

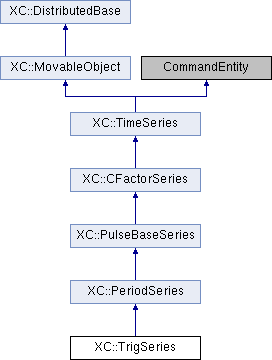

Inheritance diagram for XC::TrigSeries:
Public Member Functions | |
| TrigSeries (double tStart, double tFinish, double period, double shift, double cFactor=1.0) | |
| TimeSeries * | getCopy (void) const |
| Virtual constructor. | |
| double | getFactor (double pseudoTime) const |
| Return load factor at specified time. | |
| int | sendSelf (CommParameters &) |
| Sends object through the channel being passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| void | Print (std::ostream &s, int flag=0) const |
| Print stuff. | |
 Public Member Functions inherited from XC::PeriodSeries | |
| PeriodSeries (int classTag, double tStart, double tFinish, double period, double shift, double cFactor=1.0) | |
| Constructor. | |
| PeriodSeries (int classTag) | |
| Default constructor. | |
| double | getPeriod (void) const |
| void | setPeriod (const double &d) |
| double | getShift (void) const |
| void | setShift (const double &d) |
| Public Member Functions inherited from XC::PulseBaseSeries | |
| PulseBaseSeries (int classTag, const double &tS=0.0, const double &tF=0.0, const double &factor=1.0) | |
| Constructor. | |
| double | getDuration (void) const |
| double | getPeakFactor (void) const |
| double | getTimeIncr (double pseudoTime) const |
| double | getStart (void) const |
| void | setStart (const double &d) |
| double | getFinish (void) const |
| void | setFinish (const double &d) |
| Public Member Functions inherited from XC::CFactorSeries | |
| CFactorSeries (int classTag, double cf=1.0) | |
| Constructor. More... | |
| void | setFactor (const double &d) |
| Sets factor value. | |
| Public Member Functions inherited from XC::TimeSeries | |
| TimeSeries (int classTag) | |
| Constructor. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual double | getFactorSensitivity (double pseudoTime) |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Additional Inherited Members | |
| Protected Member Functions inherited from XC::PeriodSeries | |
| int | sendData (CommParameters &cp) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::PulseBaseSeries | |
| int | sendData (CommParameters &cp) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::CFactorSeries | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags of the class members. More... | |
| int | sendData (CommParameters &cp) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel being passed as parameter. | |
| Protected Attributes inherited from XC::PeriodSeries | |
| double | period |
| period of pulse series (sec) | |
| double | shift |
| phase shift of pulse series (sec) | |
| Protected Attributes inherited from XC::PulseBaseSeries | |
| double | tStart |
| double | tFinish |
| Protected Attributes inherited from XC::CFactorSeries | |
| double | cFactor |
| factor that multiplies series values. | |
Detailed Description
Trigonometric functions over time.
A TrigSeries object provides a sine time series. the factor is given by the pseudoTime (x), pulse period (T), phase shift (phi), i.e. by sin(2*PI*(x-xo)/T + phi), and a constant factor provided in the constructor, the duration by tStart and tFinal;
The documentation for this class was generated from the following files:
- src/domain/load/pattern/time_series/TrigSeries.h
- src/domain/load/pattern/time_series/TrigSeries.cpp
