#include <signal_builder.h>

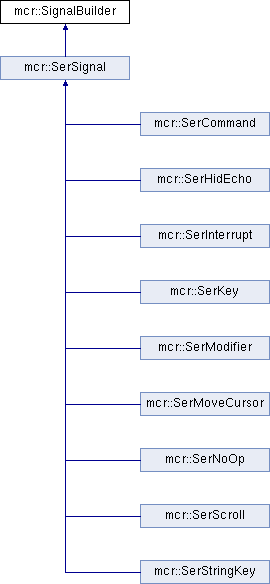

Inheritance diagram for mcr::SignalBuilder:

Public Member Functions
	SignalBuilder (Libmacro *context=nullptr)

	SignalBuilder (const SignalBuilder &)=default

SignalBuilder &	operator= (const SignalBuilder &)=delete

SignalBuilder &	build (mcr_Signal *sigPt)

SignalBuilder &	build (mcr_ISignal *isigPt)

SignalBuilder &	build (size_t id)

SignalBuilder &	build (const char *name)

SignalBuilder &	operator() ()

mcr_Signal *	ptr () const

Libmacro &	context () const

virtual mcr_ISignal *	isignal () const

virtual mcr_Interface *	interface () const

virtual ISignalBuilder	isignalBuilder () const

virtual void	setISignal (mcr_ISignal *isigPt)

virtual size_t	id () const

virtual void	setId (size_t val)

virtual const char *	name () const

virtual void	setName (const char *val)

virtual mcr_Signal *	signal () const

virtual mcr_Instance *	instance () const

virtual mcr_DataMember *	dataMember () const

virtual void	setSignal (mcr_Signal *sigPt)

void	setSignal (const SignalBuilder &copytron)

virtual bool	empty () const

virtual SignalBuilder &	clear ()

virtual SignalBuilder &	deinit ()

virtual bool	dispatch () const

virtual void	setDispatch (bool val)

template<typename T >
const T *	data () const

template<typename T >
T *	data ()

virtual SignalBuilder &	mkdata ()

virtual bool	dispatch ()

virtual void	send ()

virtual void	copy (const mcr_Signal *copytron)

void	copy (const SignalBuilder &copytron)

virtual int	compare (const mcr_Signal *rhs) const

virtual int	compare (const SignalBuilder &rhs) const

Static Public Member Functions
template<typename T >
static const T *	data (const mcr_Signal *signalPt)

template<typename T >
static T *	data (mcr_Signal *signalPt)

Detailed Description

mcr_Signal reference editor

Virtual and concrete class

Definition at line 34 of file signal_builder.h.

Constructor & Destructor Documentation

§ SignalBuilder()

mcr::SignalBuilder::SignalBuilder ( Libmacro * context = nullptr )

Parameters

context If null the last created context will be used. Throws EFAULT if no context exists

Member Function Documentation

§ build()

SignalBuilder& mcr::SignalBuilder::build ( mcr_Signal * sigPt )

inline

Change Signal to reference

Definition at line 46 of file signal_builder.h.

§ operator()()

SignalBuilder& mcr::SignalBuilder::operator() ( )

inline

send, non-virtual

Definition at line 69 of file signal_builder.h.

The documentation for this class was generated from the following file:

mcr/extras/references/signal_builder.h
