#include <trigger_builder.h>

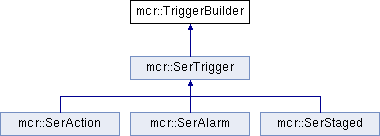

Inheritance diagram for mcr::TriggerBuilder:

Public Member Functions
	TriggerBuilder (Libmacro *context=nullptr)

	TriggerBuilder (const TriggerBuilder &)=default

TriggerBuilder &	operator= (const TriggerBuilder &copytron)=delete

TriggerBuilder &	build (mcr_Trigger *trigPt)

TriggerBuilder &	build (mcr_ITrigger *itrigPt)

TriggerBuilder &	build (size_t id)

TriggerBuilder &	build (const char *name)

mcr_Trigger *	ptr () const

Libmacro &	context () const

virtual mcr_ITrigger *	itrigger () const

virtual mcr_Interface *	interface () const

virtual ITriggerBuilder	itriggerBuilder () const

virtual void	setITrigger (mcr_ITrigger *itrigPt)

virtual size_t	id () const

virtual void	setId (size_t val)

virtual const char *	name () const

virtual void	setName (const char *val)

virtual mcr_Trigger *	trigger () const

virtual mcr_Instance *	instance () const

virtual mcr_DataMember *	dataMember () const

virtual void	setTrigger (mcr_Trigger *trigPt)

void	setTrigger (const TriggerBuilder &copytron)

bool	empty () const

virtual TriggerBuilder &	clear ()

virtual TriggerBuilder &	deinit ()

virtual mcr_Trigger_receive_fnc	triggerDispatch () const

virtual void	setTriggerDispatch (mcr_Trigger_receive_fnc val)

virtual void *	actor () const

virtual void	setActor (void *val)

template<typename T >
const T *	data () const

template<typename T >
T *	data ()

virtual TriggerBuilder &	mkdata ()

virtual void	copy (const mcr_Trigger *copytron)

void	copy (const TriggerBuilder &copytron)

virtual int	compare (const mcr_Trigger *rhs) const

virtual int	compare (const TriggerBuilder &rhs) const

Static Public Member Functions
template<typename T >
static const T *	data (const mcr_Trigger *trigPt)

template<typename T >
static T *	data (mcr_Trigger *trigPt)

Detailed Description

mcr_Trigger reference editor

Virtual and concrete class

Definition at line 34 of file trigger_builder.h.

Constructor & Destructor Documentation

§ TriggerBuilder()

mcr::TriggerBuilder::TriggerBuilder ( Libmacro * context = nullptr )

Parameters

context If null the last created context will be used. Throws EFAULT if no context exists

Member Function Documentation

§ build()

TriggerBuilder& mcr::TriggerBuilder::build ( mcr_Trigger * trigPt )

inline

Change Trigger to reference

Definition at line 46 of file trigger_builder.h.

§ ptr()

mcr_Trigger* mcr::TriggerBuilder::ptr ( ) const

inline

Get Trigger reference, non-virtual

Definition at line 69 of file trigger_builder.h.

The documentation for this class was generated from the following file:

mcr/extras/references/trigger_builder.h
