Re-defined QMainWindow that contains all the GUI elements such as GLWidget, menu bars, tool bars and other widgets. More...

#include <MainWindow.h>

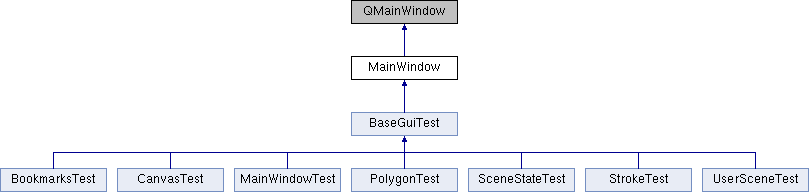

Inheritance diagram for MainWindow:

Public Slots
void	onSetTabletActivity (bool active)

void	onRequestUpdate ()

void	onAutoSwitchMode (cher::MOUSE_MODE mode)

void	onRequestBookmarkSet (int row)

void	onDeleteBookmark (const QModelIndex &index)

void	onDeleteCanvas (const QModelIndex &index)

void	onDeletePhoto (const QModelIndex &index)

void	onVisibilitySetCanvas (int index)

void	onMoveBookmark (const QModelIndex &index)

void	onApplyStateBookmark (const QModelIndex &index)

void	onBookmarkAddedToWidget (const QModelIndex &, int first, int last)

void	onBookmarkRemovedFromWidget (const QModelIndex &, int first, int last)

void	onMouseModeSet (cher::MOUSE_MODE mode)

void	onPhotoTransparencyPlus (const QModelIndex &index)

void	onPhotoTransparencyMinus (const QModelIndex &index)

void	onPhotoPushed (int parent, int start, int, int destination, int)

void	onRequestSceneData (entity::SceneState *state)

void	onRequestSceneStateSet (entity::SceneState *state)

void	onRequestSceneToolStatus (bool &visibility)

void	onImportPhoto (const QString &path, const QString &fileName)

void	onRequestCanvasCreate (const osg::Vec3f &eye, const osg::Vec3f &center, const osg::Vec3f &up)

void	onCanvasClicked (const QModelIndex &index)

Public Member Functions
	MainWindow (QWidget *parent=0, Qt::WindowFlags flags=0)

	~MainWindow ()

const RootScene *	getRootScene () const

entity::Canvas *	getCanvasCurrent () const

osg::Camera *	getCamera () const

void	setCameraView (const osg::Vec3d &eye, const osg::Vec3d &center, const osg::Vec3d &up, const double &fov2)

bool	getStrokeFogFactor () const

QPixmap	getScreenshot (const osg::Vec3d &eye, const osg::Vec3d &center, const osg::Vec3d &up)

int	getViewportWidth () const

int	getViewportHeight () const

osg::Vec4f	getCurrentColor () const

double	getFOV2 () const

BookmarkWidget *	getBookmarkWidget ()

void	openFile (const QString &fname)

Static Public Member Functions
static MainWindow &	instance ()

Protected Slots
void	onFileNew ()

void	onFileOpen ()

void	onFileSave ()

void	onFileSaveAs ()

void	onFileExport ()

void	onFileImage ()

void	onFilePhotoBase ()

void	onFileClose ()

void	onFileExit ()

void	onCut ()

void	onCopy ()

void	onPaste ()

void	onTools ()

void	onCameraOrbit ()

void	onCameraZoom ()

void	onCameraPan ()

void	onCameraAperture ()

void	onHomeView ()

void	onViewAllCanvas ()

void	onSelect ()

void	onSelect3d ()

void	onErase ()

void	onDelete ()

void	onSketch ()

void	onPolygon ()

void	onLineSegment ()

void	onNewCanvasClone ()

void	onNewCanvasXY ()

void	onNewCanvasYZ ()

void	onNewCanvasZY ()

void	onNewCanvasXZ ()

void	onNewCanvasOrtho ()

void	onNewCanvasSeparate ()

void	onNewCanvasStandard ()

void	onNewCanvasCoaxial ()

void	onNewCanvasParallel ()

void	onNewCanvasRing ()

void	onCanvasEdit ()

void	onImageMove ()

void	onImageRotate ()

void	onImageScale ()

void	onImageFlipH ()

void	onImageFlipV ()

void	onStrokesPush ()

void	onBookmark ()

void	onBookmarkNew ()

void	onBookmarkSketch ()

void	onBookmarkEdit (const QString &name)

void	onStrokeFogFactor ()

Protected Member Functions
void	initializeActions ()

void	initializeMenus ()

void	initializeToolbars ()

void	initializeCallbacks ()

bool	loadSceneFromFile ()

bool	importPhoto (QString &fileName)

void	setSceneState (const entity::SceneState *state)

void	addMenuBookmark (const QString &name)

Protected Attributes
QMdiArea *	m_mdiArea

QTabWidget *	m_tabWidget

BookmarkWidget *	m_bookmarkWidget

CanvasPhotoWidget *	m_canvasWidget

PhotoWidget *	m_photoWidget

PhotoModel *	m_photoModel

QUndoStack *	m_undoStack

QMenuBar *	m_menuBar

QMenu *	m_submenuBookmarks

osg::ref_ptr< RootScene >	m_rootScene

QUndoStack *	m_viewStack

GLWidget *	m_glWidget

QAction *	m_actionNewFile

QAction *	m_actionClose

QAction *	m_actionExit

QAction *	m_actionImportImage

QAction *	m_actionOpenFile

QAction *	m_actionSaveFile

QAction *	m_actionSaveAsFile

QAction *	m_actionExportAs

QAction *	m_actionPhotoBase

QAction *	m_actionUndo

QAction *	m_actionRedo

QAction *	m_actionCut

QAction *	m_actionCopy

QAction *	m_actionPaste

QAction *	m_actionDelete

QAction *	m_actionTools

QAction *	m_actionOrbit

QAction *	m_actionPan

QAction *	m_actionZoom

QAction *	m_actionPrevView

QAction *	m_actionNextView

QAction *	m_actionBookmark

QAction *	m_actionBookmarkSketch

QAction *	m_actionCameraSettings

QAction *	m_actionHomeView

QAction *	m_actionViewAllCanvas

QAction *	m_actionSketch

QAction *	m_actionEraser

QAction *	m_actionSelect

QAction *	m_actionSelect3d

QAction *	m_actionPolygon

QAction *	m_actionLinesegment

QAction *	m_actionCanvasClone

QAction *	m_actionCanvasXY

QAction *	m_actionCanvasYZ

QAction *	m_actionCanvasZY

QAction *	m_actionCanvasXZ

QAction *	m_actionCanvasOrtho

QAction *	m_actionCanvasSeparate

QAction *	m_actionSetStandard

QAction *	m_actionCanvasEdit

QAction *	m_actionStrokesPush

QAction *	m_actionStrokeFogFactor

CameraProperties *	m_cameraProperties

QColorDialog *	m_colorDialog

Static Protected Attributes
static MainWindow *	m_instance = nullptr

Detailed Description

Re-defined QMainWindow that contains all the GUI elements such as GLWidget, menu bars, tool bars and other widgets.

Constructor & Destructor Documentation

§ MainWindow()

MainWindow::MainWindow	(	QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `0`
	)

explicit

Constructor: initialies the GUI elements and scene graph structure.

§ ~MainWindow()

MainWindow::~MainWindow ( )

Destructor: annulates singlton-related pointer.

Member Function Documentation

§ addMenuBookmark()

void MainWindow::addMenuBookmark ( const QString & name )

protected

UI Method to add name of editable bookmark into bookmark's submenu. Has to be run whenever the new bookmark is added throught the SVM method, or when opening new file. Has to be cleared when the scene is cleared, or certain elements deleted when the corresponding bookmark is deleted.

§ getBookmarkWidget()

BookmarkWidget * MainWindow::getBookmarkWidget ( )

A method to obtain a pointer on bookmark widget.

§ getCamera()

osg::Camera * MainWindow::getCamera ( ) const

Returns: pointer on a camera used within GLWidget.

§ getCanvasCurrent()

entity::Canvas * MainWindow::getCanvasCurrent ( ) const

A method to obtain pointer on current canvas, if there is one present.

§ getCurrentColor()

osg::Vec4f MainWindow::getCurrentColor ( ) const

A method to obtain current color of the color dialog (for polygon drawing).

§ getFOV2()

double MainWindow::getFOV2 ( ) const

A method to obtain current camera's FOV.

Returns: full angle FOV (not half angle).

§ getRootScene()

const RootScene * MainWindow::getRootScene ( ) const

Returns: const pointer to RootScene.

§ getScreenshot()

QPixmap MainWindow::getScreenshot	(	const osg::Vec3d &	eye,
		const osg::Vec3d &	center,
		const osg::Vec3d &	up
	)

A method to obtain a scene screenshot with the given camera position.

§ getStrokeFogFactor()

bool MainWindow::getStrokeFogFactor ( ) const

Returns: state of the button responsible for whether fog factor is on (true) or off (false).

§ getViewportHeight()

int MainWindow::getViewportHeight ( ) const

Returns: height of GLWidget.

§ getViewportWidth()

int MainWindow::getViewportWidth ( ) const

Returns: width of GLWidget.

§ instance()

MainWindow & MainWindow::instance ( )

static

Singleton design pattern.

§ onApplyStateBookmark

void MainWindow::onApplyStateBookmark ( const QModelIndex & index )

slot

Slot called when user presses on cog icon to change the state set of the bookmark.

§ onAutoSwitchMode

void MainWindow::onAutoSwitchMode ( cher::MOUSE_MODE mode )

slot

Slot called when user performs switch of mouse mode automatically, e.g. by doing double-click.

§ onBookmarkAddedToWidget

void MainWindow::onBookmarkAddedToWidget	(	const QModelIndex &	,
		int	first,
		int	last
	)

slot

Slot called when BookmarkWidget content had changed, i.e., new row was inserted.

§ onBookmarkRemovedFromWidget

void MainWindow::onBookmarkRemovedFromWidget	(	const QModelIndex &	,
		int	first,
		int	last
	)

slot

Slot called when BookmarkWidget content had changed, i.e., a row was removed.

§ onCanvasClicked

void MainWindow::onCanvasClicked ( const QModelIndex & index )

slot

Slot is called whenever user right clicks on Canvas within canvas widget. Called after similar slot of user scene. This slot is only for photo re-scaling mouse mode.

§ onDeleteBookmark

void MainWindow::onDeleteBookmark ( const QModelIndex & index )

slot

Slot called when user requested to delete bookmark from the BookmarkWidget.

§ onDeleteCanvas

void MainWindow::onDeleteCanvas ( const QModelIndex & index )

slot

Slot called when user requested to delete canvas from CanvasPhotoWidget.

§ onDeletePhoto

void MainWindow::onDeletePhoto ( const QModelIndex & index )

slot

Slot called when user requested to delete photo from CanvasPhotoWidget.

§ onImportPhoto

void MainWindow::onImportPhoto	(	const QString &	path,
		const QString &	fileName
	)

slot

Slot called when user performed drag-and-drop from PhotoWidget to GLWidget of a entity::Photo.

§ onMouseModeSet

void MainWindow::onMouseModeSet ( cher::MOUSE_MODE mode )

slot

Slot called when mouse mode is changed.

§ onMoveBookmark

void MainWindow::onMoveBookmark ( const QModelIndex & index )

slot

Slot called when user changed order of bookmarks within BookmarkWidget.

§ onPhotoPushed

void MainWindow::onPhotoPushed	(	int	parent,
		int	start,
		int	,
		int	destination,
		int
	)

slot

Slot called when push photo is performed.

§ onPhotoTransparencyMinus

void MainWindow::onPhotoTransparencyMinus ( const QModelIndex & index )

slot

Slot called when photo's transparency was changed by user from CanvasPhotoWidget.

§ onPhotoTransparencyPlus

void MainWindow::onPhotoTransparencyPlus ( const QModelIndex & index )

slot

Slot called when photo's transparency was changed by user from CanvasPhotoWidget.

§ onRequestBookmarkSet

void MainWindow::onRequestBookmarkSet ( int row )

slot

Slot called when a bookmark was added to scene graph.

§ onRequestCanvasCreate

void MainWindow::onRequestCanvasCreate	(	const osg::Vec3f &	eye,
		const osg::Vec3f &	center,
		const osg::Vec3f &	up
	)

slot

Slot called when bookmark position is finished editing. The slot requests from user whether new canvas should be created within the FOV of the camera position.

Parameters

eye	is eye position of the camera,
center	is the center position of camera,
up	is up vector of camera position.

§ onRequestSceneData

void MainWindow::onRequestSceneData ( entity::SceneState * state )

slot

Slot called so that to request a data of SceneState, e.g. when setting up a bookmark.

§ onRequestSceneStateSet

void MainWindow::onRequestSceneStateSet ( entity::SceneState * state )

slot

Slot called when scene state change was requested, e.g. when setting up a bookmark.

§ onRequestSceneToolStatus

void MainWindow::onRequestSceneToolStatus ( bool & visibility )

slot

Slot called to obtain status of global tools visibilities.

§ onRequestUpdate

void MainWindow::onRequestUpdate ( )

slot

Slot called whenver we need to update GLWidget, e.g., when scene graph is changed.

§ onSetTabletActivity

void MainWindow::onSetTabletActivity ( bool active )

slot

Slot called whenver CherishApplication catches change of tablet proximity.

§ onVisibilitySetCanvas

void MainWindow::onVisibilitySetCanvas ( int index )

slot

Slot called when user requested to set canvas visibility by using controls of CanvasPhotoWidget.

§ openFile()

void MainWindow::openFile ( const QString & fname )

A method would normally be called when file name is provided as command line argument.

§ setCameraView()

void MainWindow::setCameraView	(	const osg::Vec3d &	eye,
		const osg::Vec3d &	center,
		const osg::Vec3d &	up,
		const double &	fov2
	)

A method to setup camera position and parameters within GLWidget.

Parameters

fov2	is the full angle (not half angle) FOV, in degrees.

The documentation for this class was generated from the following files:

src/libGUI/MainWindow.h
src/libGUI/MainWindow.cpp

Public Slots

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

§ MainWindow()

§ ~MainWindow()

Member Function Documentation

§ addMenuBookmark()

§ getBookmarkWidget()

§ getCamera()

§ getCanvasCurrent()

§ getCurrentColor()

§ getFOV2()

§ getRootScene()

§ getScreenshot()

§ getStrokeFogFactor()

§ getViewportHeight()

§ getViewportWidth()

§ instance()

§ onApplyStateBookmark

§ onAutoSwitchMode

§ onBookmarkAddedToWidget

§ onBookmarkRemovedFromWidget

§ onCanvasClicked

§ onDeleteBookmark

§ onDeleteCanvas

§ onDeletePhoto

§ onImportPhoto

§ onMouseModeSet

§ onMoveBookmark

§ onPhotoPushed

§ onPhotoTransparencyMinus

§ onPhotoTransparencyPlus

§ onRequestBookmarkSet

§ onRequestCanvasCreate

§ onRequestSceneData

§ onRequestSceneStateSet

§ onRequestSceneToolStatus

§ onRequestUpdate

§ onSetTabletActivity

§ onVisibilitySetCanvas

§ openFile()

§ setCameraView()
