A class that allows to catch intersections with line loops and polyline OpenGL types. It uses shortest distance between the cast ray and the geometry line which is calculated as a distance between skew lines. In addition, it filters out the geometries whose primitive sets are different than line-types. More...

#include <PolyLineIntersector.h>

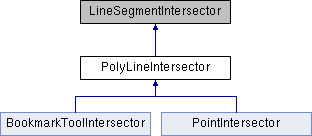

Inheritance diagram for PolyLineIntersector:

Public Member Functions
	PolyLineIntersector (const osg::Vec3 &start, const osg::Vec3 &end)

	PolyLineIntersector (CoordinateFrame cf, double x, double y)

	PolyLineIntersector (CoordinateFrame cf, const osg::Vec3d &start, const osg::Vec3d &end)

void	setOffset (float offset)

float	getOffset () const

void	getHitIndices (int &first, int &last) const

virtual Intersector *	clone (osgUtil::IntersectionVisitor &iv)

virtual void	intersect (osgUtil::IntersectionVisitor &iv, osg::Drawable *drawable)

Protected Member Functions
virtual bool	isRightPrimitive (const osg::Geometry *geometry)

Protected Attributes
float	m_offset

std::vector< unsigned int >	m_hitIndices

Detailed Description

A class that allows to catch intersections with line loops and polyline OpenGL types. It uses shortest distance between the cast ray and the geometry line which is calculated as a distance between skew lines. In addition, it filters out the geometries whose primitive sets are different than line-types.

The documentation for this class was generated from the following files:

src/libSGControls/PolyLineIntersector.h
src/libSGControls/PolyLineIntersector.cpp
