entity::ShaderedEntity2D Class Reference

Abstract class for all the shaderized entities, i.e., strokes, polygons and line segments. More...

#include <ShaderedEntity2D.h>

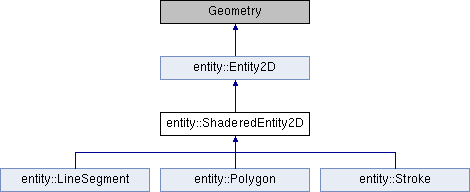

Inheritance diagram for entity::ShaderedEntity2D:

Public Member Functions
	ShaderedEntity2D (unsigned int drawing, osg::Geometry::AttributeBinding binding, const std::string &name, const osg::Vec4f &color)
	ShaderedEntity2D (const entity::ShaderedEntity2D &copy, const osg::CopyOp &copyop)
virtual void	initializeProgram (ProgramEntity2D *p, unsigned int mode=GL_LINE_STRIP)
virtual bool	copyFrom (const entity::ShaderedEntity2D *copy)
virtual void	appendPoint (const float u, const float v, osg::Vec4f color)
virtual osg::Vec2f	getPoint (unsigned int i) const
virtual osg::Vec3f	getPoint3 (unsigned int i) const
virtual bool	redefineToShape (osg::MatrixTransform *t=0)=0
int	getNumPoints () const
virtual void	moveDelta (double du, double dv)
virtual void	scale (double scaleX, double scaleY, osg::Vec3f center)
virtual void	scale (double scale, osg::Vec3f center)
virtual void	rotate (double theta, osg::Vec3f center)
virtual cher::ENTITY_TYPE	getEntityType () const =0
void	setLines (osg::DrawArrays *lines)
const osg::DrawArrays *	getLines () const
void	setColor (const osg::Vec4f &color)
const osg::Vec4f &	getColor () const
void	setSelected (float alpha)
void	setUnselected (float alpha)
void	setIsShadered (bool shadered)
bool	getIsShadered () const
virtual void	setProgram (ProgramEntity2D *p)
virtual ProgramEntity2D *	getProgram () const
Public Member Functions inherited from entity::Entity2D
	Entity2D (const Entity2D &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

Protected Member Functions
virtual bool	redefineToShader (osg::MatrixTransform *t)=0

Protected Attributes
osg::ref_ptr< osg::DrawArrays >	m_lines
osg::observer_ptr< ProgramEntity2D >	m_program
bool	m_isShadered
osg::Vec4f	m_colorNormal
osg::Vec4f	m_colorSelected

Detailed Description

Abstract class for all the shaderized entities, i.e., strokes, polygons and line segments.

Constructor & Destructor Documentation

ShaderedEntity2D() [1/2]

entity::ShaderedEntity2D::ShaderedEntity2D	(	unsigned int	drawing,
		osg::Geometry::AttributeBinding	binding,
		const std::string &	name,
		const osg::Vec4f &	color
	)

Constructor that creates an empty shadered entity

ShaderedEntity2D() [2/2]

entity::ShaderedEntity2D::ShaderedEntity2D	(	const entity::ShaderedEntity2D &	copy,
		const osg::CopyOp &	copyop
	)

Copy constructor to be used only for serializatiob purposes.

Member Function Documentation

appendPoint()

void entity::ShaderedEntity2D::appendPoint ( const float  u, const float  v, osg::Vec4f  color  )

virtual

A method to add a point to the end of the entity. It is normally used when constructing an emtity in-motion while sketching.

Parameters

u	is local U coordinate,
v	is local V coordinate.

copyFrom()

bool entity::ShaderedEntity2D::copyFrom ( const entity::ShaderedEntity2D *  copy )

virtual

A method to be used to copy the input geometry data. It is assumed *this is empty.

Parameters

copy	is the source geometry to copy from.

Reimplemented in entity::Stroke.

getNumPoints()

int entity::ShaderedEntity2D::getNumPoints

(

)

const

Returns

number of vertices.

getPoint()

osg::Vec2f entity::ShaderedEntity2D::getPoint ( unsigned int  i ) const

virtual

Parameters

i	is the point index.

Returns

point coordinates at the specified index.

getPoint3()

osg::Vec3f entity::ShaderedEntity2D::getPoint3 ( unsigned int  i ) const

virtual

See also

getPoint() but it returns 3d format, e.g. {u,v,0}.

initializeProgram()

void entity::ShaderedEntity2D::initializeProgram ( ProgramEntity2D *  p, unsigned int  mode = GL_LINE_STRIP  )

virtual

A method tok be called after it is initialized. It initializes the program that entity is going to use for shadering.

moveDelta()

void entity::ShaderedEntity2D::moveDelta ( double  du, double  dv  )

virtual

A method to perform translation of the stroke in delta movement.

Parameters

du	is delta movement in X local axis direction,
dv	is delta movement in Y local axis direction.

Implements entity::Entity2D.

redefineToShader()

virtual bool entity::ShaderedEntity2D::redefineToShader ( osg::MatrixTransform *  t )

protectedpure virtual

A method to tune the look of the entity with shader effects.

Implemented in entity::Stroke, entity::Polygon, and entity::LineSegment.

redefineToShape()

virtual bool entity::ShaderedEntity2D::redefineToShape ( osg::MatrixTransform *  t = 0 )

pure virtual

A method that changed geometry type, e.g. from polyline to polygon. Is used after the user is finished with sketching and now the entity's look can be re-defined as it will appear on the scene permanately.

Parameters

t	is the Canvas matrix transform. If none is provided, the transform of the current canvas is taken.

Returns

true upon success.

Implemented in entity::Stroke, and entity::Polygon.

rotate()

void entity::ShaderedEntity2D::rotate ( double  theta, osg::Vec3f  center  )

virtual

A method to rotate the stroke around a fixed point.

Parameters

theta	is angle in radians,
center	is the local 2D center around which to rotate.

Implements entity::Entity2D.

scale() [1/2]

void entity::ShaderedEntity2D::scale ( double  scaleX, double  scaleY, osg::Vec3f  center  )

virtual

A method to scale the stroke around a fixed point.

Parameters

scaleX	is scaling factor along U local axis,
scaleY	is scaling factor along V local axis,
center	is the local 2D center around which to scale.

Implements entity::Entity2D.

scale() [2/2]

void entity::ShaderedEntity2D::scale ( double  scale, osg::Vec3f  center  )

virtual

A method to uniformely scale the stroke around a fixed point.

Parameters

scale	is scaling factor,
center	is the local 2D center around which to scale.

Implements entity::Entity2D.

setSelected()

void entity::ShaderedEntity2D::setSelected ( float  alpha )

virtual

Parameters

alpha

is transparency channel.

Implements entity::Entity2D.

setUnselected()

void entity::ShaderedEntity2D::setUnselected ( float  alpha )

virtual

Parameters

alpha

is transparency channel.

Implements entity::Entity2D.

---

The documentation for this class was generated from the following files:

• src/libSGEntities/ShaderedEntity2D.h
• src/libSGEntities/ShaderedEntity2D.cpp
