#include <WinSystemRpiGLESContext.h>

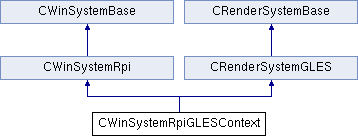

Inheritance diagram for CWinSystemRpiGLESContext:

Public Member Functions
	CWinSystemRpiGLESContext ()=default

virtual	~CWinSystemRpiGLESContext ()=default

CRenderSystemBase *	GetRenderSystem () override

bool	InitWindowSystem () override

bool	CreateNewWindow (const std::string &name, bool fullScreen, RESOLUTION_INFO &res) override

bool	ResizeWindow (int newWidth, int newHeight, int newLeft, int newTop) override

bool	SetFullScreen (bool fullScreen, RESOLUTION_INFO &res, bool blankOtherDisplays) override

virtual std::unique_ptr< CVideoSync >	GetVideoSync (void *clock) override

EGLDisplay	GetEGLDisplay () const

EGLSurface	GetEGLSurface () const

EGLContext	GetEGLContext () const

EGLConfig	GetEGLConfig () const

Public Member Functions inherited from CWinSystemRpi
	CWinSystemRpi ()

virtual	~CWinSystemRpi ()

bool	DestroyWindowSystem () override

bool	DestroyWindow () override

void	UpdateResolutions () override

bool	Hide () override

bool	Show (bool raise=true) override

void	SetVisible (bool visible)

virtual void	Register (IDispResource *resource)

virtual void	Unregister (IDispResource *resource)

Public Member Functions inherited from CWinSystemBase
	CWinSystemBase ()

virtual	~CWinSystemBase ()

virtual bool	MoveWindow (int topLeft, int topRight)

virtual void	FinishModeChange (RESOLUTION res)

virtual void	FinishWindowResize (int newWidth, int newHeight)

virtual bool	CenterWindow ()

virtual bool	IsCreated ()

virtual void	NotifyAppFocusChange (bool bGaining)

virtual void	NotifyAppActiveChange (bool bActivated)

virtual void	ShowOSMouse (bool show)

virtual bool	HasCursor ()

virtual bool	HasInertialGestures ()

virtual bool	UseLimitedColor ()

virtual int	NoOfBuffers ()

virtual float	GetDisplayLatency ()

virtual float	GetFrameLatencyAdjustment ()

virtual bool	Minimize ()

virtual bool	Restore ()

virtual void	OnMove (int x, int y)

KODI::WINDOWING::COSScreenSaverManager *	GetOSScreenSaver ()

unsigned int	GetWidth ()

unsigned int	GetHeight ()

virtual bool	CanDoWindowed ()

bool	IsFullScreen ()

void	SetWindowResolution (int width, int height)

std::vector< RESOLUTION_WHR >	ScreenResolutions (float refreshrate)

std::vector< REFRESHRATE >	RefreshRates (int width, int height, uint32_t dwFlags)

REFRESHRATE	DefaultRefreshRate (std::vector< REFRESHRATE > rates)

virtual bool	HasCalibration (const RESOLUTION_INFO &resInfo)

virtual std::string	GetClipboardText (void)

void	RegisterRenderLoop (IRenderLoop *client)

void	UnregisterRenderLoop (IRenderLoop *client)

void	DriveRenderLoop ()

virtual bool	MessagePump ()

CGraphicContext &	GetGfxContext ()

Public Member Functions inherited from CRenderSystemGLES
	CRenderSystemGLES ()

virtual	~CRenderSystemGLES ()

bool	InitRenderSystem () override

bool	DestroyRenderSystem () override

bool	ResetRenderSystem (int width, int height) override

bool	BeginRender () override

bool	EndRender () override

void	PresentRender (bool rendered, bool videoLayer) override

bool	ClearBuffers (UTILS::Color color) override

bool	IsExtSupported (const char *extension) const override

void	SetVSync (bool vsync)

void	ResetVSync ()

void	SetViewPort (const CRect &viewPort) override

void	GetViewPort (CRect &viewPort) override

bool	ScissorsCanEffectClipping () override

CRect	ClipRectToScissorRect (const CRect &rect) override

void	SetScissors (const CRect &rect) override

void	ResetScissors () override

void	CaptureStateBlock () override

void	ApplyStateBlock () override

void	SetCameraPosition (const CPoint &camera, int screenWidth, int screenHeight, float stereoFactor=0.0f) override

bool	SupportsStereo (RENDER_STEREO_MODE mode) const override

void	Project (float &x, float &y, float &z) override

std::string	GetShaderPath (const std::string &filename) override

void	InitialiseShaders ()

void	ReleaseShaders ()

void	EnableGUIShader (ESHADERMETHOD method)

void	DisableGUIShader ()

GLint	GUIShaderGetPos ()

GLint	GUIShaderGetCol ()

GLint	GUIShaderGetCoord0 ()

GLint	GUIShaderGetCoord1 ()

GLint	GUIShaderGetUniCol ()

GLint	GUIShaderGetCoord0Matrix ()

GLint	GUIShaderGetField ()

GLint	GUIShaderGetStep ()

GLint	GUIShaderGetContrast ()

GLint	GUIShaderGetBrightness ()

GLint	GUIShaderGetModel ()

Public Member Functions inherited from CRenderSystemBase
	CRenderSystemBase ()

virtual	~CRenderSystemBase ()

virtual void	RestoreViewPort ()

virtual void	SetStereoMode (RENDER_STEREO_MODE mode, RENDER_STEREO_VIEW view)

void	GetRenderVersion (unsigned int &major, unsigned int &minor) const

const std::string &	GetRenderVendor () const

const std::string &	GetRenderRenderer () const

const std::string &	GetRenderVersionString () const

virtual bool	SupportsNPOT (bool dxt) const

unsigned int	GetMaxTextureSize () const

unsigned int	GetMinDXTPitch () const

virtual void	ShowSplash (const std::string &message)

Protected Member Functions
void	SetVSyncImpl (bool enable) override

void	PresentRenderImpl (bool rendered) override

Protected Member Functions inherited from CWinSystemBase
void	UpdateDesktopResolution (RESOLUTION_INFO &newRes, int width, int height, float refreshRate, uint32_t dwFlags)

virtual std::unique_ptr< KODI::WINDOWING::IOSScreenSaver >	GetOSScreenSaverImpl ()

Protected Member Functions inherited from CRenderSystemGLES
void	CalculateMaxTexturesize ()

Additional Inherited Members
Static Public Member Functions inherited from CWinSystemBase
static std::unique_ptr< CWinSystemBase >	CreateWinSystem ()

Protected Attributes inherited from CWinSystemRpi
CRPIUtils *	m_rpi

EGLDisplay	m_nativeDisplay

EGLSurface	m_nativeWindow

int	m_displayWidth

int	m_displayHeight

RENDER_STEREO_MODE	m_stereo_mode

bool	m_delayDispReset

XbmcThreads::EndTime	m_dispResetTimer

CCriticalSection	m_resourceSection

std::vector< IDispResource * >	m_resources

std::unique_ptr< OPTIONALS::CLircContainer, OPTIONALS::delete_CLircContainer >	m_lirc

std::unique_ptr< CLibInputHandler >	m_libinput

Protected Attributes inherited from CWinSystemBase
int	m_nWidth = 0

int	m_nHeight = 0

int	m_nTop = 0

int	m_nLeft = 0

bool	m_bWindowCreated = false

bool	m_bFullScreen = false

bool	m_bBlankOtherDisplay = false

float	m_fRefreshRate = 0.0f

std::unique_ptr< KODI::WINDOWING::COSScreenSaverManager >	m_screenSaverManager

CCriticalSection	m_renderLoopSection

std::vector< IRenderLoop * >	m_renderLoopClients

std::unique_ptr< IWinEvents >	m_winEvents

std::unique_ptr< CGraphicContext >	m_gfxContext

Protected Attributes inherited from CRenderSystemGLES
int	m_iVSyncMode

int	m_iVSyncErrors

bool	m_bVsyncInit

int	m_width

int	m_height

std::string	m_RenderExtensions

std::unique_ptr< CGLESShader *[]>	m_pShader

ESHADERMETHOD	m_method = SM_DEFAULT

GLint	m_viewPort [4]

Protected Attributes inherited from CRenderSystemBase
bool	m_bRenderCreated

bool	m_bVSync

unsigned int	m_maxTextureSize

unsigned int	m_minDXTPitch

std::string	m_RenderRenderer

std::string	m_RenderVendor

std::string	m_RenderVersion

int	m_RenderVersionMinor

int	m_RenderVersionMajor

RENDER_STEREO_VIEW	m_stereoView = RENDER_STEREO_VIEW_OFF

RENDER_STEREO_MODE	m_stereoMode = RENDER_STEREO_MODE_OFF

bool	m_limitedColorRange = false

std::unique_ptr< CGUIImage >	m_splashImage

std::unique_ptr< CGUITextLayout >	m_splashMessageLayout

Constructor & Destructor Documentation

§ CWinSystemRpiGLESContext()

CWinSystemRpiGLESContext::CWinSystemRpiGLESContext ( )

default

§ ~CWinSystemRpiGLESContext()

virtual CWinSystemRpiGLESContext::~CWinSystemRpiGLESContext ( )

virtualdefault

Member Function Documentation

§ CreateNewWindow()

bool CWinSystemRpiGLESContext::CreateNewWindow	(	const std::string &	name,
		bool	fullScreen,
		RESOLUTION_INFO &	res
	)

overridevirtual

Reimplemented from CWinSystemRpi.

§ GetEGLConfig()

EGLConfig CWinSystemRpiGLESContext::GetEGLConfig ( ) const

§ GetEGLContext()

EGLContext CWinSystemRpiGLESContext::GetEGLContext ( ) const

§ GetEGLDisplay()

EGLDisplay CWinSystemRpiGLESContext::GetEGLDisplay ( ) const

§ GetEGLSurface()

EGLSurface CWinSystemRpiGLESContext::GetEGLSurface ( ) const

§ GetRenderSystem()

CRenderSystemBase* CWinSystemRpiGLESContext::GetRenderSystem ( )

inlineoverridevirtual

Reimplemented from CWinSystemBase.

§ GetVideoSync()

std::unique_ptr< CVideoSync > CWinSystemRpiGLESContext::GetVideoSync ( void * clock )

overridevirtual

Reimplemented from CWinSystemBase.

§ InitWindowSystem()

bool CWinSystemRpiGLESContext::InitWindowSystem ( )

overridevirtual

Reimplemented from CWinSystemRpi.

§ PresentRenderImpl()

void CWinSystemRpiGLESContext::PresentRenderImpl ( bool rendered )

overrideprotectedvirtual

Implements CRenderSystemGLES.

§ ResizeWindow()

bool CWinSystemRpiGLESContext::ResizeWindow	(	int	newWidth,
		int	newHeight,
		int	newLeft,
		int	newTop
	)

overridevirtual

Implements CWinSystemBase.

§ SetFullScreen()

bool CWinSystemRpiGLESContext::SetFullScreen	(	bool	fullScreen,
		RESOLUTION_INFO &	res,
		bool	blankOtherDisplays
	)

overridevirtual

Implements CWinSystemBase.

§ SetVSyncImpl()

void CWinSystemRpiGLESContext::SetVSyncImpl ( bool enable )

overrideprotectedvirtual

Implements CRenderSystemGLES.

The documentation for this class was generated from the following files:
