Sparse supernodal LU factorization for general matrices. More...

#include <SparseLU.h>

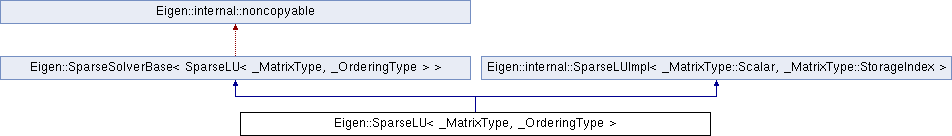

Inheritance diagram for Eigen::SparseLU< _MatrixType, _OrderingType >:

Public Types
enum	{ ColsAtCompileTime = MatrixType::ColsAtCompileTime, MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime }

typedef _MatrixType	MatrixType

typedef _OrderingType	OrderingType

typedef MatrixType::Scalar	Scalar

typedef MatrixType::RealScalar	RealScalar

typedef MatrixType::StorageIndex	StorageIndex

typedef SparseMatrix< Scalar, ColMajor, StorageIndex >	NCMatrix

typedef internal::MappedSuperNodalMatrix< Scalar, StorageIndex >	SCMatrix

typedef Matrix< Scalar, Dynamic, 1 >	ScalarVector

typedef Matrix< StorageIndex, Dynamic, 1 >	IndexVector

typedef PermutationMatrix< Dynamic, Dynamic, StorageIndex >	PermutationType

typedef internal::SparseLUImpl< Scalar, StorageIndex >	Base

Public Types inherited from Eigen::internal::SparseLUImpl< _MatrixType::Scalar, _MatrixType::StorageIndex >
typedef Matrix< _MatrixType::Scalar, Dynamic, 1 >	ScalarVector

typedef Matrix< _MatrixType::StorageIndex, Dynamic, 1 >	IndexVector

typedef Matrix< _MatrixType::Scalar, Dynamic, Dynamic, ColMajor >	ScalarMatrix

typedef Map< ScalarMatrix, 0, OuterStride<> >	MappedMatrixBlock

typedef ScalarVector::RealScalar	RealScalar

typedef Ref< Matrix< _MatrixType::Scalar, Dynamic, 1 > >	BlockScalarVector

typedef Ref< Matrix< _MatrixType::StorageIndex, Dynamic, 1 > >	BlockIndexVector

typedef LU_GlobalLU_t< IndexVector, ScalarVector >	GlobalLU_t

typedef SparseMatrix< _MatrixType::Scalar, ColMajor, _MatrixType::StorageIndex >	MatrixType

Public Member Functions
	SparseLU (const MatrixType &matrix)

void	analyzePattern (const MatrixType &matrix)
	Compute the column permutation to minimize the fill-in. More...

void	factorize (const MatrixType &matrix)

void	simplicialfactorize (const MatrixType &matrix)

void	compute (const MatrixType &matrix)
	Compute the symbolic and numeric factorization of the input sparse matrix. More...

Index	rows () const

Index	cols () const

void	isSymmetric (bool sym)
	Indicate that the pattern of the input matrix is symmetric.

SparseLUMatrixLReturnType< SCMatrix >	matrixL () const

SparseLUMatrixUReturnType< SCMatrix, MappedSparseMatrix< Scalar, ColMajor, StorageIndex > >	matrixU () const

const PermutationType &	rowsPermutation () const

const PermutationType &	colsPermutation () const

void	setPivotThreshold (const RealScalar &thresh)
	Set the threshold used for a diagonal entry to be an acceptable pivot. More...

ComputationInfo	info () const
	Reports whether previous computation was successful. More...

std::string	lastErrorMessage () const

template<typename Rhs , typename Dest >
bool	_solve_impl (const MatrixBase< Rhs > &B, MatrixBase< Dest > &X_base) const

Scalar	absDeterminant ()

Scalar	logAbsDeterminant () const

Scalar	signDeterminant ()

Scalar	determinant ()

Public Member Functions inherited from Eigen::SparseSolverBase< SparseLU< _MatrixType, _OrderingType > >
	SparseSolverBase ()
	Default constructor.

SparseLU< _MatrixType, _OrderingType > &	derived ()

const SparseLU< _MatrixType, _OrderingType > &	derived () const

const Solve< SparseLU< _MatrixType, _OrderingType >, Rhs >	solve (const MatrixBase< Rhs > &b) const

const Solve< SparseLU< _MatrixType, _OrderingType >, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const

void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Protected Types
typedef SparseSolverBase< SparseLU< _MatrixType, _OrderingType > >	APIBase

Protected Member Functions
void	initperfvalues ()

Protected Member Functions inherited from Eigen::internal::SparseLUImpl< _MatrixType::Scalar, _MatrixType::StorageIndex >
Index	expand (VectorType &vec, Index &length, Index nbElts, Index keep_prev, Index &num_expansions)
	Expand the existing storage to accomodate more fill-ins. More...

Index	memInit (Index m, Index n, Index annz, Index lwork, Index fillratio, Index panel_size, GlobalLU_t &glu)
	Allocate various working space for the numerical factorization phase. More...

Index	memXpand (VectorType &vec, Index &maxlen, Index nbElts, MemType memtype, Index &num_expansions)
	Expand the existing storage. More...

void	heap_relax_snode (const Index n, IndexVector &et, const Index relax_columns, IndexVector &descendants, IndexVector &relax_end)
	Identify the initial relaxed supernodes. More...

void	relax_snode (const Index n, IndexVector &et, const Index relax_columns, IndexVector &descendants, IndexVector &relax_end)
	Identify the initial relaxed supernodes. More...

Index	snode_dfs (const Index jcol, const Index kcol, const MatrixType &mat, IndexVector &xprune, IndexVector &marker, GlobalLU_t &glu)

Index	snode_bmod (const Index jcol, const Index fsupc, ScalarVector &dense, GlobalLU_t &glu)

Index	pivotL (const Index jcol, const RealScalar &diagpivotthresh, IndexVector &perm_r, IndexVector &iperm_c, Index &pivrow, GlobalLU_t &glu)
	Performs the numerical pivotin on the current column of L, and the CDIV operation. More...

void	dfs_kernel (const _MatrixType::StorageIndex jj, IndexVector &perm_r, Index &nseg, IndexVector &panel_lsub, IndexVector &segrep, Ref< IndexVector > repfnz_col, IndexVector &xprune, Ref< IndexVector > marker, IndexVector &parent, IndexVector &xplore, GlobalLU_t &glu, Index &nextl_col, Index krow, Traits &traits)

void	panel_dfs (const Index m, const Index w, const Index jcol, MatrixType &A, IndexVector &perm_r, Index &nseg, ScalarVector &dense, IndexVector &panel_lsub, IndexVector &segrep, IndexVector &repfnz, IndexVector &xprune, IndexVector &marker, IndexVector &parent, IndexVector &xplore, GlobalLU_t &glu)
	Performs a symbolic factorization on a panel of columns [jcol, jcol+w) More...

void	panel_bmod (const Index m, const Index w, const Index jcol, const Index nseg, ScalarVector &dense, ScalarVector &tempv, IndexVector &segrep, IndexVector &repfnz, GlobalLU_t &glu)
	Performs numeric block updates (sup-panel) in topological order. More...

Index	column_dfs (const Index m, const Index jcol, IndexVector &perm_r, Index maxsuper, Index &nseg, BlockIndexVector lsub_col, IndexVector &segrep, BlockIndexVector repfnz, IndexVector &xprune, IndexVector &marker, IndexVector &parent, IndexVector &xplore, GlobalLU_t &glu)
	Performs a symbolic factorization on column jcol and decide the supernode boundary. More...

Index	column_bmod (const Index jcol, const Index nseg, BlockScalarVector dense, ScalarVector &tempv, BlockIndexVector segrep, BlockIndexVector repfnz, Index fpanelc, GlobalLU_t &glu)
	Performs numeric block updates (sup-col) in topological order. More...

Index	copy_to_ucol (const Index jcol, const Index nseg, IndexVector &segrep, BlockIndexVector repfnz, IndexVector &perm_r, BlockScalarVector dense, GlobalLU_t &glu)
	Performs numeric block updates (sup-col) in topological order. More...

void	pruneL (const Index jcol, const IndexVector &perm_r, const Index pivrow, const Index nseg, const IndexVector &segrep, BlockIndexVector repfnz, IndexVector &xprune, GlobalLU_t &glu)
	Prunes the L-structure. More...

void	countnz (const Index n, Index &nnzL, Index &nnzU, GlobalLU_t &glu)
	Count Nonzero elements in the factors.

void	fixupL (const Index n, const IndexVector &perm_r, GlobalLU_t &glu)
	Fix up the data storage lsub for L-subscripts. More...

Protected Attributes
ComputationInfo	m_info

bool	m_factorizationIsOk

bool	m_analysisIsOk

std::string	m_lastError

NCMatrix	m_mat

SCMatrix	m_Lstore

MappedSparseMatrix< Scalar, ColMajor, StorageIndex >	m_Ustore

PermutationType	m_perm_c

PermutationType	m_perm_r

IndexVector	m_etree

Base::GlobalLU_t	m_glu

bool	m_symmetricmode

internal::perfvalues	m_perfv

RealScalar	m_diagpivotthresh

Index	m_nnzL

Index	m_nnzU

Index	m_detPermR

Index	m_detPermC

Protected Attributes inherited from Eigen::SparseSolverBase< SparseLU< _MatrixType, _OrderingType > >
bool	m_isInitialized

Detailed Description

template<typename _MatrixType, typename _OrderingType>
class Eigen::SparseLU< _MatrixType, _OrderingType >

Sparse supernodal LU factorization for general matrices.

This class implements the supernodal LU factorization for general matrices. It uses the main techniques from the sequential SuperLU package (http://crd-legacy.lbl.gov/~xiaoye/SuperLU/). It handles transparently real and complex arithmetics with single and double precision, depending on the scalar type of your input matrix. The code has been optimized to provide BLAS-3 operations during supernode-panel updates. It benefits directly from the built-in high-performant Eigen BLAS routines. Moreover, when the size of a supernode is very small, the BLAS calls are avoided to enable a better optimization from the compiler. For best performance, you should compile it with NDEBUG flag to avoid the numerous bounds checking on vectors.

An important parameter of this class is the ordering method. It is used to reorder the columns (and eventually the rows) of the matrix to reduce the number of new elements that are created during numerical factorization. The cheapest method available is COLAMD. See the OrderingMethods module for the list of built-in and external ordering methods.

Simple example with key steps

VectorXd x(n), b(n);
SparseMatrix<double, ColMajor> A;
SparseLU<SparseMatrix<scalar, ColMajor>, COLAMDOrdering<Index> >   solver;
// fill A and b;
// Compute the ordering permutation vector from the structural pattern of A
solver.analyzePattern(A);
// Compute the numerical factorization
solver.factorize(A);
//Use the factors to solve the linear system
x = solver.solve(b);

Warning: The input matrix A should be in a compressed and column-major form. Otherwise an expensive copy will be made. You can call the inexpensive makeCompressed() to get a compressed matrix.

Note: Unlike the initial SuperLU implementation, there is no step to equilibrate the matrix. For badly scaled matrices, this step can be useful to reduce the pivoting during factorization. If this is the case for your matrices, you can try the basic scaling method at "unsupported/Eigen/src/IterativeSolvers/Scaling.h"

Template Parameters

_MatrixType	The type of the sparse matrix. It must be a column-major SparseMatrix<>
_OrderingType	The ordering method to use, either AMD, COLAMD or METIS. Default is COLMAD

See also: Sparse solver concept; OrderingMethods_Module

Member Function Documentation

§ absDeterminant()

template<typename _MatrixType, typename _OrderingType>

Scalar Eigen::SparseLU< _MatrixType, _OrderingType >::absDeterminant ( )

inline

Returns: the absolute value of the determinant of the matrix of which *this is the QR decomposition.

Warning: a determinant can be very big or small, so for matrices of large enough dimension, there is a risk of overflow/underflow. One way to work around that is to use logAbsDeterminant() instead.

See also: logAbsDeterminant(), signDeterminant()

§ analyzePattern()

template<typename MatrixType , typename OrderingType >

void Eigen::SparseLU< MatrixType, OrderingType >::analyzePattern ( const MatrixType & mat )

Compute the column permutation to minimize the fill-in.

Apply this permutation to the input matrix -
Compute the column elimination tree on the permuted matrix
Postorder the elimination tree and the column permutation

§ colsPermutation()

template<typename _MatrixType, typename _OrderingType>

const PermutationType& Eigen::SparseLU< _MatrixType, _OrderingType >::colsPermutation ( ) const

inline

Returns: a reference to the column matrix permutation \( P_c^T \) such that \(P_r A P_c^T = L U\)

See also: rowsPermutation()

§ compute()

template<typename _MatrixType, typename _OrderingType>

void Eigen::SparseLU< _MatrixType, _OrderingType >::compute ( const MatrixType & matrix )

inline

Compute the symbolic and numeric factorization of the input sparse matrix.

The input matrix should be in column-major storage.

§ determinant()

template<typename _MatrixType, typename _OrderingType>

Scalar Eigen::SparseLU< _MatrixType, _OrderingType >::determinant ( )

inline

Returns: The determinant of the matrix.

See also: absDeterminant(), logAbsDeterminant()

§ factorize()

template<typename MatrixType , typename OrderingType >

void Eigen::SparseLU< MatrixType, OrderingType >::factorize ( const MatrixType & matrix )

Numerical factorization
Interleaved with the symbolic factorization On exit, info is

= 0: successful factorization

0: if info = i, and i is

  <= A->ncol: U(i,i) is exactly zero. The factorization has
     been completed, but the factor U is exactly singular,
     and division by zero will occur if it is used to solve a
     system of equations.

  > A->ncol: number of bytes allocated when memory allocation
    failure occurred, plus A->ncol. If lwork = -1, it is
    the estimated amount of space needed, plus A->ncol.

§ info()

template<typename _MatrixType, typename _OrderingType>

ComputationInfo Eigen::SparseLU< _MatrixType, _OrderingType >::info ( ) const

inline

Reports whether previous computation was successful.

Returns: Success if computation was succesful, NumericalIssue if the LU factorization reports a problem, zero diagonal for instance InvalidInput if the input matrix is invalid

See also: iparm()

§ lastErrorMessage()

template<typename _MatrixType, typename _OrderingType>

std::string Eigen::SparseLU< _MatrixType, _OrderingType >::lastErrorMessage ( ) const

inline

Returns: A string describing the type of error

§ logAbsDeterminant()

template<typename _MatrixType, typename _OrderingType>

Scalar Eigen::SparseLU< _MatrixType, _OrderingType >::logAbsDeterminant ( ) const

inline

Returns: the natural log of the absolute value of the determinant of the matrix of which **this is the QR decomposition

Note: This method is useful to work around the risk of overflow/underflow that's inherent to the determinant computation.

See also: absDeterminant(), signDeterminant()

§ matrixL()

template<typename _MatrixType, typename _OrderingType>

SparseLUMatrixLReturnType<SCMatrix> Eigen::SparseLU< _MatrixType, _OrderingType >::matrixL ( ) const

inline

Returns: an expression of the matrix L, internally stored as supernodes The only operation available with this expression is the triangular solve
y = b; matrixL().solveInPlace(y);

§ matrixU()

template<typename _MatrixType, typename _OrderingType>

SparseLUMatrixUReturnType<SCMatrix,MappedSparseMatrix<Scalar,ColMajor,StorageIndex> > Eigen::SparseLU< _MatrixType, _OrderingType >::matrixU ( ) const

inline

Returns: an expression of the matrix U, The only operation available with this expression is the triangular solve
y = b; matrixU().solveInPlace(y);

§ rowsPermutation()

template<typename _MatrixType, typename _OrderingType>

const PermutationType& Eigen::SparseLU< _MatrixType, _OrderingType >::rowsPermutation ( ) const

inline

Returns: a reference to the row matrix permutation \( P_r \) such that \(P_r A P_c^T = L U\)

See also: colsPermutation()

§ setPivotThreshold()

template<typename _MatrixType, typename _OrderingType>

void Eigen::SparseLU< _MatrixType, _OrderingType >::setPivotThreshold ( const RealScalar & thresh )

inline

Set the threshold used for a diagonal entry to be an acceptable pivot.

§ signDeterminant()

template<typename _MatrixType, typename _OrderingType>

Scalar Eigen::SparseLU< _MatrixType, _OrderingType >::signDeterminant ( )

inline

Returns: A number representing the sign of the determinant

See also: absDeterminant(), logAbsDeterminant()

The documentation for this class was generated from the following file:

third-party-libs/eigen3/Eigen/src/SparseLU/SparseLU.h

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<typename _MatrixType, typename _OrderingType> class Eigen::SparseLU< _MatrixType, _OrderingType >

Member Function Documentation

§ absDeterminant()

§ analyzePattern()

§ colsPermutation()

§ compute()

§ determinant()

§ factorize()

§ info()

§ lastErrorMessage()

§ logAbsDeterminant()

§ matrixL()

§ matrixU()

§ rowsPermutation()

§ setPivotThreshold()

§ signDeterminant()

template<typename _MatrixType, typename _OrderingType>
class Eigen::SparseLU< _MatrixType, _OrderingType >
