A sparse direct LU factorization and solver based on the SuperLU library. More...

#include <SuperLUSupport.h>

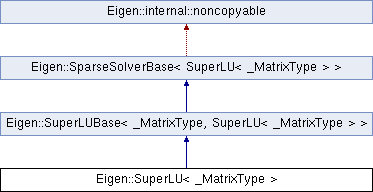

Inheritance diagram for Eigen::SuperLU< _MatrixType >:

Public Types
typedef SuperLUBase< _MatrixType, SuperLU >	Base

typedef _MatrixType	MatrixType

typedef Base::Scalar	Scalar

typedef Base::RealScalar	RealScalar

typedef Base::StorageIndex	StorageIndex

typedef Base::IntRowVectorType	IntRowVectorType

typedef Base::IntColVectorType	IntColVectorType

typedef Base::PermutationMap	PermutationMap

typedef Base::LUMatrixType	LUMatrixType

typedef TriangularView< LUMatrixType, Lower\|UnitDiag >	LMatrixType

typedef TriangularView< LUMatrixType, Upper >	UMatrixType

Public Types inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
enum

typedef _MatrixType	MatrixType

typedef MatrixType::Scalar	Scalar

typedef MatrixType::RealScalar	RealScalar

typedef MatrixType::StorageIndex	StorageIndex

typedef Matrix< Scalar, Dynamic, 1 >	Vector

typedef Matrix< int, 1, MatrixType::ColsAtCompileTime >	IntRowVectorType

typedef Matrix< int, MatrixType::RowsAtCompileTime, 1 >	IntColVectorType

typedef Map< PermutationMatrix< Dynamic, Dynamic, int > >	PermutationMap

typedef SparseMatrix< Scalar >	LUMatrixType

Public Member Functions
	SuperLU (const MatrixType &matrix)

void	analyzePattern (const MatrixType &matrix)
	Performs a symbolic decomposition on the sparcity of matrix. More...

void	factorize (const MatrixType &matrix)
	Performs a numeric decomposition of matrix. More...

template<typename Rhs , typename Dest >
void	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const

const LMatrixType &	matrixL () const

const UMatrixType &	matrixU () const

const IntColVectorType &	permutationP () const

const IntRowVectorType &	permutationQ () const

Scalar	determinant () const

Public Member Functions inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
Index	rows () const

Index	cols () const

superlu_options_t &	options ()

ComputationInfo	info () const
	Reports whether previous computation was successful. More...

void	compute (const MatrixType &matrix)
	Computes the sparse Cholesky decomposition of matrix.

void	analyzePattern (const MatrixType &)
	Performs a symbolic decomposition on the sparcity of matrix. More...

void	dumpMemory (Stream &)

Public Member Functions inherited from Eigen::SparseSolverBase< SuperLU< _MatrixType > >
	SparseSolverBase ()
	Default constructor.

SuperLU< _MatrixType > &	derived ()

const SuperLU< _MatrixType > &	derived () const

const Solve< SuperLU< _MatrixType >, Rhs >	solve (const MatrixBase< Rhs > &b) const

const Solve< SuperLU< _MatrixType >, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const

void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Protected Member Functions
void	init ()

Protected Member Functions inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
void	initFactorization (const MatrixType &a)

void	init ()

void	extractData () const

void	clearFactors ()

Additional Inherited Members
Protected Types inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
typedef SparseSolverBase< SuperLU< _MatrixType > >	Base

Protected Attributes inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
LUMatrixType	m_l

LUMatrixType	m_u

IntColVectorType	m_p

IntRowVectorType	m_q

LUMatrixType	m_matrix

SluMatrix	m_sluA

SuperMatrix	m_sluL

SuperMatrix	m_sluU

SluMatrix	m_sluB

SluMatrix	m_sluX

SuperLUStat_t	m_sluStat

superlu_options_t	m_sluOptions

std::vector< int >	m_sluEtree

Matrix< RealScalar, Dynamic, 1 >	m_sluRscale

Matrix< RealScalar, Dynamic, 1 >	m_sluCscale

Matrix< RealScalar, Dynamic, 1 >	m_sluFerr

Matrix< RealScalar, Dynamic, 1 >	m_sluBerr

char	m_sluEqued

ComputationInfo	m_info

int	m_factorizationIsOk

int	m_analysisIsOk

bool	m_extractedDataAreDirty

Protected Attributes inherited from Eigen::SparseSolverBase< SuperLU< _MatrixType > >
bool	m_isInitialized

Detailed Description

template<typename _MatrixType>
class Eigen::SuperLU< _MatrixType >

A sparse direct LU factorization and solver based on the SuperLU library.

This class allows to solve for A.X = B sparse linear problems via a direct LU factorization using the SuperLU library. The sparse matrix A must be squared and invertible. The vectors or matrices X and B can be either dense or sparse.

Template Parameters

_MatrixType the type of the sparse matrix A, it must be a SparseMatrix<>

Warning: This class is only for the 4.x versions of SuperLU. The 3.x and 5.x versions are not supported.

See also: Sparse solver concept, class SparseLU

Member Function Documentation

§ analyzePattern()

template<typename _MatrixType>

void Eigen::SuperLU< _MatrixType >::analyzePattern ( const MatrixType & matrix )

inline

Performs a symbolic decomposition on the sparcity of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also: factorize()

§ factorize()

template<typename MatrixType >

void Eigen::SuperLU< MatrixType >::factorize ( const MatrixType & matrix )

Performs a numeric decomposition of matrix.

The given matrix must has the same sparcity than the matrix on which the symbolic decomposition has been performed.

See also: analyzePattern()

The documentation for this class was generated from the following file:

third-party-libs/eigen3/Eigen/src/SuperLUSupport/SuperLUSupport.h
