A sparse LU factorization and solver based on UmfPack. More...

#include <UmfPackSupport.h>

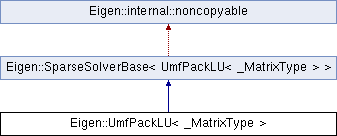

Inheritance diagram for Eigen::UmfPackLU< _MatrixType >:

Public Types
enum	{ ColsAtCompileTime = MatrixType::ColsAtCompileTime, MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime }

typedef _MatrixType	MatrixType

typedef MatrixType::Scalar	Scalar

typedef MatrixType::RealScalar	RealScalar

typedef MatrixType::StorageIndex	StorageIndex

typedef Matrix< Scalar, Dynamic, 1 >	Vector

typedef Matrix< int, 1, MatrixType::ColsAtCompileTime >	IntRowVectorType

typedef Matrix< int, MatrixType::RowsAtCompileTime, 1 >	IntColVectorType

typedef SparseMatrix< Scalar >	LUMatrixType

typedef SparseMatrix< Scalar, ColMajor, int >	UmfpackMatrixType

typedef Ref< const UmfpackMatrixType, StandardCompressedFormat >	UmfpackMatrixRef

typedef Array< double, UMFPACK_CONTROL, 1 >	UmfpackControl

Public Member Functions
template<typename InputMatrixType >
	UmfPackLU (const InputMatrixType &matrix)

Index	rows () const

Index	cols () const

ComputationInfo	info () const
	Reports whether previous computation was successful. More...

const LUMatrixType &	matrixL () const

const LUMatrixType &	matrixU () const

const IntColVectorType &	permutationP () const

const IntRowVectorType &	permutationQ () const

template<typename InputMatrixType >
void	compute (const InputMatrixType &matrix)
	Computes the sparse Cholesky decomposition of matrix Note that the matrix should be column-major, and in compressed format for best performance. More...

template<typename InputMatrixType >
void	analyzePattern (const InputMatrixType &matrix)
	Performs a symbolic decomposition on the sparcity of matrix. More...

int	umfpackFactorizeReturncode () const
	Provides the return status code returned by UmfPack during the numeric factorization. More...

const UmfpackControl &	umfpackControl () const
	Provides access to the control settings array used by UmfPack. More...

UmfpackControl &	umfpackControl ()
	Provides access to the control settings array used by UmfPack. More...

template<typename InputMatrixType >
void	factorize (const InputMatrixType &matrix)
	Performs a numeric decomposition of matrix. More...

template<typename BDerived , typename XDerived >
bool	_solve_impl (const MatrixBase< BDerived > &b, MatrixBase< XDerived > &x) const

Scalar	determinant () const

void	extractData () const

Public Member Functions inherited from Eigen::SparseSolverBase< UmfPackLU< _MatrixType > >
	SparseSolverBase ()
	Default constructor.

UmfPackLU< _MatrixType > &	derived ()

const UmfPackLU< _MatrixType > &	derived () const

const Solve< UmfPackLU< _MatrixType >, Rhs >	solve (const MatrixBase< Rhs > &b) const

const Solve< UmfPackLU< _MatrixType >, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const

void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Protected Types
typedef SparseSolverBase< UmfPackLU< _MatrixType > >	Base

Protected Member Functions
void	init ()

void	analyzePattern_impl ()

void	factorize_impl ()

template<typename MatrixDerived >
void	grab (const EigenBase< MatrixDerived > &A)

void	grab (const UmfpackMatrixRef &A)

Protected Attributes
LUMatrixType	m_l

int	m_fact_errorCode

UmfpackControl	m_control

LUMatrixType	m_u

IntColVectorType	m_p

IntRowVectorType	m_q

UmfpackMatrixType	m_dummy

UmfpackMatrixRef	mp_matrix

void *	m_numeric

void *	m_symbolic

ComputationInfo	m_info

int	m_factorizationIsOk

int	m_analysisIsOk

bool	m_extractedDataAreDirty

Protected Attributes inherited from Eigen::SparseSolverBase< UmfPackLU< _MatrixType > >
bool	m_isInitialized

Detailed Description

template<typename _MatrixType>
class Eigen::UmfPackLU< _MatrixType >

A sparse LU factorization and solver based on UmfPack.

This class allows to solve for A.X = B sparse linear problems via a LU factorization using the UmfPack library. The sparse matrix A must be squared and full rank. The vectors or matrices X and B can be either dense or sparse.

Warning: The input matrix A should be in a compressed and column-major form. Otherwise an expensive copy will be made. You can call the inexpensive makeCompressed() to get a compressed matrix.

Template Parameters

_MatrixType the type of the sparse matrix A, it must be a SparseMatrix<>

See also: Sparse solver concept, class SparseLU

Member Function Documentation

§ analyzePattern()

template<typename _MatrixType>

template<typename InputMatrixType >

void Eigen::UmfPackLU< _MatrixType >::analyzePattern ( const InputMatrixType & matrix )

inline

Performs a symbolic decomposition on the sparcity of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also: factorize(), compute()

§ compute()

template<typename _MatrixType>

template<typename InputMatrixType >

void Eigen::UmfPackLU< _MatrixType >::compute ( const InputMatrixType & matrix )

inline

Computes the sparse Cholesky decomposition of matrix Note that the matrix should be column-major, and in compressed format for best performance.

See also: SparseMatrix::makeCompressed().

§ factorize()

template<typename _MatrixType>

template<typename InputMatrixType >

void Eigen::UmfPackLU< _MatrixType >::factorize ( const InputMatrixType & matrix )

inline

Performs a numeric decomposition of matrix.

The given matrix must has the same sparcity than the matrix on which the pattern anylysis has been performed.

See also: analyzePattern(), compute()

§ info()

template<typename _MatrixType>

ComputationInfo Eigen::UmfPackLU< _MatrixType >::info ( ) const

inline

Reports whether previous computation was successful.

Returns: Success if computation was succesful, NumericalIssue if the matrix.appears to be negative.

§ umfpackControl() [1/2]

template<typename _MatrixType>

const UmfpackControl& Eigen::UmfPackLU< _MatrixType >::umfpackControl ( ) const

inline

Provides access to the control settings array used by UmfPack.

If this array contains NaN's, the default values are used.

See UMFPACK documentation for details.

§ umfpackControl() [2/2]

template<typename _MatrixType>

UmfpackControl& Eigen::UmfPackLU< _MatrixType >::umfpackControl ( )

inline

Provides access to the control settings array used by UmfPack.

If this array contains NaN's, the default values are used.

See UMFPACK documentation for details.

§ umfpackFactorizeReturncode()

template<typename _MatrixType>

int Eigen::UmfPackLU< _MatrixType >::umfpackFactorizeReturncode ( ) const

inline

Provides the return status code returned by UmfPack during the numeric factorization.

See also: factorize(), compute()

The documentation for this class was generated from the following file:

third-party-libs/eigen3/Eigen/src/UmfPackSupport/UmfPackSupport.h
