Base class for elements of containers. More...

#include <Element.h>

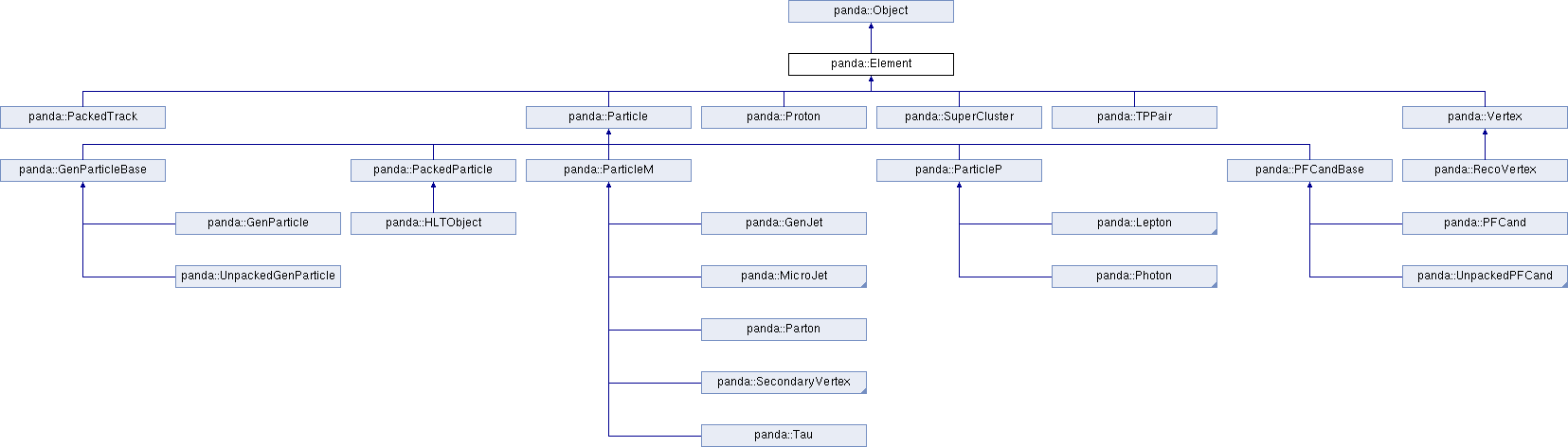

Inheritance diagram for panda::Element:

Classes
struct	datastore

class	StoreManager
	Singleton class for bookkeeping of Elements constructed as singlets. More...

Public Types
typedef ArrayBase	array_type

typedef CollectionBase	collection_type

Public Member Functions
	Element ()=delete
	Disabled default constructor.

	Element (datastore &, UInt_t)
	Standard constructor.

	Element (Element const &src)
	Copy constructor. More...

Element &	operator= (Element const &)

void	setStatus (TTree &, utils::BranchList const &blist) final
	Set status of branches to true (matching branch) or false (vetoed branch) More...

utils::BranchList	getStatus (TTree &) const final
	Get status of branches in the tree.

utils::BranchList	getBranchNames (Bool_t fullName=kTRUE, Bool_t=kFALSE) const final
	Get the full list of branch names. More...

UInt_t	setAddress (TTree &, utils::BranchList const &blist={"*"}, Bool_t setStatus=kTRUE) final
	Bind the tree branches to the elements of this object. More...

void	book (TTree &, utils::BranchList const &blist={"*"}) final
	Book new branches bound to this object on the tree. More...

Int_t	getEntry (TTree &tree, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...

Int_t	getEntry (UInt_t treeId, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...

void	init () final
	Reset the object state.

char const *	getName () const final
	Name of this object.

void	setName (char const *) final
	Set object name.

Public Member Functions inherited from panda::Object
	Object (Object const &)

Object &	operator= (Object const &)

virtual Int_t	fill (TTree &tree)
	Fill a tree. More...

virtual void	print (std::ostream &out=std::cout, UInt_t level=1) const
	Print the object content.

virtual void	dump (std::ostream &=std::cout) const
	Dump the object content.

Static Public Member Functions
static char const *	typeName ()

Protected Member Functions
	Element (ArrayBase *)
	Ctor for singlet instantiation. More...

virtual void	doBook_ (TTree &, TString const &, utils::BranchList const &)=0

virtual void	doInit_ ()=0

Static Protected Attributes
static StoreManager	gStore

Detailed Description

Base class for elements of containers.

Element is the base class of objects that are elements of containers (Array = fixed size and Collection = dynamic size). All deriving class of Element must have a member class named datastore (which derives from Element::datastore) where arrays of plain-old-data types and vectors of objects are held. This big chunk of memory is in turn owned by a Container, which also holds an array of Elements. Individual "data members" of a Element-derived class are references to the elements of their associated datastore, linked by the Container. By construction, the standard usage of the Element object is therefore to define a container first and to fetch from it as an element. However, it is also possible to use a Element class as a singlet. This operation is rather expensive as every singlet instantiation of a Element will create a one-element Array in memory in the back end.

Note on destructors: The actual destructor of the is called only if the Element is instantiated as a singlet. In the Container environment, the memory allocated for this object is directly deallocated without calling ~(Object). If subclasses need to make some calls at the destruction time of the object, they must be implemented in the destructor() function.

Constructor & Destructor Documentation

§ Element() [1/2]

panda::Element::Element ( Element const & src )

inline

Copy constructor.

Copy construction is similar to default construction, and involves a creation of a one-element Array.

§ Element() [2/2]

panda::Element::Element ( ArrayBase * _array )

protected

Ctor for singlet instantiation.

When a derived class is instantiated as a singlet, the object must create a new one-element Array and set its references to the element of the array. This array is controlled by a global StoreManager instance.

Member Function Documentation

§ book()

void panda::Element::book	(	TTree &	tree,
		utils::BranchList const &	= `{"*"}`
	)

finalvirtual

Book new branches bound to this object on the tree.

Parameters

tree
blist	List of branches to book. Vetoed or unmentioned branches are not booked.

Reimplemented from panda::Object.

§ getBranchNames()

panda::utils::BranchList panda::Element::getBranchNames	(	Bool_t	fullName = `kTRUE`,
		Bool_t	direct = `kFALSE`
	)		const

finalvirtual

Get the full list of branch names.

Parameters

fullName	If true, prepend "(object name)."
direct	If true, return only direct branches of this object (relevant only for TreeEntry)

Reimplemented from panda::Object.

§ getEntry() [1/2]

Int_t panda::Element::getEntry	(	TTree &	tree,
		Long64_t	entry,
		Bool_t	localEntry = `kFALSE`
	)

finalvirtual

Read an entry from an input tree.

Parameters

tree	Tree to get the entry from.
entry	Entry number in the input tree.
localEntry	If true, entry must be the local entry number of the current tree (i.e. return value of LoadTree)

If localEntry is false, calls tree.LoadEntry(entry).

Returns: Number of bytes read.

Reimplemented from panda::Object.

§ getEntry() [2/2]

Int_t panda::Element::getEntry	(	UInt_t	treeId,
		Long64_t	entry,
		Bool_t	localEntry = `kFALSE`
	)

finalvirtual

Read an entry from an input tree.

Parameters

treeId	Index of the tree in the inputBranches_ vector.
entry	Entry number in the input tree.
localEntry	If true, entry must be the local entry number of the current tree (i.e. return value of LoadTree)

If localEntry is false, calls tree.LoadEntry(entry).

Returns: Number of bytes read.

Reimplemented from panda::Object.

§ setAddress()

UInt_t panda::Element::setAddress	(	TTree &	tree,
		utils::BranchList const &	= `{"*"}`,
		Bool_t	setStatus = `kTRUE`
	)

finalvirtual

Bind the tree branches to the elements of this object.

Parameters

tree
blist	List of branches to bind. Vetoed or unmentioned branches are not bound.
setStatus	If true, set the status of the branch to true before binding.

Returns: Index of the bound tree in the inputBranches_ vector.

Reimplemented from panda::Object.

§ setStatus()

void panda::Element::setStatus	(	TTree &	tree,
		utils::BranchList const &
	)

finalvirtual

Set status of branches to true (matching branch) or false (vetoed branch)

Sets the status of the branch to true (branch is in the list) or false (branch is vetoed in the list). Branches not mentioned in the branch list are untouched.

Parameters

tree
blist	List of branches. The status of a branch is set to true (false) if BranchName::in(blist) (BranchName::vetoed(blist)) evaluates to true for the branch.

Reimplemented from panda::Object.

The documentation for this class was generated from the following files:

Framework/interface/Element.h
Framework/src/Element.cc
