Base class for objects representing one full entry of a tree (e.g. Event). More...

#include <TreeEntry.h>

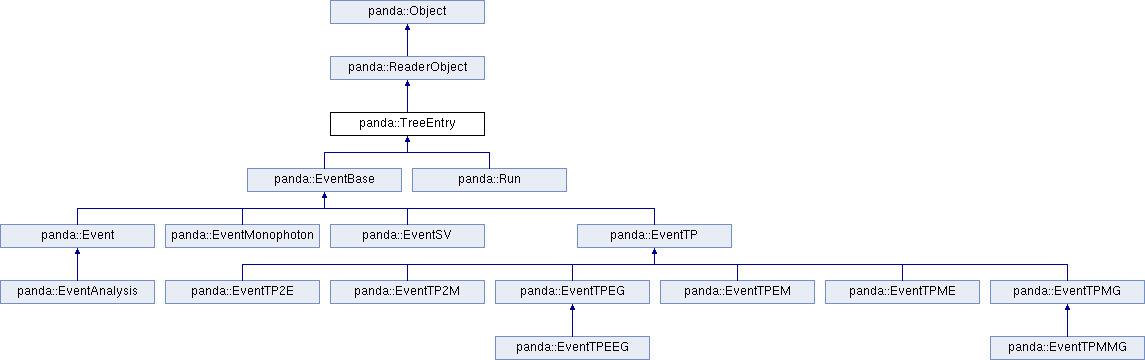

Inheritance diagram for panda::TreeEntry:

Public Member Functions
	TreeEntry (TreeEntry const &src)

TreeEntry &	operator= (TreeEntry const &)

void	setStatus (TTree &, utils::BranchList const &blist) final
	Set status of branches to true (matching branch) or false (vetoed branch) More...

utils::BranchList	getStatus (TTree &) const final
	Get status of branches in the tree.

utils::BranchList	getBranchNames (Bool_t=kTRUE, Bool_t direct=kFALSE) const final
	Get the full list of branch names. More...

UInt_t	setAddress (TTree &, utils::BranchList const &blist={"*"}, Bool_t setStatus=kTRUE) final
	Bind the tree branches to the elements of this object. More...

void	book (TTree &, utils::BranchList const &blist={"*"}) final
	Book new branches bound to this object on the tree. More...

Int_t	getEntry (UInt_t, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...

Int_t	fill (TTree &) final
	Fill a tree. More...

void	init () final
	Reset the object state.

char const *	getName () const final
	Name of this object.

void	setName (char const *) final
	Set object name.

void	unlink (TTree &) final
	Unlink from a tree.

Public Member Functions inherited from panda::ReaderObject
	ReaderObject (ReaderObject const &src)

ReaderObject &	operator= (ReaderObject const &)

Int_t	getEntry (TTree &tree, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...

void	updateBranchArray (TTree &)

Public Member Functions inherited from panda::Object
	Object (Object const &)

Object &	operator= (Object const &)

virtual void	print (std::ostream &out=std::cout, UInt_t level=1) const
	Print the object content.

virtual void	dump (std::ostream &=std::cout) const
	Dump the object content.

Protected Member Functions
virtual void	doSetStatus_ (TTree &, utils::BranchList const &)=0

virtual utils::BranchList	doGetStatus_ (TTree &) const =0

virtual utils::BranchList	doGetBranchNames_ () const =0

virtual void	doSetAddress_ (TTree &tree, utils::BranchList const &, Bool_t setStatus)=0

virtual void	doBook_ (TTree &, utils::BranchList const &)=0

virtual void	doGetEntry_ (TTree &)=0

virtual void	doInit_ ()=0

virtual void	doUnlink_ (TTree &)=0

Protected Member Functions inherited from panda::ReaderObject
UInt_t	registerInput_ (TTree &)

Protected Attributes
std::vector< Object * >	objects_ {}
	list of object branches (containers and singlets)

std::vector< CollectionBase * >	collections_ {}
	list of collections (overlaps with objects_)

Protected Attributes inherited from panda::ReaderObject
std::vector< BranchMapping >	inputBranches_
	List of list of input branches. More...

Additional Inherited Members
Protected Types inherited from panda::ReaderObject
typedef std::vector< TBranch * >	BranchArray

typedef std::pair< TTree *, BranchArray >	BranchMapping
	List of branches linked with this object in the tree.

Detailed Description

Base class for objects representing one full entry of a tree (e.g. Event).

A derived class of TreeEntry typically owns multiple Singlets, Containers, as well as its own primitive branches.

Member Function Documentation

§ book()

void panda::TreeEntry::book	(	TTree &	tree,
		utils::BranchList const &	= `{"*"}`
	)

finalvirtual

Book new branches bound to this object on the tree.

Parameters

tree
blist	List of branches to book. Vetoed or unmentioned branches are not booked.

Reimplemented from panda::Object.

§ fill()

Int_t panda::TreeEntry::fill ( TTree & tree )

finalvirtual

Fill a tree.

In most of the objects this will just call tree.Fill(). The function takes care of the case with e.g. Collection where internal address can change after the call to book().

Parameters

tree

Reimplemented from panda::Object.

§ getBranchNames()

panda::utils::BranchList panda::TreeEntry::getBranchNames	(	Bool_t	fullName = `kTRUE`,
		Bool_t	direct = `kFALSE`
	)		const

finalvirtual

Get the full list of branch names.

Parameters

fullName	If true, prepend "(object name)."
direct	If true, return only direct branches of this object (relevant only for TreeEntry)

Reimplemented from panda::Object.

§ getEntry()

Int_t panda::TreeEntry::getEntry	(	UInt_t	treeId,
		Long64_t	entry,
		Bool_t	localEntry = `kFALSE`
	)

finalvirtual

Read an entry from an input tree.

Parameters

treeId	Index of the tree in the inputBranches_ vector.
entry	Entry number in the input tree.
localEntry	If true, entry must be the local entry number of the current tree (i.e. return value of LoadTree)

If localEntry is false, calls tree.LoadEntry(entry).

Returns: Number of bytes read.

Reimplemented from panda::ReaderObject.

§ setAddress()

UInt_t panda::TreeEntry::setAddress	(	TTree &	tree,
		utils::BranchList const &	= `{"*"}`,
		Bool_t	setStatus = `kTRUE`
	)

finalvirtual

Bind the tree branches to the elements of this object.

Parameters

tree
blist	List of branches to bind. Vetoed or unmentioned branches are not bound.
setStatus	If true, set the status of the branch to true before binding.

Returns: Index of the bound tree in the inputBranches_ vector.

Reimplemented from panda::Object.

§ setStatus()

void panda::TreeEntry::setStatus	(	TTree &	tree,
		utils::BranchList const &
	)

finalvirtual

Set status of branches to true (matching branch) or false (vetoed branch)

Sets the status of the branch to true (branch is in the list) or false (branch is vetoed in the list). Branches not mentioned in the branch list are untouched.

Parameters

tree
blist	List of branches. The status of a branch is set to true (false) if BranchName::in(blist) (BranchName::vetoed(blist)) evaluates to true for the branch.

Reimplemented from panda::Object.

The documentation for this class was generated from the following files:

Framework/interface/TreeEntry.h
Framework/src/TreeEntry.cc
