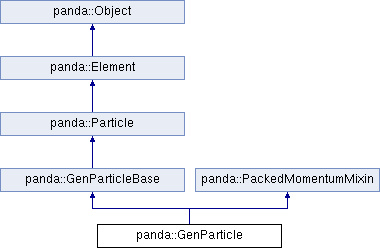

Inheritance diagram for panda::GenParticle:
Classes | |
| struct | datastore |
Public Types | |
| typedef Array< GenParticle > | array_type |
| typedef Collection< GenParticle > | collection_type |
| typedef GenParticleBase | base_type |
 Public Types inherited from panda::GenParticleBase | |
| enum | StatusFlag { kIsPrompt, kIsDecayedLeptonHadron, kIsTauDecayProduct, kIsPromptTauDecayProduct, kIsDirectTauDecayProduct, kIsDirectPromptTauDecayProduct, kIsDirectHadronDecayProduct, kIsHardProcess, kFromHardProcess, kIsHardProcessTauDecayProduct, kIsDirectHardProcessTauDecayProduct, kFromHardProcessBeforeFSR, kIsFirstCopy, kIsLastCopy, kIsLastCopyBeforeFSR, nStatusFlags } |
| typedef Array< GenParticleBase > | array_type |
| typedef Collection< GenParticleBase > | collection_type |
| typedef Particle | base_type |
| Public Types inherited from panda::Particle | |
| typedef Array< Particle > | array_type |
| typedef Collection< Particle > | collection_type |
| typedef Element | base_type |
| Public Types inherited from panda::Element | |
| typedef ArrayBase | array_type |
| typedef CollectionBase | collection_type |
Public Member Functions | |
| GenParticle (char const *name="") | |
| GenParticle (GenParticle const &) | |
| GenParticle (datastore &, UInt_t idx) | |
| GenParticle & | operator= (GenParticle const &) |
| void | print (std::ostream &=std::cout, UInt_t level=1) const override |
| Print the object content. | |
| void | dump (std::ostream &=std::cout) const override |
| Dump the object content. | |
| double | pt () const override |
| double | eta () const override |
| double | phi () const override |
| double | m () const override |
| void | setPtEtaPhiM (double pt, double eta, double phi, double m) override |
| void | setXYZE (double px, double py, double pz, double e) override |
| GenParticle & | operator= (UnpackedGenParticle const &) |
| void | destructor (Bool_t recursive=kFALSE) |
| Public Member Functions inherited from panda::GenParticleBase | |
| GenParticleBase (char const *name="") | |
| GenParticleBase (GenParticleBase const &) | |
| GenParticleBase (datastore &, UInt_t idx) | |
| GenParticleBase & | operator= (GenParticleBase const &) |
| void | print (std::ostream &=std::cout, UInt_t level=1) const override |
| Print the object content. | |
| void | dump (std::ostream &=std::cout) const override |
| Dump the object content. | |
| bool | testFlag (StatusFlag f) const |
| void | destructor (Bool_t recursive=kFALSE) |
| Public Member Functions inherited from panda::Particle | |
| Particle (datastore &, UInt_t idx) | |
| Particle & | operator= (Particle const &) |
| void | print (std::ostream &=std::cout, UInt_t level=1) const override |
| Print the object content. | |
| void | dump (std::ostream &=std::cout) const override |
| Dump the object content. | |
| TLorentzVector | p4 () const |
| double | e () const |
| double | p () const |
| double | px () const |
| double | py () const |
| double | pz () const |
| double | dEta (Particle const &p) const |
| double | dPhi (Particle const &p) const |
| double | dR2 (Particle const &p) const |
| double | dR (Particle const &p) const |
| void | destructor (Bool_t recursive=kFALSE) |
| Public Member Functions inherited from panda::Element | |
| Element ()=delete | |
| Disabled default constructor. | |
| Element (datastore &, UInt_t) | |
| Standard constructor. | |
| Element (Element const &src) | |
| Copy constructor. More... | |
| Element & | operator= (Element const &) |
| void | setStatus (TTree &, utils::BranchList const &blist) final |
| Set status of branches to true (matching branch) or false (vetoed branch) More... | |
| utils::BranchList | getStatus (TTree &) const final |
| Get status of branches in the tree. | |
| utils::BranchList | getBranchNames (Bool_t fullName=kTRUE, Bool_t=kFALSE) const final |
| Get the full list of branch names. More... | |
| UInt_t | setAddress (TTree &, utils::BranchList const &blist={"*"}, Bool_t setStatus=kTRUE) final |
| Bind the tree branches to the elements of this object. More... | |
| void | book (TTree &, utils::BranchList const &blist={"*"}) final |
| Book new branches bound to this object on the tree. More... | |
| Int_t | getEntry (TTree &tree, Long64_t entry, Bool_t localEntry=kFALSE) final |
| Read an entry from an input tree. More... | |
| Int_t | getEntry (UInt_t treeId, Long64_t entry, Bool_t localEntry=kFALSE) final |
| Read an entry from an input tree. More... | |
| void | init () final |
| Reset the object state. | |
| char const * | getName () const final |
| Name of this object. | |
| void | setName (char const *) final |
| Set object name. | |
| Public Member Functions inherited from panda::Object | |
| Object (Object const &) | |
| Object & | operator= (Object const &) |
| virtual Int_t | fill (TTree &tree) |
| Fill a tree. More... | |
| Public Member Functions inherited from panda::PackedMomentumMixin | |
| PackedMomentumMixin (datastore &, UInt_t idx) | |
Static Public Member Functions | |
| static char const * | typeName () |
| static utils::BranchList | getListOfBranches () |
| Static Public Member Functions inherited from panda::GenParticleBase | |
| static char const * | typeName () |
| static utils::BranchList | getListOfBranches () |
| Static Public Member Functions inherited from panda::Particle | |
| static char const * | typeName () |
| static Bool_t | PtGreater (Element const &p1, Element const &p2) |
| sort comparison by pt More... | |
| static utils::BranchList | getListOfBranches () |
| Static Public Member Functions inherited from panda::Element | |
| static char const * | typeName () |
Protected Member Functions | |
| GenParticle (ArrayBase *) | |
| void | doBook_ (TTree &, TString const &, utils::BranchList const &={"*"}) override |
| void | doInit_ () override |
| Protected Member Functions inherited from panda::GenParticleBase | |
| GenParticleBase (ArrayBase *) | |
| void | doBook_ (TTree &, TString const &, utils::BranchList const &={"*"}) override |
| void | doInit_ () override |
| Protected Member Functions inherited from panda::Particle | |
| Particle (ArrayBase *) | |
| void | doBook_ (TTree &, TString const &, utils::BranchList const &={"*"}) override |
| void | doInit_ () override |
| Protected Member Functions inherited from panda::Element | |
| Element (ArrayBase *) | |
| Ctor for singlet instantiation. More... | |
| Protected Member Functions inherited from panda::PackedMomentumMixin | |
| void | pack_ () |
| void | unpack_ () const |
| void | setPtEtaPhiMPacked_ (double pt, double eta, double phi, double m) |
| void | setXYZEPacked_ (double px, double py, double pz, double e) |
Additional Inherited Members | |
| Public Attributes inherited from panda::GenParticleBase | |
| Int_t & | pdgid |
| Bool_t & | finalState |
| Bool_t & | miniaodPacked |
| True if this came from a MINIAOD packed collection. | |
| UShort_t & | statusFlags |
| Ref< GenParticleBase > | parent |
| Public Attributes inherited from panda::PackedMomentumMixin | |
| UShort_t & | packedPt |
| Short_t & | packedEta |
| Short_t & | packedPhi |
| UShort_t & | packedM |
| Static Public Attributes inherited from panda::GenParticleBase | |
| static TString | StatusFlagName [nStatusFlags] |
| Static Protected Member Functions inherited from panda::PackedMomentumMixin | |
| static utils::BranchList | getListOfBranches () |
| Protected Attributes inherited from panda::PackedMomentumMixin | |
| Double_t | pt_ {0.} |
| Double_t | eta_ {0.} |
| Double_t | phi_ {0.} |
| Double_t | mass_ {0.} |
| Bool_t | unpacked_ {kFALSE} |
| Static Protected Attributes inherited from panda::Element | |
| static StoreManager | gStore |
The documentation for this class was generated from the following files:
- Objects/interface/GenParticle.h
- Objects/src/GenParticle.cc
