panda::XPhoton Class Reference

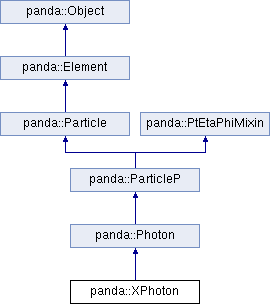

Inheritance diagram for panda::XPhoton:

Classes
struct	datastore

Public Types
enum	IDTune {   kSpring15, kSpring16, kFall17, kGJetsCWIso,   kZGCWIso, nIDTunes }
typedef Array< XPhoton >	array_type
typedef Collection< XPhoton >	collection_type
typedef Photon	base_type
typedef std::array< double, 4 >	SubdetThresholds
typedef std::array< SubdetThresholds, 2 >	Thresholds
typedef std::array< Thresholds, nIDTunes >	IDDefinitions
Public Types inherited from panda::Photon
typedef Array< Photon >	array_type
typedef Collection< Photon >	collection_type
typedef ParticleP	base_type
Public Types inherited from panda::ParticleP
typedef Array< ParticleP >	array_type
typedef Collection< ParticleP >	collection_type
typedef Particle	base_type
Public Types inherited from panda::Particle
typedef Array< Particle >	array_type
typedef Collection< Particle >	collection_type
typedef Element	base_type
Public Types inherited from panda::Element
typedef ArrayBase	array_type
typedef CollectionBase	collection_type

Public Member Functions
	XPhoton (char const *name="")
	XPhoton (XPhoton const &)
	XPhoton (datastore &, UInt_t idx)
XPhoton &	operator= (XPhoton const &)
void	print (std::ostream &=std::cout, UInt_t level=1) const override
	Print the object content.
void	dump (std::ostream &=std::cout) const override
	Dump the object content.
bool	passCHIso (UInt_t wp, UInt_t t) const
bool	passCHIsoMax (UInt_t wp, UInt_t t) const
bool	passNHIso (UInt_t wp, UInt_t t) const
bool	passPhIso (UInt_t wp, UInt_t t) const
bool	passSieie (UInt_t wp, UInt_t t) const
bool	passHOverE (UInt_t wp, UInt_t t) const
void	destructor (Bool_t recursive=kFALSE)
Public Member Functions inherited from panda::Photon
	Photon (char const *name="")
	Photon (Photon const &)
	Photon (datastore &, UInt_t idx)
Photon &	operator= (Photon const &)
void	destructor (Bool_t recursive=kFALSE)
Public Member Functions inherited from panda::ParticleP
	ParticleP (char const *name="")
	ParticleP (ParticleP const &)
	ParticleP (datastore &, UInt_t idx)
ParticleP &	operator= (ParticleP const &)
double	pt () const override
double	eta () const override
double	phi () const override
double	m () const override
void	setPtEtaPhiM (double pt, double eta, double phi, double) override
void	setXYZE (double px, double py, double pz, double) override
void	destructor (Bool_t recursive=kFALSE)
Public Member Functions inherited from panda::Particle
	Particle (datastore &, UInt_t idx)
Particle &	operator= (Particle const &)
TLorentzVector	p4 () const
double	e () const
double	p () const
double	px () const
double	py () const
double	pz () const
double	dEta (Particle const &p) const
double	dPhi (Particle const &p) const
double	dR2 (Particle const &p) const
double	dR (Particle const &p) const
void	destructor (Bool_t recursive=kFALSE)
Public Member Functions inherited from panda::Element
	Element ()=delete
	Disabled default constructor.
	Element (datastore &, UInt_t)
	Standard constructor.
	Element (Element const &src)
	Copy constructor. More...
Element &	operator= (Element const &)
void	setStatus (TTree &, utils::BranchList const &blist) final
	Set status of branches to true (matching branch) or false (vetoed branch) More...
utils::BranchList	getStatus (TTree &) const final
	Get status of branches in the tree.
utils::BranchList	getBranchNames (Bool_t fullName=kTRUE, Bool_t=kFALSE) const final
	Get the full list of branch names. More...
UInt_t	setAddress (TTree &, utils::BranchList const &blist={"*"}, Bool_t setStatus=kTRUE) final
	Bind the tree branches to the elements of this object. More...
void	book (TTree &, utils::BranchList const &blist={"*"}) final
	Book new branches bound to this object on the tree. More...
Int_t	getEntry (TTree &tree, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...
Int_t	getEntry (UInt_t treeId, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...
void	init () final
	Reset the object state.
char const *	getName () const final
	Name of this object.
void	setName (char const *) final
	Set object name.
Public Member Functions inherited from panda::Object
	Object (Object const &)
Object &	operator= (Object const &)
virtual Int_t	fill (TTree &tree)
	Fill a tree. More...
Public Member Functions inherited from panda::PtEtaPhiMixin
	PtEtaPhiMixin (datastore &, UInt_t idx)

Static Public Member Functions
static char const *	typeName ()
static utils::BranchList	getListOfBranches ()
Static Public Member Functions inherited from panda::Photon
static char const *	typeName ()
static utils::BranchList	getListOfBranches ()
Static Public Member Functions inherited from panda::ParticleP
static char const *	typeName ()
static utils::BranchList	getListOfBranches ()
Static Public Member Functions inherited from panda::Particle
static char const *	typeName ()
static Bool_t	PtGreater (Element const &p1, Element const &p2)
	sort comparison by pt More...
static utils::BranchList	getListOfBranches ()
Static Public Member Functions inherited from panda::Element
static char const *	typeName ()

Public Attributes
Float_t &	scEta
Float_t &	scRawPt
Float_t(&	chIsoX )[nIDTunes]
Float_t(&	chIsoMaxX )[nIDTunes]
Float_t(&	nhIsoX )[nIDTunes]
Float_t(&	phIsoX )[nIDTunes]
Float_t &	e4
Bool_t &	isEB
Bool_t(&	looseX )[nIDTunes]
Bool_t(&	mediumX )[nIDTunes]
Bool_t(&	tightX )[nIDTunes]
Int_t &	matchedGenId
Public Attributes inherited from panda::Photon
Float_t &	pfPt
	Pt of the dR-closest PF candidate.
Float_t &	chIso
Float_t &	chIsoMax
Float_t &	nhIso
Float_t &	phIso
Float_t &	sieie
Float_t &	sipip
Float_t &	hOverE
Float_t &	mipEnergy
Float_t &	emax
Float_t &	e2nd
Float_t &	eleft
Float_t &	eright
Float_t &	etop
Float_t &	ebottom
Float_t &	r9
Float_t &	etaWidth
Float_t &	phiWidth
Float_t &	time
Float_t &	timeSpan
Float_t &	alphaSeed
Float_t &	betaSeed
Float_t &	t0Seed
Float_t &	ampSeed
Float_t &	regPt
Float_t &	smearedPt
UShort_t &	ix
UShort_t &	iy
Bool_t &	loose
Bool_t &	medium
Bool_t &	tight
Bool_t &	highpt
Bool_t &	pixelVeto
Bool_t &	csafeVeto
Bool_t &	pfchVeto
Ref< SuperCluster >	superCluster
Ref< PFCandBase >	matchedPF
Ref< GenParticleBase >	matchedGen

Static Public Attributes
static TString	IDTuneName [nIDTunes]
static IDDefinitions const	chIsoCuts
static IDDefinitions const	nhIsoCuts
static IDDefinitions const	phIsoCuts
static IDDefinitions const	sieieCuts
static IDDefinitions const	hOverECuts

Protected Member Functions
	XPhoton (ArrayBase *)
void	doBook_ (TTree &, TString const &, utils::BranchList const &={"*"}) override
void	doInit_ () override
Protected Member Functions inherited from panda::Photon
	Photon (ArrayBase *)
Protected Member Functions inherited from panda::ParticleP
	ParticleP (ArrayBase *)
Protected Member Functions inherited from panda::Particle
	Particle (ArrayBase *)
Protected Member Functions inherited from panda::Element
	Element (ArrayBase *)
	Ctor for singlet instantiation. More...

Additional Inherited Members
Static Protected Member Functions inherited from panda::PtEtaPhiMixin
static utils::BranchList	getListOfBranches ()
Protected Attributes inherited from panda::PtEtaPhiMixin
Float_t &	pt_
Float_t &	eta_
Float_t &	phi_
Static Protected Attributes inherited from panda::Element
static StoreManager	gStore

Member Data Documentation

chIsoCuts

panda::XPhoton::IDDefinitions const panda::XPhoton::chIsoCuts

static

Initial value:

{{
  {{{{3.32, 1.37, 0.76, 5.0}}, {{1.97, 1.10, 0.56, 5.0}}}},
  {{{{1.295, 0.441, 0.202, 5.0}}, {{1.011, 0.442, 0.034, 5.0}}}},
  {{{{1.694, 1.141, 0.65, 5.0}}, {{2.089, 1.051, 0.517, 5.0}}}},
  {{{{1.295, 1.146, 0.202, 5.0}}, {{1.011, 0.442, 0.034, 5.0}}}},
  {{{{1.295, 1.163, 0.202, 5.0}}, {{1.011, 0.442, 0.034, 5.0}}}}
}}

hOverECuts

panda::XPhoton::IDDefinitions const panda::XPhoton::hOverECuts

static

Initial value:

{{
  {{{{0.05, 0.05, 0.05, 0.05}}, {{0.05, 0.05, 0.05, 0.05}}}},
  {{{{0.0597, 0.0396, 0.0269, 0.05}}, {{0.0481, 0.0219, 0.0213, 0.05}}}},
  {{{{0.04596, 0.02197, 0.02148, 0.05}}, {{0.0590, 0.0326, 0.0321, 0.05}}}},
  {{{{0.0597, 0.026, 0.0269, 0.05}}, {{0.0481, 0.0219, 0.0213, 0.05}}}},
  {{{{0.0597, 0.0263, 0.0269, 0.05}}, {{0.0481, 0.0219, 0.0213, 0.05}}}}
}}

IDTuneName

TString panda::XPhoton::IDTuneName

static

Initial value:

= {
  "kSpring15",
  "kSpring16",
  "kFall17",
  "kGJetsCWIso",
  "kZGCWIso"
}

nhIsoCuts

panda::XPhoton::IDDefinitions const panda::XPhoton::nhIsoCuts

static

Initial value:

{{
  {{{{1.92, 1.06, 0.97, 100000.}}, {{11.86, 2.69, 2.09, 100000.}}}},
  {{{{10.910, 2.725, 0.264, 100000.}}, {{5.931, 1.715, 0.586, 100000.}}}},
  {{{{24.032, 1.189, 0.317, 100000.}}, {{19.722, 2.718, 2.716, 2.00}}}},
  {{{{10.910, 2.792, 0.264, 100000.}}, {{5.931, 1.715, 0.586, 100000.}}}},
  {{{{10.910, 7.005, 0.264, 100000.}}, {{5.931, 1.715, 0.586, 100000.}}}}
}}

phIsoCuts

panda::XPhoton::IDDefinitions const panda::XPhoton::phIsoCuts

static

Initial value:

{{
  {{{{0.81, 0.28, 0.08, 2.75}}, {{0.83, 0.39, 0.16, 2.00}}}},
  {{{{3.630, 2.571, 2.362, 2.75}}, {{6.641, 3.863, 2.617, 2.00}}}},
  {{{{2.876, 2.08, 2.044, 2.75}}, {{4.162, 3.867, 3.032, 2.00}}}},
  {{{{3.630, 2.176, 2.362, 2.75}}, {{6.641, 3.863, 2.617, 2.00}}}},
  {{{{3.630, 3.271, 2.362, 2.75}}, {{6.641, 3.863, 2.617, 2.00}}}}
}}

sieieCuts

panda::XPhoton::IDDefinitions const panda::XPhoton::sieieCuts

static

Initial value:

{{
  {{{{0.0102, 0.0102, 0.0100, 0.0105}}, {{0.0274, 0.0268, 0.0268, 0.028}}}},
  {{{{0.01031, 0.01022, 0.00994, 0.0105}}, {{0.03013, 0.03001, 0.03000, 0.028}}}},
  {{{{0.0106, 0.01015, 0.00996, 0.0105}}, {{0.0272, 0.0272, 0.0271, 0.028}}}},
  {{{{0.01031, 0.0104, 0.00994, 0.0105}}, {{0.03013, 0.03001, 0.03000, 0.028}}}},
  {{{{0.01031, 0.01002, 0.00994, 0.0105}}, {{0.03013, 0.03001, 0.03000, 0.028}}}}
}}

---

The documentation for this class was generated from the following files:

• Objects/interface/XPhoton.h
• Objects/src/XPhoton.cc
