orcasim::base::TimedModel Class Reference

This class models a TimedModel. More...

#include <TimedModel.hpp>

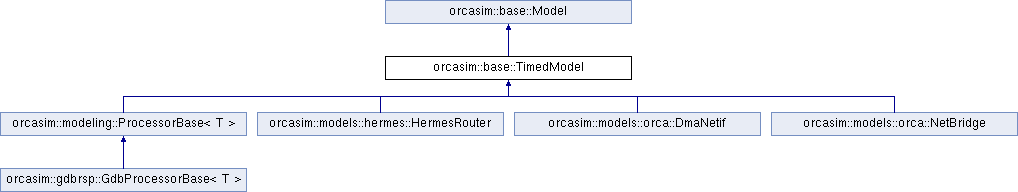

Inheritance diagram for orcasim::base::TimedModel:

Public Member Functions
	TimedModel (std::string name)
	Default Ctor. More...
virtual SimulationTime	Run ()=0
	Method which is called by the simulator when during the execution of the TimedModel. More...
virtual	~TimedModel ()=0
	Dtor. More...
virtual void	Reset ()=0
	Resets the instance to its starting state. More...
a name that identifies the model, advisably not empty.
Default ctor.
std::string	GetName ()
	Getter method for the <_name> field. More...
void	SetName (std::string s)
	Setter method for the <_name> field. More...

Detailed Description

This class models a TimedModel.

In this project, a TimedModel is an abstraction which can execute an action in a given point in time. For example, hardware can be modeled as TimedModeles that execute cycles given some period.

Definition at line 42 of file TimedModel.hpp.

Constructor & Destructor Documentation

TimedModel()

TimedModel::TimedModel ( std::string  name )

explicit

Default Ctor.

Definition at line 31 of file TimedModel.cpp.

                                           : Model(name) {
    // nothing to do
}

~TimedModel()

TimedModel::~TimedModel ( )

pure virtual

Dtor.

Must be implemented by subclasses.

Definition at line 35 of file TimedModel.cpp.

                        {
    // nothing to do
}

Member Function Documentation

GetName()

std::string Model::GetName ( )

inherited

Getter method for the <_name> field.

Definition at line 34 of file Model.cpp.

                         {
    return _name;
}

Reset()

virtual void orcasim::base::TimedModel::Reset ( )

pure virtual

Resets the instance to its starting state.

Must be implemented by subclasses

Implemented in orcasim::models::orca::NetBridge, orcasim::models::orca::DmaNetif, and orcasim::models::hermes::HermesRouter.

Run()

virtual SimulationTime orcasim::base::TimedModel::Run ( )

pure virtual

Method which is called by the simulator when during the execution of the TimedModel.

Must be implemented by subclasses.

Implemented in orcasim::models::orca::NetBridge, orcasim::models::orca::DmaNetif, orcasim::models::hermes::HermesRouter, orcasim::modeling::ProcessorBase< T >, and orcasim::gdbrsp::GdbProcessorBase< T >.

SetName()

void Model::SetName ( std::string  s )

inherited

Setter method for the <_name> field.

Parameters

s	Value to be set

Definition at line 38 of file Model.cpp.

                                        {
    _name = name;
}

---

The documentation for this class was generated from the following files:

• orcasim-base/include/TimedModel.hpp
• orcasim-base/src/TimedModel.cpp
