MavlinkStream Class Reference

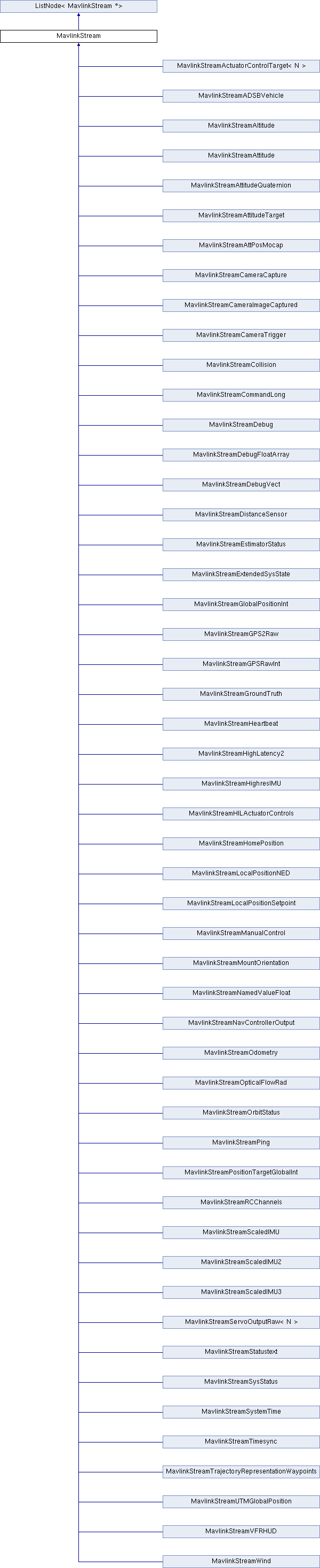

Inheritance diagram for MavlinkStream:

Public Member Functions
	MavlinkStream (Mavlink *mavlink)
	MavlinkStream (const MavlinkStream &)=delete
MavlinkStream &	operator= (const MavlinkStream &)=delete
	MavlinkStream (MavlinkStream &&)=delete
MavlinkStream &	operator= (MavlinkStream &&)=delete
void	set_interval (const int interval)
	Get the interval. More...
int	get_interval ()
	Get the interval. More...
int	update (const hrt_abstime &t)
	Update subscriptions and send message if necessary. More...
virtual const char *	get_name () const =0
virtual uint16_t	get_id ()=0
virtual bool	const_rate ()
virtual unsigned	get_size ()=0
	Get maximal total messages size on update.
virtual unsigned	get_size_avg ()
	Get the average message size. More...
bool	first_message_sent () const
void	reset_last_sent ()
	Reset the time of last sent to 0. More...
Public Member Functions inherited from ListNode< MavlinkStream *>
void	setSibling (MavlinkStream * sibling)
const MavlinkStream *	getSibling () const

Protected Member Functions
virtual bool	send (const hrt_abstime t)=0
virtual void	update_data ()
	Function to collect/update data for the streams at a high rate independant of actual stream rate. More...

Protected Attributes
Mavlink *const	_mavlink
int	_interval {1000000}
	if set to negative value = unlimited rate
Protected Attributes inherited from ListNode< MavlinkStream *>
MavlinkStream *	_sibling

Member Function Documentation

const_rate()

virtual bool MavlinkStream::const_rate ( )

inlinevirtual

Returns

true if steam rate shouldn't be adjusted

Reimplemented in MavlinkStreamPing, MavlinkStreamCameraImageCaptured, MavlinkStreamCameraTrigger, MavlinkStreamUTMGlobalPosition, MavlinkStreamADSBVehicle, MavlinkStreamHeartbeat, and MavlinkStreamHighLatency2.

first_message_sent()

bool MavlinkStream::first_message_sent ( ) const

inline

Returns

true if the first message of this stream has been sent

get_interval()

int MavlinkStream::get_interval ( )

inline

Get the interval.

Returns

the inveral in microseconds (us) between messages

get_size_avg()

virtual unsigned MavlinkStream::get_size_avg ( )

inlinevirtual

Get the average message size.

For a normal stream this equals the message size, for something like a parameter or mission message this equals usually zero, as no bandwidth needs to be reserved

reset_last_sent()

void MavlinkStream::reset_last_sent ( )

inline

Reset the time of last sent to 0.

Can be used if a message over this stream needs to be sent immediately.

set_interval()

void MavlinkStream::set_interval ( const int  interval )

inline

Get the interval.

Parameters

interval

the interval in microseconds (us) between messages

update()

int MavlinkStream::update

(

const hrt_abstime &

t

)

Update subscriptions and send message if necessary.

Returns

0 if updated / sent, -1 if unchanged

update_data()

virtual void MavlinkStream::update_data ( )

inlineprotectedvirtual

Function to collect/update data for the streams at a high rate independant of actual stream rate.

This function is called at every iteration of the mavlink module.

Reimplemented in MavlinkStreamHighLatency2.

---

The documentation for this class was generated from the following files:

• src/modules/mavlink/mavlink_stream.h
• src/modules/mavlink/mavlink_stream.cpp
