Class wrapping a messaging transport (server or internal) connection. More...

#include <Connection.h>

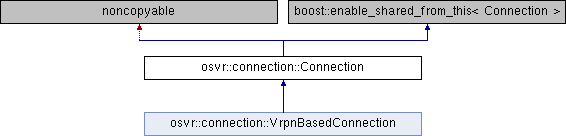

Inheritance diagram for osvr::connection::Connection:

Public Types
typedef std::vector< ConnectionDevicePtr >	DeviceList

Public Member Functions
OSVR_CONNECTION_EXPORT MessageTypePtr	registerMessageType (std::string const &messageId)
	Register (or retrieve registration) of a message type. More...

OSVR_CONNECTION_EXPORT ConnectionDevicePtr	createConnectionDevice (std::string const &deviceName)
	Create a ConnectionDevice by registering a full device name. More...

OSVR_CONNECTION_EXPORT ConnectionDevicePtr	createConnectionDevice (DeviceInitObject &init)

OSVR_CONNECTION_EXPORT void	addDevice (ConnectionDevicePtr device)
	Add an externally-constructed device to the device list.

OSVR_CONNECTION_EXPORT void	process ()
	Process messages. More...

OSVR_CONNECTION_EXPORT void	registerConnectionHandler (std::function< void()> handler)
	Register a function to be called when a client connects or pings. More...

OSVR_CONNECTION_EXPORT void	registerDescriptorHandler (std::function< void()> handler)
	Register a function to be called when a descriptor changes.

OSVR_CONNECTION_EXPORT void	triggerDescriptorHandlers ()
	Signal a descriptor update and call any/all descriptor handlers. More...

virtual OSVR_CONNECTION_EXPORT	~Connection ()
	Destructor.

boost::iterator_range< DeviceList::const_iterator >	getDevices () const
	Get the devices, as a range.

Static Public Member Functions
Factory methods
More to come. Factory method to create a local-machine-only connection
static OSVR_CONNECTION_EXPORT ConnectionPtr	createLocalConnection ()

static OSVR_CONNECTION_EXPORT ConnectionPtr	createSharedConnection (boost::optional< std::string const &> iface, boost::optional< int > port)
	Factory method to create a shared connection. More...

static OSVR_CONNECTION_EXPORT std::tuple< void *, ConnectionPtr >	createLoopbackConnection ()

Context Storage
Retrieve a connection pointer from a RegistrationContext
static OSVR_CONNECTION_EXPORT ConnectionPtr	retrieveConnection (const pluginhost::RegistrationContext &ctx)

static OSVR_CONNECTION_EXPORT void	storeConnection (pluginhost::RegistrationContext &ctx, ConnectionPtr conn)
	Store a connection pointer in a RegistrationContext.

Protected Member Functions
virtual MessageTypePtr	m_registerMessageType (std::string const &messageId)=0
	(Subclass implementation) Register (or retrieve registration) of a message type. More...

virtual ConnectionDevicePtr	m_createConnectionDevice (DeviceInitObject &init)=0
	(Subclass implementation) Register a full device name.

virtual void	m_registerConnectionHandler (std::function< void()> handler)=0
	(Subclass implementation) Register a function to handle "new connection"/ping messages. More...

virtual void	m_process ()=0
	(Subclass implementation) Process messages. More...

	Connection ()
	brief Constructor

Advanced Methods - not for general consumption
These can break encapsulation rules and/or encourage bad coding habits. Avoid if at all possible.
typedef std::vector< std::string >	NameList
	Type of list of device names.

OSVR_CONNECTION_EXPORT ConnectionDevicePtr	registerAdvancedDevice (std::string const &deviceName, OSVR_DeviceUpdateCallback updateFunction, void *userdata)
	Record a full device name (namespaced with the plugin name) associated with a given callback. More...

OSVR_CONNECTION_EXPORT ConnectionDevicePtr	registerAdvancedDevice (NameList const &deviceNames, OSVR_DeviceUpdateCallback updateFunction, void *userdata)
	Record more than one full device name (namespaced with the plugin name) associated with a given callback. More...

virtual OSVR_CONNECTION_EXPORT void *	getUnderlyingObject ()
	Access implementation details.

virtual OSVR_CONNECTION_EXPORT const char *	getConnectionKindID ()
	Returns some implementation-defined string based on the dynamic type of the connection. More...

Detailed Description

Class wrapping a messaging transport (server or internal) connection.

Member Function Documentation

§ createConnectionDevice() [1/2]

ConnectionDevicePtr osvr::connection::Connection::createConnectionDevice ( std::string const & deviceName )

Create a ConnectionDevice by registering a full device name.

This should be namespaced with the plugin name.

This also adds the device so created to the device list.

ConnectionDevices often assume they're owned by a DeviceToken (whose constructor calls this method), so doing otherwise is unadvisable.

§ createConnectionDevice() [2/2]

ConnectionDevicePtr osvr::connection::Connection::createConnectionDevice ( DeviceInitObject & init )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

§ createSharedConnection()

ConnectionPtr osvr::connection::Connection::createSharedConnection	(	boost::optional< std::string const &>	iface,
		boost::optional< int >	port
	)

static

Factory method to create a shared connection.

Parameters

iface	The NIC/interface to listen on, an empty string or unset (default) means "all interfaces"
port	The port to listen on, unset/default means the default port for the underlying connection implementation.

§ getConnectionKindID()

const char * osvr::connection::Connection::getConnectionKindID ( )

virtual

Returns some implementation-defined string based on the dynamic type of the connection.

Reimplemented in osvr::connection::VrpnBasedConnection.

§ m_process()

virtual void osvr::connection::Connection::m_process ( )

protectedpure virtual

(Subclass implementation) Process messages.

This shouldn't block.

§ m_registerConnectionHandler()

virtual void osvr::connection::Connection::m_registerConnectionHandler ( std::function< void()> handler )

protectedpure virtual

(Subclass implementation) Register a function to handle "new connection"/ping messages.

§ m_registerMessageType()

virtual MessageTypePtr osvr::connection::Connection::m_registerMessageType ( std::string const & messageId )

protectedpure virtual

(Subclass implementation) Register (or retrieve registration) of a message type.

§ process()

void osvr::connection::Connection::process ( )

Process messages.

This shouldn't block.

Someone needs to call this method frequently.

§ registerAdvancedDevice() [1/2]

ConnectionDevicePtr osvr::connection::Connection::registerAdvancedDevice	(	std::string const &	deviceName,
		OSVR_DeviceUpdateCallback	updateFunction,
		void *	userdata
	)

Record a full device name (namespaced with the plugin name) associated with a given callback.

This does not register the name in the underlying connection: it is an advanced method that assumes you have some other way of doing that.

This also adds the device so created to the device list.

§ registerAdvancedDevice() [2/2]

ConnectionDevicePtr osvr::connection::Connection::registerAdvancedDevice	(	NameList const &	deviceNames,
		OSVR_DeviceUpdateCallback	updateFunction,
		void *	userdata
	)

Record more than one full device name (namespaced with the plugin name) associated with a given callback.

This does not register the names in the underlying connection: it is an advanced method that assumes you have some other way of doing that.

This also adds the device so created to the device list.

For use when a single device exposes more than one name.

§ registerConnectionHandler()

void osvr::connection::Connection::registerConnectionHandler ( std::function< void()> handler )

Register a function to be called when a client connects or pings.

§ registerMessageType()

MessageTypePtr osvr::connection::Connection::registerMessageType ( std::string const & messageId )

Register (or retrieve registration) of a message type.

Wraps the derived implementation for future expandability.

§ triggerDescriptorHandlers()

void osvr::connection::Connection::triggerDescriptorHandlers ( )

Signal a descriptor update and call any/all descriptor handlers.

The documentation for this class was generated from the following files:

inc/osvr/Connection/Connection.h
src/osvr/Connection/Connection.cpp
