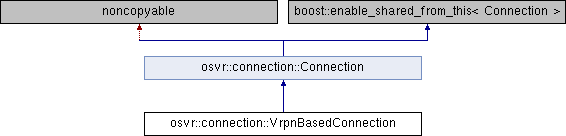

Inheritance diagram for osvr::connection::VrpnBasedConnection:
Public Types | |
| enum | ConnectionType { VRPN_LOCAL_ONLY, VRPN_SHARED, VRPN_LOOPBACK } |
 Public Types inherited from osvr::connection::Connection | |
| typedef std::vector< ConnectionDevicePtr > | DeviceList |
| typedef std::vector< std::string > | NameList |
| Type of list of device names. | |
Public Member Functions | |
| VrpnBasedConnection (ConnectionType type) | |
| Constructor for the VRPN connection. | |
| VrpnBasedConnection (boost::optional< std::string const &> iface, boost::optional< int > port) | |
| Constructor for a (likely) shared VRPN connection specifying the interface to listen on as well as the port. More... | |
| virtual void * | getUnderlyingObject () |
| Returns the vrpn_Connection pointer. | |
| virtual const char * | getConnectionKindID () |
| Returns some implementation-defined string based on the dynamic type of the connection. More... | |
| virtual | ~VrpnBasedConnection () |
| Public Member Functions inherited from osvr::connection::Connection | |
| OSVR_CONNECTION_EXPORT MessageTypePtr | registerMessageType (std::string const &messageId) |
| Register (or retrieve registration) of a message type. More... | |
| OSVR_CONNECTION_EXPORT ConnectionDevicePtr | createConnectionDevice (std::string const &deviceName) |
| Create a ConnectionDevice by registering a full device name. More... | |
| OSVR_CONNECTION_EXPORT ConnectionDevicePtr | createConnectionDevice (DeviceInitObject &init) |
| OSVR_CONNECTION_EXPORT void | addDevice (ConnectionDevicePtr device) |
| Add an externally-constructed device to the device list. | |
| OSVR_CONNECTION_EXPORT void | process () |
| Process messages. More... | |
| OSVR_CONNECTION_EXPORT void | registerConnectionHandler (std::function< void()> handler) |
| Register a function to be called when a client connects or pings. More... | |
| OSVR_CONNECTION_EXPORT void | registerDescriptorHandler (std::function< void()> handler) |
| Register a function to be called when a descriptor changes. | |
| OSVR_CONNECTION_EXPORT void | triggerDescriptorHandlers () |
| Signal a descriptor update and call any/all descriptor handlers. More... | |
| virtual OSVR_CONNECTION_EXPORT | ~Connection () |
| Destructor. | |
| boost::iterator_range< DeviceList::const_iterator > | getDevices () const |
| Get the devices, as a range. | |
| OSVR_CONNECTION_EXPORT ConnectionDevicePtr | registerAdvancedDevice (std::string const &deviceName, OSVR_DeviceUpdateCallback updateFunction, void *userdata) |
| Record a full device name (namespaced with the plugin name) associated with a given callback. More... | |
| OSVR_CONNECTION_EXPORT ConnectionDevicePtr | registerAdvancedDevice (NameList const &deviceNames, OSVR_DeviceUpdateCallback updateFunction, void *userdata) |
| Record more than one full device name (namespaced with the plugin name) associated with a given callback. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from osvr::connection::Connection | |
| static OSVR_CONNECTION_EXPORT ConnectionPtr | createLocalConnection () |
| static OSVR_CONNECTION_EXPORT ConnectionPtr | createSharedConnection (boost::optional< std::string const &> iface, boost::optional< int > port) |
| Factory method to create a shared connection. More... | |
| static OSVR_CONNECTION_EXPORT std::tuple< void *, ConnectionPtr > | createLoopbackConnection () |
| static OSVR_CONNECTION_EXPORT ConnectionPtr | retrieveConnection (const pluginhost::RegistrationContext &ctx) |
| static OSVR_CONNECTION_EXPORT void | storeConnection (pluginhost::RegistrationContext &ctx, ConnectionPtr conn) |
| Store a connection pointer in a RegistrationContext. | |
| Protected Member Functions inherited from osvr::connection::Connection | |
| Connection () | |
| brief Constructor | |
Constructor & Destructor Documentation
§ VrpnBasedConnection()
| osvr::connection::VrpnBasedConnection::VrpnBasedConnection | ( | boost::optional< std::string const &> | iface, |
| boost::optional< int > | port | ||
| ) |
Constructor for a (likely) shared VRPN connection specifying the interface to listen on as well as the port.
§ ~VrpnBasedConnection()
|
virtual |
- Todo:
- wait until all async threads are done
Member Function Documentation
§ getConnectionKindID()
|
virtual |
Returns some implementation-defined string based on the dynamic type of the connection.
Reimplemented from osvr::connection::Connection.
The documentation for this class was generated from the following files:
- src/osvr/Connection/VrpnBasedConnection.h
- src/osvr/Connection/VrpnBasedConnection.cpp
