Bounding 2D yield surface. More...

#include <BoundingSurface2D.h>

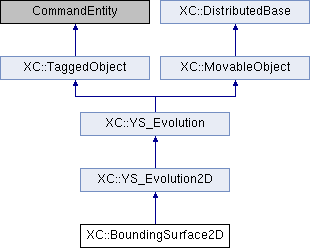

Inheritance diagram for XC::BoundingSurface2D:

Public Member Functions
	BoundingSurface2D (int tag, int classTag, double min_iso_factor, double iso_ratio, double kin_ratio, PlasticHardeningMaterial &kpx, PlasticHardeningMaterial &kpy, YieldSurface_BC &bound_surface)

virtual int	commitState ()

virtual int	revertToLastCommit (void)

virtual const Vector &	getEquiPlasticStiffness (void)=0

virtual void	Print (std::ostream &s, int flag=0)
	Print stuff.

virtual YS_Evolution *	getCopy (void)=0

Public Member Functions inherited from XC::YS_Evolution2D
	YS_Evolution2D (int tag, int classTag, double min_iso_factor, double iso_ratio, double kin_ratio)

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &info)

virtual int	getResponse (int responseID, Information &info)

virtual int	update (int flag)

virtual int	sendSelf (CommParameters &)
	Send the object. More...

virtual int	recvSelf (const CommParameters &)
	Receive the object. More...

virtual int	evolveSurface (YieldSurface_BC *ys, double magPlasticDefo, Vector &G, Vector &F_Surface, int flag=0)

Public Member Functions inherited from XC::YS_Evolution
	YS_Evolution (int tag, int classTag, double iso_ratio, double kin_ratio, int _dimension, double shr_iso=0.5, double shr_kin=0.5)

virtual double	getTrialPlasticStrains (int dof)=0

virtual double	getCommitPlasticStrains (int dof)=0

const Vector &	getGeneralizedStress (void) const

const Vector &	getGeneralizedStrain (void) const

virtual void	setResidual (double res=1.0)

void	setInitTranslation (Vector &initTranslate)

const Vector &	getInitTranslation (void)

double	getCommitTranslation (int dof)

double	getTrialTranslation (int dof)

double	getTrialIsotropicFactor (int dof)

double	getCommitIsotropicFactor (int dof)

void	setDeformable (bool defo)

void	toDeformedCoord (double &x)

void	toDeformedCoord (double &x, double &y)

void	toDeformedCoord (double &x, double &y, double &z)

void	toOriginalCoord (double &x)

void	toOriginalCoord (double &x, double &y)

void	toOriginalCoord (double &x, double &y, double &z)

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual void	setTrialPlasticStrains (double ep, const Vector &f, const Vector &g)=0

virtual double	getIsoPlasticStiffness (int dir)=0

virtual double	getKinPlasticStiffness (int dir)=0

virtual Vector &	getEvolDirection (Vector &f_new)=0

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
PlasticHardeningMaterial *	kpMatX

PlasticHardeningMaterial *	kpMatY

YieldSurface_BC *	boundSurface

Protected Attributes inherited from XC::YS_Evolution2D
bool	softening

double	minIsoFactor

YieldSurface_BC *	tmpYSPtr

Protected Attributes inherited from XC::YS_Evolution
bool	deformable

Vector	isotropicFactor_hist

Vector	isotropicFactor

Vector	translate_hist

Vector	translate

Vector	translate_init

double	isotropicRatio_orig

double	isotropicRatio

double	isotropicRatio_shrink

double	kinematicRatio_orig

double	kinematicRatio

double	kinematicRatio_shrink

int	dimension

Additional Inherited Members
Public Attributes inherited from XC::YS_Evolution
bool	freezeEvolution

Static Protected Attributes inherited from XC::YS_Evolution2D
static Vector	v2

Static Protected Attributes inherited from XC::YS_Evolution
static Vector	crd1

static Vector	crd2

static Vector	crd3

Detailed Description

Bounding 2D yield surface.

The documentation for this class was generated from the following files:

src/material/yieldSurface/evolution/BoundingSurface2D.h
src/material/yieldSurface/evolution/BoundingSurface2D.cpp
