Plastic material with strain hardening. More...

#include <PlasticHardeningMaterial.h>

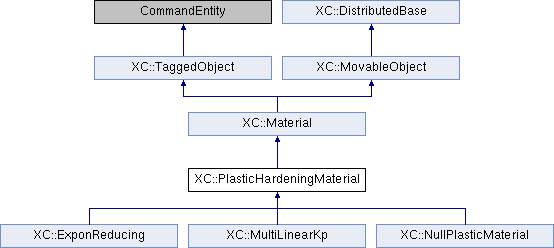

Inheritance diagram for XC::PlasticHardeningMaterial:

Public Member Functions
	PlasticHardeningMaterial (int tag, int classTag)

virtual int	setTrialValue (double xVal, double factor)

virtual int	setTrialIncrValue (double dxVal)

void	setResidual (double res=1)

const Vector &	getGeneralizedStress (void) const
	Returns the generalized stress value.

const Vector &	getGeneralizedStrain (void) const
	Returns the generalized strain value.

virtual void	setInitialGeneralizedStrain (const Vector &)
	Set initial strain.

const Vector &	getInitialGeneralizedStrain (void) const
	Adds to the initial strain.

virtual int	commitState (void)

virtual int	revertToLastCommit (void)

virtual int	revertToStart (void)

virtual double	getTrialPlasticStiffness ()=0

double	getTrialValue (void)

virtual PlasticHardeningMaterial *	getCopy (void)=0

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &matInformation)

virtual int	getResponse (int responseID, Information &matInformation)
	Returns material response.

virtual void	Print (std::ostream &s, int flag=0)
	Print stuff.

virtual int	sendSelf (CommParameters &)
	Send the object. More...

virtual int	recvSelf (const CommParameters &)
	Receive the object. More...

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor. More...

const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int responseID, Information &eleInformation)
	Updates the parameter identified by `parameterID` with `info`.

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Attributes
double	val_hist

double	val_trial

double	residual

double	sFactor

Additional Inherited Members
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Detailed Description

Plastic material with strain hardening.

Member Function Documentation

§ recvSelf()

virtual int XC::PlasticHardeningMaterial::recvSelf ( const CommParameters & cp )

inlinevirtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

virtual int XC::PlasticHardeningMaterial::sendSelf ( CommParameters & cp )

inlinevirtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

The documentation for this class was generated from the following files:

src/material/yieldSurface/plasticHardeningMaterial/PlasticHardeningMaterial.h
src/material/yieldSurface/plasticHardeningMaterial/PlasticHardeningMaterial.cpp
