Recording of element response. More...

#include <ElementRecorder.h>

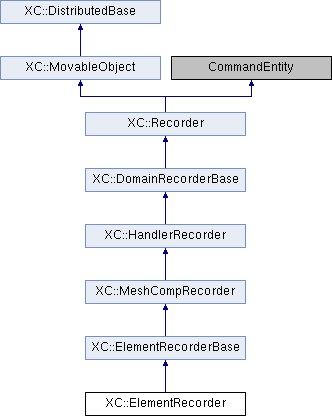

Inheritance diagram for XC::ElementRecorder:

Public Member Functions
	ElementRecorder (const ID &eleID, const std::vector< std::string > &, bool echoTime, Domain &theDomain, DataOutputHandler &theOutputHandler, double deltaT=0.0)

int	record (int commitTag, double timeStamp)
	Invoked by the Domain object after commit() has been invoked on all the domain component objects. More...

int	restart (void)
	Invoked by the Domain object when revertToStart() is invoked on the Domain object. More...

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

Public Member Functions inherited from XC::ElementRecorderBase
	ElementRecorderBase (int classTag)

	ElementRecorderBase (int classTag, const ID &eleID, const std::vector< std::string > &, bool echoTime, Domain &theDomain, DataOutputHandler &theOutputHandler, double deltaT=0.0)

size_t	getNumArgs (void) const

int	sendSelf (CommParameters &)
	Send the object to other process.

int	recvSelf (const CommParameters &)
	Receive the object from other process.

Public Member Functions inherited from XC::MeshCompRecorder
	MeshCompRecorder (int classTag)

	MeshCompRecorder (int classTag, Domain &theDomain, DataOutputHandler &theOutputHandler, double deltaT=0.0, bool echoTimeFlag=true)

Public Member Functions inherited from XC::HandlerRecorder
	HandlerRecorder (int classTag)

	HandlerRecorder (int classTag, Domain &theDomain, DataOutputHandler &theOutputHandler, bool timeFlag)

void	SetOutputHandler (DataOutputHandler *tH)
	Sets de data output handler.

Public Member Functions inherited from XC::DomainRecorderBase
	DomainRecorderBase (int classTag, Domain *ptr_dom=nullptr)
	Constructor. More...

int	setDomain (Domain &theDomain)
	Set the link with the domain.

Domain *	getDomain (void)

Public Member Functions inherited from XC::Recorder
	Recorder (int classTag)

virtual int	playback (int commitTag)
	//! Invoked by the analyst after the analysis has been performed. More...

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Additional Inherited Members
Protected Member Functions inherited from XC::ElementRecorderBase
int	sendData (CommParameters &)
	Send the object to another process.

int	receiveData (const CommParameters &)
	Receive the object from other process.

void	setup_responses (const std::string &)
	set the responses to get in a record

Protected Member Functions inherited from XC::MeshCompRecorder
int	sendData (CommParameters &)
	Send the object mediante el communicator being passed as parameter. More...

int	receiveData (const CommParameters &)
	Receives object through the communicator being passed as parameter.

Protected Member Functions inherited from XC::HandlerRecorder
int	sendData (CommParameters &)
	Sends objet through the communicator being passed as parameter.

int	receiveData (const CommParameters &)
	Receives objet through the communicator being passed as parameter.

Protected Attributes inherited from XC::ElementRecorderBase
ID	eleID

std::vector< Response * >	theResponses

std::vector< std::string >	responseArgs

Protected Attributes inherited from XC::MeshCompRecorder
double	deltaT

double	nextTimeStampToRecord

Protected Attributes inherited from XC::HandlerRecorder
DataOutputHandler *	theHandler
	Output handler (TO DEPRECATE).

bool	initializationDone

bool	echoTimeFlag

Protected Attributes inherited from XC::DomainRecorderBase
Domain *	theDomain

Detailed Description

Recording of element response.

Member Function Documentation

§ record()

int XC::ElementRecorder::record	(	int	commitTag,
		double	timeStamp
	)

virtual

Invoked by the Domain object after commit() has been invoked on all the domain component objects.

What the Recorder records depends on the concrete subtype.

Implements XC::Recorder.

§ recvSelf()

int XC::ElementRecorder::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Reimplemented from XC::Recorder.

§ restart()

int XC::ElementRecorder::restart ( void )

virtual

Invoked by the Domain object when revertToStart() is invoked on the Domain object.

What the Recorder does depends on the concrete subtype.

Reimplemented from XC::Recorder.

§ sendSelf()

int XC::ElementRecorder::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Reimplemented from XC::Recorder.

The documentation for this class was generated from the following files:

src/utility/recorder/ElementRecorder.h
src/utility/recorder/ElementRecorder.cpp
