Domain (mesh and boundary conditions) of the finite element model. More...

#include <Domain.h>

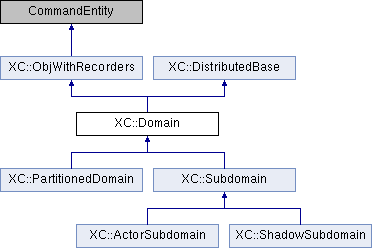

Inheritance diagram for XC::Domain:

Public Member Functions
	Domain (CommandEntity owr, DataOutputHandler::map_output_handlers oh)
	Constructor. More...

	Domain (CommandEntity owr, int numNods, int numElements, int numSPs, int numMPs, int numLPatterns, int numNLockers, DataOutputHandler::map_output_handlers oh)
	Constructor. More...

virtual	~Domain (void)
	Destructor. More...

virtual bool	addElement (Element *)
	Adds to the domain the element being passed as parameter.

virtual bool	addNode (Node *)
	Adds to the domain the node being passed as parameter.

virtual bool	addSFreedom_Constraint (SFreedom_Constraint *)
	Adds a single freedom constraint to the domain. More...

virtual bool	addMFreedom_Constraint (MFreedom_Constraint *)
	Adds to the domain a multi-freedom constraint. More...

virtual bool	addMRMFreedom_Constraint (MRMFreedom_Constraint *)
	Adds to the domain a multi-freedom multi-retained node constraint.

virtual bool	addLoadPattern (LoadPattern *)
	Appends the load pattern to the domain. More...

virtual bool	addNodeLocker (NodeLocker *)
	Appends the node locker object to the domain.

virtual bool	addLoadCombination (LoadCombination *)
	Adds to the domain the load combination being passed as parameter.

void	setNodeReactionException (const int &)
	Sets the exception for node reactions checking (see Domain::checkNodalReactions).

bool	checkNodalReactions (const double &)
	Check that al free nodes have zero reaction.

virtual bool	addSFreedom_Constraint (SFreedom_Constraint *, int loadPatternTag)
	Adds to the domain a single freedom constraint.

virtual bool	addNodalLoad (NodalLoad *, int loadPatternTag)
	Appends a nodal load to the pattern being passed as parameter. More...

virtual bool	addElementalLoad (ElementalLoad *, int loadPatternTag)
	Adds a load over element to the pattern. More...

virtual void	clearAll (void)
	Removes all components from domain (nodes, elements, loads & constraints). More...

virtual bool	removeElement (int tag)
	Remove the element identified by the argument.

virtual bool	removeNode (int tag)
	Remove the node identified by the argument.

virtual bool	removeSFreedom_Constraint (int theNode, int theDOF, int loadPatternTag)
	Remove the single freedom constraint from the load pattern identified by the argument. More...

virtual bool	removeSFreedom_Constraint (int tag)
	Removes from domain the single freedom constraint identified by the argument. More...

virtual bool	removeMFreedom_Constraint (int tag)
	Removes from domain the multi-freedom constraint identified by the argument. More...

virtual bool	removeMRMFreedom_Constraint (int tag)
	Removes from domain the multi-freedom multi-retained node constraint identified by the argument. More...

virtual bool	removeLoadPattern (int loadTag)
	Remove from domain el load pattern identified by the argument. More...

virtual bool	removeNodeLocker (int nlTag)
	Remove from domain el.

bool	removeLoadPattern (LoadPattern *lp)
	Remove from domain el load pattern being passed as parameter.

bool	removeNodeLocker (NodeLocker *lp)
	Remove from domain el load pattern being passed as parameter.

void	removeLoadCombination (LoadCombination *comb)
	Removes from the domain the load combination being passed as parameter. More...

void	removeLPs (void)
	Remove from domain todos los load patterns.

void	removeNLs (void)
	Remove all node lockers from domain.

virtual bool	removeNodalLoad (int tag, int loadPattern)
	Removes from domain the nodal load being passed as parameter. More...

virtual bool	removeElementalLoad (int tag, int loadPattern)
	Removes from domain the elemental load being passed as parameter. More...

virtual bool	removeSFreedom_Constraint (int tag, int loadPattern)
	Removes from domain the single freedom constraint being passed as parameter. More...

virtual void	clearDOF_GroupPtr (void)
	Clears the pointers to DOF groups.

virtual ElementIter &	getElements (void)
	Returns an iterator to the element container.

virtual NodeIter &	getNodes (void)
	Returns an iterator to the node container.

virtual Mesh &	getMesh (void)
	Returns a reference to the domain mesh.

virtual const Mesh &	getMesh (void) const
	Returns a reference to the domain mesh.

virtual ConstrContainer &	getConstraints (void)
	Returns domain constraints.

virtual const ConstrContainer &	getConstraints (void) const
	Returns domain constraints.

const std::string &	getCurrentCombinationName (void) const
	Return the name of the current load combination.

bool	existElement (int tag)
	Returns true if the element identified by the tag being passed as parameter already exists en el domain. More...

virtual Element *	getElement (int tag)
	Return a pointer to the element identified by the argument. More...

virtual const Element *	getElement (int tag) const
	Returns a const pointer to the element identified by the argument. More...

bool	existNode (int tag)
	Return true if the mesh has a node with this tag. More...

virtual Node *	getNode (int tag)
	Return a pointer to the node identified by the argument. More...

virtual const Node *	getNode (int tag) const
	Return a pointer to the node identified by the argument. More...

const PseudoTimeTracker &	getTimeTracker (void) const

int	getCurrentGeoTag (void) const

virtual int	getCommitTag (void) const

virtual int	getNumElements (void) const
	Return the number of elements.

virtual int	getNumNodes (void) const
	Return the number of nodes.

virtual const Vector &	getPhysicalBounds (void)

virtual Graph &	getElementGraph (void)
	Builds (if necessary) the domain elements graph and returns a reference to it. More...

virtual Graph &	getNodeGraph (void)
	Builds (if necessary) the domain node graph and returns a reference to it. More...

virtual void	setCommitTag (int newTag)
	Set the committed tag to `newTag`.

virtual void	setCurrentTime (double newTime)
	Set the current time to `newTime`.

virtual void	setCommittedTime (double newTime)
	Set the committed time to `newTime`.

virtual void	setTime (double newTime)

virtual void	applyLoad (double pseudoTime)
	Apply the loads for the given time `pseudoTime`. More...

virtual void	setLoadConstant (void)
	Set all the loads as constant. More...

virtual int	initialize (void)
	Inicializa.

virtual int	setRayleighDampingFactors (const RayleighDampingFactors &rF)
	Set Rayleigh damping factors.

virtual int	commit (void)
	Commits domain state and triggers "record" method for all defined recorders. More...

virtual int	revertToLastCommit (void)
	Return the domain to its last commited state. More...

virtual int	revertToStart (void)
	Return the domain to its initial state and triggers the "restart" method for all the recorders. More...

virtual int	update (void)
	Updates the state of the domain. More...

virtual int	update (double newTime, double dT)
	Actualiza el estado del domain.

virtual int	newStep (double dT)

void	resetLoadCase (void)
	Prepares the domain to solve for a new load pattern.

int	getNumModes (void) const
	Return the number of computed eigenvalues.

virtual int	setEigenvalues (const Vector &)
	Sets eigenvalues.

virtual const double &	getEigenvalue (int) const
	Return the eigenvalue of the i-th mode.

double	getAngularFrequency (int) const
	Return the angular frequency of the i-th mode.

double	getPeriodo (int) const
	Return the period of the i-th mode.

double	getFrecuencia (int) const
	Return the frequency of the i-th mode.

virtual const Vector &	getEigenvalues (void) const
	Return the eigenvalues vector.

Vector	getAngularFrequencies (void) const
	Returns a vector with the computed angular frequencies (for each mode).

Vector	getPeriodos (void) const
	Returns a vector with the computed periods (for each mode).

Vector	getFrecuencias (void) const
	Returns a vector with the computed frequencies (for each mode).

virtual int	setModalParticipationFactors (const Vector &)
	Sets the values of the modal participation factors.

virtual const double &	getModalParticipationFactor (int mode) const
	Return the modal participation factor of the i-th mode.

virtual const Vector &	getModalParticipationFactors (void) const
	Return the modal participation factors.

const double	getEffectiveModalMass (int mode) const
	Return the effective modal mass of the i-th mode.

Vector	getEffectiveModalMasses (void) const
	Return the effective modal masses for each mode.

double	getTotalMass (void) const
	Return the total effective modal mass.

virtual void	domainChange (void)
	Sets a flag indicating that the integer returned in the next call to hasDomainChanged() must be incremented by \(1\). More...

virtual int	hasDomainChanged (void)
	Returns true if the model has changed. More...

virtual void	setDomainChangeStamp (int newStamp)
	Set the domain stamp to be `newStamp`. More...

virtual int	addRegion (MeshRegion &theRegion)
	Adds a region.

virtual MeshRegion *	getRegion (int region)
	Returns a pointer to the region identified by the argument.

virtual void	Print (std::ostream &s, int flag=0)
	Print stuff. More...

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	getPreprocessor (void)
	Returns (if possible) a pointer to the preprocessor.

virtual double	getNodeDisp (int nodeTag, int dof, int &errorFlag)
	Return the value of the dof component of displacement for the node with the tag being passed as parameter. More...

virtual int	setMass (const Matrix &mass, int nodeTag)
	Set the mass matrix for the node identified by the argument.

virtual int	calculateNodalReactions (bool inclInertia, const double &)
	Calculate nodal reaction forces and moments.

virtual int	addRecorder (Recorder &theRecorder)
	Adds a recorder to the model. More...

Public Member Functions inherited from XC::ObjWithRecorders
	ObjWithRecorders (CommandEntity owr, DataOutputHandler::map_output_handlers oh=nullptr)

virtual	~ObjWithRecorders (void)
	Destructor.

Recorder *	newRecorder (const std::string &, DataOutputHandler *oh=nullptr)
	Read a Recorder object from file.

recorder_iterator	recorder_begin (void)

const_recorder_iterator	recorder_begin (void) const

recorder_iterator	recorder_end (void)

const_recorder_iterator	recorder_end (void) const

virtual int	record (int track, double timeStamp=0.0)
	To invoke {record(cTag, timeStamp)} on any Recorder objects which have been added. More...

void	restart (void)
	To invoke {restart()} on any Recorder objects which have been added. More...

virtual int	removeRecorders (void)
	Remove the recorders.

void	setLinks (Domain *dom)
	Asigna el domain a los recorders.

void	SetOutputHandlers (DataOutputHandler::map_output_handlers *oh)
	Set the outputhandlers container.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Static Public Member Functions
static void	setDeadSRF (const double &)
	Assigns Stress Reduction Factor for element deactivation.

Protected Member Functions
virtual int	buildEleGraph (Graph &theEleGraph)
	Builds the element graph. More...

virtual int	buildNodeGraph (Graph &theNodeGraph)
	Builds the node graph. More...

virtual Domain *	get_domain_ptr (void)

void	free_mem (void)

DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags de los miembros of the clase. More...

int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ObjWithRecorders
int	sendData (CommParameters &cp)

int	recvData (const CommParameters &cp)

size_t	getNumRecorders (void) const
	Returns the number of recorders already defined.

Friends
std::ostream &	operator<< (std::ostream &, Domain &)

int	sendDomain (Domain &, int posDbTag, DbTagData &, CommParameters &cp)

int	receiveDomain (Domain &, int posDbTag, DbTagData &, const CommParameters &cp)

Additional Inherited Members
Public Types inherited from XC::ObjWithRecorders
typedef std::list< Recorder * >	lista_recorders

typedef lista_recorders::iterator	recorder_iterator

typedef lista_recorders::const_iterator	const_recorder_iterator

Detailed Description

Domain (mesh and boundary conditions) of the finite element model.

Is a container class for storing and providing access to the components of a domain, i.e. nodes, elements, boundary conditions, and load patterns.

A Domain is a container class which contains the all elements, nodes, load cases, single point constraints and multiple point constraints that the model builder uses to create the model of the structure. It provides operations for the following:

Population: Methods so that the DomainComponents can be addled to the Domain.
Depopulation: Methods so that the DomainComponents can be removed from the Domain.
Access: Methods so that other classes, i.e. analysis and design, can access the DomainComponents.
Query: Methods for determining the state of the domain.
Update: Methods for updating the state of the Domain
Analysis: Methods added for the Analysis class.

Constructor & Destructor Documentation

§ Domain() [1/2]

XC::Domain::Domain	(	CommandEntity *	owr,
		DataOutputHandler::map_output_handlers *	oh
	)

Constructor.

Constructs an empty domain. The storage for the DomainComponents uses ArrayOfTaggedObjects objects for each type of object to be stored.

Parameters

owr	object that contains this one.

§ Domain() [2/2]

XC::Domain::Domain	(	CommandEntity *	owr,
		int	numNodes,
		int	numElements,
		int	numSPs,
		int	numMPs,
		int	numLoadPatterns,
		int	numNodeLockers,
		DataOutputHandler::map_output_handlers *	oh
	)

Constructor.

Constructs an empty Domain. The initial sizes specified for these objects are no more needed (so ignored)

Parameters

owr	object that contains this one.
numNodes	number of nodes.
numElements	number of elements.
numSPs	number of single freedom constraints.
numMPs	number of multi-freedom constraintes.
numLoadPatterns	number of load patterns.
numNodeLockers	number of node lockers.

§ ~Domain()

XC::Domain::~Domain ( void )

virtual

Destructor.

destructor, this calls delete on all components of the model, i.e. calls delete on all that is added to the model. WARNING: if 3rd constructor, TaggedObjectStorage objects passed must have been created with new and nowhere else must the destructor be called.

Member Function Documentation

§ addElementalLoad()

bool XC::Domain::addElementalLoad	(	ElementalLoad *	load,
		int	pattern
	)

virtual

Adds a load over element to the pattern.

To add the elemental load theld to the LoadPattern in the domain whose tag is given by loadPatternTag. If {_DEBUG} is defines, checks to see that corresponding element exists in the domain. A pointer to the LoadPattern is obtained from the LoadPattern container and the load is added to LoadPattern by invoking {addElementalLoad(theLd)} on the LoadPattern object. The domain is responsible for invoking {setDomain(this)} on the load. The call returns true if the load was added, otherwise a warning is raised and and {false} is returned.

Parameters

load	load over element.
pattern	load pattern identifier.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ addLoadPattern()

bool XC::Domain::addLoadPattern ( LoadPattern * load )

virtual

Appends the load pattern to the domain.

To add the LoadPattern thePattern to the domain. The load is added to domain by the domain invoking {addComponent(theLd)} on the container for the LoadPatterns. The domain is responsible for invoking {setDomain(this)} on the load. The call returns true if the load was added, otherwise a warning is raised and false is returned.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ addMFreedom_Constraint()

bool XC::Domain::addMFreedom_Constraint ( MFreedom_Constraint * mpConstraint )

virtual

Adds to the domain a multi-freedom constraint.

To add the multiple point constraint pointed to by theMPptr, to the domain. In addition the domain always checks to ensure that no other MP_Constraint with a similar tag exists in the domain. If the checks are successful, the constraint is added to domain by the domain invoking {addComponent(theMPptr)} on the container for the MP_Constraints. The domain then invokes {setDomain(this)} on the constraint and domainChange() on itself. The call returns {true} if the constraint was added, otherwise a warning is raised and false is returned.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ addNodalLoad()

bool XC::Domain::addNodalLoad	(	NodalLoad *	load,
		int	pattern
	)

virtual

Appends a nodal load to the pattern being passed as parameter.

To add the nodal load theld to the LoadPattern in the domain whose tag is given by loadPatternTag. If {_DEBUG} is defines, checks to see that corresponding node exists in the domain. A pointer to the LoadPattern is obtained from the LoadPattern container and the load is added to LoadPattern by invoking {addNodalLoad(theLd)} on the LoadPattern object. The domain is responsible for invoking {setDomain(this)} on the load. The call returns true if the load was added, a warning is raised and and {false} is returned.

Parameters

load	load over node.
pattern	load pattern identifier.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ addRecorder()

int XC::Domain::addRecorder ( Recorder & theRecorder )

virtual

Adds a recorder to the model.

To add a recorder object theRecorder to the domain. {record(commitTag)} is invoked on each commit(). The pointers to the recorders are stored in an array which is resized on each invocation of this method.

Reimplemented from XC::ObjWithRecorders.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ addSFreedom_Constraint()

bool XC::Domain::addSFreedom_Constraint ( SFreedom_Constraint * spConstraint )

virtual

Adds a single freedom constraint to the domain.

To add the single point constraint pointed to by spConstraint to the domain. In addition the container always checks to ensure that no other constraint with a similar tag exists in the domain. The domain then invokes setDomain(this) on the constraint and domainChange() on itself.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ applyLoad()

void XC::Domain::applyLoad ( double timeStep )

virtual

Apply the loads for the given time pseudoTime.

To apply the loads for the given time pseudoTime. The domain first clears the current load at all nodes and elements, done by invoking zeroUnbalancedLoad()} on each node and {zeroLoad() on each element. The domain then invokes {applyLoad(pseudoTime)} on all LoadPatterns which have been added to the domain. The domain will then invoke {applyConstraint(pseudoTime)} on all the constraints in the single and multi point constraint containers. Finally the domain sets its current time to be {pseudoTime}.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ buildEleGraph()

int XC::Domain::buildEleGraph ( Graph & theEleGraph )

protectedvirtual

Builds the element graph.

A method which will cause the domain to discard the current element graph and build a new one based on the element connectivity. Returns \(0\) if successful otherwise \(-1\) is returned along with an error message.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ buildNodeGraph()

int XC::Domain::buildNodeGraph ( Graph & theNodeGraph )

protectedvirtual

Builds the node graph.

A method which will cause the domain to discard the current node graph and build a new one based on the node connectivity. Returns \(0\) if successful otherwise \(-1\) is returned along with an error message.

Reimplemented in XC::ShadowSubdomain.

§ clearAll()

void XC::Domain::clearAll ( void )

virtual

Removes all components from domain (nodes, elements, loads & constraints).

To remove all the components from the model and invoke the destructor on these objects. First clearAll() is invoked on all the LoadPattern objects. Then the domain object invokes {clearAll()} on its container objects. In addition the destructor for each Recorder object that has been added to the domain is invoked. In addition the current time and load factor are set to \(0\), and the box bounding the domain is set to the box enclosing the origin.

GENERAL NOTE ON REMOVAL OF COMPONENTS: downward casts (while bad) are o.k. as only the type of components can be added to the storage objects, e.g. only elements can be added to theElements therefore casting a DomainComponent from theElements to an Element is o.k.

Reimplemented in XC::ShadowSubdomain, XC::Subdomain, and XC::PartitionedDomain.

§ commit()

int XC::Domain::commit ( void )

virtual

Commits domain state and triggers "record" method for all defined recorders.

To commit the state of the domain , that is to accept the current state as being ion the solution path. The domain invokes {commit()} on all nodes in the domain and then {commit()} on all elements of the domain. These are calls for the nodes and elements to set there committed state as given by their current state. The domain will then set its committed time variable to be equal to the current time and lastly increments its commit tag by \(1\).

Reimplemented in XC::ShadowSubdomain, XC::Subdomain, and XC::PartitionedDomain.

§ domainChange()

void XC::Domain::domainChange ( void )

virtual

Sets a flag indicating that the integer returned in the next call to hasDomainChanged() must be incremented by \(1\).

Sets a flag indicating that the integer returned in the next call to hasDomainChanged() must be incremented by \(1\). This method is invoked whenever a Node, Element or Constraint object is added to the domain.

Reimplemented in XC::ShadowSubdomain.

§ existElement()

bool XC::Domain::existElement ( int tag )

Returns true if the element identified by the tag being passed as parameter already exists en el domain.

§ existNode()

bool XC::Domain::existNode ( int tag )

Return true if the mesh has a node with this tag.

Parameters

tag	node identifier.

§ getDbTagData()

XC::DbTagData & XC::Domain::getDbTagData ( void ) const

protectedvirtual

Returns a vector to store the dbTags de los miembros of the clase.

Reimplemented from XC::DistributedBase.

§ getElement() [1/2]

XC::Element * XC::Domain::getElement ( int tag )

virtual

Return a pointer to the element identified by the argument.

Parameters

tag	element identifier.

Reimplemented in XC::PartitionedDomain.

§ getElement() [2/2]

const XC::Element * XC::Domain::getElement ( int tag ) const

virtual

Returns a const pointer to the element identified by the argument.

Parameters

tag	element identifier.

§ getElementGraph()

XC::Graph & XC::Domain::getElementGraph ( void )

virtual

Builds (if necessary) the domain elements graph and returns a reference to it.

Return the current element graph (the connectivity of the elements in the mesh). If the eleChangeFlag has been set to true the method will invoke {buildEleGraph(theEleGraph)} on itself before returning the graph. The vertices in the element graph are to be labeled \(0\) through \(numEle-1\). The vertices references contain the elemental tags.

Reimplemented in XC::ShadowSubdomain.

§ getNode() [1/2]

XC::Node * XC::Domain::getNode ( int tag )

virtual

Return a pointer to the node identified by the argument.

Parameters

tag	node identifier.

Reimplemented in XC::Subdomain.

§ getNode() [2/2]

const XC::Node * XC::Domain::getNode ( int tag ) const

virtual

Return a pointer to the node identified by the argument.

Parameters

tag	node identifier.

Reimplemented in XC::Subdomain.

§ getNodeDisp()

double XC::Domain::getNodeDisp	(	int	nodeTag,
		int	dof,
		int &	errorFlag
	)

virtual

Return the value of the dof component of displacement for the node with the tag being passed as parameter.

Parameters

nodeTag	node identifier.
dof	component of the displacement.
errorFlag	error indicator.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ getNodeGraph()

XC::Graph & XC::Domain::getNodeGraph ( void )

virtual

Builds (if necessary) the domain node graph and returns a reference to it.

Return the current node graph (the connectivity of the nodes in the mesh). If the nodeChangeFlag has been set to true the will invoke {buildNodeGraph(theNodeGraph)} on itself before returning the graph. The vertices in the node graph are to be labeled \(0\) through \(numNode-1\). The Vertices references contain the nodal tags.

Reimplemented in XC::ShadowSubdomain.

§ getPhysicalBounds()

const XC::Vector & XC::Domain::getPhysicalBounds ( void )

virtual

This information is built up as nodes are added to the domain, initially all are set to \(0\) in the constructor.

§ hasDomainChanged()

int XC::Domain::hasDomainChanged ( void )

virtual

Returns true if the model has changed.

To return an integer stamp indicating the state of the domain. Initially \(0\), this integer is incremented by \(1\) if {domainChange()} has been invoked since the last invocation of the method. If the domain has changed it marks the element and node graph flags as not having been built.

§ Print()

void XC::Domain::Print	(	std::ostream &	s,
		int	flag = `0`
	)

virtual

Print stuff.

To print the state of the domain. The domain invokes {Print(s,flag)} on all it's container objects.

Reimplemented in XC::ShadowSubdomain, XC::Subdomain, and XC::PartitionedDomain.

§ removeElementalLoad()

bool XC::Domain::removeElementalLoad	(	int	elemLoadTag,
		int	loadPattern
	)

virtual

Removes from domain the elemental load being passed as parameter.

Parameters

elemLoadTag	Identifier of the load over elements to remove.
loadPattern	Load pattern identifier.

Reimplemented in XC::ShadowSubdomain.

§ removeLoadCombination()

void XC::Domain::removeLoadCombination ( LoadCombination * comb )

Removes from the domain the load combination being passed as parameter.

§ removeLoadPattern()

bool XC::Domain::removeLoadPattern ( int tag )

virtual

Remove from domain el load pattern identified by the argument.

To remove the LoadPattern whose tag is given by tag from the domain. The domain achieves this by invoking {removeComponent(tag, numSPs)} on the container for the constraints. If the LoadPattern exists, the domain then iterates through the loads and constraints of the LoadPattern invoking {setDomain(nullptr)} on these objects. Returns \(0\) if the load was not in the domain, otherwise returns a pointer to the load that was removed. Invokes {setDomain(0)} on the load case before it is returned.

Parameters

tag	identifier of the load pattern.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ removeMFreedom_Constraint()

bool XC::Domain::removeMFreedom_Constraint ( int tag )

virtual

Removes from domain the multi-freedom constraint identified by the argument.

To remove the MP_Constraint whose tag is given by tag from the domain. The domain achieves this by invoking {removeComponent(tag)} on the container for the multi point constraints. Returns \(0\) if the constraint was not in the domain, otherwise the domain invokes {setDomain(nullptr)} on the constraint and domainChange() on itself before a pointer to the constraint is returned.

Parameters

tag	identifier of the constraint.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ removeMRMFreedom_Constraint()

bool XC::Domain::removeMRMFreedom_Constraint ( int tag )

virtual

Removes from domain the multi-freedom multi-retained node constraint identified by the argument.

Parameters

tag	identifier of the constraint.

§ removeNodalLoad()

bool XC::Domain::removeNodalLoad	(	int	nodalLoadTag,
		int	loadPattern
	)

virtual

Removes from domain the nodal load being passed as parameter.

Parameters

nodalLoadTag	Nodal load identifier.
loadPattern	Load pattern identifier.

Reimplemented in XC::ShadowSubdomain.

§ removeSFreedom_Constraint() [1/3]

bool XC::Domain::removeSFreedom_Constraint	(	int	theNode,
		int	theDOF,
		int	loadPatternTag
	)

virtual

Remove the single freedom constraint from the load pattern identified by the argument.

To remove the SFreedom_Constraint whose tag is given by tag from the domain. The domain achieves this by invoking {removeComponent(tag)} on the container for the single point constraints. Returns \(0\) if the constraint was not in the domain, otherwise the domain invokes {setDomain(nullptr)} on the constraint and domainChange() on itself before a pointer to the constraint is returned. Note this will only remove SFreedom_Constraints which have been added to the domain and not directly to LoadPatterns.

Parameters

theNode	node identifier.
theDOF	degree of freedom identifier.
loadPatternTag	load pattern identifier (if -1 then remove from domain).

§ removeSFreedom_Constraint() [2/3]

bool XC::Domain::removeSFreedom_Constraint ( int tag )

virtual

Removes from domain the single freedom constraint identified by the argument.

Parameters

tag	identifier of the single freedom constraint.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ removeSFreedom_Constraint() [3/3]

bool XC::Domain::removeSFreedom_Constraint	(	int	singleFreedomTag,
		int	loadPattern
	)

virtual

Removes from domain the single freedom constraint being passed as parameter.

Parameters

singleFreedomTag	Single freedom identifier.
loadPattern	Load pattern identifier.

Reimplemented in XC::ShadowSubdomain.

§ revertToLastCommit()

int XC::Domain::revertToLastCommit ( void )

virtual

Return the domain to its last commited state.

To return the domain to the state it was in at the last commit. The domain invokes revertToLastCommit() on all nodes and elements in the domain. The domain sets its current loadFactor and time stamp to be equal to the last committed values. The domain decrements the current commitTag by \(1\). Finally it invokes applyLoad() on itself with the current time.

Reimplemented in XC::ShadowSubdomain, XC::Subdomain, and XC::PartitionedDomain.

§ revertToStart()

int XC::Domain::revertToStart ( void )

virtual

Return the domain to its initial state and triggers the "restart" method for all the recorders.

Reimplemented in XC::ShadowSubdomain, XC::Subdomain, and XC::PartitionedDomain.

§ setDomainChangeStamp()

void XC::Domain::setDomainChangeStamp ( int newStamp )

virtual

Set the domain stamp to be newStamp.

Domain stamp is the integer returned by hasDomainChanged().

§ setLoadConstant()

void XC::Domain::setLoadConstant ( void )

virtual

Set all the loads as constant.

To set the loads in the LoadPatterns to be constant. The domain achieves this by invoking setLoadConstant() on all the LoadPatterns which have been added to the domain. Note that LoadPatterns added after this method has been invoked will not be constant until this method is invoked again.

Reimplemented in XC::ShadowSubdomain, and XC::PartitionedDomain.

§ update()

int XC::Domain::update ( void )

virtual

Updates the state of the domain.

Called by the AnalysisModel to update the state of the domain. Iterates over all the elements of the Domain and invokes {update()}.

Reimplemented in XC::ShadowSubdomain, XC::Subdomain, XC::PartitionedDomain, and XC::ActorSubdomain.

The documentation for this class was generated from the following files:

src/domain/domain/Domain.h
src/domain/domain/Domain.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ Domain() [1/2]

§ Domain() [2/2]

§ ~Domain()

Member Function Documentation

§ addElementalLoad()

§ addLoadPattern()

§ addMFreedom_Constraint()

§ addNodalLoad()

§ addRecorder()

§ addSFreedom_Constraint()

§ applyLoad()

§ buildEleGraph()

§ buildNodeGraph()

§ clearAll()

§ commit()

§ domainChange()

§ existElement()

§ existNode()

§ getDbTagData()

§ getElement() [1/2]

§ getElement() [2/2]

§ getElementGraph()

§ getNode() [1/2]

§ getNode() [2/2]

§ getNodeDisp()

§ getNodeGraph()

§ getPhysicalBounds()

§ hasDomainChanged()

§ Print()

§ removeElementalLoad()

§ removeLoadCombination()

§ removeLoadPattern()

§ removeMFreedom_Constraint()

§ removeMRMFreedom_Constraint()

§ removeNodalLoad()

§ removeSFreedom_Constraint() [1/3]

§ removeSFreedom_Constraint() [2/3]

§ removeSFreedom_Constraint() [3/3]

§ revertToLastCommit()

§ revertToStart()

§ setDomainChangeStamp()

§ setLoadConstant()

§ update()
