XC::ElementalLoad Class Reference

Base class for loads over elements. More...

#include <ElementalLoad.h>

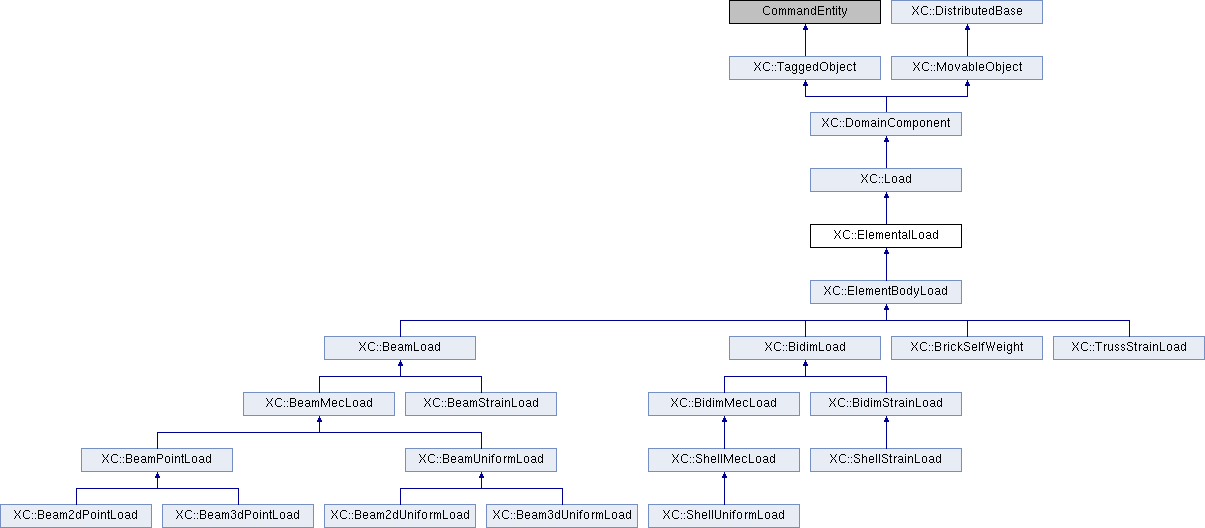

Inheritance diagram for XC::ElementalLoad:

Public Member Functions
	ElementalLoad (int tag=0, int classTag=0)
	Constructor. More...
	ElementalLoad (int tag, int classTag, const ID &)
	Constructor. More...
int	numElements (void) const
	Return the number of loaded elements.
int	setElementTags (const ID &theEleTags)
	Sets the identifiers of the loaded elements.
virtual const ID &	getElementTags (void) const
	Return the identifiers of the loaded elements.
virtual const Vector &	getData (int &type, const double &loadFactor) const =0
virtual const Vector &	getSensitivityData (const int &gradIndex) const
Public Member Functions inherited from XC::Load
	Load (int tag, int classTag)
	Constructor. More...
virtual void	applyLoad (double loadfactor)=0
	The load object is to add loadFactor times the load to the corresponding residual value at its associated element(s) or node(s). More...
virtual void	setLoadPatternTag (int loadPaternTag)
	Sets the identifier of the pattern to which the load belongs.
virtual int	getLoadPatternTag (void) const
	Return the identifier of the pattern to which the load belongs. More...
Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.
size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).
virtual void	setDomain (Domain *theDomain)
	Sets the pointer to the domain. More...
virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...
const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.
Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.
void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...
virtual TaggedObject *	getCopy (void) const
	Virtual constructor.
void	assignTag (int newTag)
	Set tag (to be called from Python interface).
int	getTag (void) const
	Returns the tag associated with the object.
virtual void	Print (std::ostream &, int flag=0)
	Print stuff.
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...
	MovableObject (int classTag)
	Constructor. More...
	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.
MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.
int	getClassTag (void) const
	Return the class identifier.
int	getDbTag (void) const
	Return the object identifier in the database.
int	getDbTag (CommParameters &)
	Return the object identifier in the database.
void	setDbTag (int dbTag)
	Sets the object identifier in the database.
void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...
virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...
virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value param to the parameter argv.
virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by parameterID with info.
virtual int	activateParameter (int parameterID)
	Activates the parameter identified by parameterID.
virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by var.
virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by var.
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.
int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.
Protected Member Functions inherited from XC::Load
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.
int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.
Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
ID	elemTags
	Tags of loaded elements.

Detailed Description

Base class for loads over elements.

The ElementalLoad class provides the interface that all ElementalLoad writers must provide when introducing new ElementalLoad classes.

Constructor & Destructor Documentation

ElementalLoad() [1/2]

XC::ElementalLoad::ElementalLoad	(	int	tag = 0,
		int	classTag = 0
	)

Constructor.

Parameters

tag	elemental load identifier.
classTag	identifier of the class.

ElementalLoad() [2/2]

XC::ElementalLoad::ElementalLoad	(	int	tag,
		int	classTag,
		const ID &	tags_elems
	)

Constructor.

Parameters

tag	elemental load identifier.
classTag	identifier of the class.
tags_elems	identifiers of the loaded elements.

---

The documentation for this class was generated from the following files:

• src/domain/load/ElementalLoad.h
• src/domain/load/ElementalLoad.cpp
