A EnvelopeRecorder is used to record the envelop of specified DOF responses at a collection of nodes over an analysis. More...

#include <EnvelopeNodeRecorder.h>

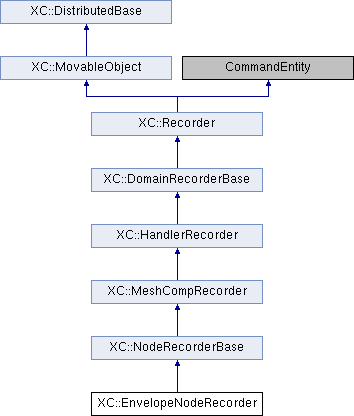

Inheritance diagram for XC::EnvelopeNodeRecorder:

Public Member Functions
	EnvelopeNodeRecorder (const ID &theDof, const ID &theNodes, const char *dataToStore, Domain &theDomain, DataOutputHandler &theOutputHandler, double deltaT=0.0, bool echoTimeFlag=false)

int	record (int commitTag, double timeStamp)
	Invoked by the Domain object after commit() has been invoked on all the domain component objects. More...

int	restart (void)
	Invoked by the Domain object when revertToStart() is invoked on the Domain object. More...

int	sendSelf (CommParameters &)
	Send the object a través del communicator que being passed as parameter. More...

int	recvSelf (const CommParameters &)
	Receive the object a través del communicator que being passed as parameter. More...

Public Member Functions inherited from XC::NodeRecorderBase
	NodeRecorderBase (int classTag)

	NodeRecorderBase (int classTag, const ID &theDof, const ID &theNodes, Domain &theDomain, DataOutputHandler &theOutputHandler, double deltaT=0.0, bool echoTimeFlag=true)

Public Member Functions inherited from XC::MeshCompRecorder
	MeshCompRecorder (int classTag)

	MeshCompRecorder (int classTag, Domain &theDomain, DataOutputHandler &theOutputHandler, double deltaT=0.0, bool echoTimeFlag=true)

Public Member Functions inherited from XC::HandlerRecorder
	HandlerRecorder (int classTag)

	HandlerRecorder (int classTag, Domain &theDomain, DataOutputHandler &theOutputHandler, bool timeFlag)

void	SetOutputHandler (DataOutputHandler *tH)
	Sets de data output handler.

Public Member Functions inherited from XC::DomainRecorderBase
	DomainRecorderBase (int classTag, Domain *ptr_dom=nullptr)
	Constructor. More...

int	setDomain (Domain &theDomain)
	Set the link with the domain.

Domain *	getDomain (void)

Public Member Functions inherited from XC::Recorder
	Recorder (int classTag)

virtual int	playback (int commitTag)
	//! Invoked by the analyst after the analysis has been performed. More...

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send the object a través del communicator que being passed as parameter. More...

int	receiveData (const CommParameters &)
	Receive the object a través del communicator que being passed as parameter. More...

Protected Member Functions inherited from XC::NodeRecorderBase
int	sendData (CommParameters &)
	Send the object a través del communicator que being passed as parameter. More...

int	receiveData (const CommParameters &)
	Receive the object a través del communicator que being passed as parameter. More...

Protected Member Functions inherited from XC::MeshCompRecorder
int	sendData (CommParameters &)
	Send the object mediante el communicator being passed as parameter. More...

int	receiveData (const CommParameters &)
	Receives object through the communicator being passed as parameter.

Protected Member Functions inherited from XC::HandlerRecorder
int	sendData (CommParameters &)
	Sends objet through the communicator being passed as parameter.

int	receiveData (const CommParameters &)
	Receives objet through the communicator being passed as parameter.

Additional Inherited Members
Protected Attributes inherited from XC::NodeRecorderBase
ID *	theDofs
	DOFs identifiers.

ID *	theNodalTags
	??

std::vector< Node * >	theNodes
	Pointer to nodes.

int	dataFlag
	flag indicating what it is to be stored in recorder.

int	numValidNodes

Protected Attributes inherited from XC::MeshCompRecorder
double	deltaT

double	nextTimeStampToRecord

Protected Attributes inherited from XC::HandlerRecorder
DataOutputHandler *	theHandler
	Output handler (TO DEPRECATE).

bool	initializationDone

bool	echoTimeFlag

Protected Attributes inherited from XC::DomainRecorderBase
Domain *	theDomain

Detailed Description

A EnvelopeRecorder is used to record the envelop of specified DOF responses at a collection of nodes over an analysis.

(between commitTag of 0 and last commitTag).

Member Function Documentation

§ receiveData()

int XC::EnvelopeNodeRecorder::receiveData ( const CommParameters & cp )

protected

Receive the object a través del communicator que being passed as parameter.

§ record()

int XC::EnvelopeNodeRecorder::record	(	int	commitTag,
		double	timeStamp
	)

virtual

Invoked by the Domain object after commit() has been invoked on all the domain component objects.

What the Recorder records depends on the concrete subtype.

Implements XC::Recorder.

§ recvSelf()

int XC::EnvelopeNodeRecorder::recvSelf ( const CommParameters & cp )

virtual

Receive the object a través del communicator que being passed as parameter.

Reimplemented from XC::Recorder.

§ restart()

int XC::EnvelopeNodeRecorder::restart ( void )

virtual

Invoked by the Domain object when revertToStart() is invoked on the Domain object.

What the Recorder does depends on the concrete subtype.

Reimplemented from XC::Recorder.

§ sendData()

int XC::EnvelopeNodeRecorder::sendData ( CommParameters & cp )

protected

Send the object a través del communicator que being passed as parameter.

§ sendSelf()

int XC::EnvelopeNodeRecorder::sendSelf ( CommParameters & cp )

virtual

Send the object a través del communicator que being passed as parameter.

Reimplemented from XC::Recorder.

The documentation for this class was generated from the following files:

src/utility/recorder/EnvelopeNodeRecorder.h
src/utility/recorder/EnvelopeNodeRecorder.cpp
